Bosch 1346 A

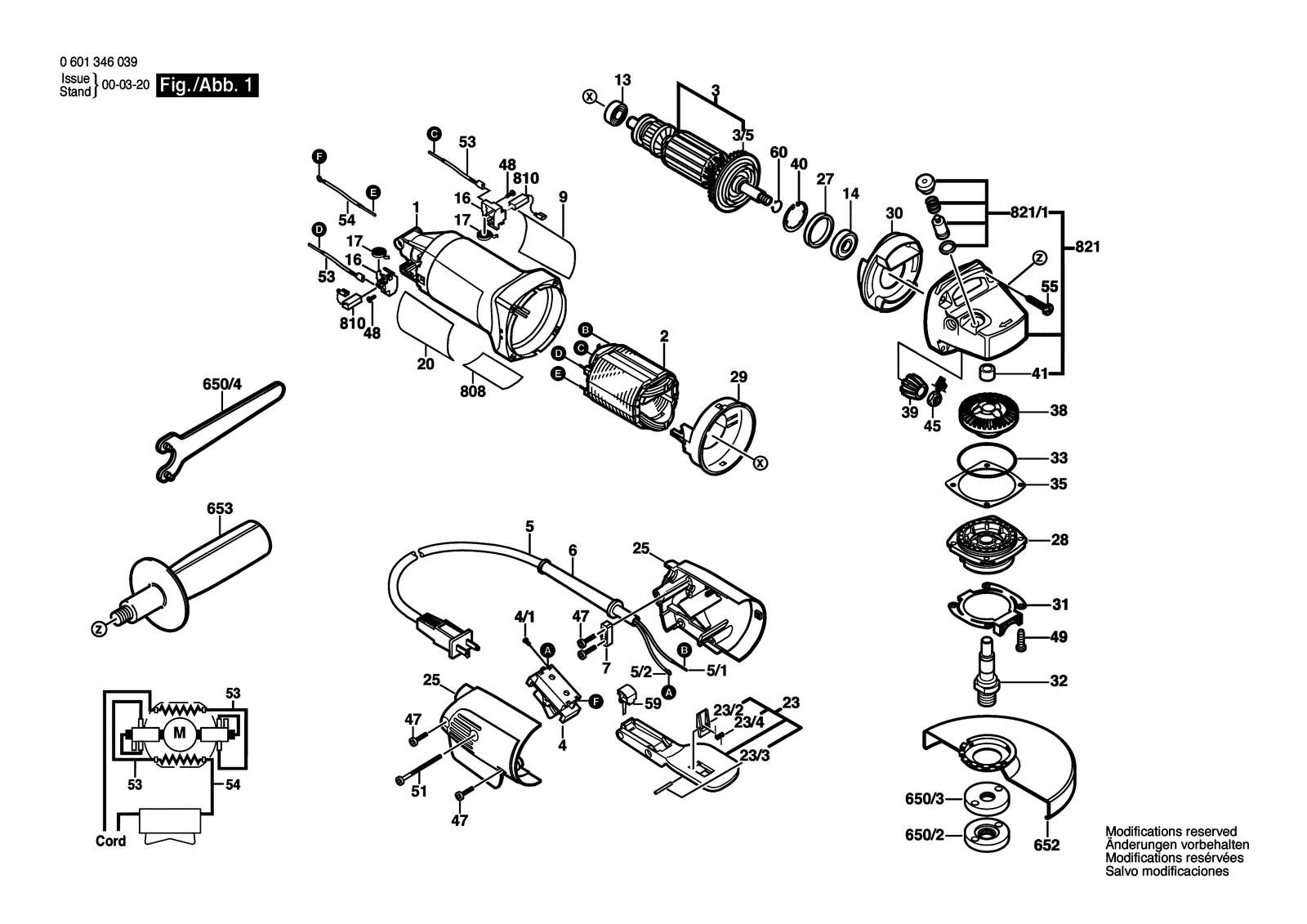

Bosch 1346 A angle grinder: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1346 A: 55 positions on 1 sheet
Bosch 1346 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610911076 | Motor Housing |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1619P01511 | Ball Bearing |
| 16 | 1601323023 | Brush Holder With Disconnecting Device |
| 17 | 1604652013 | Spiral Spring |
| 2 | 2610990002 | Packaging Instructions 120V |
| 20 | 2610968267 | Packaging Instructions |
| 23 | 2610994469 | Lever |
| 23/2 | 2610911075 | Warning Label |
| 23/3 | 2917760021 | Slotted Spring Pin |
| 23/4 | 2610990012 | Torsion Spring |
| 25 | 2610911078 | Housing Cover |
| 27 | 1600206025 | Rubber Ring |
| 28 | 1605805079 | Bearing Flange Black |
| 29 | 2610911080 | Front Panel |
| 3 | 2610990001 | Packaging Instructions 120V |
| 3/5 | 2610911079 | Cable strain relief rail |
| 30 | 1600591014 | Air-Deflector Ring |
| 31 | 1601290007 | Clamping Spring |
| 32 | 1607000D6B | Grinding Spindle |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 38 | 1606333616 | Crown Gear Z=38 |
| 39 | 1606333617 | Bevel Gear Z=11 |
| 4 | 2610994467 | Dummy |
| 4/1 | 2610991349 | Packaging Instructions |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2610990024 | Screw |
| 48 | 2610990022 | Screw |
| 49 | 2610990004 | Thread-forming tap. Screw |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5/1 | 2601355008 | Blade terminal |
| 5/2 | 3601353500 | Connecting terminal |
| 51 | 2610990010 | Packaging Instructions |
| 53 | 2610990005 | Connecting Cable 95 MM |
| 54 | 2610990006 | Packaging Instructions 100 MM |
| 55 | 2610990007 | Packaging Instructions |
| 59 | 2610911074 | Nameplate |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 2916640005 | Spring retaining ring DIN 471-8X0,8 Fst |
| 650/2 | 2610910341 | Flange 5/8"-11 |
| 650/3 | 2610992248 | Flange 5/8"-11 |
| 650/4 | 1607950052 | Pin-Type Face-Wrench |
| 652 | 1605510230 | Protective Cover Ø 115 MM |
| 653 | 1602025027 | Auxiliary Handle M10 |
| 7 | 2601035001 | Cable Clip |
| 808 | 3601119595 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 821 | 2610990017 | Gear Housing |
| 821/1 | 1607000253 | Push-Button Black |
| 9 | 2610968266 | Packaging Instructions |
