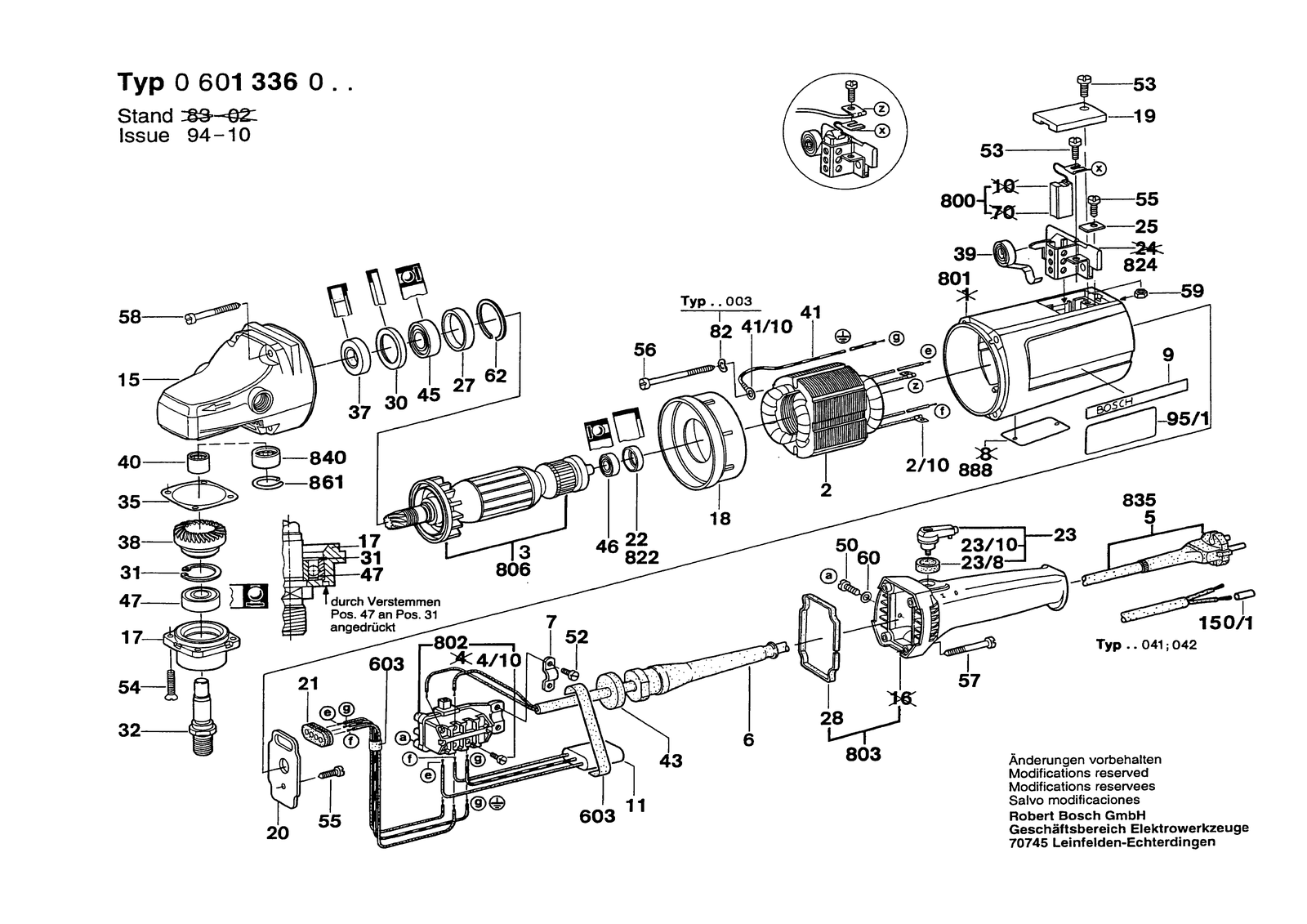

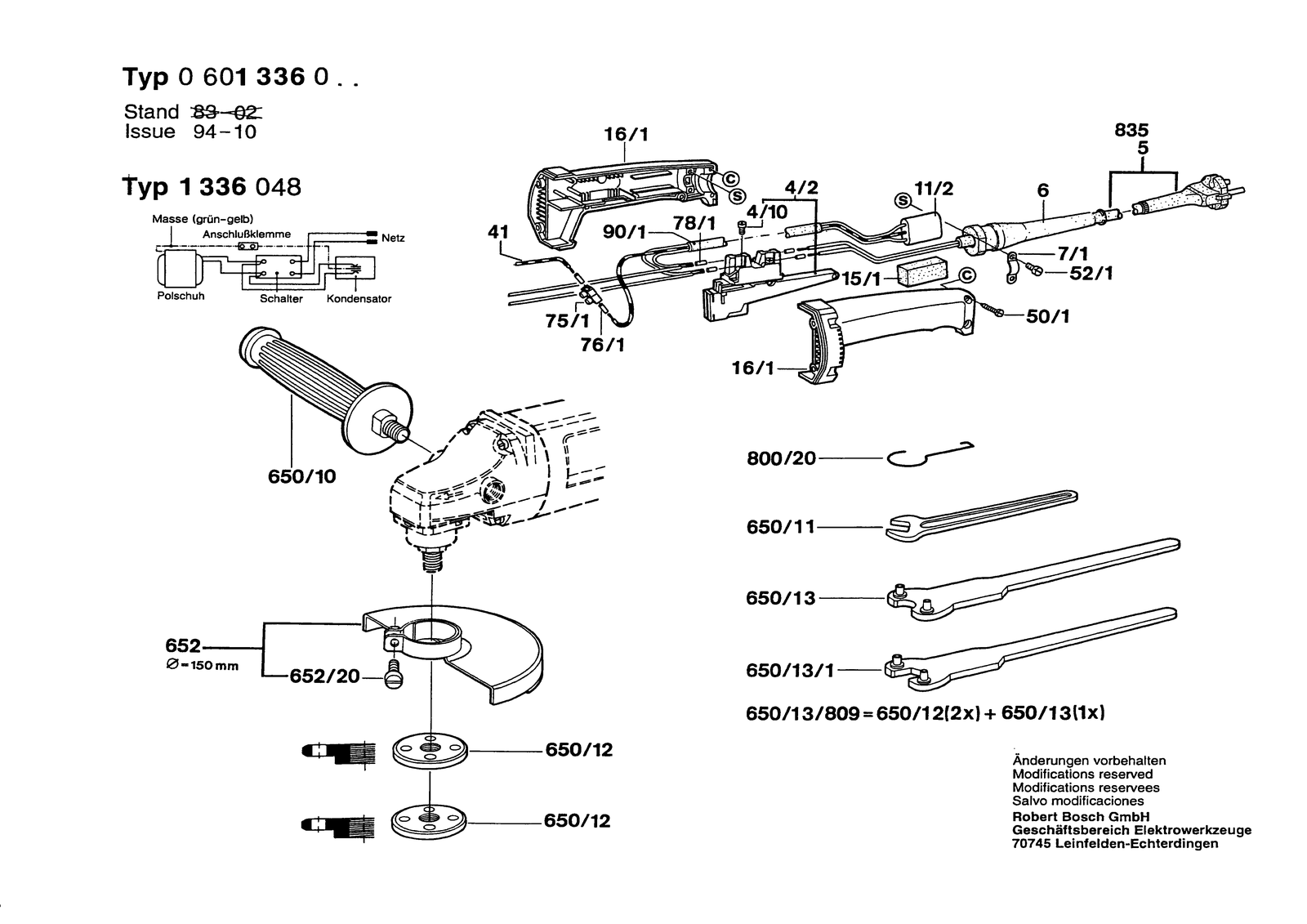

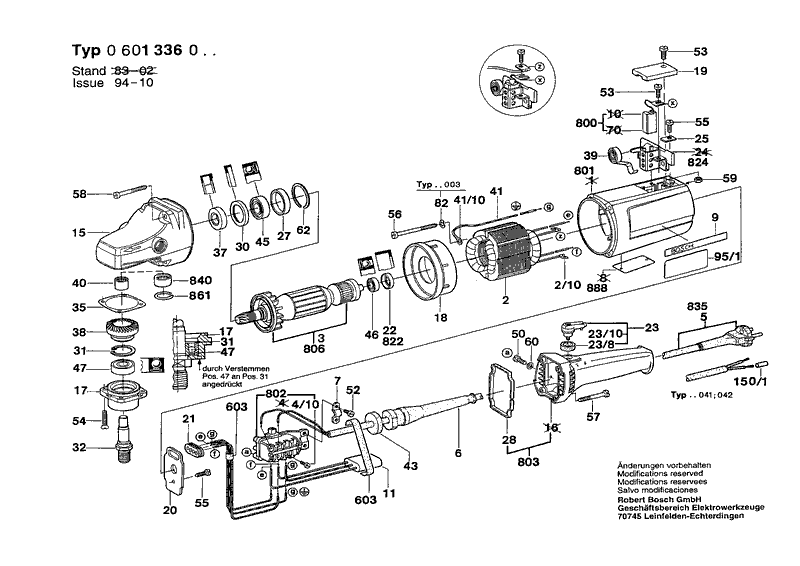

Bosch 1336 angle grinder: exploded parts diagram, 2 sheets, 151 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1336: 151 positions on 2 sheets
Bosch 1336 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1607328034 | Suppression Filter |
| 15 | 1605806360 | Gear Housing |
| 15 | 1605806360 | Gear Housing |
| 150/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 17 | 1605805054 | Bearing Flange |
| 17 | 1605805054 | Bearing Flange |
| 18 | 1600502012 | Air-Deflector Ring |
| 18 | 1600502012 | Air-Deflector Ring |
| 19 | 1605500127 | Sealing cap |
| 19 | 1605500129 | Sealing cap |
| 2 | 1604220134 | Field 220V |
| 2 | 1604220136 | Field 100-110V |
| 2 | 1604220137 | Field 115V |
| 2 | 1604220138 | Field 240V |
| 2 | 1604220147 | Field 220V |
| 2 | 1604220137 | Field 115V |
| 2/10 | 1901350003 | Terminal lug 1,5-4X4 |
| 2/10 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1601037007 | Cover Plate |
| 20 | 1601037007 | Cover Plate |
| 21 | 1600306001 | Grommet |
| 22 | 1600502018 | Intermediate Ring |
| 22 | 1600502018 | Intermediate Ring |
| 23 | 1602026030 | Control Lever |
| 23 | 1602026030 | Control Lever |
| 23/8 | 1600205008 | Felt Washer |
| 23/8 | 1600205008 | Felt Washer |
| 25 | 1601030022 | Tab Washer |
| 25 | 1601030022 | Tab Washer |
| 27 | 1600206018 | Intermediate Ring |
| 27 | 1600206018 | Intermediate Ring |
| 28 | 1601014000 | Sealing Cord |
| 28 | 1601014000 | Sealing Cord |
| 3 | 1604010162 | Armature 220V |
| 3 | 1604010163 | Armature 100-110V |
| 3 | 1604010164 | Armature 115V |
| 3 | 1604010165 | Armature 240V |
| 3 | 1604010164 | Armature 115V |
| 30 | 1600500022 | Spacer Bushing |
| 30 | 1600500022 | Spacer Bushing |
| 31 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 31 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 32 | 1603523086 | Grinding Spindle M14 |
| 32 | 1603523086 | Grinding Spindle M14 |
| 35 | 2600136002 | Shim 0,1 MM |
| 35 | 2600136003 | Shim 0,2 MM |
| 35 | 2600136002 | Shim 0,1 MM |
| 35 | 2600136003 | Shim 0,2 MM |
| 37 | 1600290011 | Rotary shaft lip seal |
| 37 | 1600290011 | Rotary shaft lip seal |
| 38 | 1606333182 | Crown Gear Z=33 |
| 38 | 1606333182 | Crown Gear Z=33 |
| 39 | 1604652006 | Spiral Spring |
| 39 | 1604652006 | Spiral Spring |
| 4 | 1607000034 | Switch Kit |
| 4/10 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 4/10 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 4/2 | 1607200074 | Switch |
| 40 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 40 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 41 | 1604440008 | Elec. Cable W/Connection L=260 MM |
| 41/10 | 1601353003 | Terminal lug |
| 43 | 1600113013 | Seal |
| 43 | 1600113013 | Seal |
| 45 | 1600905004 | Groove ball bearing 15X32X9 |
| 45 | 1600905004 | Groove ball bearing 15X32X9 |
| 46 | 2600905032 | Ball Bearing 7X19X6 |
| 46 | 2600905032 | Ball Bearing 7X19X6 |
| 47 | 1600905006 | Groove ball bearing 12X32X10 |
| 47 | 1600905006 | Groove ball bearing 12X32X10 |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460121 | Power supply cord |
| 5 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 5 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 5 | 1614460010 | Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2 |
| 5 | 3604460049 | Power supply cord |
| 50 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 50 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 50/1 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 52 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 52 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 52/1 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 53 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 53 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 54 | 2910771126 | Countersunk-Head Screw M 4X16 DIN 963-5.8 |
| 54 | 2910771126 | Countersunk-Head Screw M 4X16 DIN 963-5.8 |
| 55 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 55 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 56 | 1603435005 | Tapping Screw B4,8X65 MM |
| 56 | 1603435005 | Tapping Screw B4,8X65 MM |
| 57 | 2910211038 | Tapping Screw DIN 7971-ST4,8X38-F |
| 57 | 2910211038 | Tapping Screw DIN 7971-ST4,8X38-F |
| 58 | 3603415560 | Screw B 4,8X45 MM |
| 58 | 3603415560 | Screw B 4,8X45 MM |
| 59 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 59 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 60 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 62 | 1600116006 | Retaining ring |
| 62 | 1600116006 | Retaining ring |
| 650/10 | 160202509Z | Auxiliary Handle |
| 650/10 | 16020250A1 | Auxiliary Handle |
| 650/10 | 160202509Z | Auxiliary Handle |
| 650/10 | 16020250A1 | Auxiliary Handle |
| 650/11 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 650/11 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 650/12 | 1603340015 | Round Nut M14 |
| 650/12 | 1603340015 | Round Nut M14 |
| 650/13 | 1607950052 | Pin-Type Face-Wrench |
| 650/13 | 1607950052 | Pin-Type Face-Wrench |
| 650/13/1 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 652 | 1605510105 | Protective Cover Ø 150 MM |
| 652 | 1605510117 | Protective Cover Ø 125 MM (5") |
| 652/20 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 7 | 1601302013 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 7/1 | 1601302014 | Fastening Clamp |
| 75/1 | 1601091009 | Socket-Terminal Strip |
| 76/1 | 3604477008 | End Splice |
| 78/1 | 1600452001 | End Splice |
| 800 | 1607014126 | Carbon-Brush Set |
| 800 | 1607014126 | Carbon-Brush Set |
| 801 | 1607000145 | Parts Set |
| 801 | 1607000145 | Parts Set |
| 802 | 1607000034 | Switch Kit |
| 802 | 1607200064 | Switch |
| 803 | 3605132048 | Handle Dark Blue |
| 803 | 3605132054 | Handle Black |
| 803 | 3605132054 | Handle Black |
| 806 | 1604010166 | Armature 115V |
| 82 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 822 | 1600502011 | Intermediate Ring |
| 822 | 1600502020 | Rubber Bushing |
| 824 | 1604336017 | Brush Holder |
| 824 | 1604336017 | Brush Holder |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 840 | 1600910009 | Needle bearing Ø 17 MM |
| 840 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 861 | 1604601022 | Retaining ring Ø18,4 MM |
| 861 | 2916620011 | Retaining ring Ø22 MM |
| 888 | 160111A3H3 | Nameplate |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110046 | Sticker |
| 9 | 1601110046 | Sticker |
| 90/1 | 1600712026 | PVC Hose |
| 95/1 | 1601110265 | Reference Plate |
| 95/1 | 1601110058 | Reference Plate Double Insulation |
