Bosch 1334.4

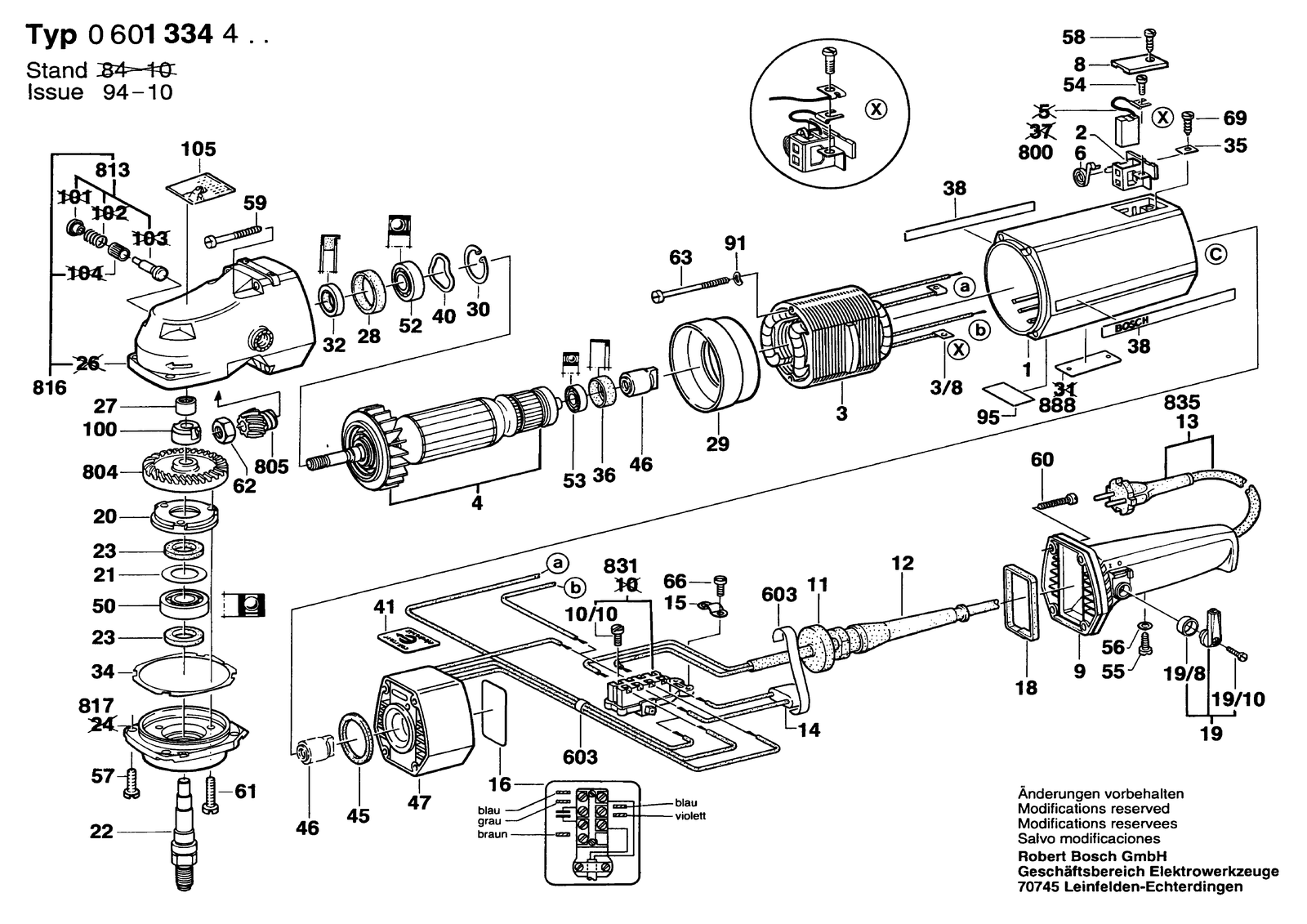

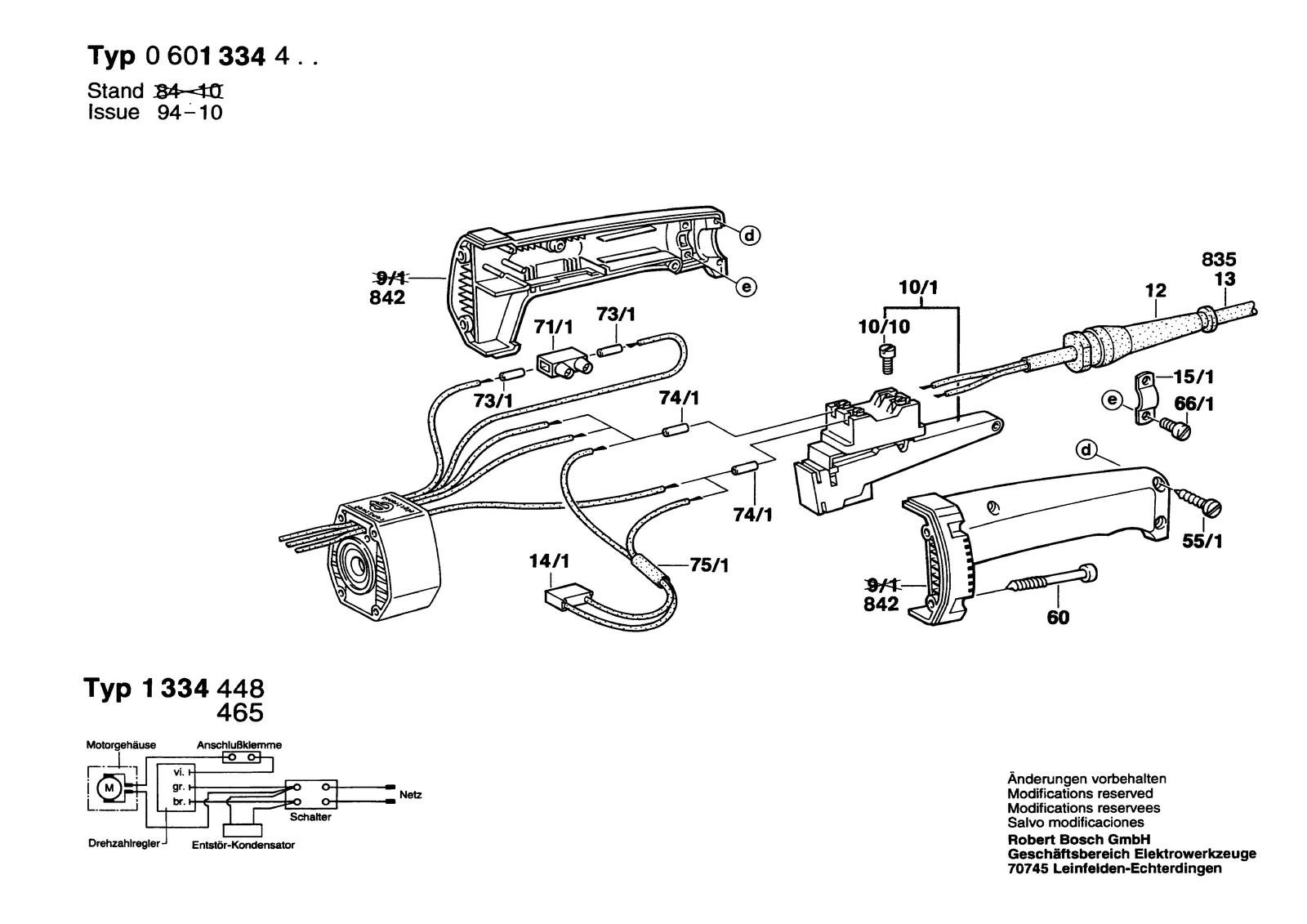

Bosch 1334.4 angle grinder: exploded parts diagram, 4 sheets, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1334.4: 84 positions on 4 sheets
Bosch 1334.4 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108141 | Motor Housing |
| 10/1 | 1607200074 | Switch |
| 10/1 | 1607200080 | Switch |
| 10/10 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 100 | 1600390011 | Grooved Ring |
| 105 | 1601110240 | Reference Plate |
| 11 | 1600113002 | Seal |
| 12 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 13 | 1604460079 | Power supply cord |
| 13 | 1604460126 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 13 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 14 | 1607328034 | Suppression Filter |
| 15 | 1601302013 | Fastening Clamp |
| 15/1 | 1601302014 | Fastening Clamp |
| 16 | 1601110363 | Sticker |
| 16 | 1601110364 | Sticker |
| 18 | 1601014005 | Profile Strip 3,4X7X240 MM |
| 19 | 1602026058 | Control Lever |
| 19/8 | 1600205019 | Felt Washer |
| 2 | 1604336008 | Brush Holder |
| 20 | 1605808054 | Bearing cover |
| 21 | 1600102012 | Cover Disc |
| 22 | 1603523090 | Grinding Spindle M14, L=101 MM |
| 23 | 1600108055 | Sealing disk |
| 27 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 28 | 1600206020 | Rubber Ring Wide 7 MM |
| 29 | 1600502017 | Air-Deflector Ring |
| 3 | 1604220153 | Field 220V |
| 3/8 | 1901350003 | Terminal lug 1,5-4X4 |
| 30 | 2916660017 | Spring retaining ring DIN 472 38X1,5MM |
| 32 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 35 | 1601030022 | Tab Washer |
| 36 | 1600206015 | Rubber Ring |
| 38 | 1601110003 | Manufacturer's nameplate |
| 4 | 1604011140 | Armature 220V |
| 40 | 1600150007 | Spring Washer Ø27,5X38,4 MM |
| 41 | 1601110310 | Reference Plate |
| 45 | 1600206016 | Rubber Ring |
| 46 | 1607233018 | Excess Speed Cutout |
| 47 | 1607233017 | Speed governor 220V |
| 50 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 52 | 1900905234 | Groove ball bearing 15X35X11 |
| 53 | 1600900029 | Groove ball bearing |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 55 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 55/1 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 57 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 58 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 59 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 6 | 1604652015 | Spiral Spring |
| 60 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 61 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 62 | 1603300018 | Hex Nut |
| 63 | 1603435006 | Tapping Screw B4,8X90 MM |
| 652 | 1605510083 | Protective Cover Ø190 MM (7") |
| 652 | 1605510199 | Protective Cover Ø180 MM |
| 652/2 | 2910141240 | Hex Socket Head Cap Screw DIN 912-M8X18-8.8 |
| 66 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 66/1 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 702 | 1605510138 | Protective Cover Ø 180 MM |
| 703 | 1607000140 | Parts Set |
| 703/11 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 71/1 | 1601091007 | Connecting terminal |
| 71/1 | 1901091110 | Strip Terminal |
| 73/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 74/1 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 74/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 75/1 | 1600712026 | PVC Hose |
| 8 | 1605500089 | Sealing cap Blue |
| 800 | 1607014115 | Carbon-Brush Set |
| 804 | 1606333147 | Crown Gear Z=52 |
| 805 | 1606333228 | Bevel Gear Z=17 |
| 813 | 1607000161 | Parts Set |
| 816 | 1607000905 | Parts Set |
| 817 | 1607000229 | Assembly Of Service Parts |
| 831 | 1607200093 | On-Off Switch |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 842 | 1607000187 | Parts Set |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1605132093 | Handle |
| 91 | 2916060006 | Spring Washer DIN 137-A5-FST |
