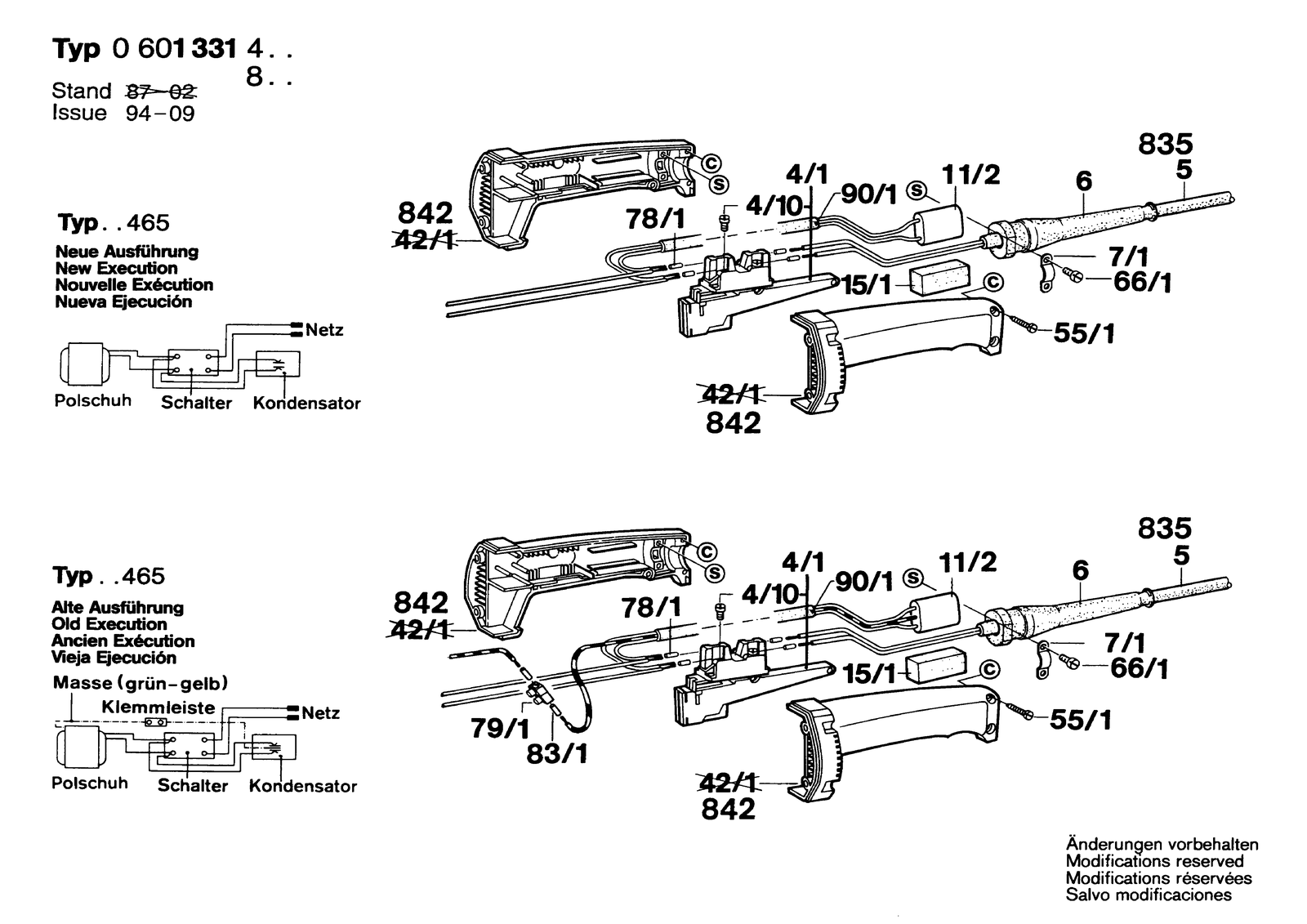

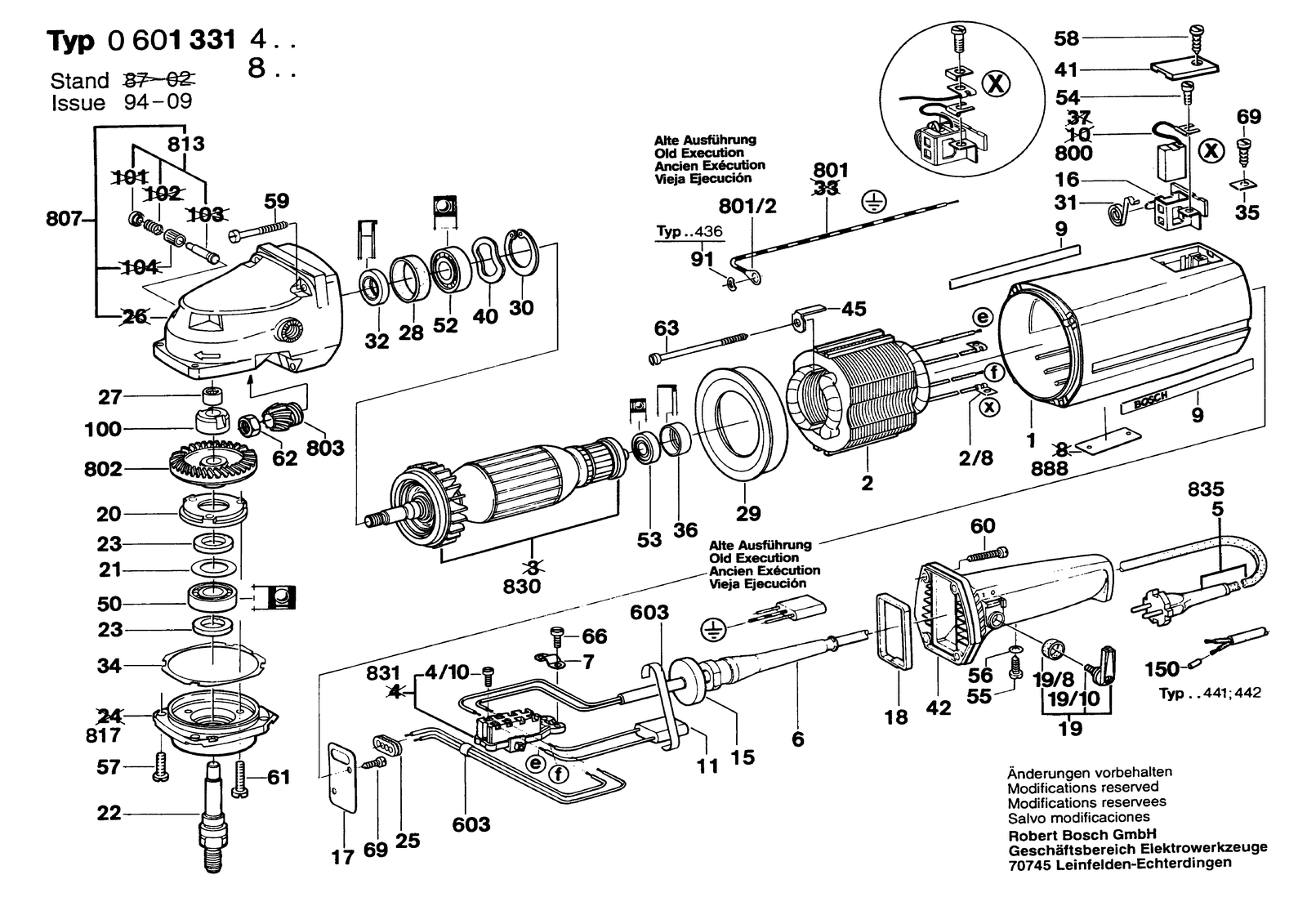

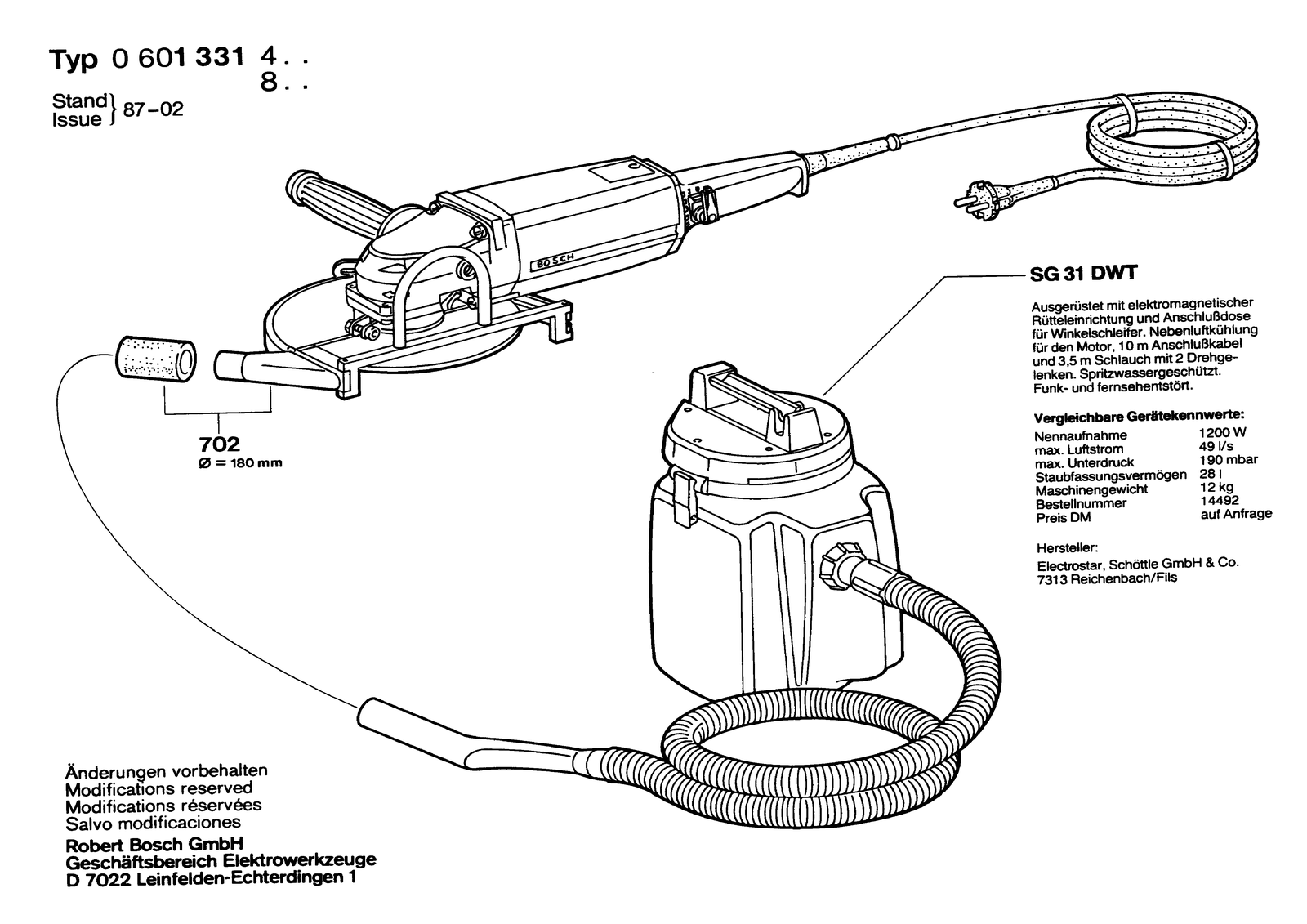

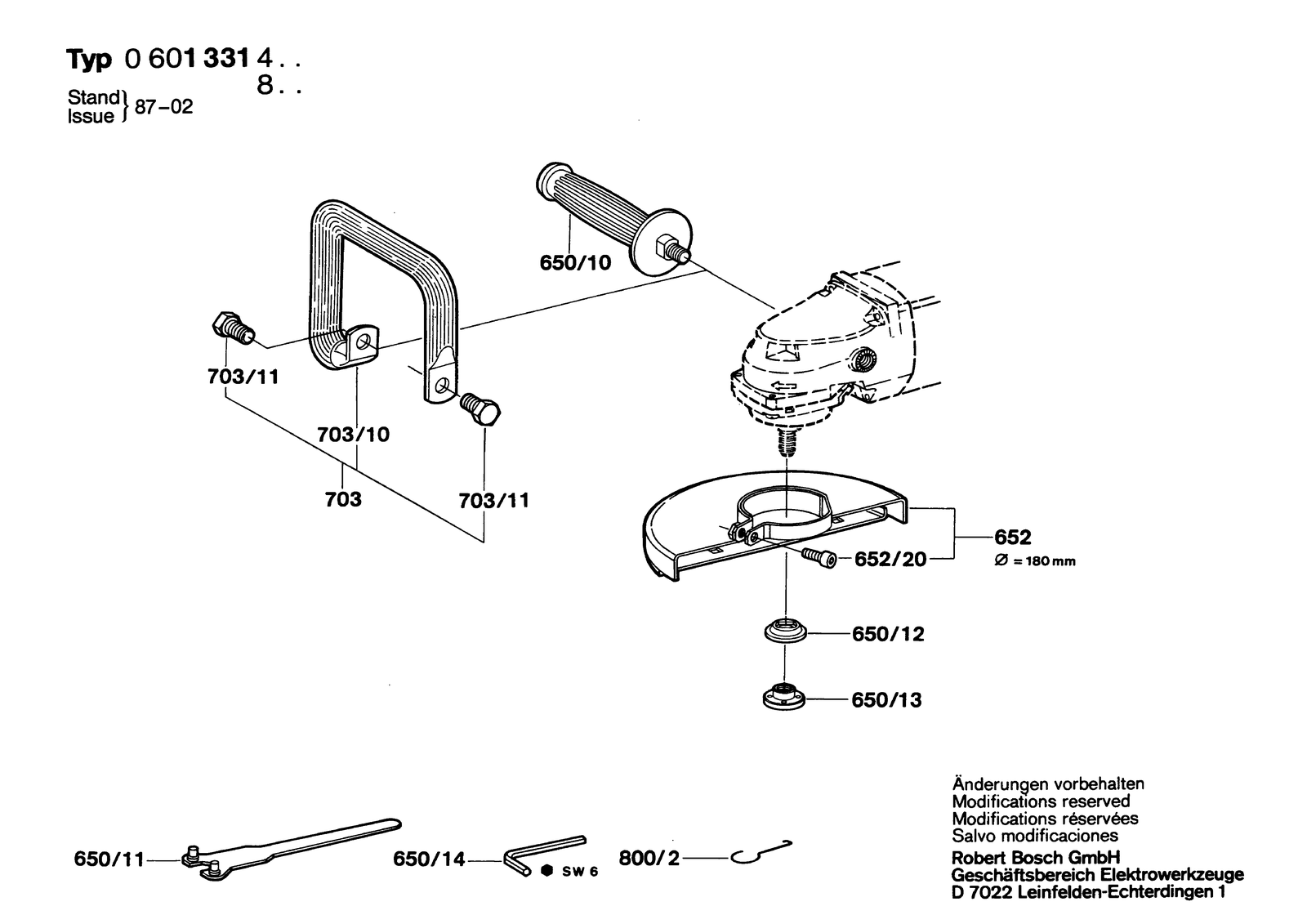

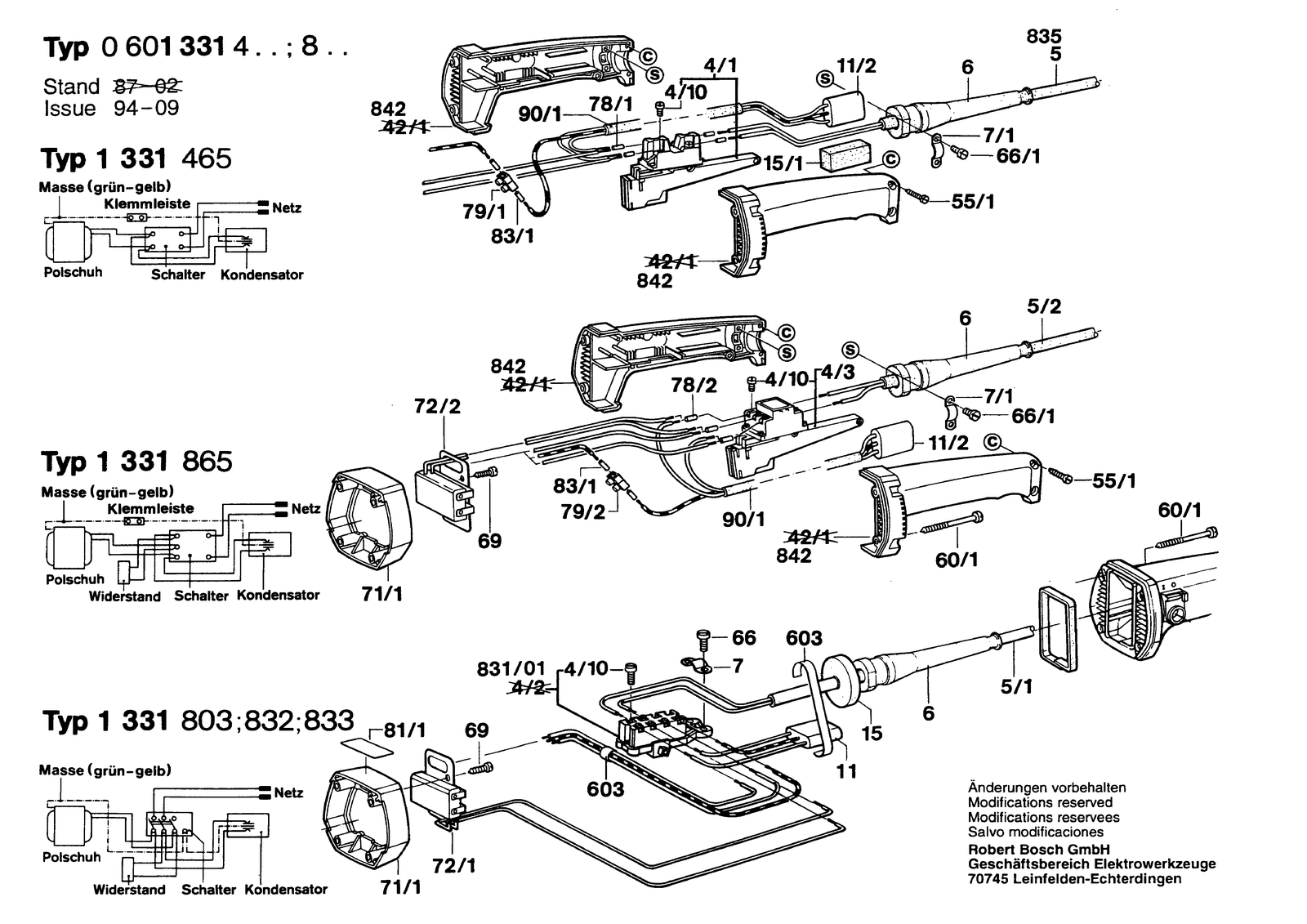

Bosch 1331.4 angle grinder: exploded parts diagram, 5 sheets, 108 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1331.4: 108 positions on 5 sheets
Bosch 1331.4 parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108124 | Motor Housing Blue |
| 100 | 1600390011 | Grooved Ring |
| 11 | 1607328034 | Suppression Filter |
| 15 | 1600113002 | Seal |
| 15/1 | 1602381006 | Insulating Plate 20X20X50 MM |
| 150 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 150 | 3604477009 | End Splice |
| 16 | 1604336008 | Brush Holder |
| 17 | 1601037006 | Cover Plate |
| 17 | 1601037009 | Cover Plate |
| 18 | 1601014005 | Profile Strip 3,4X7X240 MM |
| 19 | 1602026058 | Control Lever |
| 19/8 | 1600205019 | Felt Washer |
| 2 | 1604220245 | Field 230V |
| 2 | 1604220247 | Field 115V |
| 2 | 1604220248 | Field 240V |
| 2 | 1604220249 | Field 230V |
| 2/8 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1605808054 | Bearing cover |
| 21 | 1600102012 | Cover Disc |
| 22 | 1603523090 | Grinding Spindle M14, L=101 MM |
| 23 | 1600108055 | Sealing disk |
| 25 | 1600306001 | Grommet |
| 27 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 28 | 1600200024 | Backup ring Ø44XØ41X11,8 MM |
| 28 | 1600206028 | Rubber Ring Ø41XØ37X11 MM |
| 29 | 1600502013 | Guide Pulley |
| 30 | 1600119004 | Spring retaining ring |
| 31 | 1604652015 | Spiral Spring |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 32 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 35 | 1601030022 | Tab Washer |
| 36 | 1600206015 | Rubber Ring |
| 4 | 1607200089 | On-Off Switch |
| 4/1 | 1607200074 | Switch |
| 4/3 | 1607200082 | On-Off Switch |
| 40 | 1600150009 | Spring Washer Ø32,3XØ43,5X0,6 MM |
| 41 | 1605500089 | Sealing cap Blue |
| 42 | 1605132093 | Handle |
| 45 | 1601331032 | Holding Bracket |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460128 | Power supply cord EU 4,15M 2 X 1,5MM H07RN-F |
| 5 | 1604460202 | Power supply cord GB 110V 4,15M 2 X 2,5MM H07 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 5/1 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 5/2 | 1604460126 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 50 | 1900905203 | Groove ball bearing 17X40X12 |
| 52 | 1600900028 | Groove ball bearing 37X12X12 |
| 53 | 1600900029 | Groove ball bearing |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 55 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 55/1 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 56 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 57 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 58 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 59 | 1603412005 | Tapping Screw B4,8X45 MM |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 2910211036 | Tapping Screw DIN 7971-ST4,8X25-F |
| 60/1 | 1603429000 | Tapping Screw B4,8X57,5 MM |
| 61 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 62 | 1603300009 | Hex Nut M12X1,5 MM |
| 63 | 1603429001 | Tapping Screw B4,8X85 MM |
| 650/10 | 160202509Z | Auxiliary Handle |
| 650/10 | 16020250A1 | Auxiliary Handle |
| 650/11 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 650/12 | 2600501006 | Clamping-Flange Ø45 MM |
| 650/13 | 2603345004 | Round Nut M14 |
| 650/14 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 652 | 1605510199 | Protective Cover Ø180 MM |
| 652 | 2605510083 | Protective Cover Ø 180 MM |
| 652/20 | 2910141240 | Hex Socket Head Cap Screw DIN 912-M8X18-8.8 |
| 66 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 66 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 66/1 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 7 | 1601302013 | Fastening Clamp |
| 7/1 | 1601302014 | Fastening Clamp |
| 702 | 1600309009 | Union Ø32,3XØ34,9X75 MM |
| 702 | 1605510138 | Protective Cover Ø 180 MM |
| 703 | 1607000140 | Parts Set |
| 703/11 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 78 | 1900452004 | End Splice A 4-9 DIN 46 228 |
| 78/1 | 3604477009 | End Splice |
| 78/2 | 1600452001 | End Splice |
| 800 | 1607014103 | Carbon-Brush Set |
| 801 | 1604440004 | Connecting Cable |
| 802 | 1606333210 | Crown Gear Z=51 |
| 803 | 1606333209 | Bevel Gear Z=18 |
| 807 | 1607000917 | Parts Set |
| 813 | 1607000161 | Parts Set |
| 817 | 1607000229 | Assembly Of Service Parts |
| 830 | 1604012042 | Armature 115V |
| 830 | 1604012044 | Armature 220V |
| 830 | 1604012045 | Armature 100-110V |
| 830 | 1604012046 | Armature 100-115V |
| 830 | 1604012047 | Armature 220-240V |
| 831 | 1607200097 | On-Off Switch |
| 831/01 | 1607200098 | On-Off Switch |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 842 | 1607000187 | Parts Set |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110003 | Manufacturer's nameplate |
| 91 | 2916060006 | Spring Washer DIN 137-A5-FST |
