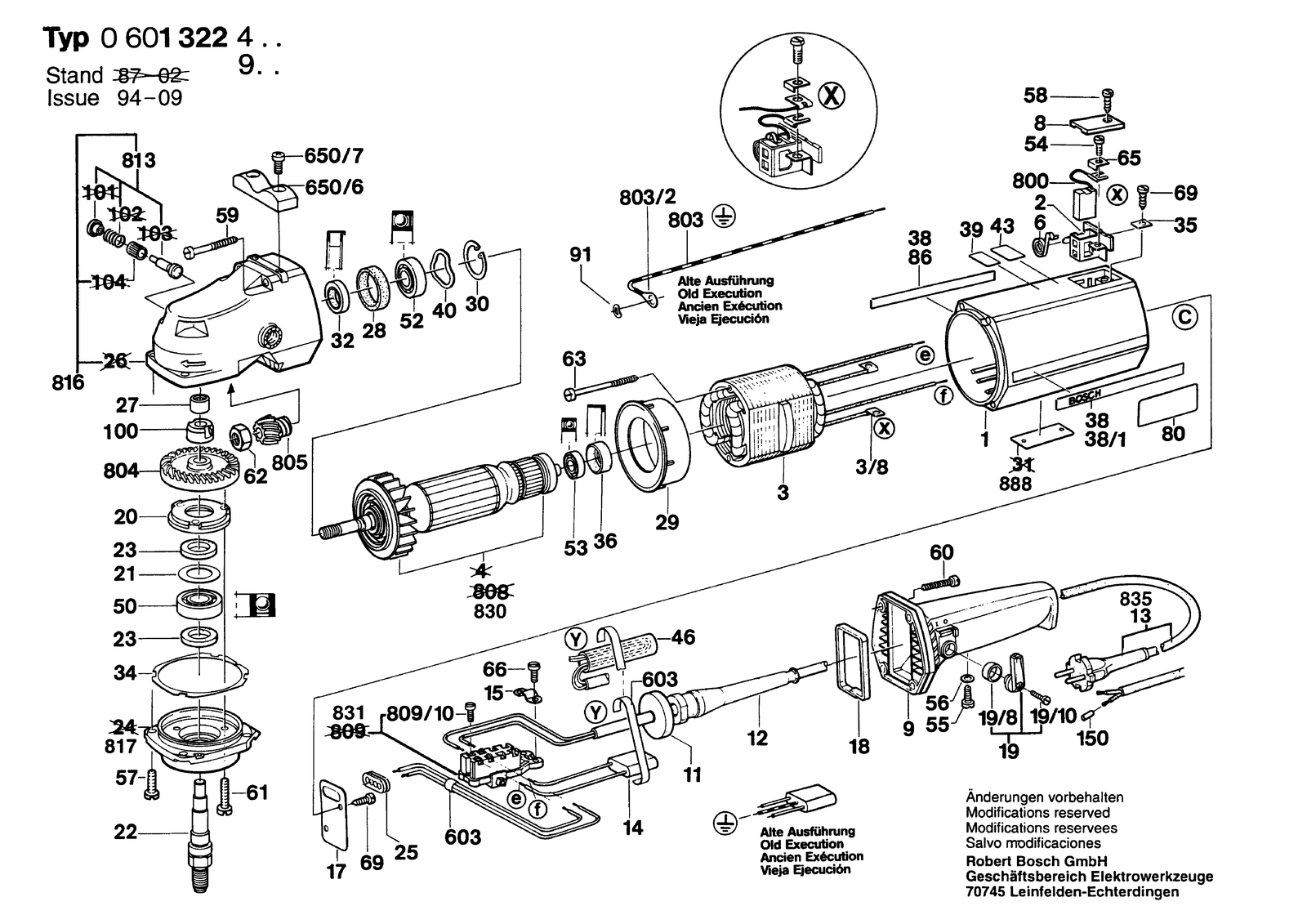

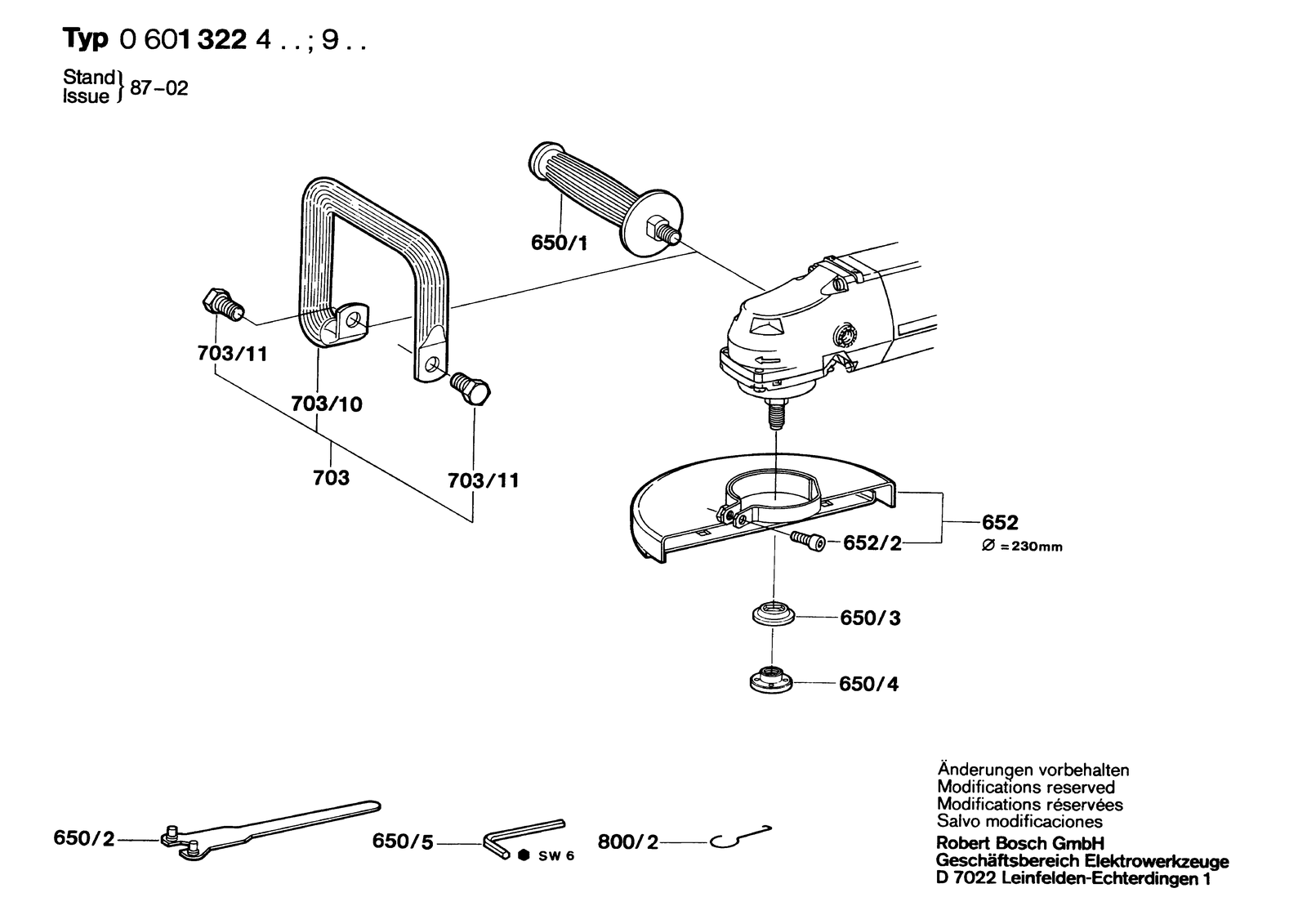

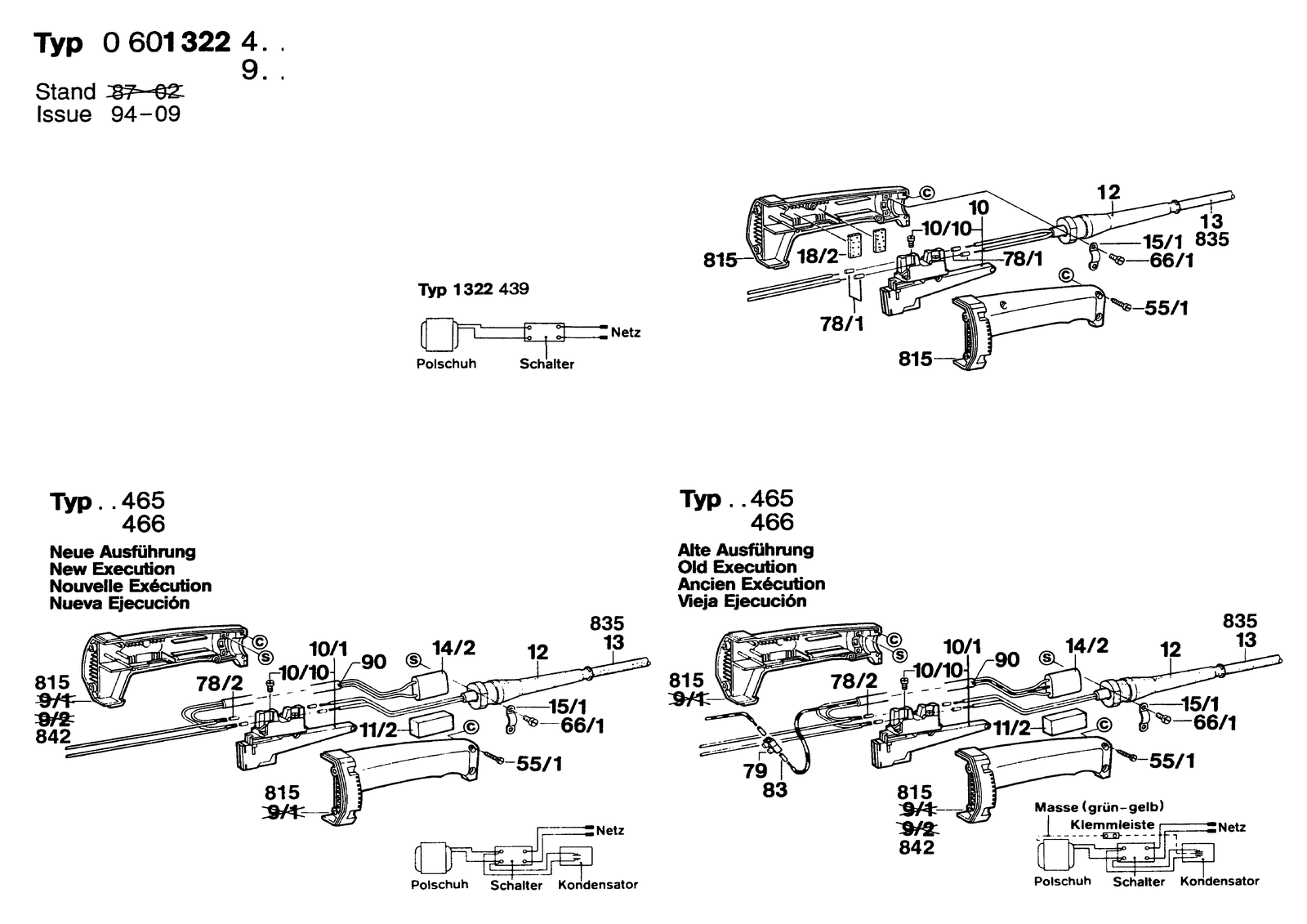

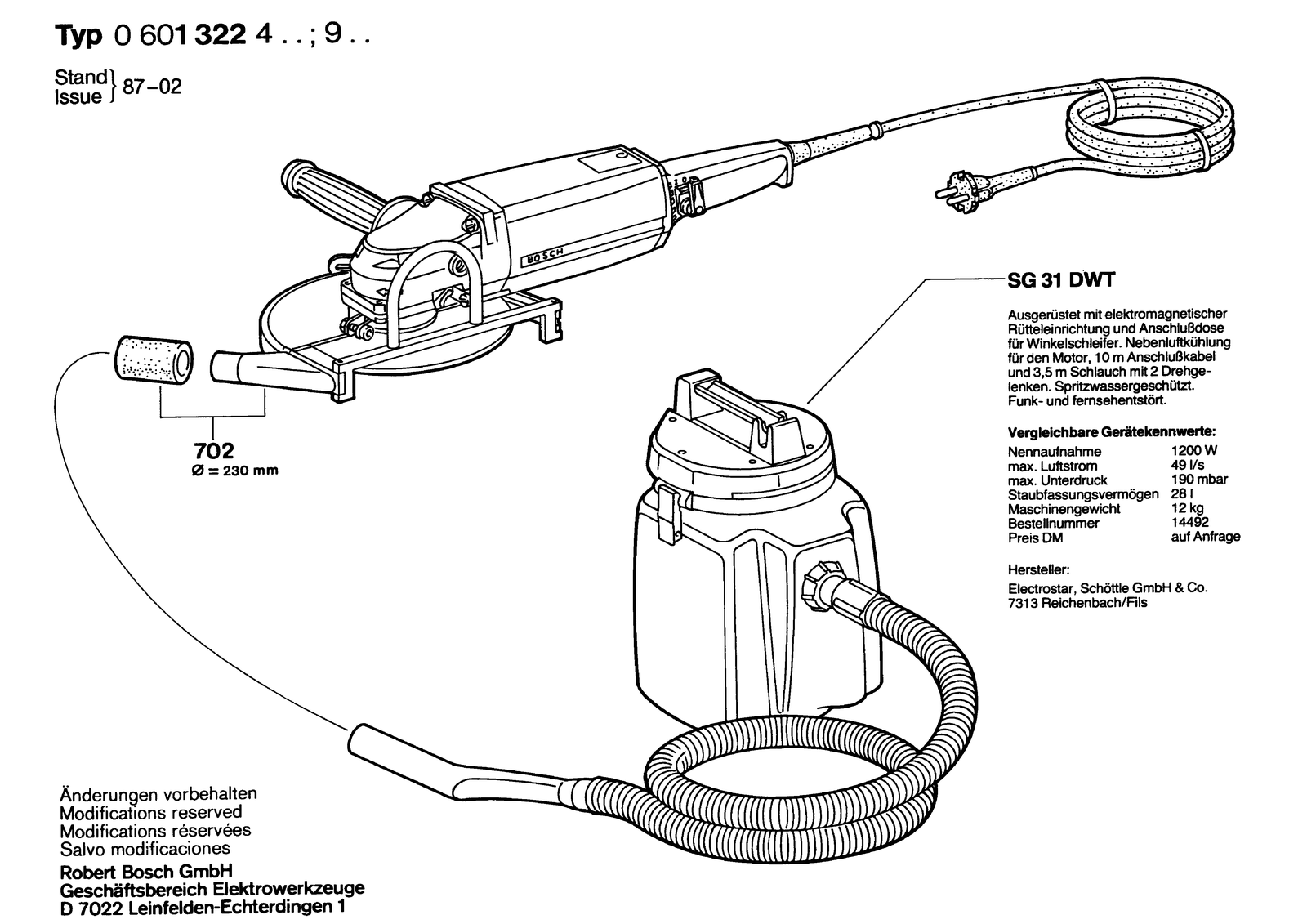

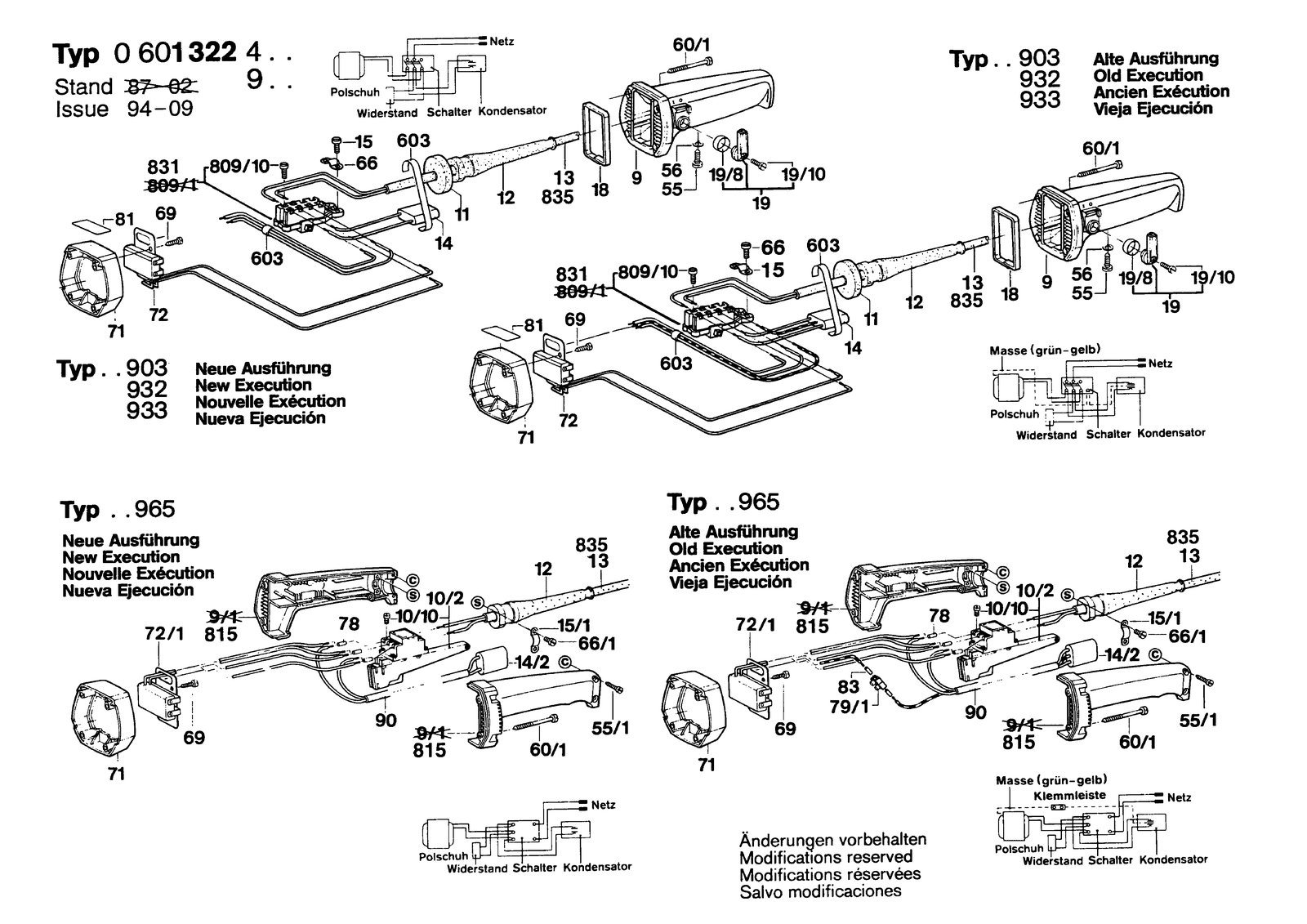

Bosch 1322.4 angle grinder: exploded parts diagram, 5 sheets, 120 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1322.4: 120 positions on 5 sheets
Bosch 1322.4 parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1607200064 | Switch |
| 10 | 1607200089 | On-Off Switch |
| 10/10 | 1607200074 | Switch |
| 10/2 | 1607200082 | On-Off Switch |
| 100 | 1600390011 | Grooved Ring |
| 11 | 1600113002 | Seal |
| 11/2 | 1602381006 | Insulating Plate 20X20X50 MM |
| 12 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 12 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 13 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 13 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 13 | 1604460121 | Power supply cord |
| 13 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 13 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 13 | 1604460202 | Power supply cord GB 110V 4,15M 2 X 2,5MM H07 Rn-F |
| 13 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 13 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 13 | 1607000391 | Power supply cord |
| 14 | 1607328034 | Suppression Filter |
| 15 | 1601302013 | Fastening Clamp |
| 15/1 | 1601302014 | Fastening Clamp |
| 150 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 150 | 3604477009 | End Splice |
| 17 | 1601037006 | Cover Plate |
| 17 | 1601037009 | Cover Plate |
| 18 | 1601014005 | Profile Strip 3,4X7X240 MM |
| 19 | 1602026058 | Control Lever |
| 19/8 | 1600205019 | Felt Washer |
| 2 | 1604336008 | Brush Holder |
| 20 | 1605808054 | Bearing cover |
| 21 | 1600102012 | Cover Disc |
| 22 | 1603523090 | Grinding Spindle M14, L=101 MM |
| 22 | 1603523092 | Grinding Spindle 5/8"-UNC-2A |
| 23 | 1600108055 | Sealing disk |
| 25 | 1600306001 | Grommet |
| 27 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 28 | 1600206020 | Rubber Ring Wide 7 MM |
| 29 | 1600502017 | Air-Deflector Ring |
| 3 | 1604220215 | Field 220V |
| 3 | 1604220216 | Field 100V |
| 3 | 1604220217 | Field 110-115V |
| 3 | 1604220218 | Field 240V |
| 30 | 1600119008 | Spring retaining ring |
| 30 | 2916660017 | Spring retaining ring DIN 472 38X1,5MM |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 32 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190004 | Shim Thick 0,1 MM |
| 34 | 1600190005 | Shim Thick 0,2 MM |
| 35 | 1601030022 | Tab Washer |
| 36 | 1600206015 | Rubber Ring |
| 38 | 1601110003 | Manufacturer's nameplate |
| 38/1 | 1601110003 | Manufacturer's nameplate |
| 39 | 1601110358 | Reference Plate Caution |
| 40 | 1600150007 | Spring Washer Ø27,5X38,4 MM |
| 43 | 1601110058 | Reference Plate Double Insulation |
| 50 | 1900905203 | Groove ball bearing 17X40X12 |
| 52 | 1900905234 | Groove ball bearing 15X35X11 |
| 53 | 1600900029 | Groove ball bearing |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 55 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 55/1 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 56 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 57 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 58 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 59 | 1603429000 | Tapping Screw B4,8X57,5 MM |
| 6 | 1604652015 | Spiral Spring |
| 60 | 1603429000 | Tapping Screw B4,8X57,5 MM |
| 61 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 62 | 1603300018 | Hex Nut |
| 63 | 1603435006 | Tapping Screw B4,8X90 MM |
| 65 | 1611331007 | Tab Washer |
| 650/1 | 160202509Z | Auxiliary Handle |
| 650/1 | 16020250A1 | Auxiliary Handle |
| 652 | 1605510198 | Protective Cover Ø230 MM |
| 652 | 2605510082 | Protective Cover Ø 230 MM |
| 652/2 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 66 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 66 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 66/1 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 703 | 1607000209 | Parts Set |
| 703/11 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 71 | 1605700020 | Intermediate Flange |
| 72 | 1604503005 | Wirewound Resistor |
| 72/1 | 1604503007 | Wirewound Resistor |
| 78 | 1600452001 | End Splice |
| 78 | 1900452004 | End Splice A 4-9 DIN 46 228 |
| 78/1 | 1600452001 | End Splice |
| 78/2 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 79 | 1601091009 | Socket-Terminal Strip |
| 8 | 1605500089 | Sealing cap Blue |
| 8 | 1605500103 | Sealing cap Blue |
| 8 | 1605500109 | Sealing cap Green |
| 80 | 1601110148 | Reference Plate |
| 800 | 1607014103 | Carbon-Brush Set |
| 804 | 1606333200 | Crown Gear Z=59 |
| 804 | 1606333223 | Crown Gear Z=51 |
| 805 | 1606333218 | Bevel Gear Z=14, Ø 10 MM |
| 805 | 1606333224 | Bevel Gear Z=10 |
| 809 | 1607000034 | Switch Kit |
| 81 | 1601110133 | Reference Plate |
| 813 | 1607000161 | Parts Set |
| 815 | 1605132083 | Handle Blue |
| 816 | 1607000905 | Parts Set |
| 816 | 1607000906 | Parts Set |
| 83 | 3604477008 | End Splice |
| 830 | 1604011130 | Armature 220V |
| 830 | 1604011131 | Armature 100V |
| 830 | 1604011132 | Armature 110V |
| 830 | 1604011133 | Armature 240V |
| 830 | 1604011139 | Armature 115V |
| 831 | 1607200097 | On-Off Switch |
| 831 | 1607200098 | On-Off Switch |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 86 | 1601110073 | Sticker Double Insulation |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1605132093 | Handle |
| 90 | 1600712026 | PVC Hose |
| 91 | 2916060006 | Spring Washer DIN 137-A5-FST |
