Bosch 1307

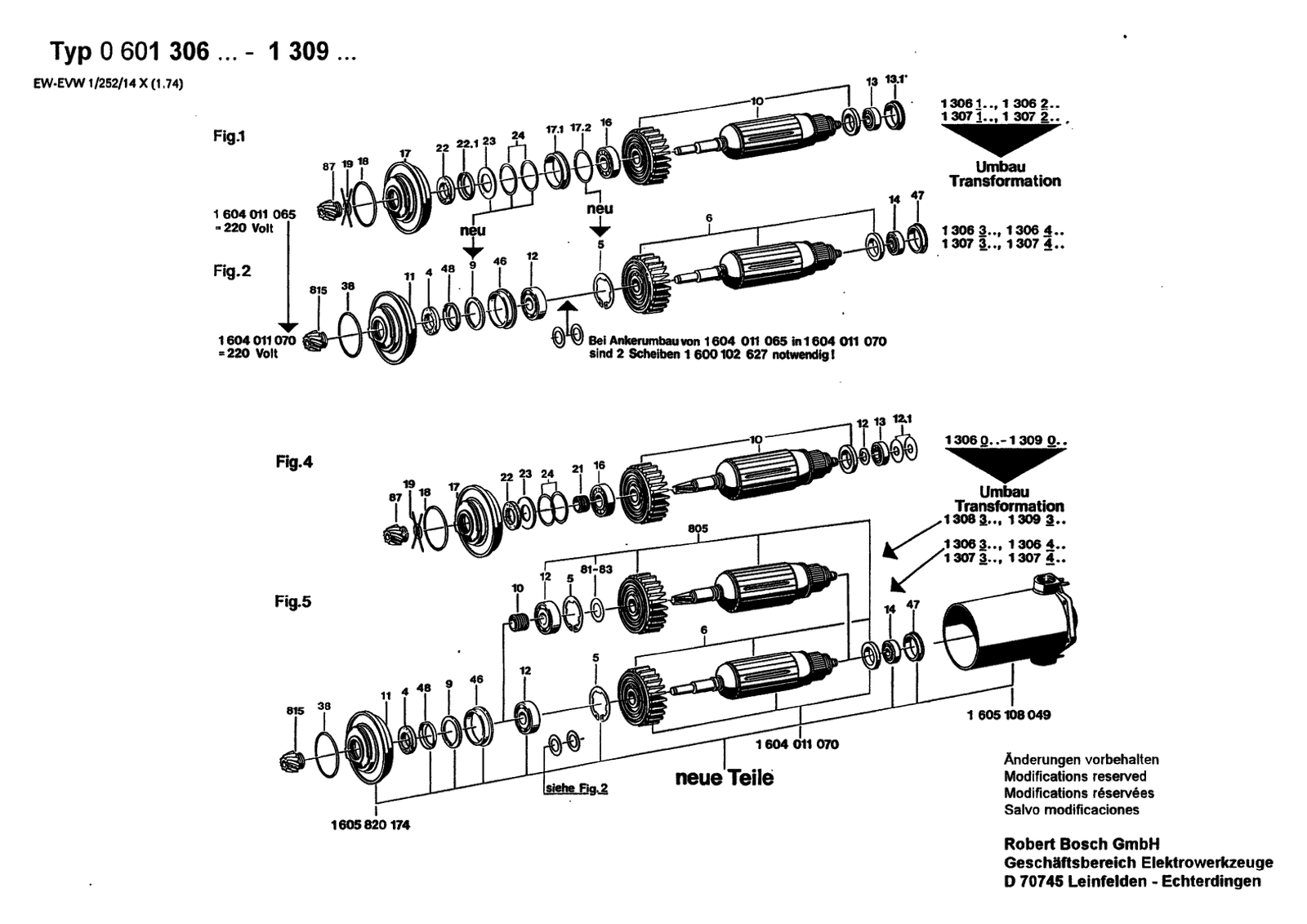

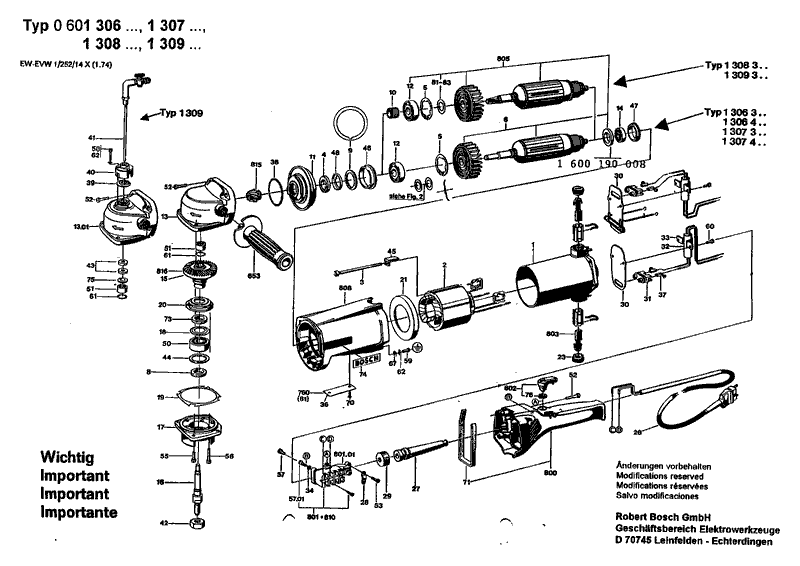

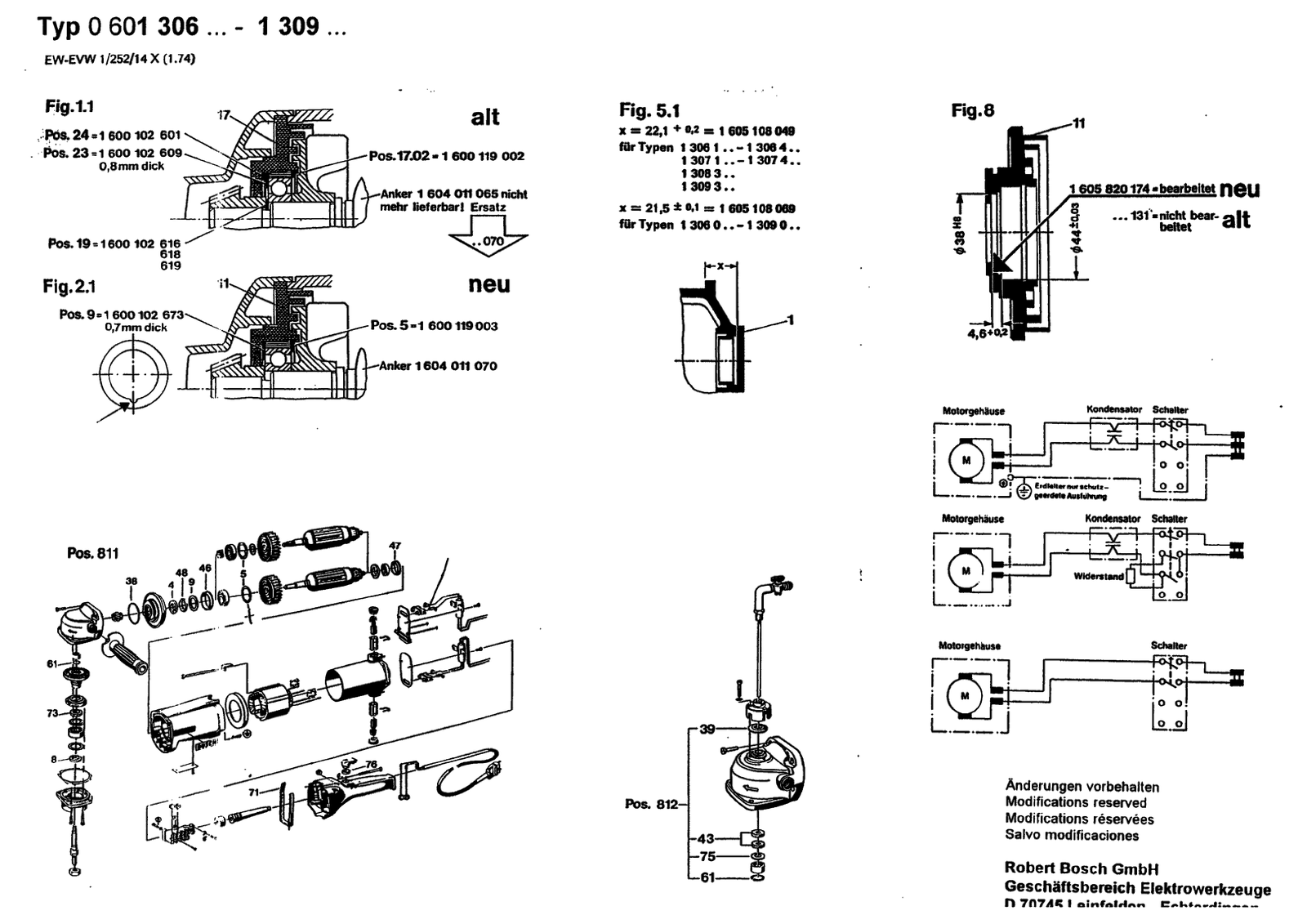

Bosch 1307 angle grinder: exploded parts diagram, 3 sheets, 151 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1307: 151 positions on 3 sheets
Bosch 1307 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108049 | Pole housing |
| 1 | 1605108049 | Pole housing |
| 11 | 1605820174 | Bearing Flange |
| 11 | 1605820174 | Bearing Flange |
| 12 | 1900900413 | Groove ball bearing 6203-TH/C3 DIN 625 |
| 12 | 1900900413 | Groove ball bearing 6203-TH/C3 DIN 625 |
| 13 | 1605806325 | Gear Housing |
| 13 | 1606806167 | Gear Housing |
| 13 | 1605806325 | Gear Housing |
| 13 | 1606806167 | Gear Housing |
| 14 | 1900905121 | Groove ball bearing 12X28X8 |
| 14 | 1900905121 | Groove ball bearing 12X28X8 |
| 16 | 1603523032 | Grinding Spindle M14X1,5 MM |
| 16 | 1603523091 | Grinding Spindle 5/8"-UNC-2A |
| 16 | 1603523032 | Grinding Spindle M14X1,5 MM |
| 16 | 1603523091 | Grinding Spindle 5/8"-UNC-2A |
| 17 | 1605805044 | Bearing Flange Ø 14,8 MM |
| 17 | 1605805044 | Bearing Flange Ø 14,8 MM |
| 18 | 2100551000 | Plain Washer |
| 18 | 2100551000 | Plain Washer |
| 19 | 1601038020 | Shim Thick 0,10 MM |
| 19 | 1601038021 | Shim Thick 0,20 MM |
| 19 | 1601038020 | Shim Thick 0,10 MM |
| 19 | 1601038021 | Shim Thick 0,20 MM |
| 2 | 1604220045 | Field 100-110V |
| 2 | 1604220046 | Field 115V |
| 2 | 1604220048 | Field 220V |
| 2 | 1604220049 | Field 220V |
| 2 | 1604220045 | Field 100-110V |
| 2 | 1604220046 | Field 115V |
| 2 | 1604220048 | Field 220V |
| 2 | 1604220049 | Field 220V |
| 2 | 1604220133 | Field 240V |
| 20 | 1600521013 | Conical Spring Washer |
| 20 | 1600521013 | Conical Spring Washer |
| 21 | 1600502001 | Air-Deflector Ring |
| 21 | 1600502001 | Air-Deflector Ring |
| 23 | 1603465003 | Screw Plug |
| 23 | 1603465003 | Screw Plug |
| 26 | 1604460014 | Power supply cord |
| 26 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 26 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 26 | 1604461007 | Elec. Cable W/Connection |
| 26 | 1604461027 | Elec. Cable W/Connection |
| 26 | 1604461028 | Power supply cord |
| 26 | 1604461030 | Power supply cord |
| 26 | 1604460014 | Power supply cord |
| 26 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 26 | 1604460052 | Elec. Cable W/Connection SMA 115 4,15 M 2X1 MM H05 Rn-F |
| 26 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 26 | 1604461007 | Elec. Cable W/Connection |
| 26 | 1604461027 | Elec. Cable W/Connection |
| 26 | 1604461028 | Power supply cord |
| 26 | 1604461030 | Power supply cord |
| 27 | 1600703008 | Grommet |
| 27 | 1600703013 | Grommet |
| 27 | 1600703013 | Grommet |
| 28 | 1601302013 | Fastening Clamp |
| 28 | 1601302013 | Fastening Clamp |
| 29 | 1600113003 | Sealing Plate |
| 29 | 1600113003 | Sealing Plate |
| 3 | 1603410008 | Socket head cap screw |
| 3 | 1603410008 | Socket head cap screw |
| 30 | 1601037001 | Fixing plate |
| 30 | 1604503003 | Wirewound Resistor |
| 30 | 1601037001 | Fixing plate |
| 30 | 1604503003 | Wirewound Resistor |
| 31 | 1600306002 | Grommet |
| 31 | 1600306002 | Grommet |
| 32 | 1604413001 | Connecting Cable |
| 32 | 1607329019 | Suppression Filter |
| 32 | 1604413001 | Connecting Cable |
| 32 | 1607329019 | Suppression Filter |
| 33 | 1601302003 | Fastening Clamp |
| 33 | 1601302003 | Fastening Clamp |
| 34 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 34 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 37 | 1600390006 | Sleeve Terminal |
| 37 | 1600390006 | Sleeve Terminal |
| 43 | 1601110039 | Reference Plate |
| 43 | 1601110058 | Reference Plate Double Insulation |
| 43 | 1601110039 | Reference Plate |
| 43 | 1601110058 | Reference Plate Double Insulation |
| 44 | 1600102674 | Shim |
| 44 | 1600102674 | Shim |
| 45 | 1601331032 | Holding Bracket |
| 45 | 1601331032 | Holding Bracket |
| 50 | 1900900352 | Groove ball bearing 17X47X14 |
| 50 | 1900900352 | Groove ball bearing 17X47X14 |
| 51 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 51 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 52 | 2910011165 | Socket head cap screw AM 5X28 DIN 84-5.8 |
| 52 | 2910011165 | Socket head cap screw AM 5X28 DIN 84-5.8 |
| 53 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 53 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 55 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 55 | 2910011157 | Socket head cap screw DIN 84-AM5X15-5.8 |
| 56 | 2910011164 | Socket head cap screw DIN 84-AM5X25-5.8 |
| 56 | 2910011164 | Socket head cap screw DIN 84-AM5X25-5.8 |
| 57 | 2910021050 | Socket head cap screw DIN 84-AM3X8-8.8 |
| 57 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 57 | 2910021050 | Socket head cap screw DIN 84-AM3X8-8.8 |
| 57 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 58 | 2910021130 | Socket head cap screw DIN 84-AM4X20-8.8 |
| 58 | 2910021130 | Socket head cap screw DIN 84-AM4X20-8.8 |
| 59 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 59 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 6 | 1604011070 | Armature 220V |
| 6 | 1604011071 | Armature 100-110V |
| 6 | 1604011072 | Armature With Fan 115V |
| 6 | 1604011074 | Armature 240V |
| 6 | 1604011070 | Armature 220V |
| 6 | 1604011071 | Armature 100-110V |
| 6 | 1604011072 | Armature With Fan 115V |
| 6 | 1604011074 | Armature 240V |
| 62 | 1600150006 | Spring Washer DIN 137-A4 |
| 62 | 1600150006 | Spring Washer DIN 137-A4 |
| 653 | 160202509Z | Auxiliary Handle |
| 653 | 16020250A1 | Auxiliary Handle |
| 653 | 160202509Z | Auxiliary Handle |
| 653 | 16020250A1 | Auxiliary Handle |
| 67 | 2916010409 | Plain Washer DIN 46 255-DPG 9 |
| 67 | 2916010409 | Plain Washer DIN 46 255-DPG 9 |
| 70 | 2917721031 | Round-Head Grooved Pin DIN 1476-2X3-ST |
| 70 | 2917721031 | Round-Head Grooved Pin DIN 1476-2X3-ST |
| 74 | 1601110011 | Manufacturer's nameplate |
| 74 | 1601110011 | Manufacturer's nameplate |
| 76 | 1600205008 | Felt Washer |
| 76 | 1600205008 | Felt Washer |
| 78 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 78 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 800 | 1605132060 | Handle |
| 800 | 1605132060 | Handle |
| 801 | 1607000035 | Switch Kit |
| 801 | 1607000035 | Switch Kit |
| 802 | 1602026030 | Control Lever |
| 802 | 1602026030 | Control Lever |
| 803 | 1607014100 | Carbon-Brush Set |
| 803 | 1607014100 | Carbon-Brush Set |
| 808 | 1605102041 | Motor Housing |
| 808 | 1605102041 | Motor Housing |
| 81 | 1600101612 | Shim Thick 0,05 MM |
| 81 | 1600101612 | Shim Thick 0,05 MM |
| 810 | 1607000034 | Switch Kit |
| 810 | 1607000034 | Switch Kit |
| 815 | 1606333094 | Bevel Gear Z=16 |
| 815 | 1606333093 | Bevel Gear Z=15 |
| 816 | 1606333069 | Bevel Gear Z=49 |
| 816 | 1606333066 | Bevel Gear Z=59 |
| 83 | 1600101608 | Shim |
| 83 | 1600101608 | Shim |
