Bosch 12V 1/4"

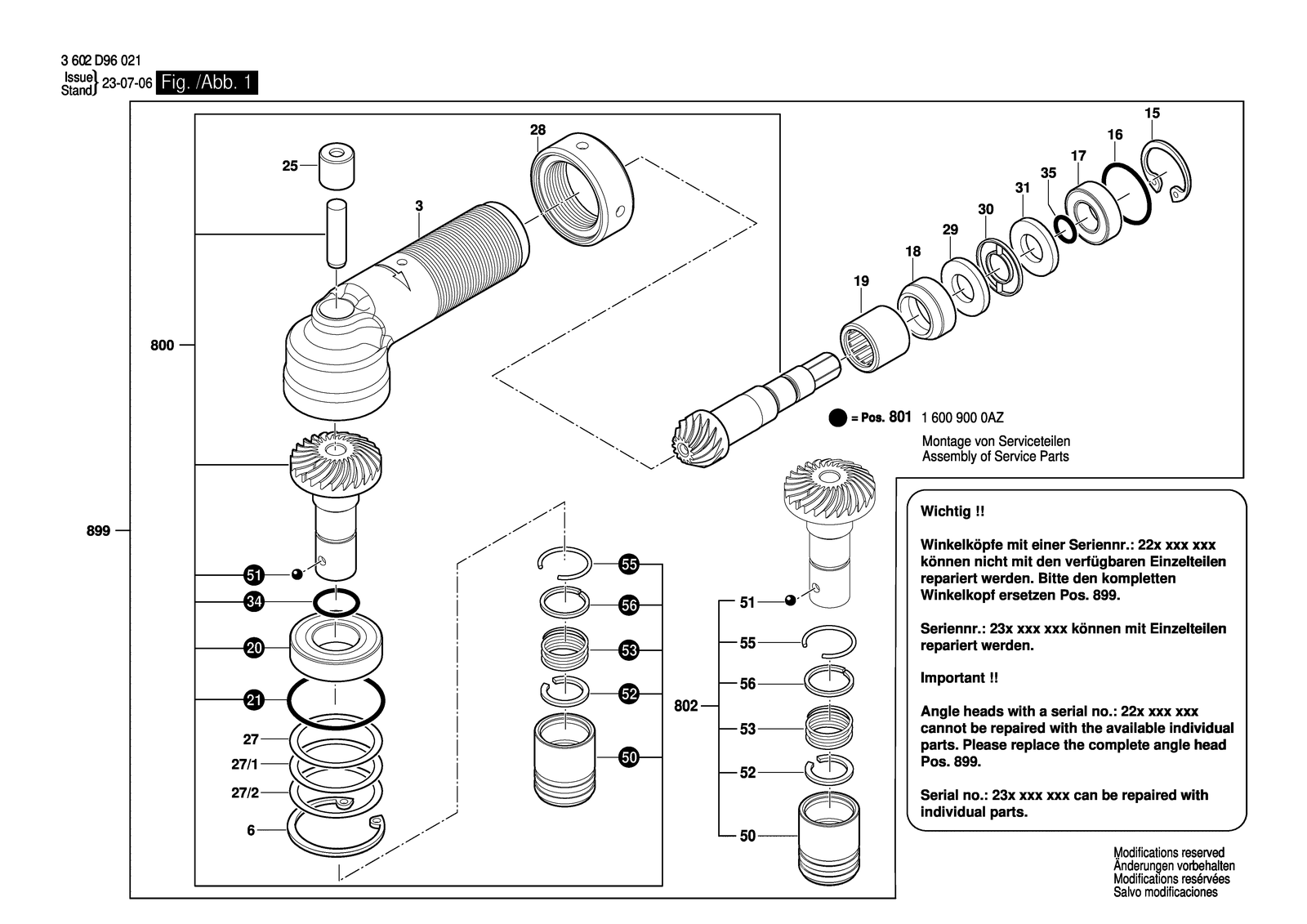

Bosch 12V 1/4" angle head: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 12V 1/4": 27 positions on 1 sheet
Bosch 12V 1/4" parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 15 | 2916660003 | Spring retaining ring 16X1 Mm, DIN 472 |
| 16 | 3600210104 | O-Ring 16,0X1,0 MM |
| 18 | 1600A01T50 | Spacer |
| 19 | 2600917006 | Needle bearing |
| 20 | 3600905168 | Groove ball bearing |
| 21 | 3600210138 | O-Ring |
| 25 | 3608875375 | Needle bearing |
| 27 | 1600A01T7H | Shim |
| 27/1 | 1600A0213P | Shim |
| 27/2 | 1600A0308D | Shim |
| 28 | 1600A01TB1 | Threaded Ring |
| 29 | 3600100110 | Support Disc |
| 3 | 1605806614 | Spindle Housing |
| 30 | 3600929003 | Roller Thrust Bearing |
| 31 | 3600100111 | Support Disc |
| 34 | 1610210081 | O-Ring 10,0X1,0 MM |
| 35 | 3600210088 | O-Ring |
| 50 | 3600400038 | Sleeve |
| 51 | 2609110981 | Ball |
| 52 | 3600224068 | Spring retaining ring |
| 53 | 2609110983 | Compression Spring |
| 55 | 2609110985 | Spring retaining ring |
| 56 | 3600190043 | Spring Washer |
| 6 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 800 | 1600A02SD6 | Bevel Gear Set |
| 801 | 16009000AZ | Assembly Of Service Parts |
| 802 | 1600A02T33 | Quick-Change Collet Chuck |
