Bosch 1276 DVS

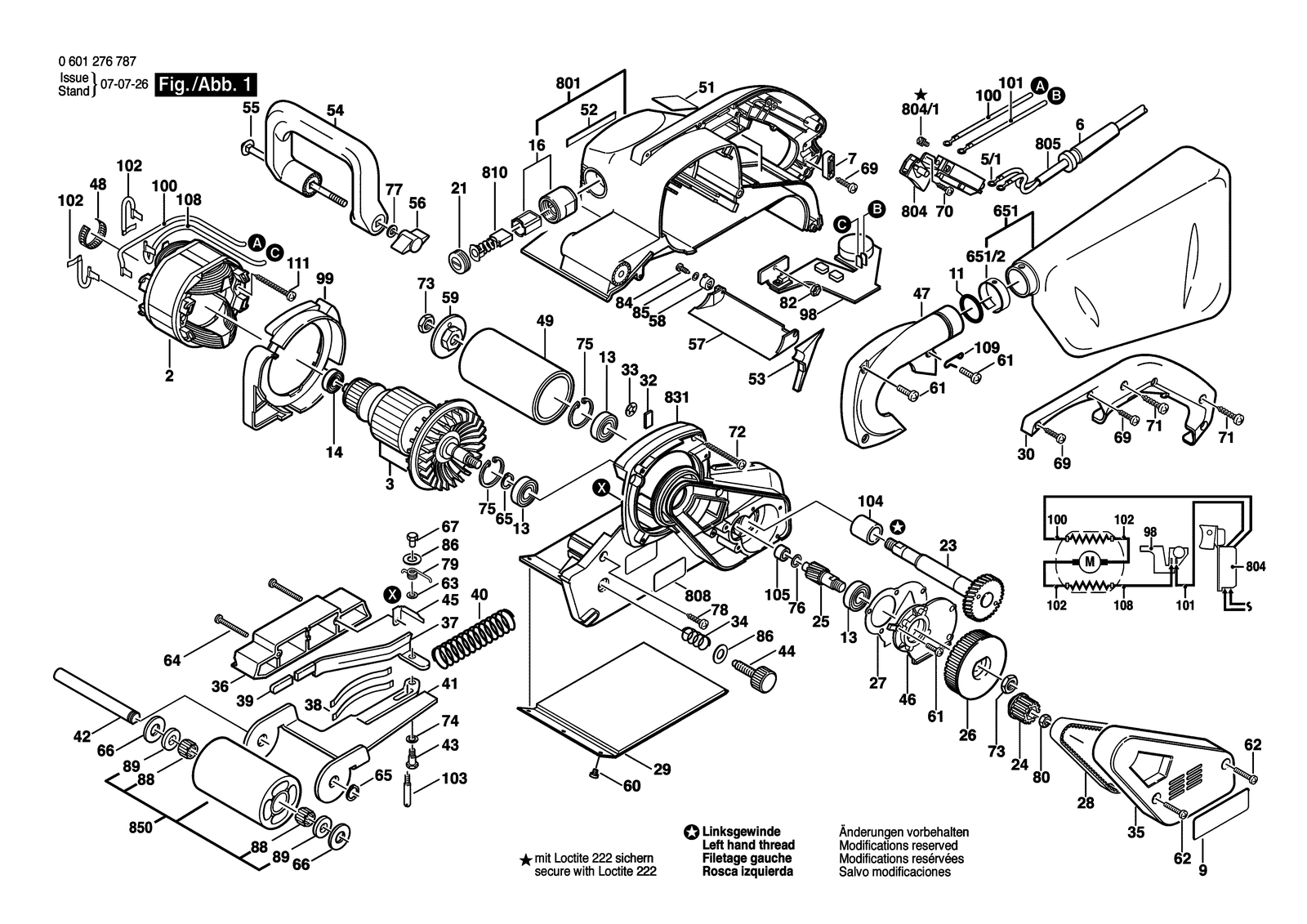

Bosch 1276 DVS belt sander: exploded parts diagram, 1 sheet, 93 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1276 DVS: 93 positions on 1 sheet
Bosch 1276 DVS parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2610934048 | Cable |
| 101 | 2610934313 | Cable |
| 102 | 2610934046 | Cable |
| 103 | 3603405509 | Swivelling Axis |
| 104 | 3600301501 | Bushing Ø 15,9 MM |
| 105 | 3600301502 | Bushing Ø 7,8 MM |
| 108 | 2610934047 | Cable |
| 109 | 3604680500 | Wire Guide |
| 11 | 2610992403 | O-Ring 2X22 MM |
| 111 | 2610944088 | Screw |
| 13 | 1900905161 | Groove ball bearing 12X28X8 |
| 14 | 1619P01511 | Ball Bearing |
| 16 | 2610945484 | Brush Holder |
| 2 | 1619P02601 | Field |
| 21 | 2610933666 | Cap Holder |
| 23 | 2610908618 | Spindle With Gear |
| 24 | 2610993575 | Pinion |
| 25 | 2610908621 | Pinion |
| 26 | 2610994443 | Conversion Gear |
| 27 | 3601015503 | Insert 0,8 MM |
| 28 | 3604736505 | Toothed Belt 14,3 Mm, Z=60 |
| 29 | 2610908625 | Sander Support Plate |
| 3 | 1619P02602 | Armature |
| 30 | 2610994470 | Handle Cover Blue |
| 32 | 2610908628 | Ceramic Plate |
| 33 | 1600146001 | Locking washer |
| 34 | 2610990029 | Compression Spring |
| 35 | 2610990025 | Gear Cover Blue |
| 36 | 3605510525 | Guard Plate |
| 37 | 3601923502 | Lever |
| 38 | 2610908629 | Leaf Spring |
| 39 | 2610908630 | Protective Cap |
| 40 | 3604619500 | Spring |
| 41 | 2610908632 | Support Frame |
| 42 | 2610908634 | Shaft |
| 43 | 3603453500 | Hex Screw 5X0,8 MM |
| 44 | 2610908637 | Adjusting Screw |
| 45 | 2610908638 | Plate Strap |
| 46 | 2610948143 | Bearing Plate |
| 47 | 3605500579 | Fan Cover Blue |
| 48 | 2610911048 | Ring Thick 22 MM |
| 49 | 2610908642 | Pulley |
| 5/1 | 3601353500 | Connecting terminal |
| 51 | 2610945330 | Warning Label |
| 52 | 2610911699 | Reference Plate |
| 53 | 2610908651 | Dust Cap |
| 54 | 2610908652 | Auxiliary Handle |
| 55 | 2610908653 | Round-Head Bolt |
| 56 | 1603339006 | Wing Nut M6 |
| 57 | 2610908655 | Adjustment Flap |
| 58 | 2610935210 | Adjusting Device |
| 59 | 2610908657 | Cover Disc |
| 6 | 3600707503 | Grommet Ø 9,4 MM |
| 60 | 2610911095 | Socket head cap screw DIN 7985 3,50X4,00-4.8 |
| 61 | 3603415540 | Screw 4X13 MM |
| 62 | 3603429514 | Screw 4X25 MM |
| 63 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 64 | 3603429513 | Screw 4X35 MM |
| 65 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 651 | 2610994480 | Dust Bag |
| 651/2 | 3601253503 | Holding Spring |
| 66 | 2610908658 | Washer 12,5X26,0X1,52MM |
| 67 | 3603315500 | Spring Retainer M 5X0,8 MM |
| 69 | 2610910566 | Tapping Screw |
| 7 | 2601035001 | Cable Clip |
| 70 | 2910611424 | Tapping Screw DIN 7981-ST4,2X9,5-F-H |
| 71 | 2910611028 | Tapping Screw DIN 7981-ST4,2X22-C-H |
| 72 | 2610996051 | Tapping Screw |
| 73 | 2610990040 | Hex Nut |
| 74 | 3600150505 | Spring Washer |
| 75 | 2610908661 | Retaining snap ring |
| 76 | 3600100504 | Shim |
| 77 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 78 | 2910611013 | Tapping Screw DIN 7981-ST3,5X19-C-H |
| 79 | 2610990039 | Compression Spring |
| 80 | 2610908663 | Hex Nut M8X1,25 MM |
| 801 | 2610937430 | Motor Housing |
| 804 | 3607000677 | Toggle Switch |
| 804/1 | 3603433506 | Screw |
| 805 | 3604460514 | Power supply cord Usa/cdn 3,275M 2 X 1,32MM SJ 16/2 |
| 808 | 1619P02767 | Nameplate |
| 810 | 2610908677 | Carbon-Brush Set |
| 82 | 3603301523 | Nut |
| 831 | 2610907550 | Housing |
| 84 | 2910641086 | Oval-Head Screw |
| 85 | 2610991341 | Washer |
| 850 | 2610908644 | Tensioning Roller |
| 86 | 2610992475 | Shim |
| 88 | 3600910504 | Needle bearing Ø12XØ16X10 MM |
| 89 | 1600290016 | Rotary shaft lip seal |
| 9 | 2610911728 | Manufacturer's nameplate |
| 98 | 2610935211 | Control Switch |
| 99 | 2610908665 | Baffle Blue |
