Bosch 1272

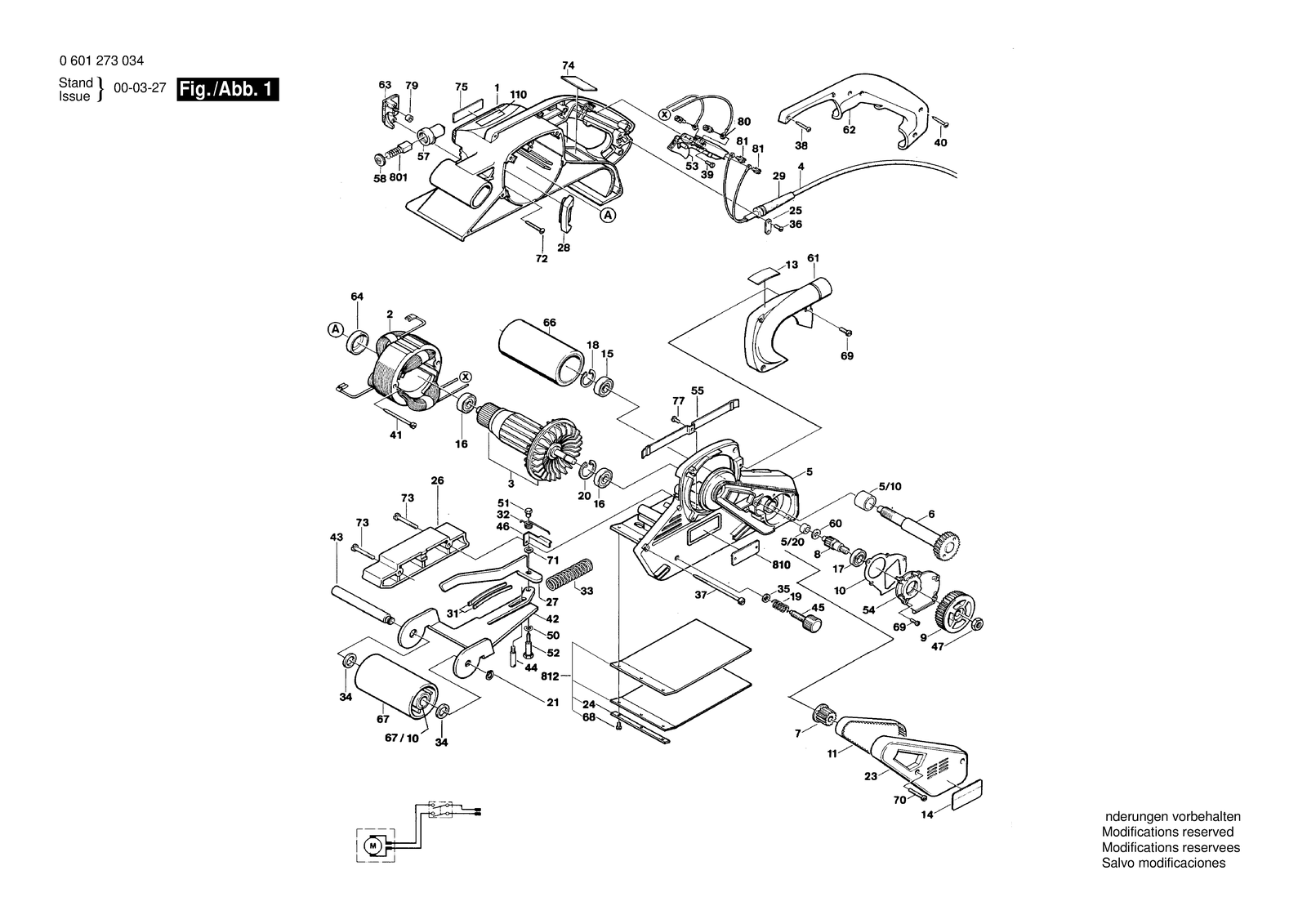

Bosch 1272 belt sander: exploded parts diagram, 1 sheet, 150 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1272: 150 positions on 1 sheet
Bosch 1272 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108560 | Motor Housing |
| 1 | 3605108563 | Motor Housing |
| 10 | 3601015503 | Insert 0,8 MM |
| 10 | 3601015503 | Insert 0,8 MM |
| 11 | 3604736505 | Toothed Belt 14,3 Mm, Z=60 |
| 11 | 3604736505 | Toothed Belt 14,3 Mm, Z=60 |
| 110 | 1601110449 | Nameplate Caution |
| 110 | 1601110449 | Nameplate Caution |
| 13 | 2610967533 | Reference Plate |
| 13 | 3601119549 | Reference Plate Caution |
| 14 | 3601119684 | Manufacturer's nameplate |
| 14 | 3601119683 | Nameplate |
| 15 | 1600905007 | Groove ball bearing 12X32X10 |
| 15 | 1600905007 | Groove ball bearing 12X32X10 |
| 16 | 2610904891 | Ball Bearing |
| 16 | 2610904891 | Ball Bearing |
| 17 | 1900905161 | Groove ball bearing 12X28X8 |
| 17 | 1900905161 | Groove ball bearing 12X28X8 |
| 18 | 3600119509 | Spring retaining ring |
| 18 | 3600119509 | Spring retaining ring |
| 19 | 3604625500 | Compression Spring |
| 19 | 3604625500 | Compression Spring |
| 2 | 3607000679 | Field 110-115V |
| 2 | 3607000679 | Field 110-115V |
| 20 | 3600119503 | Spring retaining ring |
| 20 | 3600119503 | Spring retaining ring |
| 21 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 21 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 23 | 2610990025 | Gear Cover Blue |
| 23 | 2610990025 | Gear Cover Blue |
| 24 | 3601036501 | Strap |
| 24 | 3601036500 | Strap |
| 25 | 3601032500 | Fastening Clamp |
| 25 | 3601032500 | Fastening Clamp |
| 26 | 3601032520 | Covering hood |
| 26 | 3601032525 | Hood |
| 27 | 3601923503 | Tensioning Lever |
| 27 | 3601923502 | Lever |
| 28 | 3605108566 | Cover Plate |
| 28 | 3605108566 | Cover Plate |
| 29 | 3600707503 | Grommet Ø 9,4 MM |
| 29 | 3600707503 | Grommet Ø 9,4 MM |
| 3 | 3604011524 | Armature 115V |
| 3 | 3604011524 | Armature 115V |
| 31 | 3601254500 | Leaf Spring |
| 31 | 3601254500 | Leaf Spring |
| 32 | 3604651500 | Coiled Spring |
| 32 | 3604651500 | Coiled Spring |
| 33 | 3604619500 | Spring |
| 33 | 3604619500 | Spring |
| 34 | 3600101501 | Shim |
| 34 | 3600101501 | Shim |
| 35 | 2610992475 | Shim |
| 35 | 2610992475 | Shim |
| 36 | 2910611011 | Tapping Screw DIN 7981-ST3,5X13-C-H |
| 36 | 2910611011 | Tapping Screw DIN 7981-ST3,5X13-C-H |
| 37 | 2610991306 | Tapping Screw |
| 37 | 2610991306 | Tapping Screw |
| 38 | 2910611013 | Tapping Screw DIN 7981-ST3,5X19-C-H |
| 38 | 2910611013 | Tapping Screw DIN 7981-ST3,5X19-C-H |
| 39 | 2910611424 | Tapping Screw DIN 7981-ST4,2X9,5-F-H |
| 39 | 2910611424 | Tapping Screw DIN 7981-ST4,2X9,5-F-H |
| 4 | 3604460514 | Power supply cord Usa/cdn 3,275M 2 X 1,32MM SJ 16/2 |
| 4 | 3604460514 | Power supply cord Usa/cdn 3,275M 2 X 1,32MM SJ 16/2 |
| 40 | 2910611028 | Tapping Screw DIN 7981-ST4,2X22-C-H |
| 40 | 2910611028 | Tapping Screw DIN 7981-ST4,2X22-C-H |
| 41 | 3603415560 | Screw B 4,8X45 MM |
| 41 | 3603415560 | Screw B 4,8X45 MM |
| 42 | 3601321525 | Pulley |
| 42 | 3601321524 | Retaining Bracket |
| 44 | 3603405509 | Swivelling Axis |
| 44 | 3603405509 | Swivelling Axis |
| 45 | 3603481508 | Knurled Thumbscrew |
| 45 | 3603481507 | Adjusting Screw |
| 46 | 3601230500 | Mounting Bracket |
| 46 | 3601230500 | Mounting Bracket |
| 47 | 2915055108 | Hex Nut DIN 439-BM10-04 |
| 47 | 2915055108 | Hex Nut DIN 439-BM10-04 |
| 5 | 3605806502 | Gear Housing |
| 5 | 3605806508 | Gear Housing |
| 5/10 | 3600301501 | Bushing Ø 15,9 MM |
| 5/10 | 3600301501 | Bushing Ø 15,9 MM |
| 5/20 | 3600301502 | Bushing Ø 7,8 MM |
| 5/20 | 3600301502 | Bushing Ø 7,8 MM |
| 50 | 3600150505 | Spring Washer |
| 50 | 3600150505 | Spring Washer |
| 51 | 3603315500 | Spring Retainer M 5X0,8 MM |
| 51 | 3603315500 | Spring Retainer M 5X0,8 MM |
| 52 | 3603453500 | Hex Screw 5X0,8 MM |
| 52 | 3603453500 | Hex Screw 5X0,8 MM |
| 53 | 3607000677 | Toggle Switch |
| 53 | 3607000677 | Toggle Switch |
| 54 | 2610993630 | Gear Cover |
| 54 | 2610993630 | Gear Cover |
| 55 | 3601321527 | Housing |
| 55 | 3601321527 | Housing |
| 57 | 3600492504 | Brush Holder |
| 57 | 3600492504 | Brush Holder |
| 58 | 2610994437 | Screw Cap |
| 58 | 2610994437 | Screw Cap |
| 6 | 3606100509 | Spindle With Gear |
| 6 | 3606100510 | Spindle With Gear Lefthand Threads Z=41 |
| 61 | 3605500577 | Fan Cover |
| 61 | 3605500577 | Fan Cover |
| 62 | 2610994470 | Handle Cover Blue |
| 62 | 2610994470 | Handle Cover Blue |
| 64 | 3600206502 | Bushing |
| 64 | 3600206502 | Bushing |
| 66 | 3606625534 | Drive disk |
| 66 | 3606625540 | Roller Lefthand Threads |
| 67 | 3606625532 | Drive disk |
| 67 | 3606625533 | Roller |
| 67/10 | 3600301500 | Bushing |
| 67/10 | 3600301500 | Bushing |
| 68 | 2910641082 | Oval-Head Screw |
| 68 | 2910641082 | Oval-Head Screw |
| 69 | 3603415540 | Screw 4X13 MM |
| 69 | 3603415540 | Screw 4X13 MM |
| 7 | 3606625531 | Pinion Z=12 |
| 7 | 3606625531 | Pinion Z=12 |
| 70 | 3603429514 | Screw 4X25 MM |
| 70 | 3603429514 | Screw 4X25 MM |
| 71 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 71 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 72 | 3603435507 | Tapping Screw |
| 72 | 3603435507 | Tapping Screw |
| 73 | 3603415559 | Rec ct-sunk tapping screw |
| 73 | 3603429513 | Screw 4X35 MM |
| 74 | 1601110058 | Reference Plate Double Insulation |
| 74 | 1601110058 | Reference Plate Double Insulation |
| 75 | 3601119679 | Manufacturer's nameplate |
| 75 | 3601119679 | Manufacturer's nameplate |
| 77 | 3603429512 | Socket head cap screw |
| 77 | 3603429512 | Socket head cap screw |
| 79 | 3600305500 | Rubber Buffer |
| 79 | 3600305500 | Rubber Buffer |
| 8 | 3606302500 | Toothed Shaft Z=15 |
| 8 | 3606302500 | Toothed Shaft Z=15 |
| 80 | 3601353500 | Connecting terminal |
| 80 | 3601353500 | Connecting terminal |
| 801 | 3607014507 | Carbon-Brush Set |
| 801 | 3607014507 | Carbon-Brush Set |
| 81 | 3603433506 | Screw |
| 81 | 3603433506 | Screw |
| 810 | 3601119590 | Nameplate |
| 810 | 3601119590 | Nameplate |
| 812 | 3601010515 | Damping Plate |
| 812 | 3601010516 | Service kit |
| 9 | 3606625529 | Toothed Belt Wheel Z=34 |
| 9 | 3606625529 | Toothed Belt Wheel Z=34 |
