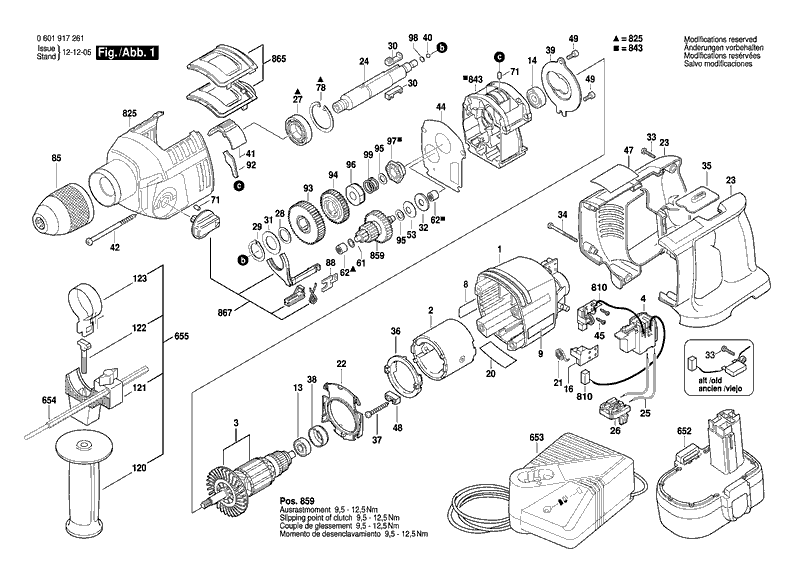

Bosch 12524 cordless rotary hammer: exploded parts diagram, 1 sheet, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 12524: 69 positions on 1 sheet
Bosch 12524 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610912789 | Housing Blue |
| 120 | 1612025019 | Auxiliary Handle M8 |
| 121 | 1618040048 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 13 | 1619P01511 | Ball Bearing |
| 14 | 2610915659 | Dummy |
| 16 | 2610995803 | Brush Holder |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 20 | 2610912791 | Dummy |
| 21 | 1619P14306 | Spiral Spring |
| 22 | 2610914394 | Carrier |
| 23 | 2610917454 | Handle |
| 24 | 2606135099 | Drilling Spindle |
| 25 | 2610907407 | Cable |
| 26 | 1609280362 | Contact retainer |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 3 | 2610912790 | Dummy |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 32 | 2600101056 | Shim |
| 33 | 2610315386 | Screw ST3,9X19 |
| 34 | 1619P01446 | Screw |
| 35 | 2610995835 | Selective Switch |
| 36 | 1610290043 | Locating Ring |
| 37 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 38 | 2610990845 | Plain Washer |
| 39 | 2601098067 | Retaining Washer |
| 4 | 2610995801 | On-Off Switch |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 41 | 2602098014 | Changeover Lever |
| 42 | 2603435076 | Headless Screw |
| 44 | 2601073014 | Gasket |
| 45 | 2610914920 | Tapping Screw |
| 47 | 2610914657 | Bearing |
| 48 | 2601328068 | Holding-Down-Appliance |
| 49 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 53 | 2600550008 | Disc Spring |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 652 | 2607335451 | Slide-In Accu Package 24V, 2,4AH, Nicd |
| 653 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 654 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 655 | 2602025070 | Auxiliary Handle Ø43 MM |
| 71 | 2600590006 | Ratchet Cap |
| 78 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 8 | 2610914655 | Base |
| 810 | 2610918932 | Carbon-Brush Set |
| 825 | 2605806894 | Gear Housing |
| 843 | 2605700942 | Intermediate Flange |
| 85 | 2608572143 | Keyless Chuck HSB 4 |
| 859 | 1600A00MM2 | Transmission |
| 865 | 2605510901 | Bulb Shield |
| 867 | 2606308923 | Toothed rack |
| 88 | 2601328070 | Holding Plate |
| 9 | 2610914656 | Dummy |
| 92 | 2600114016 | Pressure Plate |
| 93 | 2606317084 | Cylindrical Gear |
| 94 | 2606317098 | Cylindrical Gear |
| 95 | 2600101047 | Shim 0,3 MM |
| 96 | 2600190090 | Catch Disk |
| 97 | 2600190078 | Catch Disk |
| 98 | 2600000021 | Shim washer 1,0 MM |
| 98 | 2600000030 | Shim washer 1,35 MM |
| 98 | 2600000031 | Shim washer 1,7 MM |
| 99 | 2604616013 | Compression Spring |
