Bosch 1211

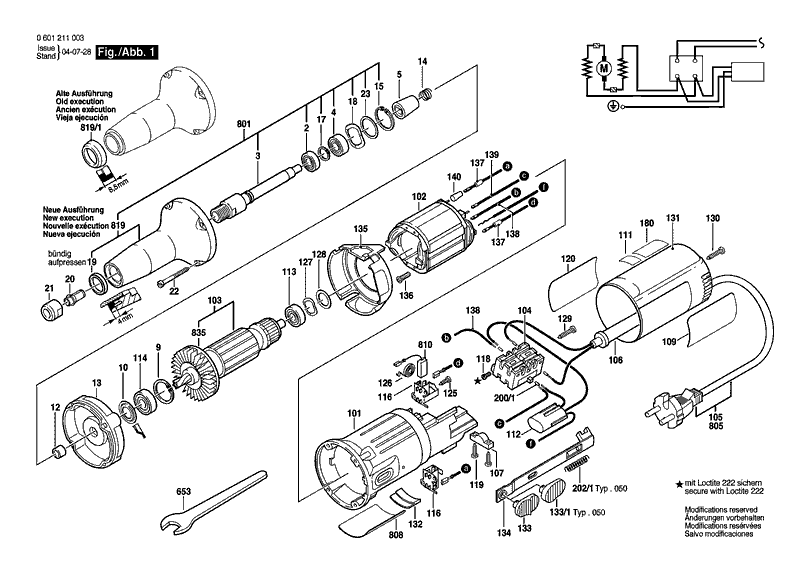

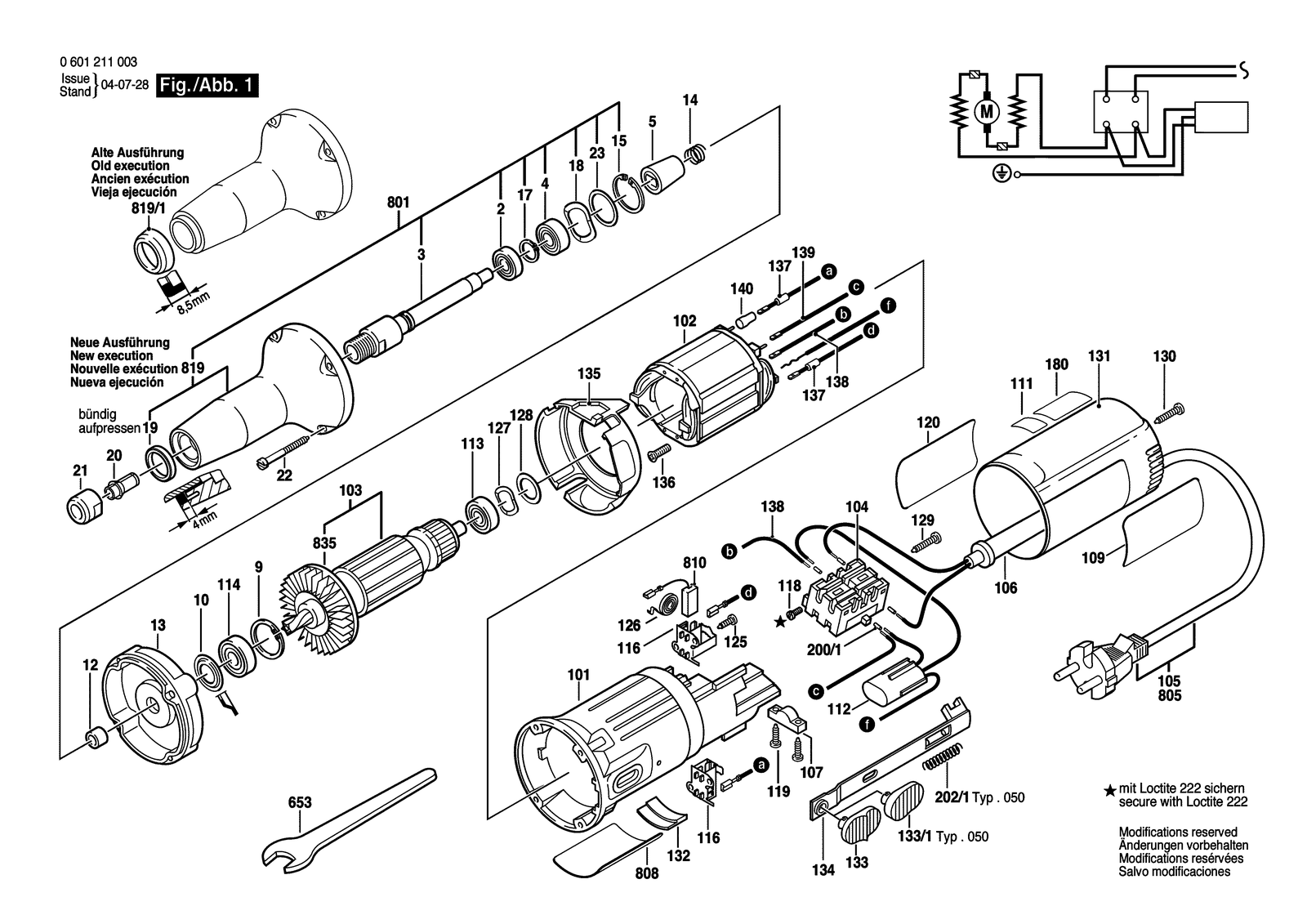

Bosch 1211 straight grinders: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1211: 85 positions on 1 sheet
Bosch 1211 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2600500002 | Cupped Washer |
| 101 | 2605108051 | Motor Housing Blue |
| 102 | 2604220427 | Field 100V |
| 102 | 2604220438 | Field 220-230V |
| 102 | 2604220441 | Field 240V |
| 102 | 2604220443 | Field 110-120V |
| 103 | 2604010636 | Armature 100V |
| 103 | 2604010637 | Armature 110-120V |
| 103 | 2604010639 | Armature 220-230V |
| 103 | 2604010659 | Armature 240V |
| 104 | 2607200674 | Switch |
| 105 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 105 | 2604460074 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 105 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 105 | 2604460168 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 105 | 2604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 105 | 3604460049 | Power supply cord |
| 105 | 3607030489 | Power supply cord |
| 106 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 106 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 106 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 107 | 2601035001 | Cable Clip |
| 109 | 2601110287 | Sticker |
| 109 | 3601103010 | Sticker |
| 111 | 1601110357 | Sticker |
| 112 | 2607329104 | Suppression Filter |
| 113 | 2600905018 | Groove ball bearing 7X22X7 |
| 114 | 2600905021 | Groove ball bearing 9X24X7 |
| 116 | 1600A003G4 | Brush Holder |
| 118 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 119 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 12 | 2600400008 | Receptacle |
| 120 | 2601110243 | Sticker |
| 120 | 2601110290 | Sticker |
| 125 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 126 | 2604652009 | Spiral Spring |
| 127 | 2600150004 | Shim |
| 128 | 2600101020 | Shim 0,5 MM |
| 128 | 2600101022 | Shim 0,2 MM |
| 128 | 2600101023 | Shim 0,3 MM |
| 129 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 13 | 2605700215 | Intermediate Flange |
| 130 | 2910601421 | Tapping Screw DIN 7982-BZ3,9X22 |
| 131 | 2600508036 | Housing Cover Blue |
| 131 | 2605500073 | Housing Cover Blue |
| 132 | 1600026000 | Intermediate Piece Blue |
| 133 | 2602026015 | Switch Handle Black |
| 133/1 | 2602026014 | Switch Handle |
| 134 | 2602319005 | Adjusting Slide Blue |
| 135 | 2601328045 | Cover Disc |
| 136 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 137 | 2604448034 | Connecting Cable White L=88 MM |
| 137 | 2604465106 | Suppressor Box |
| 138 | 2604448040 | Connecting Cable White L=125MM |
| 139 | 2604448039 | Connecting Cable White L=68MM |
| 14 | 2604630001 | Compression Spring |
| 140 | 2600409014 | Shrinkable Tube 25-1MM |
| 15 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 17 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 18 | 3600150011 | Shim |
| 180 | 3601119137 | Warning Plate Caution |
| 19 | 3600300074 | Cover Ring |
| 2 | 3600900020 | Groove ball bearing |
| 20 | 2608570077 | Collet Ø 3 MM |
| 20 | 2608570078 | Collet Ø 1/8" (3,175 Mm) |
| 20 | 2608570080 | Collet Ø 1/4" (6,35 Mm) |
| 20 | 2608570081 | Collet Ø 8 MM |
| 20 | 2608570129 | Collet Ø 6 MM |
| 200/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 202/1 | 2604611033 | Compression Spring |
| 21 | 3603342009 | Round Nut |
| 22 | 2910211093 | Tapping Screw DIN 7971-BZ3,9X38 |
| 23 | 1710102601 | Shim 0,10 MM |
| 3 | 3603523008 | Grinding Spindle M15X1, SW17 |
| 4 | 3600900021 | Groove ball bearing |
| 5 | 2606446002 | Coupling Half |
| 653 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 801 | 3607031168 | Grinding Spindle |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 3607031630 | Carbon-Brush Set |
| 819 | 3607030418 | Spindle Bearing |
| 819/1 | 2600501001 | Cover Ring 8,5 MM |
| 835 | 2606610050 | Fan |
| 9 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
