Bosch 1209

Bosch 1209 straight grinders: exploded parts diagram, 2 sheets, 89 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1209: 89 positions on 2 sheets

Bosch 1209 parts list (2 sheets)

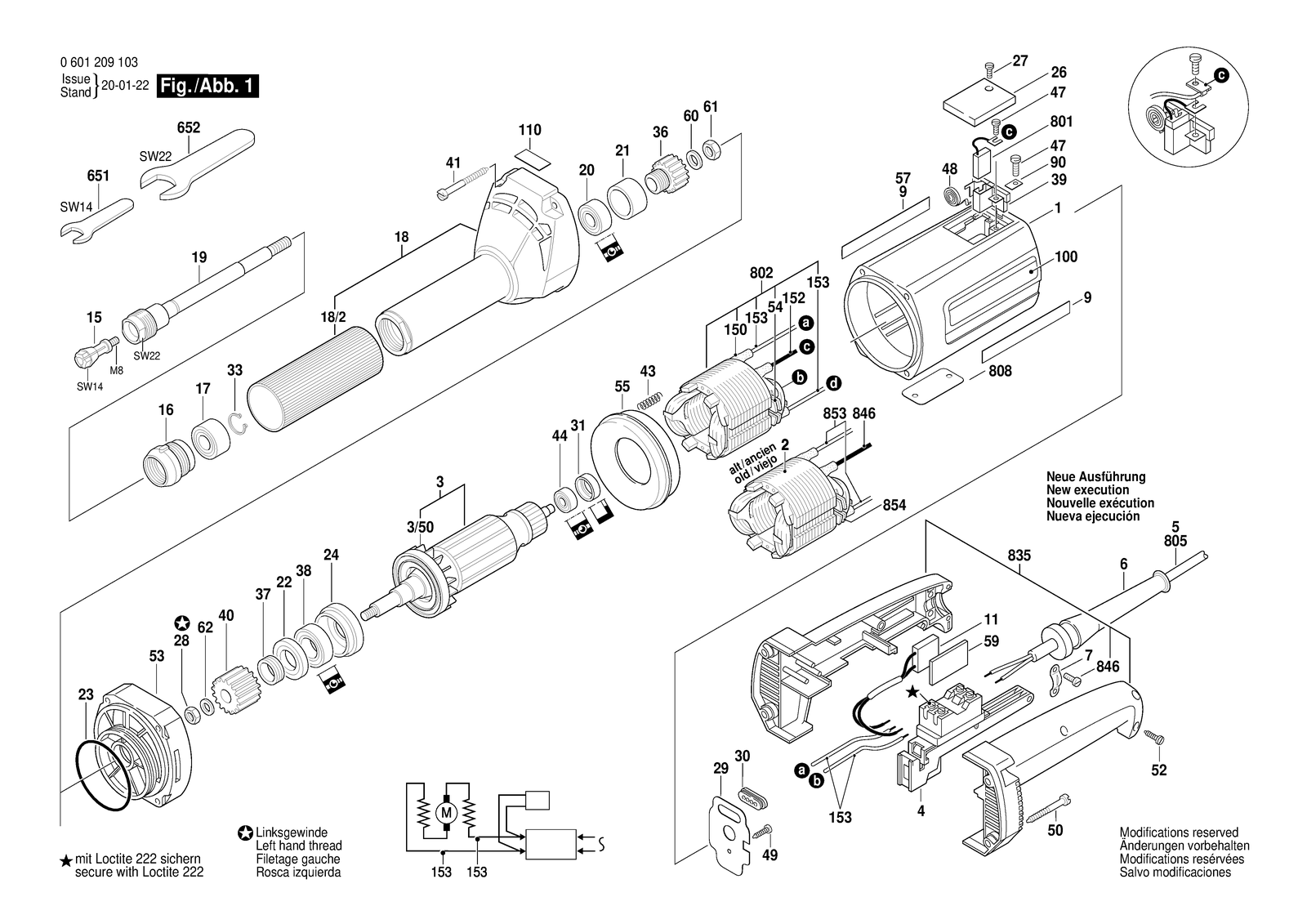

Bosch 1209 parts diagram, sheet 1Bosch 1209 parts diagram, sheet 2
No.Part numberPart name
13605108145Motor Housing Blue
1003601110358Sticker
113607328000Suppression Filter
1101601110449Nameplate Caution
152608570009Collet Ø 8, M 8, SW 14
152608570014Collet Ø 1/4", M 8, SW 14
1503600707022Shrinkable Tube
1521604477001Blade terminal
1533604438001Connecting Cable White L=220 MM
1533604438029Connecting Cable
161600362018Threaded Bushing Lefthand Threads M 32X1
173600905019Groove ball bearing
183605806054Spindle Bearing
18/23600707043Shrinkable Tube
193603124010Grinding Spindle M 8,SW 22
201600905007Groove ball bearing 12X32X10
213600206004Rubber Ring
221600290016Rotary shaft lip seal
231600210031O-Ring 57,0X1,5 MM
241600221003Intermediate Ring
263605500063Sealing cap Blue
272910211019Tapping Screw DIN 7971-ST3,9X16-F
283603300004Hex Nut Lefthand Threads M6
293601038049Cover Plate
31619P13607Armature
33604010008Armature 110-115V
33604010009Armature 240V
33604010010Armature 100V
3/501606610122Fan
301600306001Grommet
311600502011Intermediate Ring
332916650008Spring retaining ring DIN 471 17X1 MM
363606320011Cylindrical Gear Z=25
371600300090Intermediate Ring
383600905131Groove ball bearing 9X26X8
391604336017Brush Holder
41607200064Switch
401600A01L6FCylindrical Gear
413603435057Torx Oval-Head Screw
431604613006Compression Spring
442600905032Ball Bearing 7X19X6
472910021118Socket head cap screw DIN 84-AM4X8-8.8
481604652006Spiral Spring
492910211011Tapping Screw DIN 7971-BZ3,5X13
51604460203Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F
51604460447Power supply cord CH 4,15M 2 X 1,0MM H07RN-F
53604460049Power supply cord
53604460077Power supply cord GB 240V 4,15M 2 X 1,0MM H07RN-F
502914201531Torx Oval-Head Screw
522914201508Torx Oval-Head Screw
531607000FF6Intermediate Bearing
543601025003Wire Guide
551600502019Air-Deflector Ring
572610944443Sticker
573601119417Manufacturer's nameplate
591602381006Insulating Plate 20X20X50 MM
63600703011Grommet Ø9,2-Ø12X120 MM
602916010016Plain Washer A 8,4 DIN 125-ST
612915050107Hex Nut DIN 439-BM8-04
622916011014Plain Washer DIN 125-A 6,4-ST
6511907950508Single-Head Eng. Wrench SW 14
6521607950505Single-Head Eng. Wrench SW22
71601302014Fastening Clamp
8011607014126Carbon-Brush Set
8023604220131Field 230V
8023604220132Field 110-120V
8023604220133Field 240V
8033605132048Handle Dark Blue
8033605132077Handle
8041607000034Switch Kit
804/102910091120Pan head screw DIN 85-M4X10-4.8
8051607000391Power supply cord
8071601302013Fastening Clamp
808160111A3H3Nameplate
8321602026030Control Lever
832/801600205008Felt Washer
8341600113013Seal
8353607031660Housing Section
8353607031661Housing Section
8451601014000Sealing Cord
8463607031662Set of screws
8512916011005Plain Washer DIN 433-3,2-ST 50
8533604438001Connecting Cable White L=220 MM
8543601025003Wire Guide
92601116504Manufacturer's nameplate
93601110106Manufacturer's nameplate
93601110358Sticker
93601119416Manufacturer's nameplate
901601030022Tab Washer
