Bosch 1209

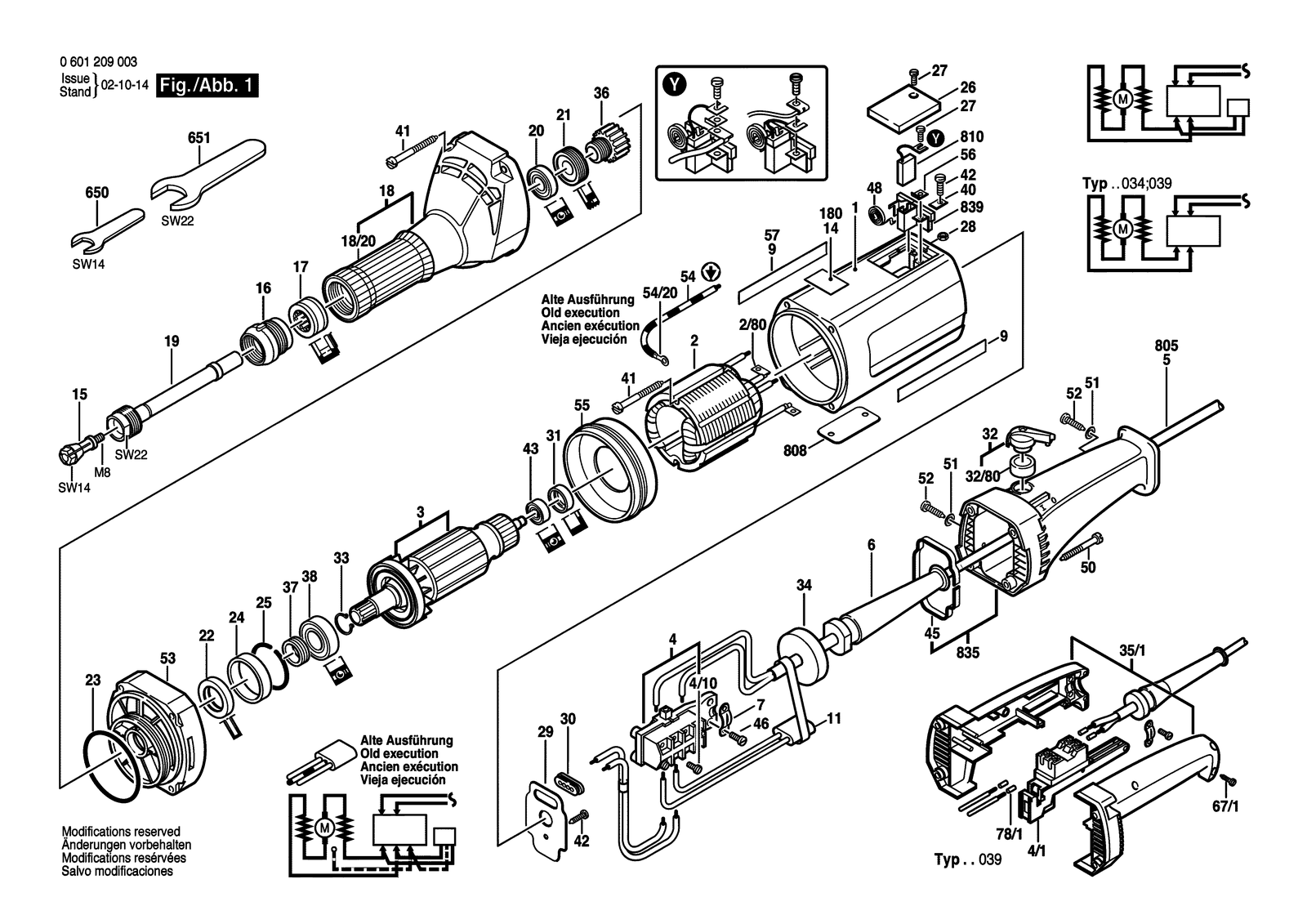

Bosch 1209 straight grinders: exploded parts diagram, 1 sheet, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1209: 77 positions on 1 sheet
Bosch 1209 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 11 | 1607328034 | Suppression Filter |
| 14 | 1601110058 | Reference Plate Double Insulation |
| 15 | 1608570041 | Collet Ø 8, M8, SW14 |
| 15 | 2608570014 | Collet Ø 1/4", M 8, SW 14 |
| 16 | 1600362018 | Threaded Bushing Lefthand Threads M 32X1 |
| 17 | 3600905110 | Cyl. Roller Bearing I-82 006 M DIN 5412 |
| 18 | 1605806199 | Spindle Bearing |
| 18/20 | 1600409004 | Shrinkable Tube |
| 19 | 1603124035 | Grinding Spindle Lefthand Threads M8, SW22 |
| 2 | 1604220128 | Field 220V |
| 2 | 1604220130 | Field 100-110V |
| 2 | 1604220131 | Field 110-115V |
| 2 | 1604220132 | Field 240V |
| 2 | 1604220145 | Field 220V |
| 2/80 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1600905031 | Groove ball bearing 12X28X8 |
| 21 | 1603344024 | Threaded Ring M30X1 |
| 22 | 1600290008 | Rotary shaft lip seal White |
| 23 | 1600210031 | O-Ring 57,0X1,5 MM |
| 24 | 1600206014 | Rubber Ring Wide 10 MM |
| 25 | 1600116004 | Retaining ring |
| 26 | 1605500089 | Sealing cap Blue |
| 27 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 28 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 29 | 1601037007 | Cover Plate |
| 3 | 1604010171 | Armature 220V |
| 3 | 1604010173 | Armature 100-115V |
| 3 | 1604010174 | Armature 240V |
| 30 | 1600306001 | Grommet |
| 31 | 1600502011 | Intermediate Ring |
| 32 | 1602026030 | Control Lever |
| 32/80 | 1600205008 | Felt Washer |
| 33 | 2916560003 | Spring retaining ring DIN 471-12X1-FST |
| 34 | 1600113013 | Seal |
| 35/1 | 3605132054 | Handle Black |
| 36 | 1606320074 | Cylindrical Gear Z=25 |
| 37 | 1603344056 | Threaded Ring M20X1 |
| 38 | 1600900020 | Groove ball bearing 17X35X10 |
| 4 | 1607000034 | Switch Kit |
| 4/1 | 1607200064 | Switch |
| 4/10 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 40 | 1601030022 | Tab Washer |
| 41 | 1603435012 | Tapping Screw B4,8X50 MM |
| 42 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 43 | 2600905032 | Ball Bearing 7X19X6 |
| 45 | 1601014000 | Sealing Cord |
| 46 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 46 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 48 | 1604652006 | Spiral Spring |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460080 | Power supply cord |
| 5 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 5 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 5 | 3604460049 | Power supply cord |
| 5 | 3604460077 | Power supply cord GB 240V 4,15M 2 X 1,0MM H07RN-F |
| 50 | 2914201531 | Torx Oval-Head Screw |
| 51 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 52 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 53 | 1605820218 | Intermediate Bearing |
| 54 | 1604440008 | Elec. Cable W/Connection L=260 MM |
| 54/20 | 1601353003 | Terminal lug |
| 55 | 1600502015 | Air-Deflector Ring |
| 56 | 1611331007 | Tab Washer |
| 57 | 1601110074 | Sticker Double Insulation |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 650 | 1907950508 | Single-Head Eng. Wrench SW 14 |
| 651 | 1607950505 | Single-Head Eng. Wrench SW22 |
| 67/1 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 7 | 1601302013 | Fastening Clamp |
| 78/1 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014126 | Carbon-Brush Set |
| 835 | 3605132048 | Handle Dark Blue |
| 839 | 1604336017 | Brush Holder |
| 9 | 1601110046 | Sticker |
