Bosch 1207

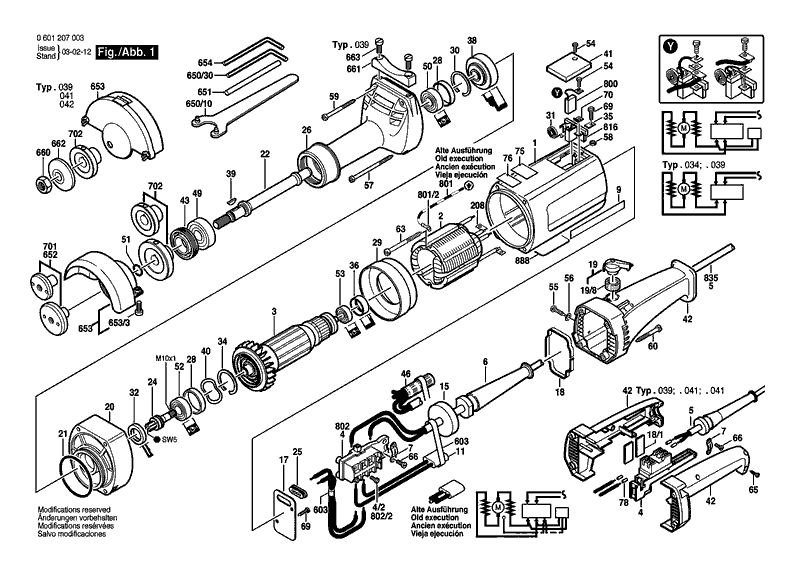

Bosch 1207 straight grinders: exploded parts diagram, 1 sheet, 104 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1207: 104 positions on 1 sheet
Bosch 1207 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108088 | Motor Housing Blue |
| 11 | 1607328034 | Suppression Filter |
| 15 | 1600113002 | Seal |
| 17 | 1601037006 | Cover Plate |
| 18 | 1601014005 | Profile Strip 3,4X7X240 MM |
| 19 | 1602026041 | Control Lever |
| 19/8 | 1600205019 | Felt Washer |
| 2 | 1604220122 | Field 220-230V |
| 2 | 1604220123 | Field 100-110V |
| 2 | 1604220124 | Field 115-120V |
| 2 | 1604220125 | Field 240V |
| 2 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1605820212 | Intermediate Bearing |
| 21 | 1900210152 | O-Ring 55X3 MM |
| 22 | 1603160035 | Grinding Spindle M14 |
| 22 | 1603160037 | Grinding Spindle 5/8"-11UNC-2A |
| 24 | 1606300003 | Pinion Z=10 |
| 25 | 1600306001 | Grommet |
| 26 | 1605806365 | Spindle Bearing |
| 26 | 1605806370 | Spindle Bearing |
| 28 | 1600206020 | Rubber Ring Wide 7 MM |
| 29 | 1600502009 | Air-Deflector Ring |
| 3 | 1604011095 | Armature 115V |
| 3 | 1604011236 | Armature 220-230V |
| 3 | 1604011237 | Armature 100-110V |
| 3 | 1604011238 | Armature 115-120V |
| 3 | 1604011239 | Armature 240V |
| 30 | 1600116004 | Retaining ring |
| 31 | 1604652006 | Spiral Spring |
| 32 | 1600290008 | Rotary shaft lip seal White |
| 34 | 2916660017 | Spring retaining ring DIN 472 38X1,5MM |
| 35 | 1601030022 | Tab Washer |
| 36 | 1600206015 | Rubber Ring |
| 36 | 1600502006 | Rubber Bushing |
| 38 | 1606334000 | Internal Gear Z=41 |
| 39 | 1900023006 | Woodruff Key DIN 6888-4X5-ST60-2 |
| 4 | 1607000034 | Switch Kit |
| 4 | 1607200064 | Switch |
| 4/2 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 40 | 1600150007 | Spring Washer Ø27,5X38,4 MM |
| 41 | 1605500089 | Sealing cap Blue |
| 41 | 3605500060 | Sealing cap Blue |
| 42 | 1605132079 | Handle Blue |
| 42 | 1605132106 | Handle Blue |
| 43 | 1603344005 | Threaded Ring |
| 49 | 1900900352 | Groove ball bearing 17X47X14 |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460149 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 5 | 1604460150 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460152 | Power supply cord I 2,65M 2 X 1,0MM H05VV-F |
| 5 | 1607000391 | Power supply cord |
| 5 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460187 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 5 | 2604460209 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05VV-F |
| 5 | 3604460057 | Power supply cord SAM 4,15M 2 X 0,82MM SJ 18/2 |
| 50 | 1600905025 | Groove ball bearing 10X35X11 |
| 51 | 2916600009 | Retaining ring 16 DIN 9045 |
| 52 | 1900905234 | Groove ball bearing 15X35X11 |
| 53 | 1600900029 | Groove ball bearing |
| 54 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 55 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 56 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 57 | 1603429001 | Tapping Screw B4,8X85 MM |
| 58 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 59 | 1603435013 | Tapping Screw B4,8X72,5 MM |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 2910211036 | Tapping Screw DIN 7971-ST4,8X25-F |
| 63 | 1603429000 | Tapping Screw B4,8X57,5 MM |
| 65 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 650/10 | 1607950061 | Pin-Type Face-Wrench |
| 650/30 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 651 | 3603101005 | Holding Pin |
| 652 | 1603300012 | Hex Nut 5/8"-11UNC-3B, SW15/16" |
| 652 | 1603345034 | Round Nut Ø 65X20 Mm, M14 |
| 652 | 1603345036 | Round Nut Ø 51,5X20 Mm, M14 |
| 653 | 1605510112 | Protective Cover Ø 138 MM |
| 653/3 | 1605510106 | Protective Cover Ø 140 MM |
| 653/3 | 2910141240 | Hex Socket Head Cap Screw DIN 912-M8X18-8.8 |
| 654 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 66 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 660 | 1603300012 | Hex Nut 5/8"-11UNC-3B, SW15/16" |
| 661 | 1608039008 | Storage Ledge |
| 662 | 3605703064 | Conical Spring Washer |
| 663 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 69 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 7 | 1601302013 | Fastening Clamp |
| 70 | 1611331007 | Tab Washer |
| 701 | 1603345034 | Round Nut Ø 65X20 Mm, M14 |
| 701 | 1603345036 | Round Nut Ø 51,5X20 Mm, M14 |
| 702 | 1605703065 | Clamping Flange Ø 65X16 MM |
| 702 | 2605703010 | Clamping Flange Ø 51 MM |
| 75 | 1601110058 | Reference Plate Double Insulation |
| 76 | 1601110358 | Reference Plate Caution |
| 76 | 3601110072 | Sticker |
| 78 | 3604477009 | End Splice |
| 800 | 1607014106 | Carbon-Brush Set |
| 801 | 1604440004 | Connecting Cable |
| 802 | 1607000034 | Switch Kit |
| 802/2 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 816 | 3604336012 | Brush Holder |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110005 | Manufacturer's nameplate |
