Bosch 120 WATT-SERIE

Bosch 120 WATT-SERIE pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 158 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 120 WATT-SERIE: 158 positions on 1 sheet

Bosch 120 WATT-SERIE parts list (1 sheet)

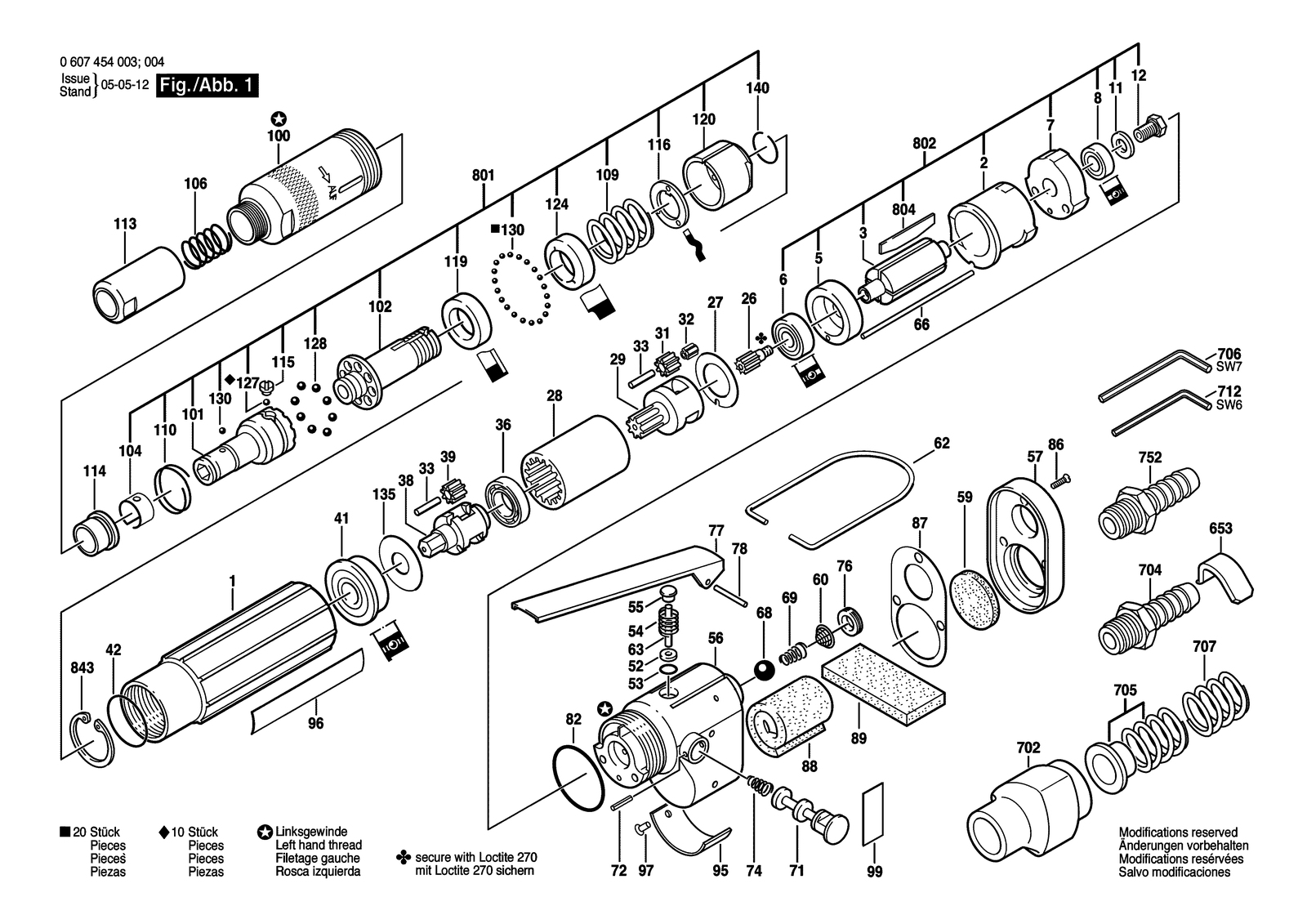

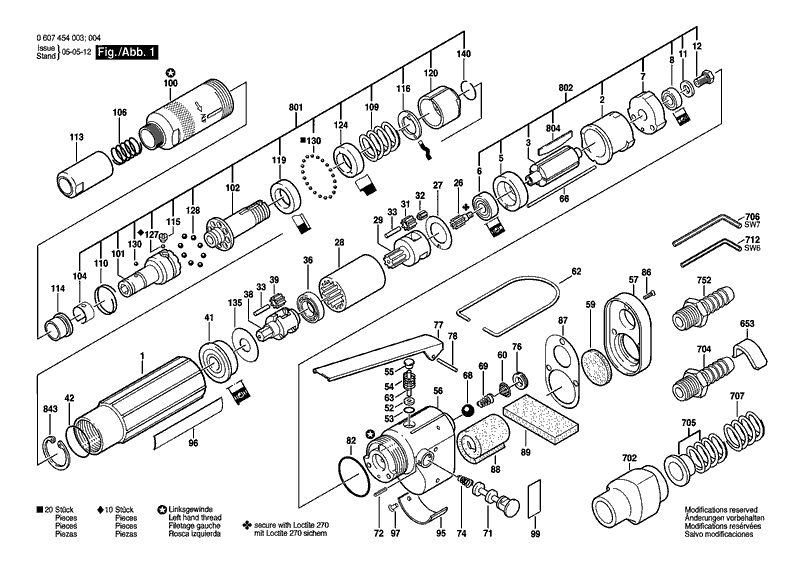

Bosch 120 WATT-SERIE parts diagram, sheet 1
No.Part numberPart name
13600760022Motor Housing
13600760022Motor Housing
1003605125021Housing
1003605125021Housing
1013606445034Clutch Element
1013606445034Clutch Element
1023606122010Drive Shaft
1023606122010Drive Shaft
1043601250002Leaf Spring
1043601250002Leaf Spring
1063604615004Compression Spring
1063604615004Compression Spring
1093604619007Compression Spring Red
1093604619007Compression Spring Red
112916011011Plain Washer DIN 433-5,3-ST
112916011012Plain Washer DIN 125-A5,3-ST
1103604603000Retaining ring
1103604603000Retaining ring
1133603343000Union Nut
1133603343000Union Nut
1143600311004Bushing
1143600311004Bushing
1153600001003Sealing plate
1153600001003Sealing plate
1163600134002Adjusting Disc
1163600134002Adjusting Disc
1193600114007Support Disc
1193600114007Support Disc
122911061150Hex Screw DIN 933-M5X8-8.8
122911061150Hex Screw DIN 933-M5X8-8.8
1203603340003Round Nut
1203603340003Round Nut
1243600114006Coupling Plate
1243600114006Coupling Plate
1271903230004Ball DIN 5401-3 Mm-Iii-St
1271903230004Ball DIN 5401-3 Mm-Iii-St
1281903230007Ball DIN 5401-4 Mm-Iii-St
1281903230007Ball DIN 5401-4 Mm-Iii-St
1301903230003Ball DIN 5401-2,5MM-III-ST
1301903230003Ball DIN 5401-2,5MM-III-ST
1353600113003Stop Disc
1353600113003Stop Disc
1402916600006Retaining ring 10 DIN 9045
1402916600007Retaining ring 12 DIN 9045
23604090014Stator 120W
23604090014Stator 120W
263606300013Pinion
263606300174Pinion
273600101008Stop Disc
273600101008Stop Disc
283606334011Ring Gear Z=42
283606334011Ring Gear Z=42
293606337057Planetary-Gear Carrier
293606337057Planetary-Gear Carrier
33604220013Rotor
33604220013Rotor
313606316093Cylindrical Gear Z=14
313606316115Cylindrical Gear
323600913000Needle-Roller Assembly Ina K3X5X7
323600913000Needle-Roller Assembly Ina K3X5X7
333603201000Needle Roller
333603201000Needle Roller
363600905002Groove ball bearing 12X21X5
363600905002Groove ball bearing 12X21X5
383606337030Planetary-Gear Carrier
383606337030Planetary-Gear Carrier
393606316114Cylindrical Gear
393606316114Cylindrical Gear
411900905041Groove ball bearing 8X22X7
411900905041Groove ball bearing 8X22X7
421900210321O-Ring 22X2 MM
421900210321O-Ring 22X2 MM
53605700023Bearing Flange
53605700023Bearing Flange
522916011006Plain Washer DIN 125-A3,2-ST
522916011006Plain Washer DIN 125-A3,2-ST
532600210007O-Ring 2,4X1,9 MM
532600210007O-Ring 2,4X1,9 MM
543604611017Compression Spring
543604611017Compression Spring
553603132000Valve Cone
553603132000Valve Cone
563605190159Valve Housing
563605190159Valve Housing
573605500006Housing Cover
573605500006Housing Cover
593600002002Silencer
593600002002Silencer
62600905032Ball Bearing 7X19X6
62600905032Ball Bearing 7X19X6
603600002001Strainer
603600002001Strainer
622604720004Suspension Loop
622604720004Suspension Loop
633603201023Needle Roller
633603201023Needle Roller
6533601329007Angle Piece
6533601329007Angle Piece
663603201001Straight Pin
663603201001Straight Pin
681903230013Ball DIN 5401-Ø7MM-III-ST
681903230013Ball DIN 5401-Ø7MM-III-ST
693604611006Compression Spring
693604611006Compression Spring
73605700021Bearing Flange
73605700021Bearing Flange
7023600499002Handle
7023600499002Handle
7043607010011Hose fitting 2 Piece
7043607010011Hose fitting 2 Piece
7053607031085Clutch Element
7053607031085Clutch Element
7061907950013Hexagon-Socket Key DIN 911 SW 7
7061907950013Hexagon-Socket Key DIN 911 SW 7
7073604618007Compression Spring Yellow
713608750004Control Piston
713608750004Control Piston
7123607950001Hexagon-Socket Key
7123607950001Hexagon-Socket Key
722917800015Coiled Spring Pin 1,5X8 DIN 7343
722917800015Coiled Spring Pin 1,5X8 DIN 7343
743604643008Compression Spring
743604643008Compression Spring
7523603386002Hose fitting
763603344003Threaded Ring
763603344003Threaded Ring
773601902001Control Lever
773601902001Control Lever
782917700040Grooved Pin DIN 1475-2X18-ST
782917700040Grooved Pin DIN 1475-2X18-ST
81900905030Groove ball bearing 7X14X5
81900905030Groove ball bearing 7X14X5
8013607031121Overriding Clutch
8013607031121Overriding Clutch
8023607031058Assembly Of Service Parts
8023607031058Assembly Of Service Parts
8043607030259Assembly Of Service Parts 4 Piece
8043607030259Assembly Of Service Parts 4 Piece
823600210012O-Ring 20,0X1,0 MM
823600210012O-Ring 20,0X1,0 MM
8433607010009Parts Set 2 Piece
8433607010009Parts Set 2 Piece
862910771052Countersunk-Head Screw M 3X10 DIN 963-5.8
862910771052Countersunk-Head Screw M 3X10 DIN 963-5.8
873600054000Sealing Plate
873600054000Sealing Plate
883601010002Silencer
883601010002Silencer
893601010001Silencer
893601010001Silencer
95160111A3HFNameplate
95160111A3HFNameplate
963601119055Manufacturer's nameplate
961601110481Manufacturer's nameplate Shadow Side
973603133000Grooved Nail
973603133000Grooved Nail
993601119236Reference Plate
993601119236Reference Plate
