Bosch 1183.7

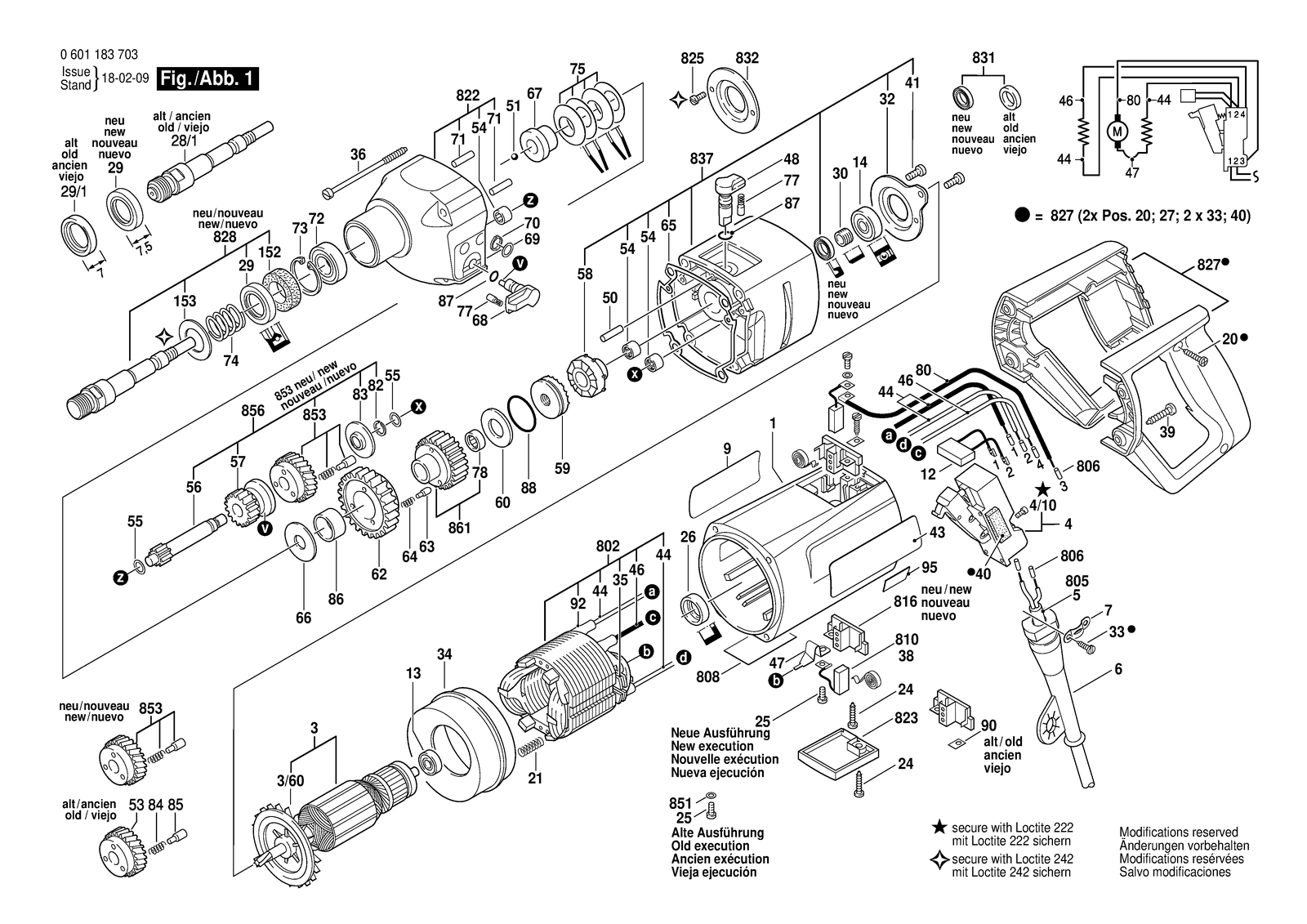

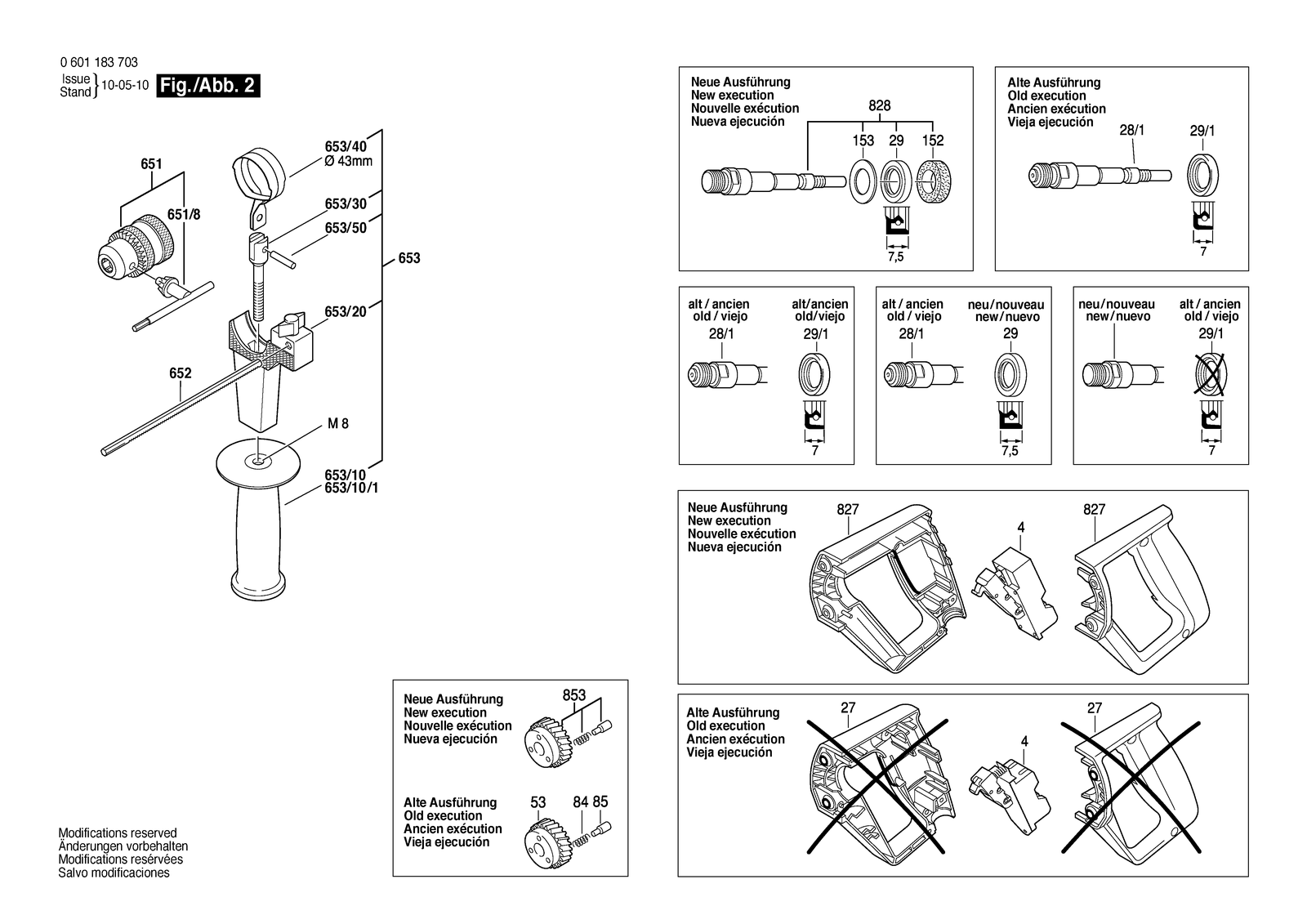

Bosch 1183.7 percussion drill: exploded parts diagram, 2 sheets, 311 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1183.7: 311 positions on 2 sheets
Bosch 1183.7 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 1 | 3605108211 | Motor Housing Blue |
| 1 | 3605108210 | Motor Housing Orange |
| 12 | 1607328028 | Suppression Filter |
| 12 | 1607328028 | Suppression Filter |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 3600905131 | Groove ball bearing 9X26X8 |
| 14 | 3600905131 | Groove ball bearing 9X26X8 |
| 14 | 3600905131 | Groove ball bearing 9X26X8 |
| 152 | 3600200044 | Felt Washer |
| 152 | 3600200044 | Felt Washer |
| 152 | 3600200044 | Felt Washer |
| 153 | 3600150027 | Cover Disc |
| 153 | 3600150027 | Cover Disc |
| 153 | 3600150027 | Cover Disc |
| 20 | 2914201507 | Torx Oval-Head Screw |
| 20 | 2914201507 | Torx Oval-Head Screw |
| 20 | 2914201507 | Torx Oval-Head Screw |
| 21 | 1604613006 | Compression Spring |
| 21 | 1604613006 | Compression Spring |
| 21 | 1604613006 | Compression Spring |
| 24 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 24 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 24 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 25 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 25 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 25 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 26 | 1600502011 | Intermediate Ring |
| 26 | 1600502011 | Intermediate Ring |
| 26 | 1600502011 | Intermediate Ring |
| 29 | 3600283043 | Rotary shaft lip seal |
| 29 | 3600283043 | Rotary shaft lip seal |
| 29 | 3600283043 | Rotary shaft lip seal |
| 3 | 1619P13612 | Armature |
| 3 | 3604010016 | Armature 240V |
| 3 | 3604010017 | Armature 115V |
| 3 | 1619P13612 | Armature |
| 3 | 1619P13612 | Armature |
| 3/60 | 1606610122 | Fan |
| 3/60 | 1606610122 | Fan |
| 3/60 | 1606610122 | Fan |
| 30 | 1600300090 | Intermediate Ring |
| 30 | 1600300090 | Intermediate Ring |
| 30 | 1600300090 | Intermediate Ring |
| 32 | 3605500156 | Bearing cover |
| 32 | 3605500156 | Bearing cover |
| 32 | 3605500156 | Bearing cover |
| 33 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 33 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 33 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 34 | 3600499006 | Air-Deflector Ring |
| 34 | 3600499006 | Air-Deflector Ring |
| 34 | 3600499006 | Air-Deflector Ring |
| 35 | 3601025003 | Wire Guide |
| 35 | 3601025003 | Wire Guide |
| 35 | 3601025003 | Wire Guide |
| 36 | 3603435039 | Lens Head Screw |
| 36 | 3603435039 | Lens Head Screw |
| 36 | 3603435039 | Lens Head Screw |
| 38 | 3604652001 | Spiral Spring |
| 38 | 3604652001 | Spiral Spring |
| 38 | 3604652001 | Spiral Spring |
| 39 | 2914201527 | Torx Oval-Head Screw |
| 39 | 2914201527 | Torx Oval-Head Screw |
| 39 | 2914201527 | Torx Oval-Head Screw |
| 4 | 1607200075 | Switch |
| 4 | 1607200076 | Switch |
| 4 | 3607200090 | Switch |
| 4 | 3607200091 | Switch |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 40 | 1602381001 | Insulating Strip 33X10X6 MM |
| 40 | 1602381006 | Insulating Plate 20X20X50 MM |
| 40 | 1602381001 | Insulating Strip 33X10X6 MM |
| 40 | 1602381006 | Insulating Plate 20X20X50 MM |
| 40 | 1602381001 | Insulating Strip 33X10X6 MM |
| 40 | 1602381006 | Insulating Plate 20X20X50 MM |
| 41 | 3604411040 | Thread-forming tap. Screw |
| 41 | 3604411040 | Thread-forming tap. Screw |
| 41 | 3604411040 | Thread-forming tap. Screw |
| 43 | 3601110371 | Manufacturer's nameplate |
| 43 | 3601119303 | Manufacturer's nameplate |
| 43 | 3601119305 | Manufacturer's nameplate |
| 44 | 3604460027 | Connecting Cable White L=360 MM |
| 44 | 3604460027 | Connecting Cable White L=360 MM |
| 44 | 3604460027 | Connecting Cable White L=360 MM |
| 46 | 3604438027 | Connecting Cable L=375 MM |
| 46 | 3604438027 | Connecting Cable L=375 MM |
| 46 | 3604438027 | Connecting Cable L=375 MM |
| 47 | 1604477001 | Blade terminal |
| 47 | 1604477001 | Blade terminal |
| 47 | 1604477001 | Blade terminal |
| 48 | 3603231004 | Rotary Knob Black |
| 48 | 3603231012 | Rotary Knob |
| 48 | 3603231004 | Rotary Knob Black |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460440 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 3604460047 | Power supply cord I 2,65M 2X1,0MM H07 Rn-F |
| 5 | 3604460070 | Power supply cord GB 110V 2,65M H07RN-F2X1,5 |
| 5 | 3604460071 | Power supply cord GB 2,65M 2 X 1,0MM H07 Rn-F |
| 50 | 2917550099 | Straight Pin DIN 6325-4M6X20 |
| 50 | 2917550099 | Straight Pin DIN 6325-4M6X20 |
| 50 | 2917550099 | Straight Pin DIN 6325-4M6X20 |
| 51 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 51 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 51 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 54 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 54 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 54 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 55 | 1600100617 | Shim Thick 0,5 MM |
| 55 | 1600100617 | Shim Thick 0,5 MM |
| 55 | 1600100617 | Shim Thick 0,5 MM |
| 56 | 3606309014 | Toothed Shaft Z=9 |
| 56 | 3606309014 | Toothed Shaft Z=9 |
| 56 | 3606309014 | Toothed Shaft Z=9 |
| 57 | 3606317024 | Cylindrical Gear Z=21 |
| 57 | 3606317024 | Cylindrical Gear Z=21 |
| 57 | 3606317024 | Cylindrical Gear Z=21 |
| 58 | 3600390015 | Locating Washer |
| 58 | 3600390015 | Locating Washer |
| 58 | 3600390015 | Locating Washer |
| 59 | 3600190009 | Locating Washer |
| 59 | 3600190009 | Locating Washer |
| 59 | 3600190009 | Locating Washer |
| 6 | 1600703022 | Grommet Ø7,9-Ø12,0X120 MM |
| 6 | 1600703022 | Grommet Ø7,9-Ø12,0X120 MM |
| 6 | 1600703022 | Grommet Ø7,9-Ø12,0X120 MM |
| 60 | 3600101030 | Coupling Plate |
| 60 | 3600101030 | Coupling Plate |
| 60 | 3600101030 | Coupling Plate |
| 62 | 3606317022 | Cylindrical Gear Z=43 |
| 62 | 3606317022 | Cylindrical Gear Z=43 |
| 62 | 3606317022 | Cylindrical Gear Z=43 |
| 63 | 3603126000 | Ball Pin |
| 63 | 3603126000 | Ball Pin |
| 63 | 3603126000 | Ball Pin |
| 64 | 3604610026 | Compression Spring |
| 64 | 3604610026 | Compression Spring |
| 64 | 3604610026 | Compression Spring |
| 65 | 3601015009 | Seal |
| 65 | 3601015009 | Seal |
| 65 | 3601015009 | Seal |
| 651 | 1608571083 | Key Chuck Ø3-16MM,5/8" |
| 651 | 1608571083 | Key Chuck Ø3-16MM,5/8" |
| 651 | 1608571083 | Key Chuck Ø3-16MM,5/8" |
| 651/8 | 2607950011 | Chuck Wrench SG2 |
| 651/8 | 2607950011 | Chuck Wrench SG2 |
| 651/8 | 2607950011 | Chuck Wrench SG2 |
| 652 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 652 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 652 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 653 | 3602025012 | Auxiliary Handle Ø 43 MM |
| 653 | 3602025012 | Auxiliary Handle Ø 43 MM |
| 653 | 3602025012 | Auxiliary Handle Ø 43 MM |
| 653/10 | 1612025019 | Auxiliary Handle M8 |
| 653/10 | 1612025019 | Auxiliary Handle M8 |
| 653/10 | 1612025019 | Auxiliary Handle M8 |
| 653/10/1 | 160202507H | Auxiliary Handle |
| 653/10/1 | 160202507H | Auxiliary Handle |
| 653/10/1 | 160202507H | Auxiliary Handle |
| 653/20 | 1618040077 | Support clamp |
| 653/20 | 1618040077 | Support clamp |
| 653/20 | 1618040077 | Support clamp |
| 653/30 | 1613521001 | Stud bolt M8 |
| 653/30 | 1613521001 | Stud bolt M8 |
| 653/30 | 1613521001 | Stud bolt M8 |
| 653/40 | 3601038048 | Clamping Band Ø43 MM |
| 653/40 | 3601038048 | Clamping Band Ø43 MM |
| 653/40 | 3601038048 | Clamping Band Ø43 MM |
| 653/50 | 1613100012 | Straight Pin |
| 653/50 | 1613100012 | Straight Pin |
| 653/50 | 1613100012 | Straight Pin |
| 66 | 3600101029 | Pressure Disk |
| 66 | 3600101029 | Pressure Disk |
| 66 | 3600101029 | Pressure Disk |
| 67 | 3600320009 | Collar Sleeve |
| 67 | 3600320009 | Collar Sleeve |
| 67 | 3600320009 | Collar Sleeve |
| 68 | 3603231005 | Rotary Knob Black |
| 68 | 3603231013 | Rotary Knob |
| 68 | 3603231005 | Rotary Knob Black |
| 69 | 2600100575 | Shim 0,2 MM |
| 69 | 2600100576 | Shim 0,3 MM |
| 69 | 2600100577 | Shim 0,5 MM |
| 69 | 2600100575 | Shim 0,2 MM |
| 69 | 2600100576 | Shim 0,3 MM |
| 69 | 2600100577 | Shim 0,5 MM |
| 69 | 2600100575 | Shim 0,2 MM |
| 69 | 2600100576 | Shim 0,3 MM |
| 69 | 2600100577 | Shim 0,5 MM |
| 7 | 1601302013 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 70 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 70 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 70 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 71 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 71 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 71 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 72 | 1900905162 | Groove ball bearing 15X32X9 |
| 72 | 1900905162 | Groove ball bearing 15X32X9 |
| 72 | 1900905162 | Groove ball bearing 15X32X9 |
| 73 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 73 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 73 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 74 | 2604617000 | Compression Spring |
| 74 | 2604617000 | Compression Spring |
| 74 | 2604617000 | Compression Spring |
| 75 | 3600550004 | Disc Spring |
| 75 | 3600550004 | Disc Spring |
| 75 | 3600550004 | Disc Spring |
| 77 | 2600590006 | Ratchet Cap |
| 77 | 2600590006 | Ratchet Cap |
| 77 | 2600590006 | Ratchet Cap |
| 78 | 3600913008 | Needle bearing |
| 78 | 3600913008 | Needle bearing |
| 78 | 3600913008 | Needle bearing |
| 80 | 1604445006 | Connecting Cable Gray L=290 MM |
| 80 | 1604445006 | Connecting Cable Gray L=290 MM |
| 80 | 1604445006 | Connecting Cable Gray L=290 MM |
| 802 | 3604220128 | Field 240V |
| 802 | 3604220129 | Field 230V |
| 802 | 3604220130 | Field 110-120V |
| 802 | 3604220129 | Field 230V |
| 802 | 3604220129 | Field 230V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 806 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 806 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 806 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3HC | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 3607014012 | Carbon-Brush Set |
| 810 | 3607014012 | Carbon-Brush Set |
| 810 | 3607014012 | Carbon-Brush Set |
| 816 | 3604336012 | Brush Holder |
| 816 | 3604336012 | Brush Holder |
| 816 | 3604336012 | Brush Holder |
| 82 | 3600224008 | Retaining ring |
| 82 | 3600224008 | Retaining ring |
| 82 | 3600224008 | Retaining ring |
| 822 | 3605806179 | Spindle Housing |
| 822 | 3605806179 | Spindle Housing |
| 822 | 3605806179 | Spindle Housing |
| 823 | 3605500063 | Sealing cap Blue |
| 823 | 3605500224 | Sealing cap |
| 823 | 3605500223 | Sealing cap |
| 825 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 825 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 825 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 827 | 3605133019 | Handle Black |
| 827 | 3605133018 | Handle |
| 827 | 3605133018 | Handle |
| 828 | 3607030413 | Drilling Spindle 5/8", SW17 |
| 828 | 3607030413 | Drilling Spindle 5/8", SW17 |
| 828 | 3607030413 | Drilling Spindle 5/8", SW17 |
| 83 | 3600190010 | Holding Plate |
| 83 | 3600190010 | Holding Plate |
| 83 | 3600190010 | Holding Plate |
| 831 | 3600290070 | Rotary shaft lip seal |
| 831 | 3600290070 | Rotary shaft lip seal |
| 831 | 3600290070 | Rotary shaft lip seal |
| 832 | 3605500043 | Bearing cover |
| 832 | 3605500043 | Bearing cover |
| 832 | 3605500043 | Bearing cover |
| 837 | 3605820078 | Intermediate Bearing |
| 837 | 3605820078 | Intermediate Bearing |
| 837 | 3605820078 | Intermediate Bearing |
| 851 | 2916060005 | Spring Washer DIN 137-A 4-ST |
| 851 | 2916060005 | Spring Washer DIN 137-A 4-ST |
| 851 | 2916060005 | Spring Washer DIN 137-A 4-ST |
| 853 | 3607030411 | Cylindrical Gear |
| 853 | 3607030411 | Cylindrical Gear |
| 853 | 3607030411 | Cylindrical Gear |
| 856 | 3607031177 | Control Shaft |
| 856 | 3607031177 | Control Shaft |
| 856 | 3607031177 | Control Shaft |
| 86 | 3600200011 | Bushing |
| 86 | 3600200011 | Bushing |
| 86 | 3600200011 | Bushing |
| 861 | 3607030274 | Cylindrical Gear Z=33 |
| 861 | 3607030274 | Cylindrical Gear Z=33 |
| 861 | 3607030274 | Cylindrical Gear Z=33 |
| 87 | 3600210028 | O-Ring 6,0X2,0 MM |
| 87 | 3600210028 | O-Ring 6,0X2,0 MM |
| 87 | 3600210028 | O-Ring 6,0X2,0 MM |
| 88 | 3600210027 | O-Ring 27,0X3,0 MM |
| 88 | 3600210027 | O-Ring 27,0X3,0 MM |
| 88 | 3600210027 | O-Ring 27,0X3,0 MM |
| 9 | 3601110371 | Manufacturer's nameplate |
| 9 | 3601119303 | Manufacturer's nameplate |
| 9 | 3601119304 | Manufacturer's nameplate |
| 90 | 1601030022 | Tab Washer |
| 90 | 1601030022 | Tab Washer |
| 90 | 1601030022 | Tab Washer |
| 92 | 3600707022 | Shrinkable Tube |
| 92 | 3600707022 | Shrinkable Tube |
| 92 | 3600707022 | Shrinkable Tube |
| 95 | 3601110072 | Sticker |
| 95 | 3601110106 | Manufacturer's nameplate |
| 95 | 3601110153 | Sticker |
| 95 | 3601110072 | Sticker |
| 95 | 3601110072 | Sticker |
Selected parts0
