Bosch 1182

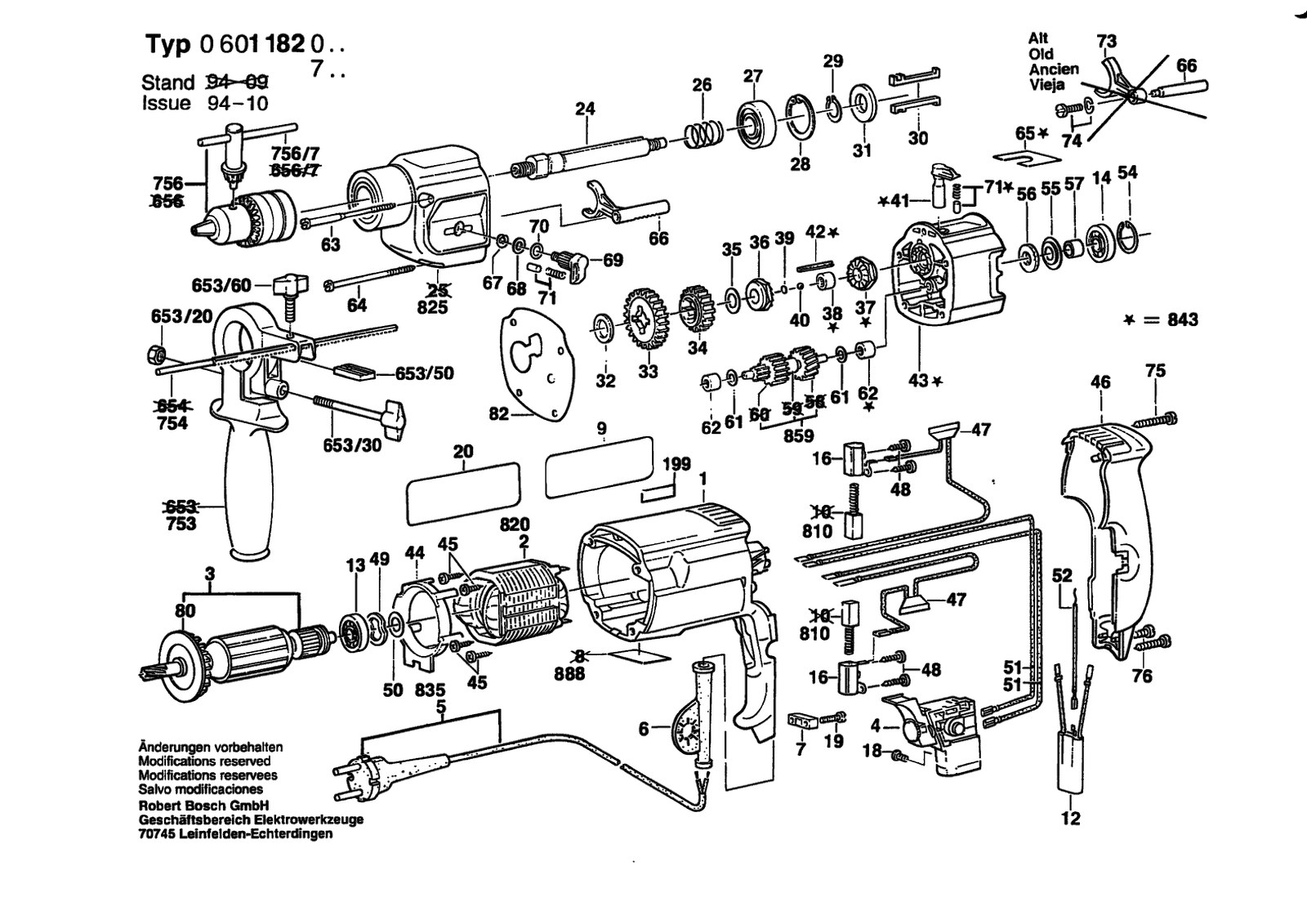

Bosch 1182 drill: exploded parts diagram, 1 sheet, 182 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1182: 182 positions on 1 sheet
Bosch 1182 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104116 | Motor Housing Blue |
| 1 | 2605104184 | Motor Housing Blue |
| 1 | 2605104116 | Motor Housing Blue |
| 12 | 2607329096 | Suppression Filter |
| 12 | 2607329096 | Suppression Filter |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604449041 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604449041 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 19 | 2603490022 | Screw 4X16 |
| 199 | 1601110265 | Reference Plate |
| 199 | 1601110265 | Reference Plate |
| 2 | 2604220427 | Field 100V |
| 2 | 2604220428 | Field 110-120V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220430 | Field 240V |
| 2 | 2604220440 | Field 115V |
| 2 | 2604220427 | Field 100V |
| 2 | 2604220428 | Field 110-120V |
| 2 | 2604220429 | Field 220-230V |
| 2 | 2604220430 | Field 240V |
| 2 | 2604220440 | Field 115V |
| 20 | 2601110093 | Sticker |
| 20 | 2601110203 | Sticker |
| 20 | 2601110093 | Sticker |
| 24 | 2606135013 | Drilling Spindle 1/2" |
| 24 | 2606135013 | Drilling Spindle 1/2" |
| 26 | 2604616002 | Compression Spring |
| 26 | 2604616002 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 28 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 3 | 2604010572 | Armature 100V |
| 3 | 2604010573 | Armature 110-115V |
| 3 | 2604010575 | Armature 220-240V |
| 3 | 2604010632 | Armature 115V |
| 3 | 2604010572 | Armature 100V |
| 3 | 2604010573 | Armature 110-115V |
| 3 | 2604010575 | Armature 220-240V |
| 3 | 2604010632 | Armature 115V |
| 30 | 2602300028 | Flat Key |
| 30 | 2602300028 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 31 | 2600101671 | Retaining Washer |
| 32 | 2600101515 | Shim 1,0 MM |
| 32 | 2600101515 | Shim 1,0 MM |
| 33 | 2606317045 | Cylindrical Gear Z=48 |
| 33 | 2606317045 | Cylindrical Gear Z=48 |
| 34 | 2606317037 | Cylindrical Gear Z=36 |
| 34 | 2606317037 | Cylindrical Gear Z=36 |
| 35 | 2600101616 | Shim 0,5 MM |
| 35 | 2600101617 | Shim 0,3 MM |
| 35 | 2600101616 | Shim 0,5 MM |
| 35 | 2600101617 | Shim 0,3 MM |
| 36 | 2600190052 | Catch Disk |
| 36 | 2600190052 | Catch Disk |
| 37 | 2600190051 | Catch Disk |
| 37 | 2600190051 | Catch Disk |
| 38 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 38 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 4 | 2607200131 | On-Off Switch |
| 4 | 2607200260 | Switch |
| 4 | 1617200089 | Switch |
| 4 | 2607200372 | On-Off Switch |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 41 | 2602026017 | Rotary Knob |
| 41 | 2602026017 | Rotary Knob |
| 42 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 42 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 43 | 2605700936 | Intermediate Flange |
| 43 | 2605700936 | Intermediate Flange |
| 44 | 2601328033 | Cover Disc |
| 44 | 2601328033 | Cover Disc |
| 45 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 45 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 47 | 2604448100 | Connecting Cable White L=68 MM |
| 47 | 2604465068 | Suppression Filter |
| 47 | 2604448100 | Connecting Cable White L=68 MM |
| 47 | 2604465068 | Suppression Filter |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 49 | 2600150004 | Shim |
| 49 | 2600150004 | Shim |
| 5 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460109 | Parts Set |
| 5 | 2604460278 | Power supply cord I / BR 4,15M 2 X 1,0MM H05VV-F |
| 5 | 3604460069 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460056 | Power supply cord |
| 5 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 50 | 2600101020 | Shim 0,5 MM |
| 50 | 2600101022 | Shim 0,2 MM |
| 50 | 2600101023 | Shim 0,3 MM |
| 50 | 2600101020 | Shim 0,5 MM |
| 50 | 2600101022 | Shim 0,2 MM |
| 50 | 2600101023 | Shim 0,3 MM |
| 51 | 2604448005 | Cable White L=130 MM |
| 51 | 2604448005 | Cable White L=130 MM |
| 52 | 2604448003 | Cable |
| 52 | 2604448003 | Cable |
| 54 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 54 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 55 | 2600500002 | Cupped Washer |
| 55 | 2600500002 | Cupped Washer |
| 56 | 2600108077 | Felt Washer |
| 56 | 2600108077 | Felt Washer |
| 57 | 2600400008 | Receptacle |
| 57 | 2600400008 | Receptacle |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 63 | 2603435012 | Tapping Screw 79 MM |
| 63 | 2603435012 | Tapping Screw 79 MM |
| 64 | 2603435071 | Headless Screw 65 MM |
| 64 | 2603435071 | Headless Screw 65 MM |
| 65 | 2601110076 | Sticker Drill/impact Drill |
| 65 | 2601110076 | Sticker Drill/impact Drill |
| 66 | 2602033006 | Adjusting Slide |
| 66 | 2602033006 | Adjusting Slide |
| 67 | 2916080007 | Locking washer DIN 6799-4-FST |
| 67 | 2916080007 | Locking washer DIN 6799-4-FST |
| 68 | 2600100618 | Shim washer |
| 68 | 2600100618 | Shim washer |
| 69 | 2602026038 | Rotary Knob Black |
| 69 | 2602026038 | Rotary Knob Black |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 2607010226 | Parts Set |
| 70 | 2607010226 | Parts Set |
| 71 | 2600590006 | Ratchet Cap |
| 71 | 2600590006 | Ratchet Cap |
| 75 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 75 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 753 | 1619PB4323 | Auxiliary Handle |
| 753 | 1619PB4323 | Auxiliary Handle |
| 754 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 754 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 756 | 1608571056 | Key Chuck Ø3-16 Mm, 5/8" |
| 756 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 756 | 2607950007 | Chuck Wrench SG2 |
| 756/7 | 2607950007 | Chuck Wrench SG2 |
| 76 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 76 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 80 | 2606610049 | Fan |
| 80 | 2606610049 | Fan |
| 810 | 2604321905 | Carbon-Brush Set |
| 810 | 2604321905 | Carbon-Brush Set |
| 82 | 2601073012 | Gasket |
| 82 | 2601073012 | Gasket |
| 820 | 2604220901 | Field 220V |
| 820 | 2604220902 | Field 115V |
| 825 | 2605806990 | Gear Housing Blue |
| 825 | 2605806990 | Gear Housing Blue |
| 835 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 835 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 859 | 2606100903 | Toothed Shaft Z= 10/22/29 |
| 859 | 2606100903 | Toothed Shaft Z= 10/22/29 |
| 888 | 160111A3H3 | Nameplate |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601110313 | Sticker |
| 9 | 2601110382 | Sticker |
| 9 | 2601110314 | Sticker |
