Bosch 1174.7

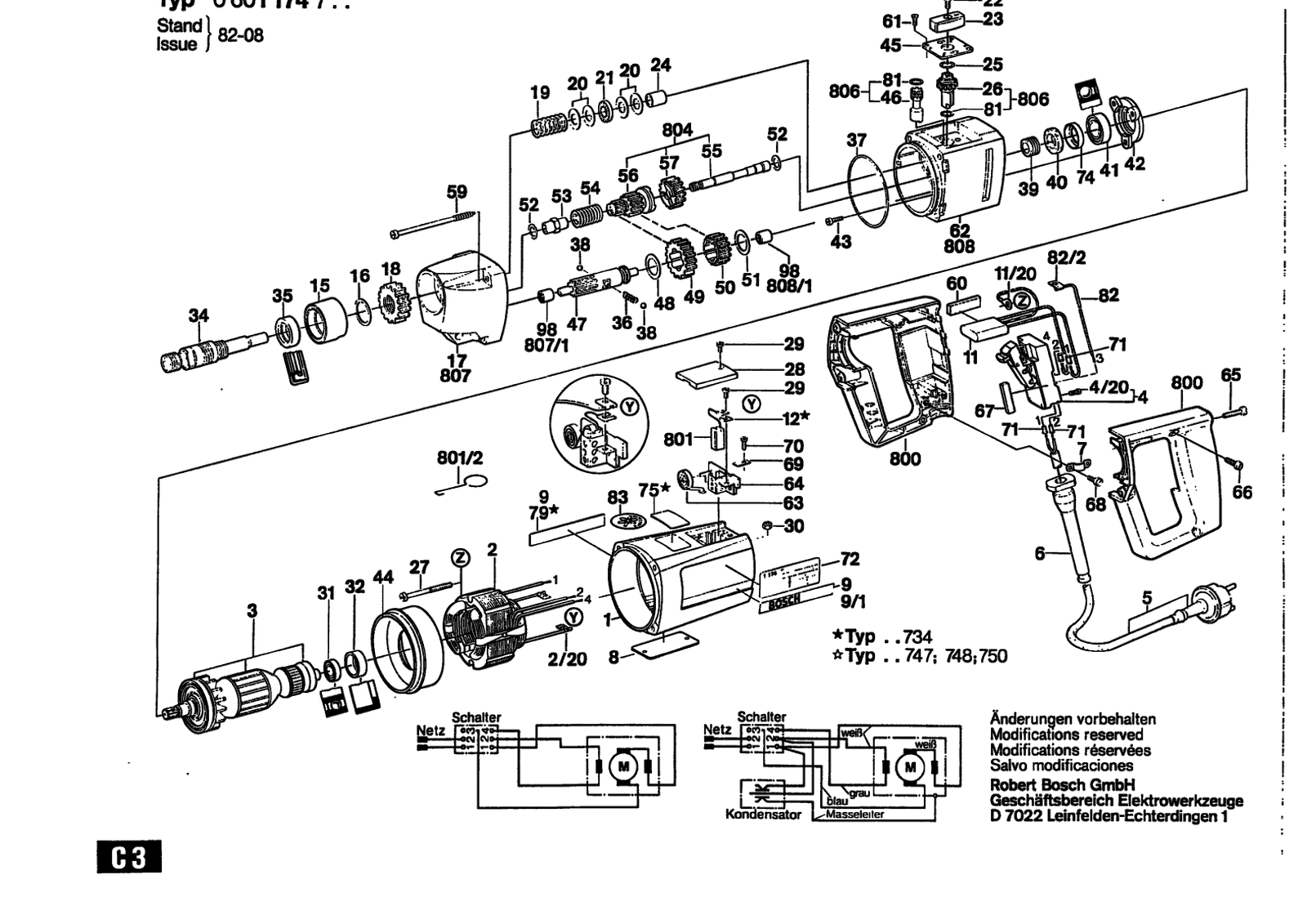

Bosch 1174.7 percussion drill: exploded parts diagram, 1 sheet, 92 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1174.7: 92 positions on 1 sheet
Bosch 1174.7 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 11 | 1607328022 | Suppression Capacitor |
| 11 | 1607328024 | Suppression Filter |
| 11/20 | 1601353003 | Terminal lug |
| 12 | 1611331007 | Tab Washer |
| 15 | 1605801026 | Guide Bushing |
| 16 | 1600102676 | Shim Thick 0,6 MM |
| 17 | 1600300076 | Bushing |
| 17 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 17 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 18 | 1606317077 | Cylindrical Gear Z=43 |
| 19 | 1604616018 | Compression Spring |
| 2 | 1604220179 | Field 220V |
| 2 | 1604220180 | Field 100V |
| 2 | 1604220181 | Field 115V |
| 2 | 1604220182 | Field 240V |
| 2/20 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1600103026 | Support Disc |
| 21 | 1600920003 | Needle-Roller Bearing |
| 23 | 1602026044 | Control Lever |
| 24 | 1600301006 | Sintered-Metal Bushing |
| 25 | 3600210086 | O-Ring 12,0X1,5 MM |
| 27 | 1603435012 | Tapping Screw B4,8X50 MM |
| 28 | 1605500089 | Sealing cap Blue |
| 29 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 3 | 1604010159 | Armature 100-110V |
| 3 | 1604010160 | Armature 110-115V |
| 3 | 1604010161 | Armature 240V |
| 30 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 31 | 2600905032 | Ball Bearing 7X19X6 |
| 32 | 1600502011 | Intermediate Ring |
| 34 | 1603528005 | Drilling Spindle 5/8"-16 UN-2A |
| 35 | 3600283043 | Rotary shaft lip seal |
| 36 | 1604611022 | Compression Spring |
| 37 | 1600210030 | O-Ring 74,0X1,5 MM |
| 38 | 1903230009 | Ball DIN 5401-5 G28 |
| 39 | 1603344054 | Threaded Ring |
| 4 | 1607200075 | Switch |
| 4 | 1607200076 | Switch |
| 4/20 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 40 | 1600108003 | Felt Disc |
| 41 | 1600905003 | Groove ball bearing |
| 42 | 1605500106 | Bearing cover |
| 43 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 44 | 1600502015 | Air-Deflector Ring |
| 45 | 1601038025 | Notched Plate |
| 46 | 1604652006 | Spiral Spring |
| 47 | 1606309062 | Spindle With Gear Z=15 |
| 48 | 1600101647 | Shim Thick 0,6 MM |
| 49 | 1606317075 | Cylindrical Gear Z=41 |
| 5 | 1604460023 | Power supply cord |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460096 | Power supply cord |
| 5 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 3607030489 | Power supply cord |
| 50 | 1606317074 | Cylindrical Gear Z=32 |
| 51 | 1600101647 | Shim Thick 0,6 MM |
| 52 | 1600101653 | Plain Washer Thick 0,5 MM |
| 53 | 1600363011 | Threaded Bushing |
| 54 | 1604619013 | Compression Spring |
| 55 | 1603520018 | Drive Shaft |
| 56 | F000635176 | Cylindrical Gear |
| 57 | 1606325024 | Cylindrical Gear Z=29 |
| 59 | 1603435009 | Tapping Screw B4,8X107,5 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 1602381006 | Insulating Plate 20X20X50 MM |
| 61 | 2910511120 | Dummy AM 4X10 DIN 63-8.8 |
| 64 | 1604336017 | Brush Holder |
| 65 | 2914201527 | Torx Oval-Head Screw |
| 66 | 2910211220 | Tapping Screw DIN 7971-B 3,9X19 |
| 67 | 1602381001 | Insulating Strip 33X10X6 MM |
| 68 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 68 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 69 | 1601030022 | Tab Washer |
| 7 | 1601302014 | Fastening Clamp |
| 70 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 71 | 3604477009 | End Splice |
| 72 | 1601110163 | Sticker |
| 75 | 1601110058 | Reference Plate Double Insulation |
| 79 | 1601110074 | Sticker Double Insulation |
| 8 | 160111A3H3 | Nameplate |
| 800 | 3605133019 | Handle Black |
| 801 | 1607014126 | Carbon-Brush Set |
| 804 | 1607016017 | Set Of Gears Z=13/22/29 |
| 806 | 1607000126 | Parts Set |
| 807 | 1605806321 | Spindle Bearing |
| 808 | 1605820205 | Intermediate Bearing |
| 81 | 2600210016 | O-Ring 10,0X1,5 MM |
| 82 | 1604445006 | Connecting Cable Gray L=290 MM |
| 82 | 1901350003 | Terminal lug 1,5-4X4 |
| 83 | 2601110041 | Reference Plate Yellow |
| 9 | 1601110046 | Sticker |
