Bosch 1159 VSR

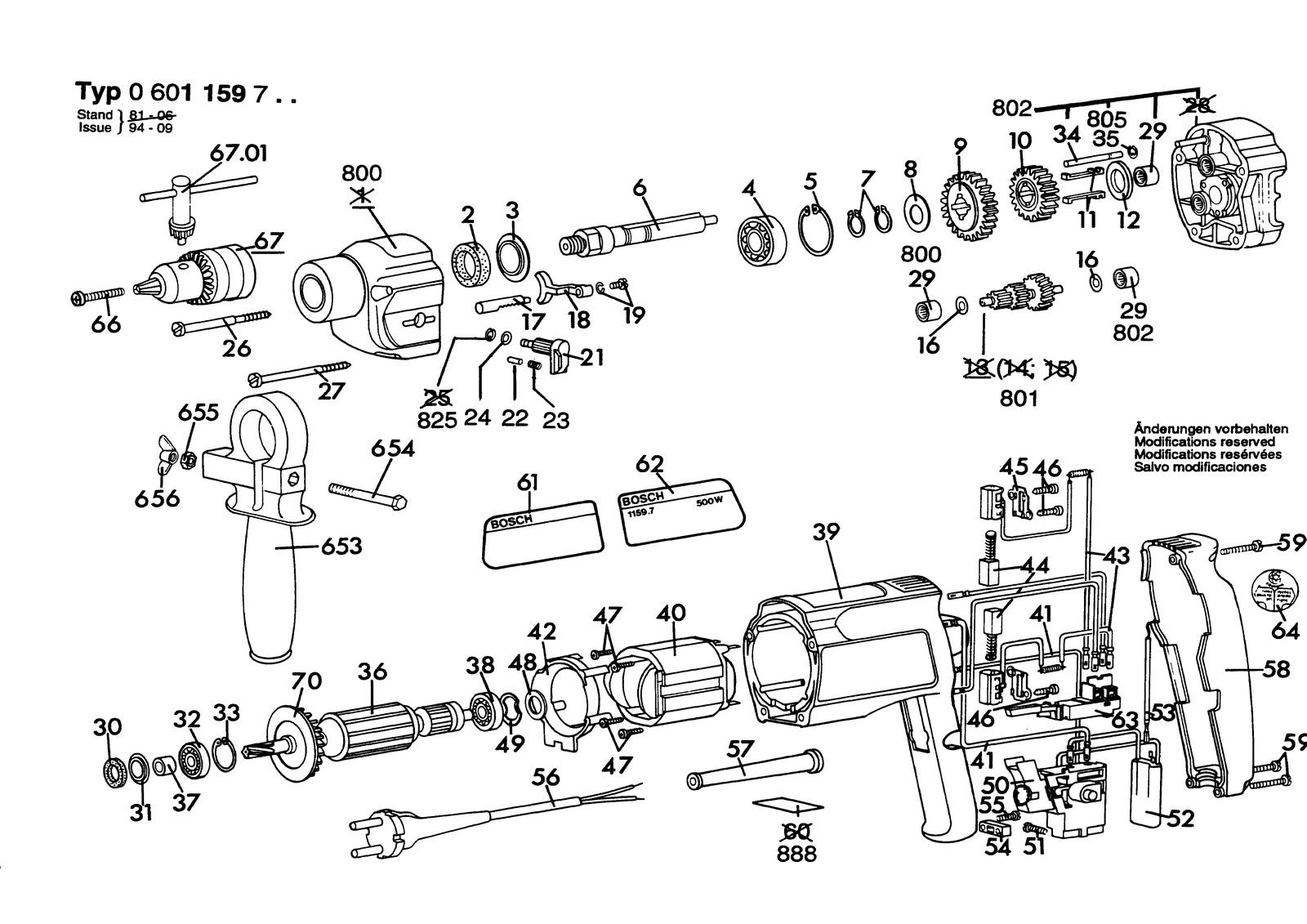

Bosch 1159 VSR drill: exploded parts diagram, 1 sheet, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1159 VSR: 86 positions on 1 sheet
Bosch 1159 VSR parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2606316105 | Cylindrical Gear Z=45 |
| 11 | 2602300033 | Flat Key |
| 12 | 2600101668 | Shim 1,5 MM |
| 16 | 2600100607 | Shim 0,3 MM |
| 17 | 2603070010 | Toothed rack |
| 18 | 2602033002 | Fork Lever |
| 19 | 2914501011 | Screw and washer assembly DIN7985-M3X6-Z1-4.8 |
| 2 | 2600108076 | Felt Washer |
| 21 | 2602026023 | Rotary Knob |
| 22 | 2600590006 | Ratchet Cap |
| 23 | 2600590006 | Ratchet Cap |
| 24 | 2600100618 | Shim washer |
| 26 | 2603435017 | Headless Screw |
| 27 | 2603435018 | Headless Screw |
| 29 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 3 | 2600550019 | Cupped Washer |
| 30 | 2600108077 | Felt Washer |
| 31 | 2600500002 | Cupped Washer |
| 32 | 2600905021 | Groove ball bearing 9X24X7 |
| 33 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 34 | 2603100036 | Holding Pin |
| 35 | 2916080906 | Locking washer DIN 6799-3,2 |
| 36 | 2604010581 | Armature 110V |
| 36 | 2604010857 | Armature 110-115V |
| 36 | 2604010858 | Armature 230-240V |
| 37 | 2600400008 | Receptacle |
| 38 | 1900905018 | Ball Bearing 7X22X7 |
| 39 | 2605104116 | Motor Housing Blue |
| 4 | 1900905110 | Ball Bearing Ø15 MM |
| 40 | 2604220427 | Field 100V |
| 40 | 2604220443 | Field 110-120V |
| 40 | 2604220445 | Field 220-230V |
| 40 | 2604220462 | Field 240V |
| 40 | 2604220470 | Field 110-115V |
| 41 | 2604448005 | Cable White L=130 MM |
| 42 | 2601328033 | Cover Disc |
| 43 | 2604465071 | Suppressor Box L=93/85 MM |
| 44 | 2604321905 | Carbon-Brush Set |
| 45 | 2604337003 | Brush Holder |
| 46 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 47 | 2603435086 | Tapping Screw |
| 48 | 2600101020 | Shim 0,5 MM |
| 48 | 2600101022 | Shim 0,2 MM |
| 48 | 2600101023 | Shim 0,3 MM |
| 49 | 2600150004 | Shim |
| 5 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 50 | 2607200138 | On-Off Switch |
| 50 | 2607200209 | Switch |
| 51 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 52 | 2607329110 | Suppression Capacitor |
| 53 | 2604448003 | Cable |
| 54 | 2601035001 | Cable Clip |
| 55 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 56 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 56 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 56 | 2604460056 | Power supply cord |
| 56 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 56 | 2604460093 | Power supply cord |
| 57 | 2600707059 | Grommet Ø6,9 MM |
| 57 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 57 | 2600707061 | Grommet Ø8,8 MM |
| 58 | 2605132040 | Housing Cover Blue |
| 59 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 6 | 2606135011 | Drilling Spindle 1/2", SW 17 |
| 61 | 2601110913 | Sticker |
| 62 | 2601110093 | Sticker |
| 63 | 2607200198 | Change-Over Switch |
| 64 | 2601110230 | Sticker Yellow |
| 653 | 1612025031 | Auxiliary Handle Black Ø43 MM |
| 654 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 655 | 2608040014 | Clamping Plate M6 |
| 656 | 1613480007 | Wing Screw M6X(15)55 |
| 656 | 1613480008 | Wing Screw M6X20 MM |
| 66 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 67 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 67 | 2607950007 | Chuck Wrench SG2 |
| 7 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 70 | 2606610049 | Fan |
| 8 | 2600100695 | Shim 0,5 MM |
| 800 | 2605806972 | Gear Housing |
| 801 | 2606308911 | Toothed Shaft Z= 10/20/29 |
| 802 | 2605700932 | Intermediate Flange |
| 805 | 1619P01375 | Roller Set |
| 825 | 2916080007 | Locking washer DIN 6799-4-FST |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2606316316 | Cylindrical Gear |
