Bosch 11387

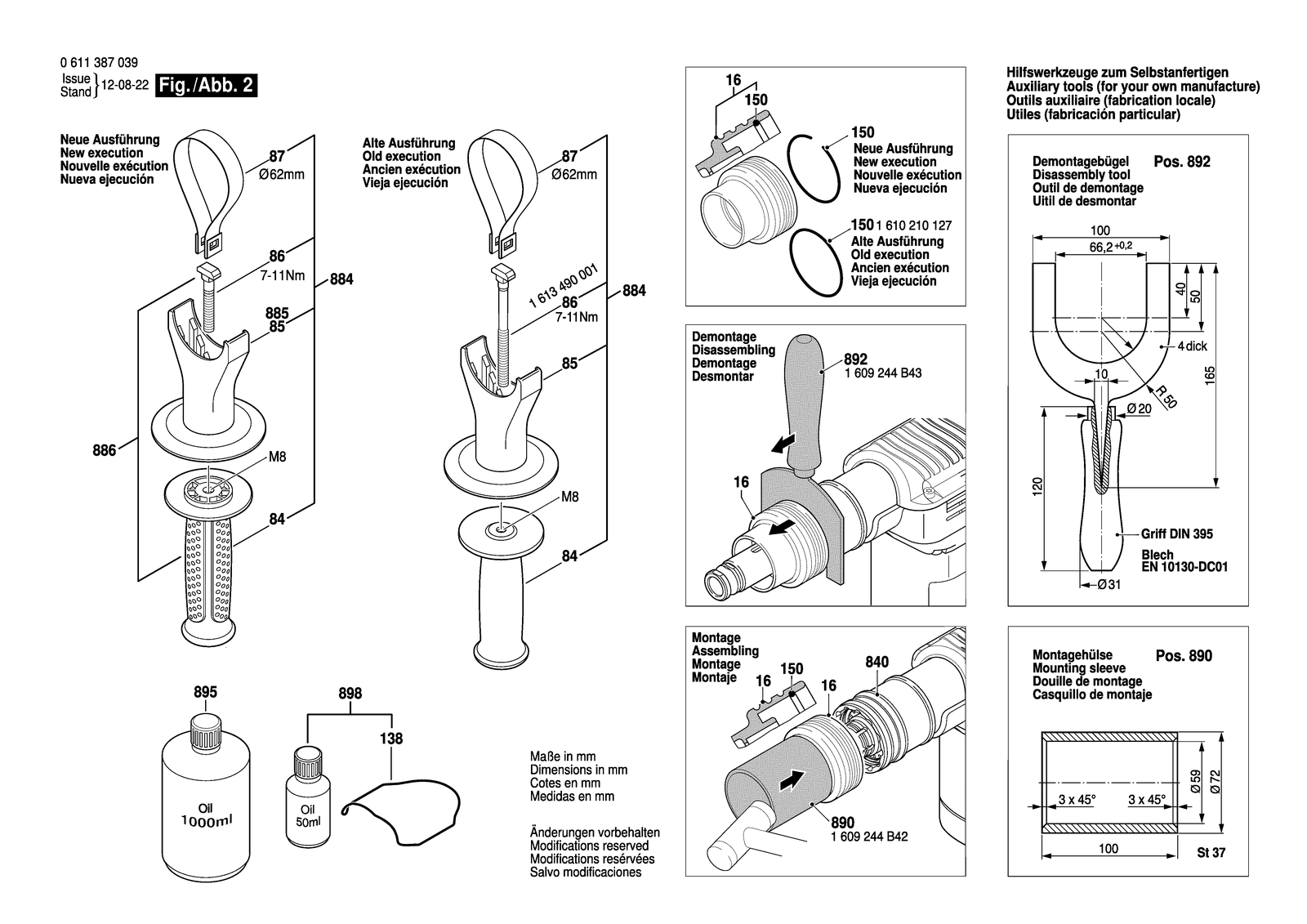

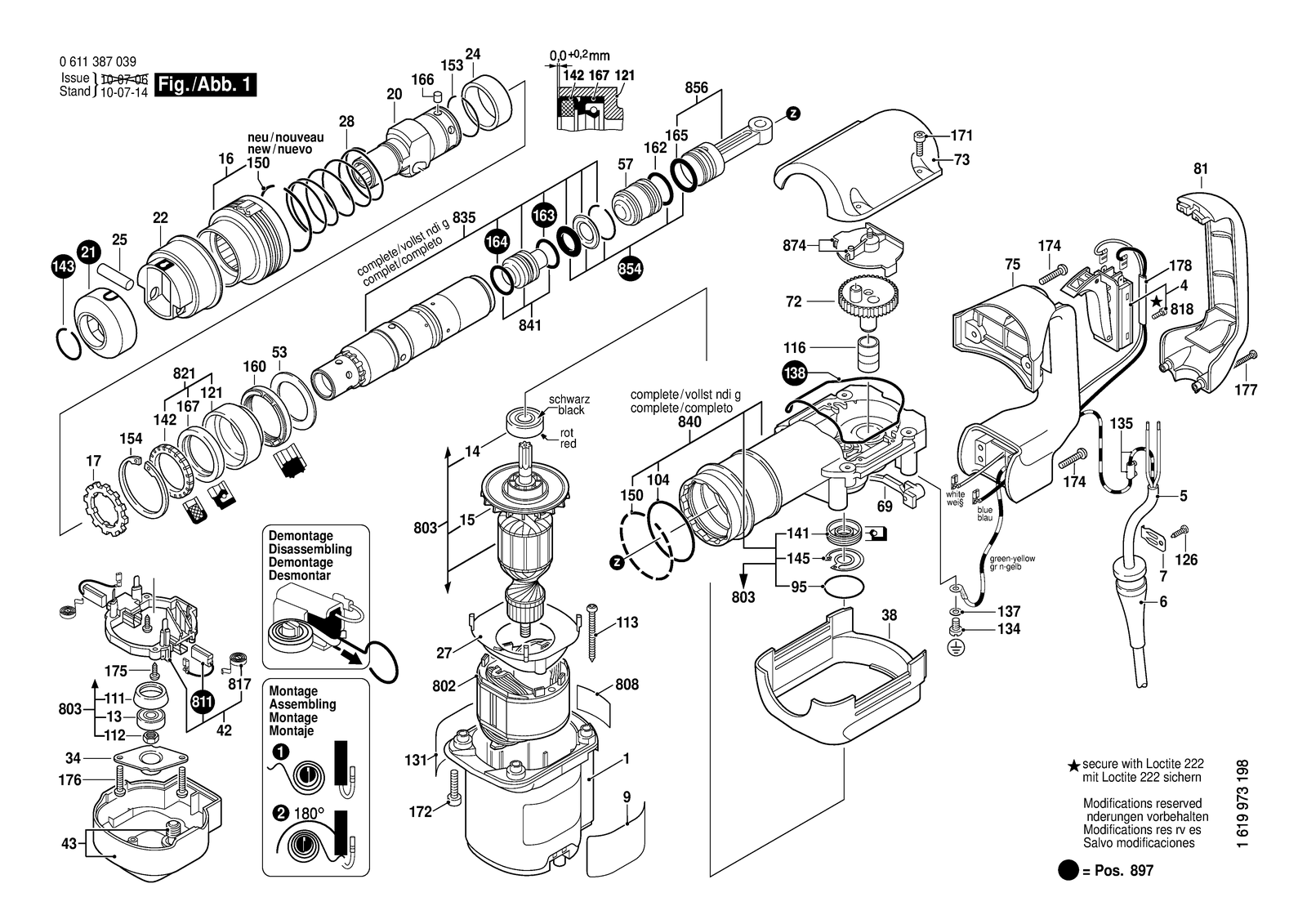

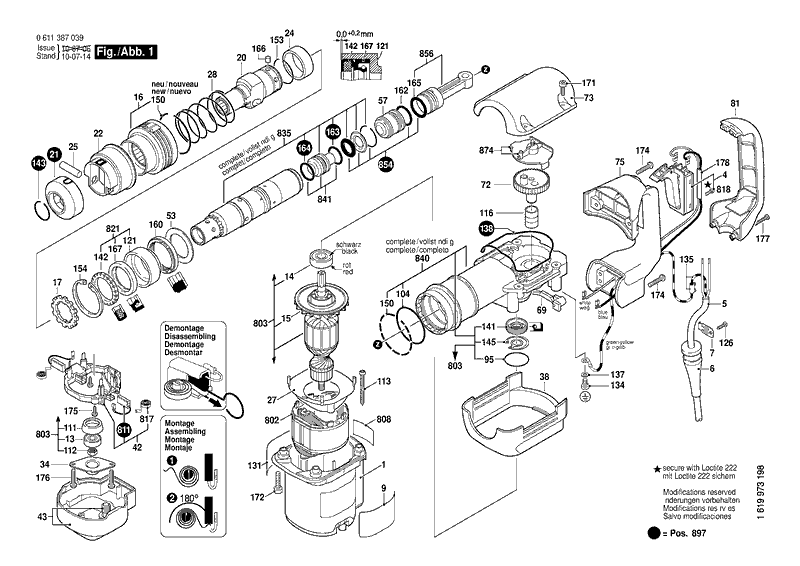

Bosch 11387 demolition hammer: exploded parts diagram, 2 sheets, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11387: 87 positions on 2 sheets
Bosch 11387 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P10299 | Motor Housing |
| 104 | 1610210095 | O-Ring 55,0X2,0 MM |
| 111 | 1610290064 | Bushing |
| 112 | 1613300008 | Hex Nut DIN 936-M8X1-8 |
| 113 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 116 | 1610311017 | Inner Ring |
| 121 | 1610328018 | Bushing |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 131 | 1611110C56 | Sticker |
| 134 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 135 | 1614414016 | Earth Conductor |
| 137 | 2916069088 | Spring Washer |
| 138 | 1611015050 | Sealing Frame |
| 14 | 1610905041 | Groove ball bearing 12X32X10 |
| 141 | 1610290066 | Rotary shaft lip seal |
| 142 | 1610290061 | Rotary shaft lip seal |
| 143 | 2916540017 | Retaining ring DIN 7993 A 30 |
| 145 | 1610119012 | Spring retaining ring |
| 15 | 1616610085 | Fan |
| 150 | 1614601041 | Retaining ring |
| 153 | 2916540020 | Retaining ring 38X2,5 A38 DIN7993 |
| 154 | 2916660024 | Spring retaining ring 55X2MM, DIN 472 |
| 16 | 1610499056 | Ratchet Sleeve |
| 160 | 1610210172 | Damping Ring |
| 162 | 1610210091 | O-Ring 24,0X4,0 MM |
| 163 | 1610290065 | Seal Ring |
| 164 | 1610210144 | O-Ring 22,0X3,0 MM |
| 165 | 1610210153 | O-Ring 25,0X4,0 MM |
| 166 | 1613200015 | Cylindrical Roller |
| 167 | 1610290062 | Rotary shaft lip seal |
| 17 | 1610241000 | Catch Disk |
| 171 | 1613435014 | Torx Oval-Head Screw Silver M5X16-TORX,T25 |
| 172 | 1613435013 | Torx Oval-Head Screw Silver M6X30-TORX,T30 |
| 174 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 176 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 177 | 1603435051 | Tapping Screw Silver ST3,9X32 |
| 178 | 1604412069 | Connecting Cable |
| 20 | 1618597079 | Toolholder |
| 21 | 1610508044 | Protective Cap Black |
| 22 | 1610591034 | Protection Sleeve |
| 24 | 1610200022 | Sleeve |
| 25 | 1613100029 | Locking Bolt |
| 27 | 1600591032 | Air-Deflector Ring |
| 28 | 1614621000 | Compression Spring |
| 34 | 1610516013 | Flange |
| 4 | 1617200110 | Switch |
| 42 | 1614336041 | Brush Holder |
| 43 | 1615500303 | Fan Cover |
| 5 | 1614461034 | Power supply cord Usa/cdn 3,1M 3 X 1,31MM SJ0W |
| 53 | 1610102054 | Support Disc |
| 57 | 1618710073 | Striker |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 69 | 1610099004 | Retaining Bracket |
| 7 | 1601302019 | Fastening Clamp |
| 73 | 16055002CZ | Housing Cover |
| 75 | 1619P10300 | Handle |
| 802 | 1614220150 | Field 110-120V |
| 803 | 1614011090 | Armature 110-120V |
| 808 | 160111A3H5 | Nameplate |
| 81 | 1615132079 | Handle Cover |
| 811 | 1617014138 | Carbon-Brush Set |
| 817 | 1614652004 | Spiral Spring |
| 818 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 821 | 1617000835 | Bushing |
| 835 | 1617000450 | Hammer Pipe |
| 838 | 1615190088 | Covering hood Blue |
| 84 | 160202507H | Auxiliary Handle |
| 840 | 1617000846 | Impact Mechanism Housing |
| 841 | 1617000452 | Striker Pin |
| 854 | 1617000442 | Stop Disc |
| 856 | 1617000836 | Hammer Piston |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 87 | 1611316019 | Clamping Band Ø62 MM |
| 872 | 1600A01BG3 | Eccentric |
| 874 | 1617000422 | Holding-Down-Appliance |
| 884 | 1612025055 | Auxiliary Handle Black Ø62 MM |
| 885 | 1618040074 | Support clamp |
| 886 | 1617000459 | Auxiliary Handle Black M8 |
| 890 | 1609244B42 | Mounting Sleeve |
| 892 | 1609244B43 | Bow |
| 895 | 1615430019 | Oil Reservoir 1000 Ml |
| 897 | 1617000447 | Wear and Tear Part Set |
| 898 | 1615437512 | Oil Reservoir 50 Ml |
| 9 | 1611110C73 | Manufacturer's nameplate |
| 95 | 1610210173 | O-Ring 32,0X1,5 MM |
