Bosch 11320 VS
Bosch 11320 VS demolition hammer: exploded parts diagram, 2 sheets, 95 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

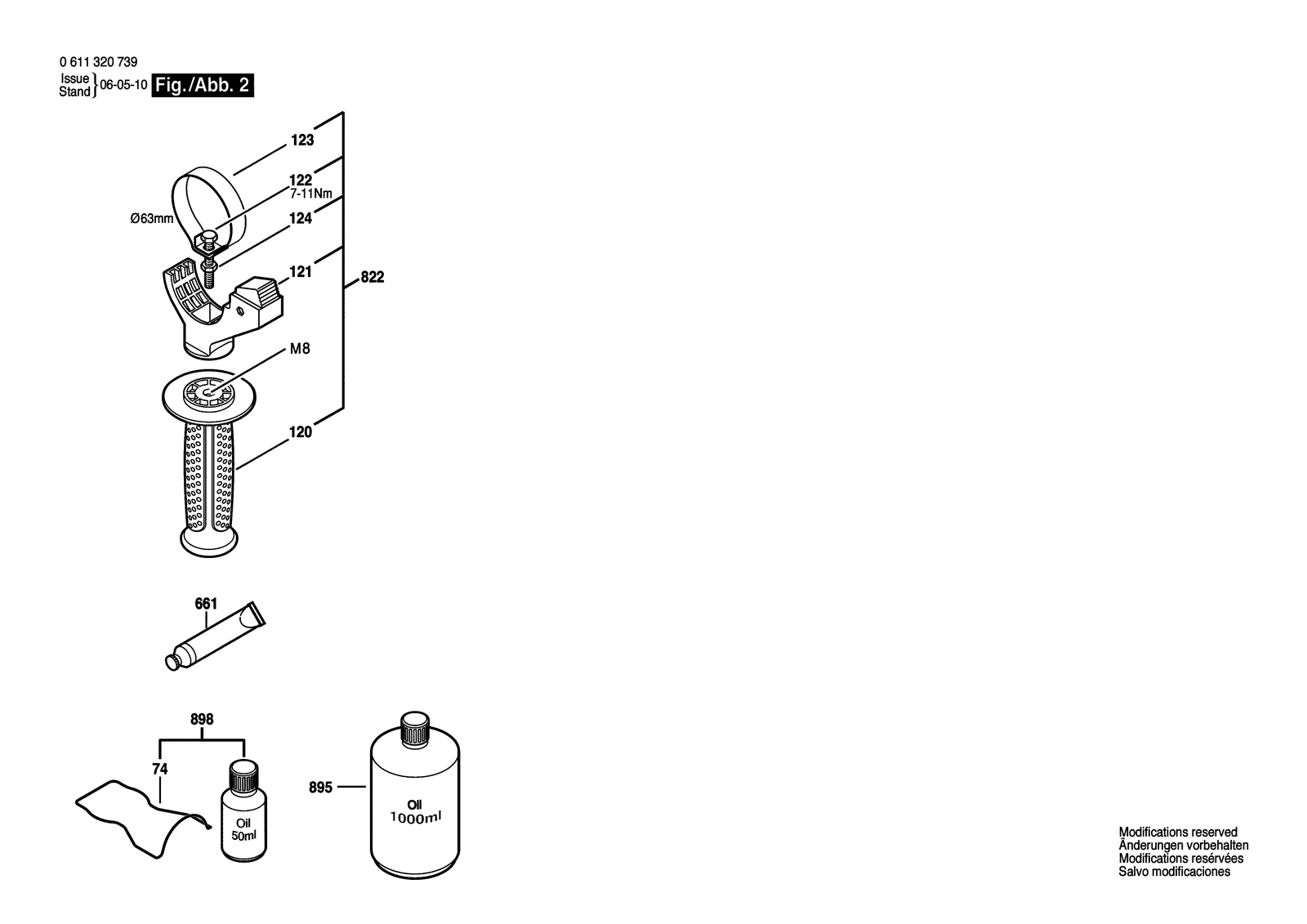

All parts of Bosch 11320 VS: 95 positions on 2 sheets
Bosch 11320 VS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1614449012 | Connecting Cable White L=360 MM |
| 102 | 1614431028 | Connecting Cable White L=220 MM |
| 103 | 1614437017 | Connecting Cable Blue L=180 MM |
| 104 | 1614437018 | Connecting Cable |
| 105 | 1614449013 | Connecting Cable |
| 107 | 1614449017 | Connecting Cable |
| 108 | 1611091006 | Connecting terminal 2-POLE |
| 110 | 1611110D15 | Warning Plate |
| 120 | 160202507H | Auxiliary Handle |
| 121 | 1618040081 | Support clamp |
| 122 | 1613450017 | Hex Screw M 8X40 MM |
| 123 | 1611316018 | Clamping Band Ø 63 MM |
| 124 | 2915051180 | Hex Nut ISO-4035-M8-05 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1610905036 | Groove ball bearing 10X26X8 |
| 15 | 1616610088 | Fan |
| 17 | 1615132075 | Flap Grip |
| 2 | 1614220178 | Field 110-120V |
| 21 | 1615806178 | Hammer Pipe |
| 23 | 1614601044 | Retaining ring |
| 24 | 1610190051 | Supporting Disc |
| 25 | 1610190052 | Supporting Disc |
| 26 | 1618700082 | Hammer Piston |
| 27 | 1618710084 | Striker |
| 28 | 1613124079 | Striker Pin |
| 32 | 1613100030 | Needle Roller |
| 33 | 1615808091 | Gear Cover |
| 34 | 2916080910 | Locking washer DIN 6799-7-FST |
| 35 | 1600502023 | Intermediate Ring |
| 36 | 1616409022 | Collar |
| 37 | 1613123004 | Eccentric Shaft |
| 4 | 1607200526 | Switch |
| 40 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 41 | 3604618008 | Compression Spring |
| 43 | 1610390043 | Screw Bushing |
| 44 | 2916560010 | Spring retaining ring DIN 471-30X2,0-FST |
| 47 | 1610250010 | Inner Ring |
| 48 | 1611329020 | Fixing Plate |
| 5 | 3604460045 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 53 | 1610422018 | Thrust Ring |
| 54 | 1610508039 | Protective Cap L=13 MM |
| 55 | 1610190040 | Holding Plate |
| 56 | 1610499057 | Protection Sleeve |
| 58 | 1614615004 | Compression Spring |
| 59 | 1610522014 | Slide Sleeve |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1610202023 | Plain bearing |
| 61 | 1610210156 | O-Ring 39,0X3,0 MM |
| 62 | 1610210105 | O-Ring 18,0X3,5 MM |
| 66 | 1610210181 | O-Ring 21,0X2,0 MM |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 67 | 1614601032 | Retaining ring |
| 68 | 1610205011 | Felt Washer |
| 69 | 1610283031 | Rotary shaft lip seal |
| 7 | 2601035001 | Cable Clip |
| 70 | 1610283037 | Rotary shaft lip seal |
| 72 | 1610210182 | O-Ring 30,0X5,0 MM |
| 73 | 1610210183 | O-Ring 18,64X3,53 MM |
| 74 | 1611014002 | Sealing Frame |
| 75 | 1610210159 | O-Ring 18,0X3,5 MM |
| 76 | 1610100015 | Supporting Disc |
| 77 | 1610190050 | Magnetic Stand |
| 78 | 1600290058 | Magnet |
| 79 | 1614618002 | Compression Spring |
| 80 | 1614621000 | Compression Spring |
| 801 | 1615108103 | Insulating Housing |
| 803 | 1614010240 | Armature With Fan 110-120V |
| 808 | 160111A3H5 | Nameplate |
| 810 | 1617014139 | Carbon-Brush Set |
| 815 | 1614652003 | Spiral Spring |
| 816 | 1617000397 | Brush Holder |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 819 | 1615806181 | Gear Housing |
| 820 | 1615104044 | Housing Section |
| 820/45 | 1615104039 | Cover |
| 821/01 | 1615806182 | Hammer Pipe |
| 821/02 | 1615806183 | Hammer Pipe |
| 822 | 1612025059 | Auxiliary Handle |
| 83 | 1614601036 | Spring retaining ring |
| 830 | 1612210119 | Eccentric |
| 849 | 1618598238 | Tool Holding Fixture |
| 852 | 1615500310 | Brush-Cover |
| 86 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 860 | 1610422019 | Plain bearing |
| 87 | 1610209006 | Backup ring |
| 88 | 1613414016 | Hex Socket Head Cap Screw |
| 89 | 1613414017 | Hex Socket Head Cap Screw |
| 894 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 895 | 1615430019 | Oil Reservoir 1000 Ml |
| 897 | 1617000595 | Wear and Tear Part Set |
| 898 | 1615437509 | Oil Reservoir 50 Ml |
| 9 | 1611110D14 | Manufacturer's nameplate |
| 90 | 2910131154 | Hex Socket Head Cap Screw DIN 7984-M5X12-8.8 |
| 91 | 2912401008 | Tapping Screw DIN 7983-ST-2,9X19 |
| 92 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
