Bosch 11311 EVS
Bosch 11311 EVS demolition hammer: exploded parts diagram, 2 sheets, 91 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

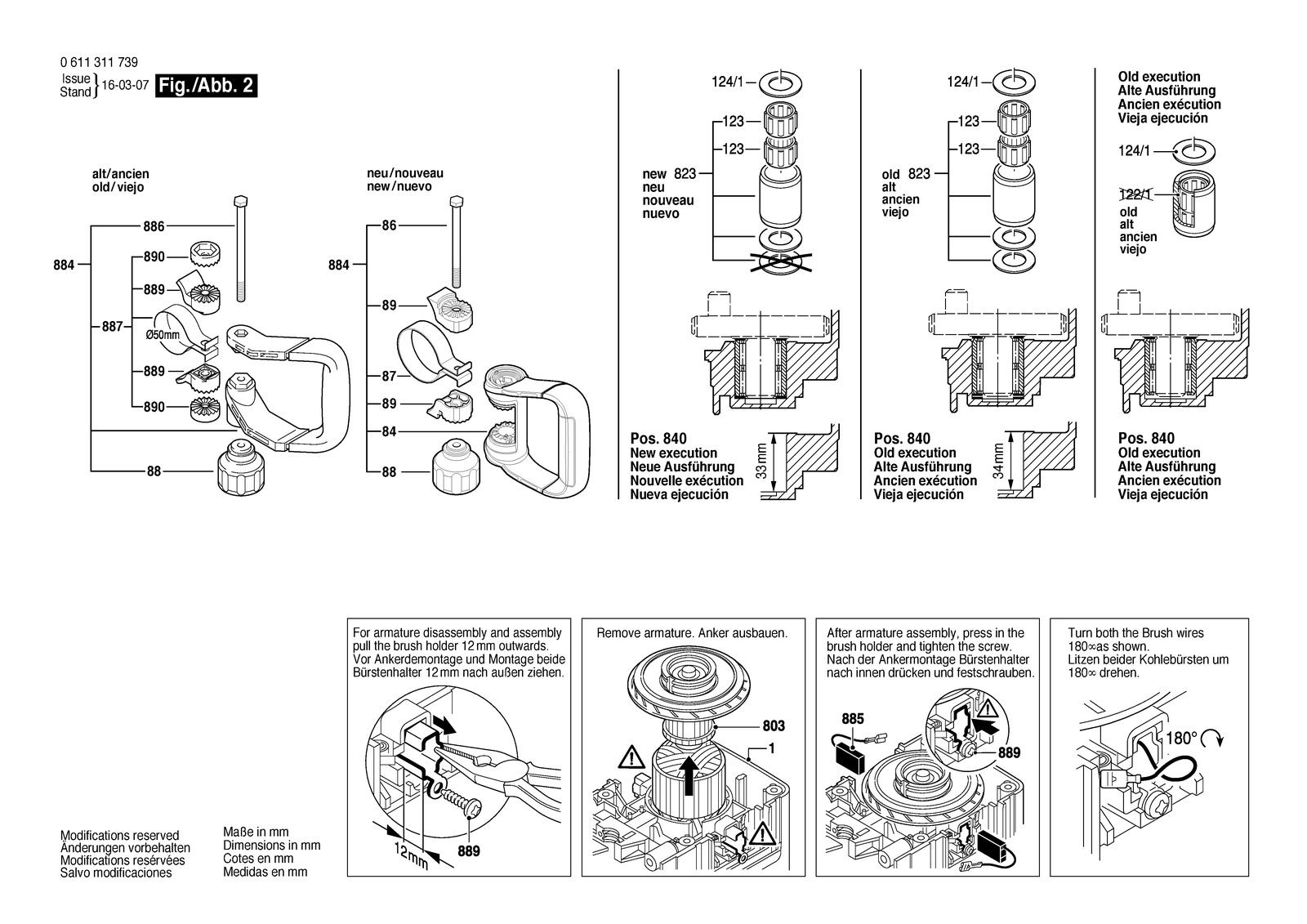

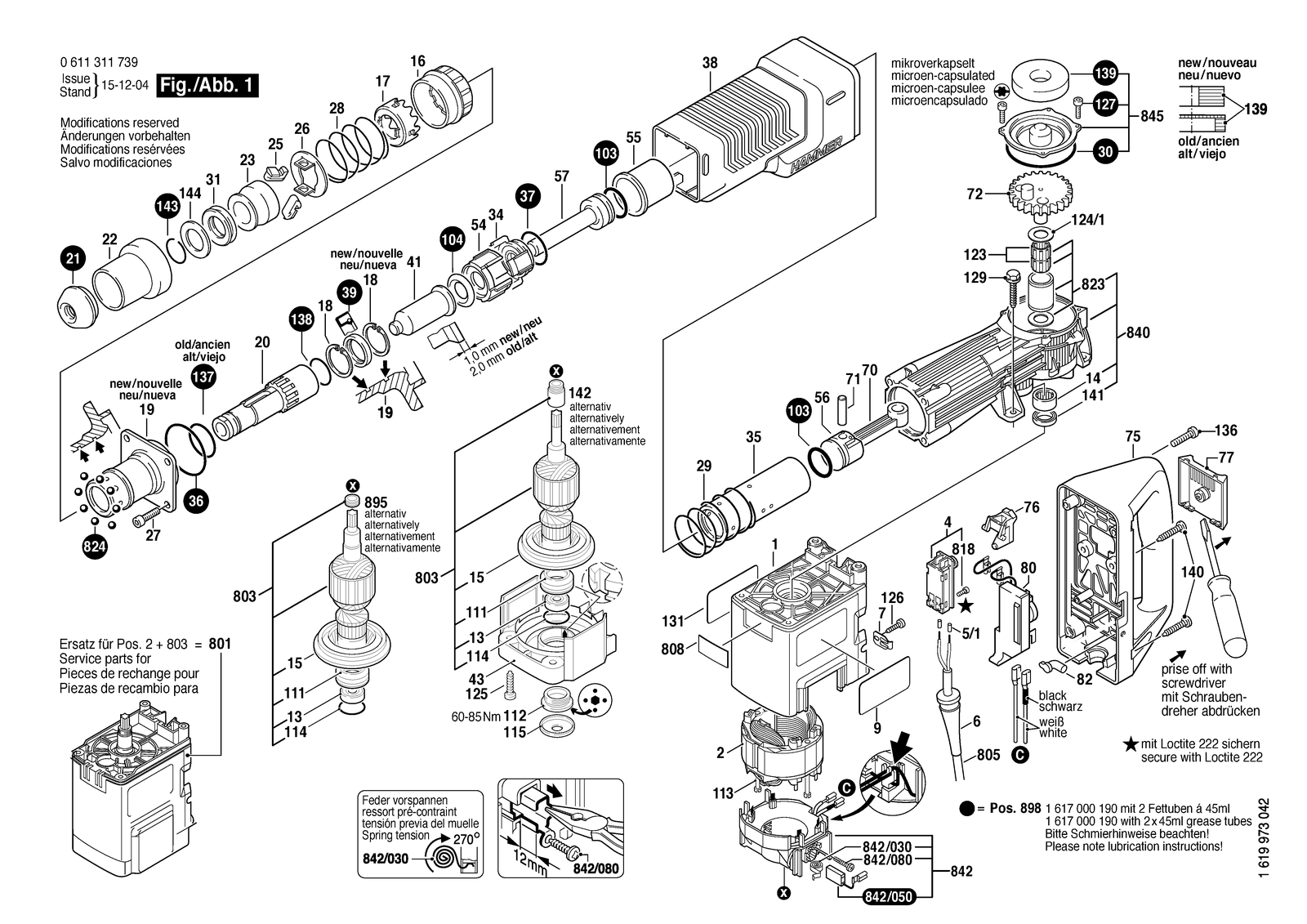

All parts of Bosch 11311 EVS: 91 positions on 2 sheets
Bosch 11311 EVS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3615102507 | Motor Housing Blue |
| 103 | 1610210122 | O-Ring 30,0X5,0 MM |
| 104 | 1610210123 | O-Ring 22,0X11,0 MM |
| 111 | 3610501500 | Bushing |
| 112 | 3613461500 | Threaded Ring |
| 113 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 114 | 1900210130 | O-Ring 30X2 MM |
| 115 | 1610508027 | Protective Cap Black |
| 123 | 1610913013 | Needle-Roller Assembly |
| 124/1 | 1610101608 | Thrust Bearing Disc |
| 125 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 127 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 129 | 1613433001 | Screw and washer assembly 6,3X32 |
| 13 | 2610909310 | Groove ball bearing |
| 131 | 2610994183 | Warning Plate |
| 136 | 1613490029 | Torx Oval-Head Screw M6X30 |
| 137 | 1610210129 | O-Ring 41,0X2,5 MM |
| 138 | 1610210130 | O-Ring 32,0X2,5 MM |
| 139 | 1610108020 | Felt Washer |
| 14 | 1610910096 | Needle-Roller Bearing |
| 140 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 141 | 1610290028 | Rotary shaft lip seal |
| 142 | 1610300063 | Bushing |
| 143 | 2916540017 | Retaining ring DIN 7993 A 30 |
| 144 | 1610102029 | Supporting Disc |
| 15 | 1616610078 | Fan |
| 16 | 1610499022 | Ratchet Sleeve |
| 17 | 1610590004 | Retaining snap ring |
| 18 | 1610119010 | Spring retaining ring |
| 19 | 1619P13963 | Clamping-Flange |
| 2 | 3614220509 | Field 115-120V |
| 20 | 1618597067 | Toolholder |
| 21 | 1610508025 | Protective Cap |
| 22 | 1610499023 | Protection Sleeve |
| 23 | 1610521011 | Stop Sleeve |
| 25 | 1612300025 | Stopping Device |
| 26 | 1610290027 | Indexing Disk |
| 27 | 2910151246 | Hex Socket Head Cap Screw DIN 912-M8X30-10.9 |
| 28 | 1614621002 | Compression Spring |
| 29 | 1614621003 | Compression Spring |
| 30 | 1610210147 | O-Ring 79,5X2,65 MM |
| 31 | 1610290026 | Damping Ring |
| 34 | 1610390029 | Spacer Tube |
| 35 | 1615806108 | Hammer Pipe |
| 36 | 1610210127 | O-Ring 64,0X2,5 MM |
| 37 | 1610210128 | O-Ring 35,0X3,0 MM |
| 38 | 1615190052 | Covering hood |
| 39 | 1610283025 | Rotary shaft lip seal |
| 4 | 1617200048 | Switch |
| 41 | 1618710071 | Striker Pin |
| 43 | 1615808083 | Bearing cover Blue |
| 5/1 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 54 | 1610190019 | Control Disc |
| 55 | 1610420005 | Control Bushing |
| 56 | 1618700064 | Hammer Piston |
| 57 | 1618710062 | Striker |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 7 | 1601302018 | Fastening Clamp |
| 70 | 1612001033 | Connecting Rod |
| 71 | 1613101006 | Straight Pin |
| 72 | 1600A027H7 | Eccentric Cog Wheel |
| 75 | 1615132051 | Handle Black |
| 76 | 1612026049 | Control Lever |
| 77 | 1612026048 | Shift Plate Gray |
| 80 | 16072335CW | Speed governor 115V |
| 801 | 1617220075 | Un. Flange-Mtd. Motor Blue 115-120V |
| 803 | 1617220075 | Un. Flange-Mtd. Motor Blue 115-120V |
| 805 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 808 | 2610994184 | Dummy |
| 818 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 82 | 1615510000 | Light Conductor |
| 823 | 1617000403 | Needle-Roller Assembly |
| 824 | 1617000240 | Ball DIN 5401-6,5MM-III-ST |
| 84 | 160202508D | Auxiliary Handle |
| 840 | 1617000969 | Impact Mechanism Housing |
| 842 | 1614336016 | Brush Holder |
| 845 | 1617000418 | Housing Cover |
| 86 | 2911021267 | Hex Screw |
| 87 | 1611316010 | Clamping Band |
| 88 | 1619P16922 | Star Knob |
| 884 | 160202508E | Auxiliary Handle |
| 886 | 2911011270 | Hex Screw DIN 931-M8X130-8.8 |
| 887 | 1617000188 | Clamping Band Ø50 MM |
| 889 | 1618040053 | Clamping Piece |
| 89 | 1600A00748 | Clamping Piece |
| 890 | 1610190053 | Catch Disk |
| 895 | 3613344500 | Oil Return Ring |
| 898 | 1617000190 | Wear and Tear Part Set |
| 9 | 2610994182 | Dummy |
