Bosch 11264 EVS

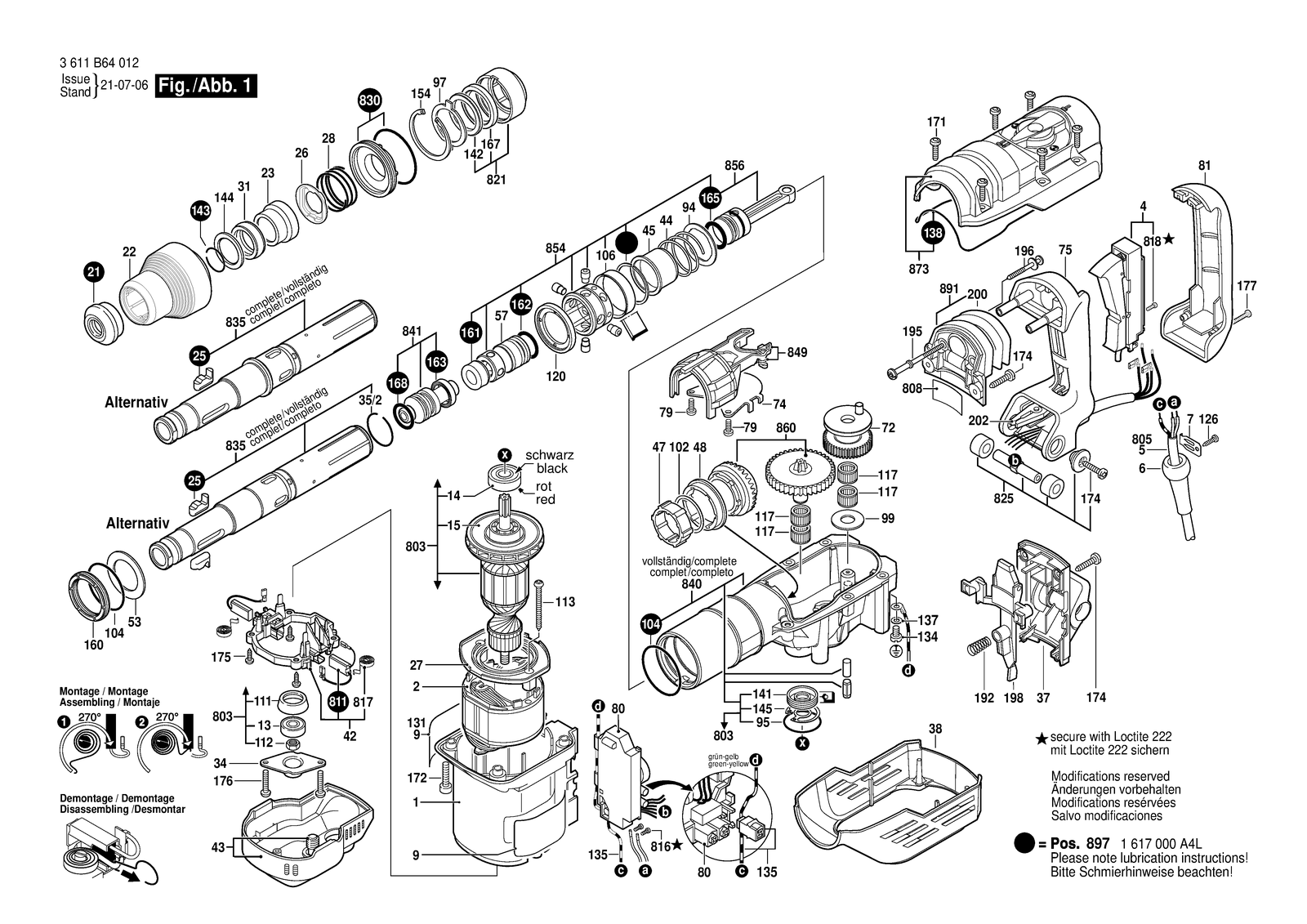

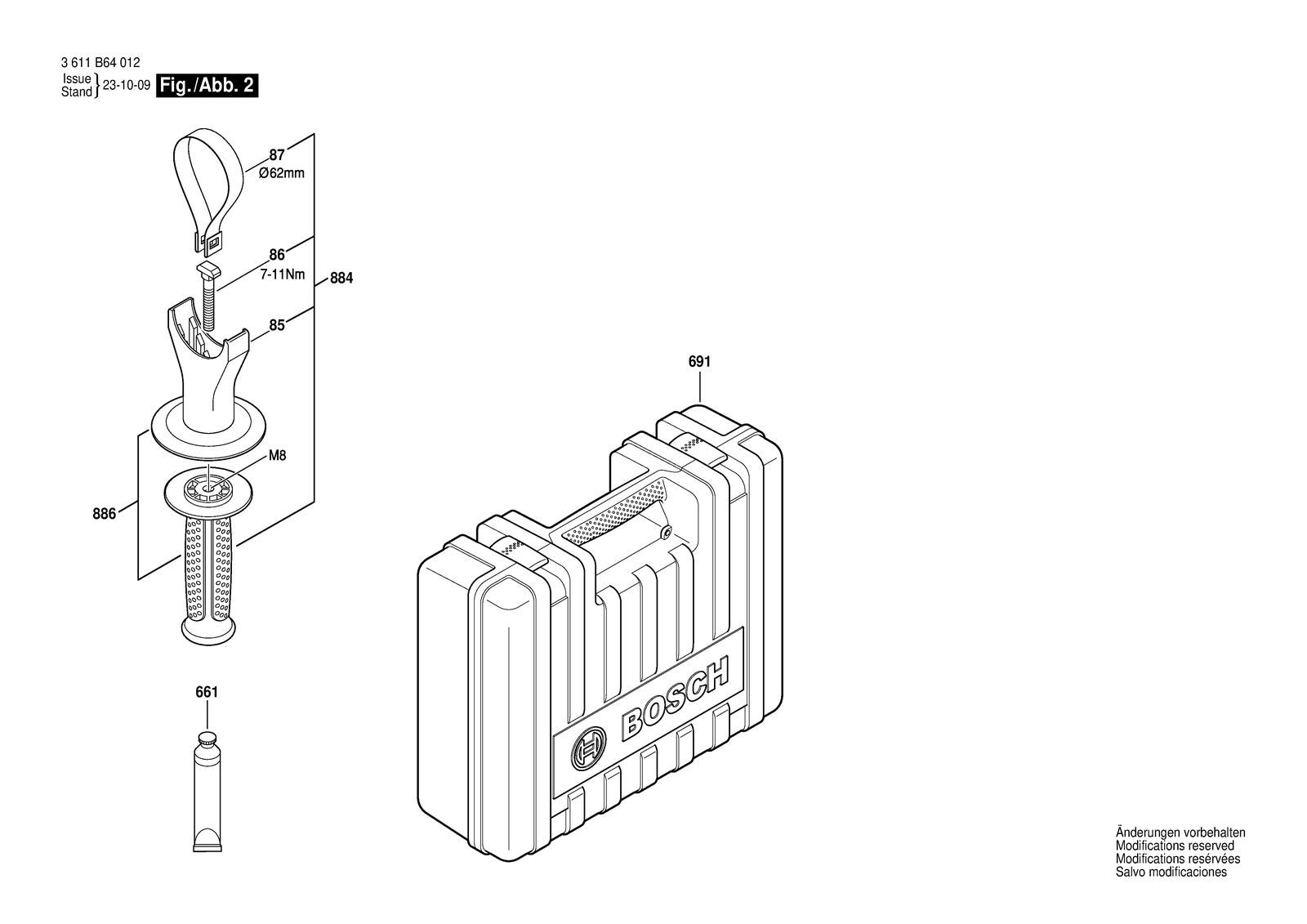

Bosch 11264 EVS rotary hammer: exploded parts diagram, 2 sheets, 216 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11264 EVS: 216 positions on 2 sheets
Bosch 11264 EVS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615102161 | Motor Housing Blue |
| 1 | 1615102161 | Motor Housing Blue |
| 102 | 1610102057 | Shim 0,3 MM |
| 102 | 1610102058 | Shim 0,2 MM |
| 102 | 1610102057 | Shim 0,3 MM |
| 102 | 1610102058 | Shim 0,2 MM |
| 104 | 1610210160 | O-Ring 52,0X2,0 MM |
| 104 | 1610210160 | O-Ring 52,0X2,0 MM |
| 106 | 1610499073 | Retaining snap ring |
| 106 | 1610499073 | Retaining snap ring |
| 111 | 1610290064 | Bushing |
| 111 | 1610290064 | Bushing |
| 112 | 1613300008 | Hex Nut DIN 936-M8X1-8 |
| 112 | 1613300008 | Hex Nut DIN 936-M8X1-8 |
| 113 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 113 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 117 | 1610913029 | Needle-Roller Assembly |
| 117 | 1610913029 | Needle-Roller Assembly |
| 120 | 1610590019 | Stop Sleeve |
| 120 | 1610590019 | Stop Sleeve |
| 126 | 2603490022 | Screw 4X16 |
| 126 | 2603490022 | Screw 4X16 |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 131 | 1611110C71 | Manufacturer's nameplate |
| 131 | 1611110C71 | Manufacturer's nameplate |
| 134 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 134 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 135 | 1614431031 | Connecting Cable |
| 135 | 1614431031 | Connecting Cable |
| 137 | 1610151007 | Spring Lock Washer |
| 137 | 1610151007 | Spring Lock Washer |
| 138 | 1611015053 | Sealing Frame |
| 138 | 1611015053 | Sealing Frame |
| 14 | 1610905041 | Groove ball bearing 12X32X10 |
| 14 | 1610905041 | Groove ball bearing 12X32X10 |
| 141 | 1610290066 | Rotary shaft lip seal |
| 141 | 1610290066 | Rotary shaft lip seal |
| 142 | 1610290069 | Rotary shaft lip seal |
| 142 | 1610290069 | Rotary shaft lip seal |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 144 | 1610251006 | Supporting Disc |
| 144 | 1610251006 | Supporting Disc |
| 145 | 1610119012 | Spring retaining ring |
| 145 | 1610119012 | Spring retaining ring |
| 15 | 1616610090 | Fan |
| 15 | 1616610090 | Fan |
| 154 | 2916660023 | Spring retaining ring DIN 472 52X2MM |
| 154 | 2916660023 | Spring retaining ring DIN 472 52X2MM |
| 160 | 1610290095 | Damping Ring |
| 160 | 1610290095 | Damping Ring |
| 161 | 1610290094 | Damping Ring |
| 161 | 1610290094 | Damping Ring |
| 162 | 1610210204 | O-Ring 22,5X3,5 MM |
| 162 | 1610210204 | O-Ring 22,5X3,5 MM |
| 163 | 1610290065 | Seal Ring |
| 163 | 1610290065 | Seal Ring |
| 165 | 1610210079 | O-Ring 22,0X4,0 MM |
| 165 | 1610210079 | O-Ring 22,0X4,0 MM |
| 167 | 1610283033 | Rotary shaft lip seal |
| 167 | 1610283033 | Rotary shaft lip seal |
| 168 | 1610210144 | O-Ring 22,0X3,0 MM |
| 168 | 1610210144 | O-Ring 22,0X3,0 MM |
| 171 | 1613435016 | Torx Oval-Head Screw Silver M5X20-TORX,T25 |
| 171 | 1613435016 | Torx Oval-Head Screw Silver M5X20-TORX,T25 |
| 172 | 1613435013 | Torx Oval-Head Screw Silver M6X30-TORX,T30 |
| 172 | 1613435013 | Torx Oval-Head Screw Silver M6X30-TORX,T30 |
| 174 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 174 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 176 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 176 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 177 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 177 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 192 | 1614611019 | Compression Spring |
| 192 | 1614611019 | Compression Spring |
| 195 | 1613490015 | Torx Oval-Head Screw |
| 195 | 1613490015 | Torx Oval-Head Screw |
| 196 | 1613435019 | Screw and washer assembly |
| 196 | 1613435019 | Screw and washer assembly |
| 198 | 1618900001 | Control Lever |
| 198 | 1618900001 | Control Lever |
| 2 | 1614220200 | Field 115V |
| 2 | 1614220200 | Field 115V |
| 200 | 1610284000 | Bellows |
| 200 | 1610284000 | Bellows |
| 202 | 1611010006 | Switch Hook |
| 202 | 1611010006 | Switch Hook |
| 21 | 1610508038 | Protective Cap |
| 21 | 1610508038 | Protective Cap |
| 22 | 1600A0221K | Protection Sleeve |
| 22 | 1600A0221K | Protection Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 25 | 1612300036 | Stopping Device |
| 25 | 1612300036 | Stopping Device |
| 26 | 1600A019WL | Indexing Disk |
| 26 | 1600A019WL | Indexing Disk |
| 27 | 1610591028 | Air-Deflector Ring |
| 27 | 1610591028 | Air-Deflector Ring |
| 28 | 1614621010 | Compression Spring |
| 28 | 1614621010 | Compression Spring |
| 31 | 1610290049 | Damping Ring |
| 31 | 1610290049 | Damping Ring |
| 34 | 1610516013 | Flange |
| 34 | 1610516013 | Flange |
| 35/2 | 160015001F | Spring retaining ring |
| 35/2 | 160015001F | Spring retaining ring |
| 37 | 1615500393 | Bearing Pedestal |
| 37 | 1615500393 | Bearing Pedestal |
| 38 | 1615190159 | Covering hood Blue |
| 38 | 1615190159 | Covering hood Blue |
| 4 | 1617200120 | Switch |
| 4 | 1617200120 | Switch |
| 42 | 1614336085 | Brush Holder |
| 42 | 1614336085 | Brush Holder |
| 43 | 1615500410 | Fan Cover Black |
| 43 | 1615500410 | Fan Cover Black |
| 44 | 1614617004 | Compression Spring |
| 44 | 1614617004 | Compression Spring |
| 45 | 1610499070 | Control Bushing |
| 45 | 1610499070 | Control Bushing |
| 47 | 1610300064 | Gear Sleeve |
| 47 | 1610300064 | Gear Sleeve |
| 48 | 1616334012 | Clutch Sleeve |
| 48 | 1616334012 | Clutch Sleeve |
| 5 | 1614461035 | Power supply cord Usa/cdn 3,1M 3 X 2,08MM SJ0W |
| 5 | 1614461035 | Power supply cord Usa/cdn 3,1M 3 X 2,08MM SJ0W |
| 53 | 1610290068 | Support Disc |
| 53 | 1610290068 | Support Disc |
| 57 | 1618710091 | Striker |
| 57 | 1618710091 | Striker |
| 6 | 1600703035 | Grommet Ø8,7-Ø9,6X66 MM |
| 6 | 1600703035 | Grommet Ø8,7-Ø9,6X66 MM |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 691 | 1615438461 | Carrying Case |
| 691 | 1615438461 | Carrying Case |
| 7 | 1601302019 | Fastening Clamp |
| 7 | 1601302019 | Fastening Clamp |
| 72 | 1600A014S9 | Eccentric Cog Wheel |
| 72 | 1600A014S9 | Eccentric Cog Wheel |
| 74 | 1611921001 | Guide Plate |
| 74 | 1611921001 | Guide Plate |
| 75 | 1615132118 | Handle Blue |
| 75 | 1615132118 | Handle Blue |
| 79 | 1613435015 | Torx Oval-Head Screw Silver M5X12-TORX,T25 |
| 79 | 1613435015 | Torx Oval-Head Screw Silver M5X12-TORX,T25 |
| 80 | 1617233048 | Speed governor |
| 80 | 1617233048 | Speed governor |
| 803 | 1614011128 | Armature 120V |
| 803 | 1614011128 | Armature 120V |
| 808 | 160111A3H5 | Nameplate |
| 808 | 1619P17045 | Nameplate |
| 808 | 160111A3H5 | Nameplate |
| 81 | 1615132088 | Handle Cover Black |
| 81 | 1615132088 | Handle Cover Black |
| 811 | 1617014144 | Carbon-Brush Set |
| 811 | 1617014144 | Carbon-Brush Set |
| 816 | 1609271281 | Socket head cap screw |
| 816 | 1609271281 | Socket head cap screw |
| 817 | 1614652004 | Spiral Spring |
| 817 | 1614652004 | Spiral Spring |
| 818 | 2910011082 | Socket head cap screw DIN 84-AM3,5X6-5.8 |
| 818 | 2910011082 | Socket head cap screw DIN 84-AM3,5X6-5.8 |
| 821 | 1617000A02 | Bushing |
| 821 | 1617000A02 | Bushing |
| 825 | 1617000706 | Bearing Shaft |
| 825 | 1617000706 | Bearing Shaft |
| 830 | 1617000478 | Supporting Disc |
| 830 | 1617000478 | Supporting Disc |
| 835 | 1617000A4J | Hammer Pipe |
| 835 | 1617000A4J | Hammer Pipe |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 1612025060 | Auxiliary Handle Black M8 |
| 84 | 1612025060 | Auxiliary Handle Black M8 |
| 840 | 1617000A06 | Impact Mechanism Housing |
| 840 | 1607000EL8 | Impact Mechanism Housing |
| 841 | 1617000899 | Striker Pin |
| 841 | 1617000899 | Striker Pin |
| 849 | 1617000839 | Control Fork |
| 849 | 1617000839 | Control Fork |
| 85 | 1618040074 | Support clamp |
| 85 | 1618040074 | Support clamp |
| 854 | 1617000718 | Guide Bushing |
| 854 | 1617000718 | Guide Bushing |
| 856 | 1617000A04 | Hammer Piston |
| 856 | 1617000A04 | Hammer Piston |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 860 | 1607000F00 | Spur Wheel Clutch |
| 860 | 1607000F00 | Spur Wheel Clutch |
| 87 | 1611316019 | Clamping Band Ø62 MM |
| 87 | 1611316019 | Clamping Band Ø62 MM |
| 873 | 1617000A05 | Housing Cover |
| 873 | 1607000ET8 | Housing Cover |
| 884 | 1607000F30 | Auxiliary Handle |
| 884 | 1607000F30 | Auxiliary Handle |
| 886 | 1607000F31 | Auxiliary Handle |
| 886 | 1607000F31 | Auxiliary Handle |
| 891 | 1617000A26 | Spring Pack |
| 891 | 1617000A26 | Spring Pack |
| 897 | 1617000A4L | Wear and Tear Part Set |
| 897 | 1617000A4L | Wear and Tear Part Set |
| 9 | 1611110D61 | Manufacturer's nameplate |
| 9 | 1611110D61 | Manufacturer's nameplate |
| 94 | 1610102056 | Friction Washer |
| 94 | 1610102056 | Friction Washer |
| 95 | 1610210173 | O-Ring 32,0X1,5 MM |
| 95 | 1610210173 | O-Ring 32,0X1,5 MM |
| 97 | 1610031005 | Locking washer |
| 97 | 1610031005 | Locking washer |
| 99 | 1610102059 | Support Disc |
| 99 | 1610102059 | Support Disc |
