Bosch 11264 EVS

Bosch 11264 EVS rotary hammer: exploded parts diagram, 2 sheets, 112 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11264 EVS: 112 positions on 2 sheets

Bosch 11264 EVS parts list (2 sheets)

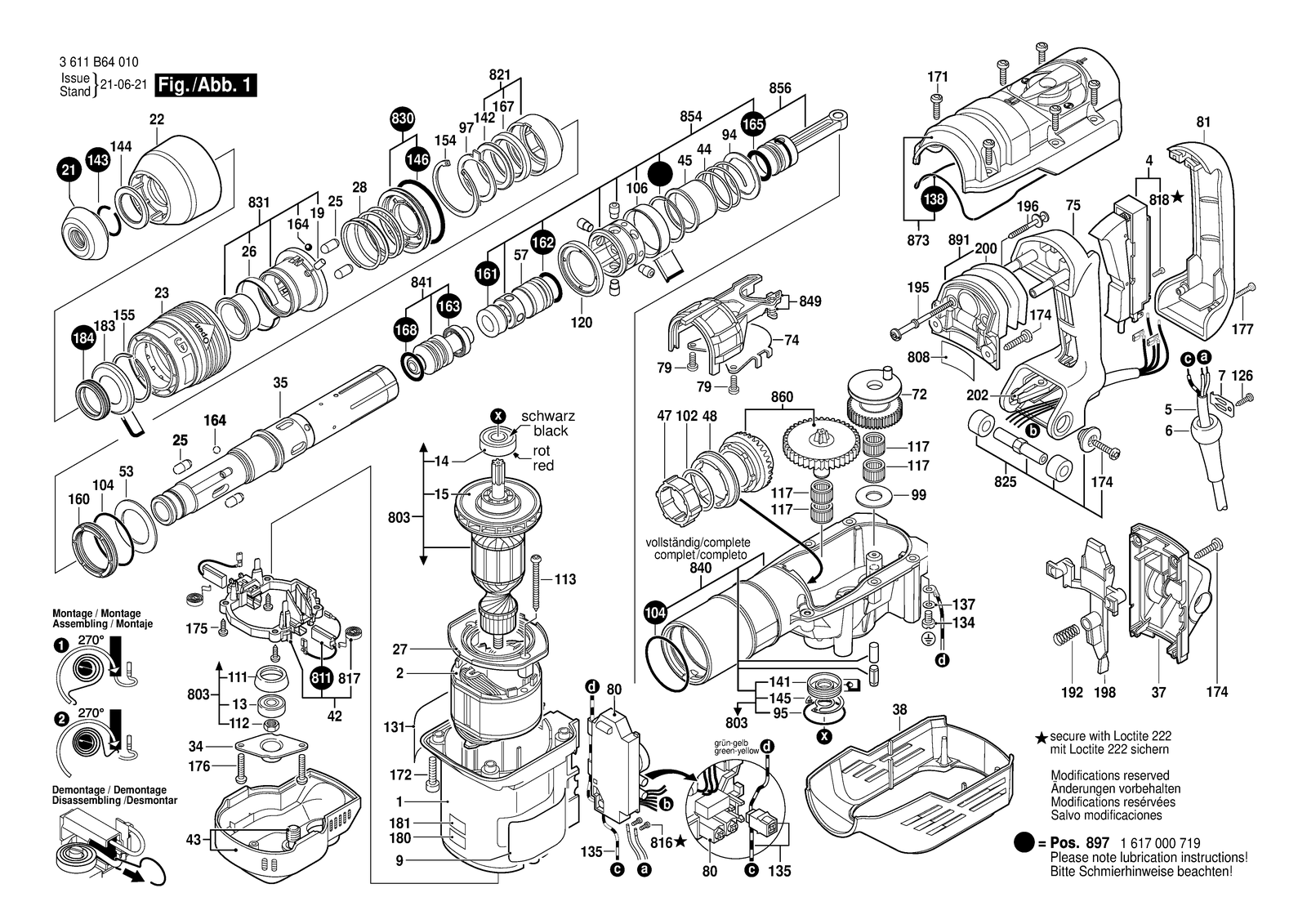

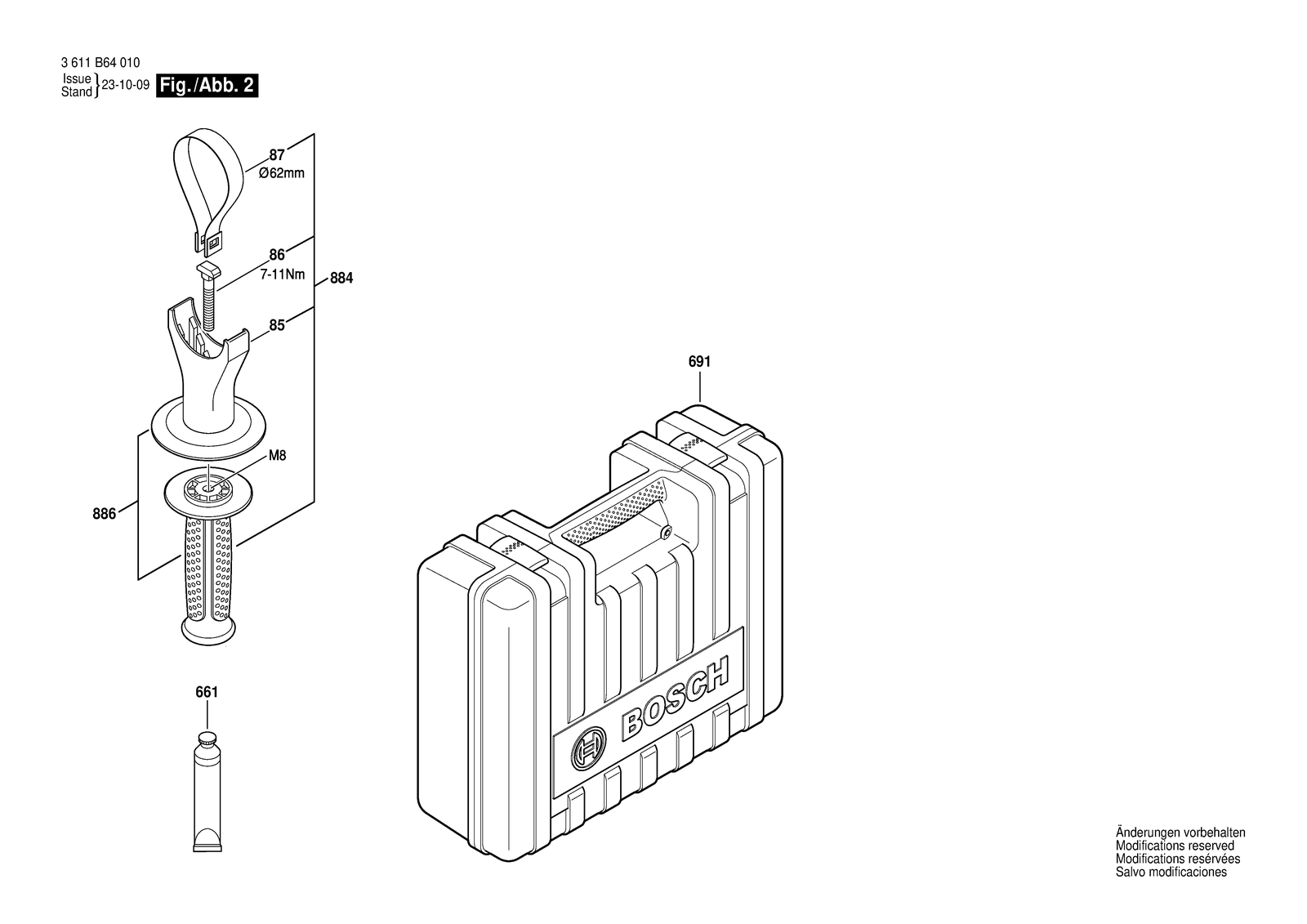

Bosch 11264 EVS parts diagram, sheet 1Bosch 11264 EVS parts diagram, sheet 2
No.Part numberPart name
11615102161Motor Housing Blue
1021610102057Shim 0,3 MM
1021610102058Shim 0,2 MM
1041610210160O-Ring 52,0X2,0 MM
1061610499073Retaining snap ring
1111610290064Bushing
1121613300008Hex Nut DIN 936-M8X1-8
1131613435009Tapping Screw ST-4,8X57,5-TORX,T20
1171610913029Needle-Roller Assembly
1201610590019Stop Sleeve
1262603490022Screw 4X16
131610900026Groove ball bearing 8X24X8
1311611110C71Manufacturer's nameplate
1342910110116Pan head screw DIN 85 AM 4X6-MS
1351614431031Connecting Cable
1371610151007Spring Lock Washer
1381611015053Sealing Frame
141610905041Groove ball bearing 12X32X10
1411610290066Rotary shaft lip seal
1421610290069Rotary shaft lip seal
1431614601021Retaining ring DIN 7993-28X2
1441610251006Supporting Disc
1451610119012Spring retaining ring
1461610210202O-Ring 56,0X3,5 MM
151616610090Fan
1542916660023Spring retaining ring DIN 472 52X2MM
1551614601020Retaining ring
1601610290095Damping Ring
1611610290094Damping Ring
1621610210204O-Ring 22,5X3,5 MM
1631610290065Seal Ring
1641903230011Ball DIN 5401-6 G28
1651610210079O-Ring 22,0X4,0 MM
1671610283033Rotary shaft lip seal
1681610210144O-Ring 22,0X3,0 MM
1711613435016Torx Oval-Head Screw Silver M5X20-TORX,T25
1721613435013Torx Oval-Head Screw Silver M6X30-TORX,T30
1741613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1752912401018Tapping Screw DIN7981-ST3,9X13-C-Z
1761613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1772603490024Torx Oval-Head Screw 4X25
1831610116007Stop Sleeve
1841610290096Damping Ring
191613200019Cylindrical Roller
1921614611019Compression Spring
1951613490015Torx Oval-Head Screw
1961613435019Screw and washer assembly
1981618900001Control Lever
21614220200Field 115V
2001610284000Bellows
2021611010006Switch Hook
211610508057Protective Cap Black
221610591045Protection Sleeve Black
231610499069Guide Sleeve Black
251612300034Stopping Device
261610224010Pressure Spring
271610591028Air-Deflector Ring
281614621008Compression Spring
341610516013Flange
351615806220Hammer Pipe
371615500393Bearing Pedestal
381615190159Covering hood Blue
41617200120Switch
421614336085Brush Holder
431615500410Fan Cover Black
441614617004Compression Spring
451610499070Control Bushing
471610300064Gear Sleeve
481616334012Clutch Sleeve
51614461035Power supply cord Usa/cdn 3,1M 3 X 2,08MM SJ0W
531610290068Support Disc
571618710091Striker
61600703035Grommet Ø8,7-Ø9,6X66 MM
6611615430010Grease Tube 30 Ml
6911615438461Carrying Case
71601302019Fastening Clamp
721600A014S9Eccentric Cog Wheel
741611921001Guide Plate
751615132118Handle Blue
791613435015Torx Oval-Head Screw Silver M5X12-TORX,T25
801617233048Speed governor
8031614011128Armature 120V
808160111A3H5Nameplate
811615132088Handle Cover Black
8111617014144Carbon-Brush Set
8161609271281Socket head cap screw
8171614652004Spiral Spring
8182910011082Socket head cap screw DIN 84-AM3,5X6-5.8
8211617000A02Bushing
8251617000706Bearing Shaft
8301617000717Supporting Disc
8311617000720Control Bushing
841612025060Auxiliary Handle Black M8
8401617000A06Impact Mechanism Housing
8411617000899Striker Pin
8491617000839Control Fork
851618040074Support clamp
8541617000718Guide Bushing
8561617000A04Hammer Piston
861613490002T-Head Bolt M8X40 MM
8601607000F00Spur Wheel Clutch
871611316019Clamping Band Ø62 MM
8731617000A05Housing Cover
8841607000F30Auxiliary Handle
8861607000F31Auxiliary Handle
8911617000A26Spring Pack
8971617000719Wear and Tear Part Set
91611110D61Manufacturer's nameplate
941610102056Friction Washer
951610210173O-Ring 32,0X1,5 MM
971610031005Locking washer
991610102059Support Disc
