Bosch 11250 VSR

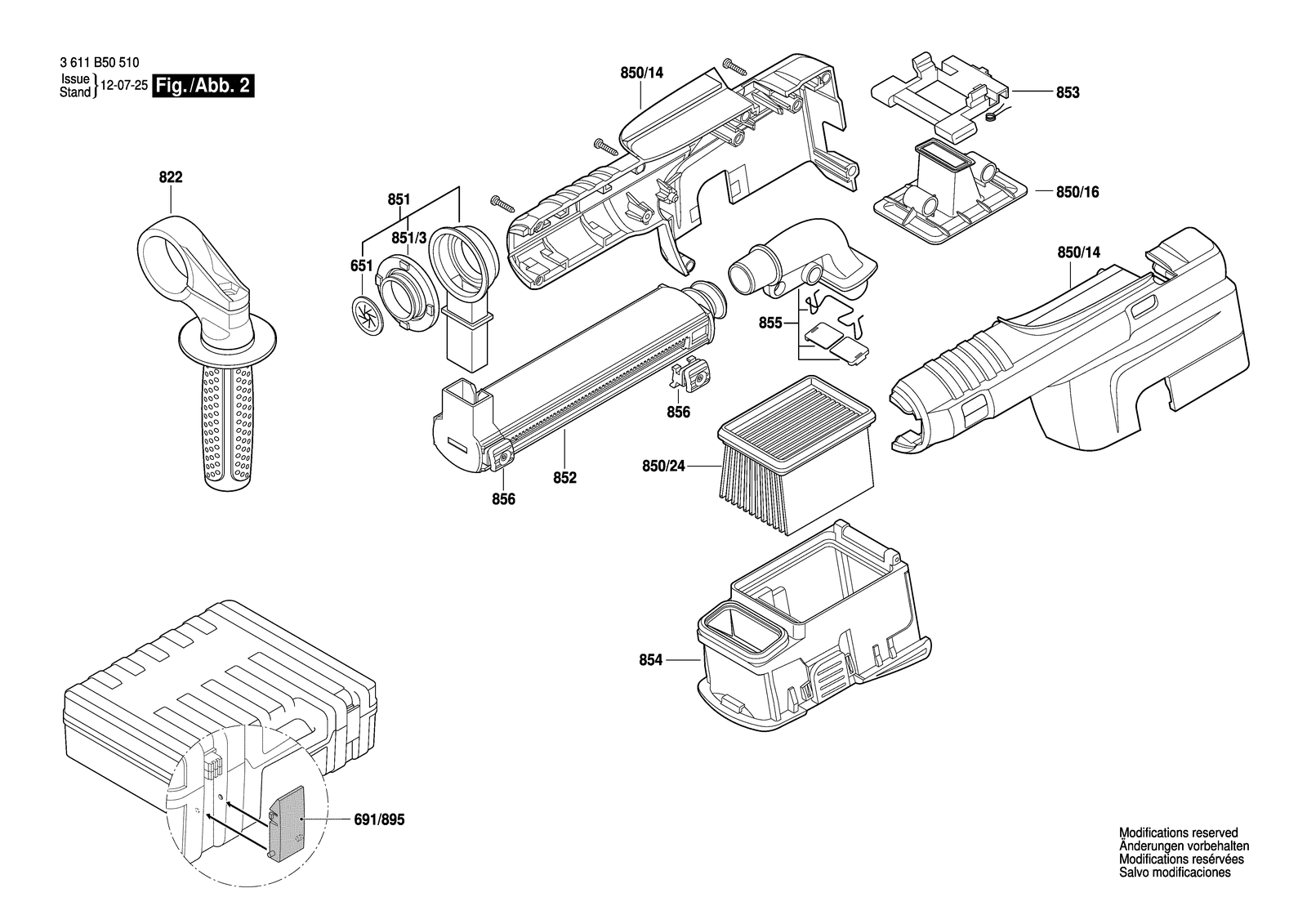

Bosch 11250 VSR rotary hammer: exploded parts diagram, 2 sheets, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11250 VSR: 84 positions on 2 sheets
Bosch 11250 VSR parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1619P02477 | Reference Plate |
| 101 | 1614449014 | Connecting Cable |
| 102 | 1614449015 | Connecting Cable |
| 103 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 13 | 1610905032 | Groove ball bearing 7X19X6 |
| 14 | 1610905048 | Groove ball bearing 9X24X7 |
| 16 | 1614336061 | Brush Plate |
| 17 | 1600A0032J | Adapter module |
| 19 | 1611329024 | Switch Contact |
| 190 | 1619P02570 | Manufacturer's nameplate 11250VSRD |
| 190 | 1619P10473 | Manufacturer's nameplate 11250VSR |
| 2 | 1619P02524 | Field 110V |
| 22 | 1616312003 | Cylindrical Gear |
| 26 | 1618700075 | Hammer Piston |
| 27 | 1618710080 | Striker |
| 28 | 1613124077 | Striker Pin Ø7,5 MM |
| 29 | 1613105012 | Piston Pin |
| 34 | 1610190067 | Supporting Disc |
| 36 | 1601329040 | Tensioning Bracket |
| 38 | 1610190045 | Catch Disk |
| 4 | 1617200558 | Switch |
| 41 | 1615500334 | Housing Cover Blue |
| 42 | 1610422017 | Backup ring |
| 44 | 1610508047 | Protective Cap |
| 45 | 1610522012 | Air-Deflector Ring |
| 48 | 1601021005 | Shift Plate |
| 5 | 2604460239 | Power supply cord Usa/cdn 2,70M 2 X 0,82 SJ18/2 |
| 50 | 1604611037 | Compression Spring |
| 54 | 1610502012 | Rubber Bushing |
| 55 | 1610290079 | Seal Ring 53,0X7,0 MM |
| 56 | 1616B00086 | O-Ring |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 59 | 1610210177 | O-Ring 9,0X2,0 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 65 | 1600900037 | Groove ball bearing |
| 651 | 1619P04548 | Friction Ring 5 Piece |
| 66 | 1610202020 | Plain bearing |
| 67 | 1610913019 | Needle bearing Ø7 MM |
| 68 | 1610283017 | Rotary shaft lip seal |
| 691/895 | 1619P06200 | Lock |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 72 | 1604601027 | Retaining ring |
| 73 | 1614601057 | Retaining ring |
| 74 | 1614601027 | Retaining ring |
| 75 | 1610101629 | Retaining Washer |
| 76 | 1619P02043 | Screw |
| 77 | 1619P00106 | Screw |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 1613435007 | Thread-forming tap. Screw DIN 7981-ST3,5X9,5-F |
| 801 | 1617000537 | Motor Housing |
| 803 | 1619P00783 | Armature 110V |
| 806 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 808 | 1619P04499 | Nameplate |
| 808 | 1619P10411 | Nameplate |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 820 | 1617000526 | Intermediate Flange |
| 821 | 1619P06111 | Ratchet Sleeve |
| 822 | 1619P06104 | Auxiliary Handle |
| 824 | 1617000892 | Toothed Shaft |
| 826 | 1617000534 | Hammer Piston |
| 832 | 1617000529 | Guide Sleeve |
| 840 | 1619P06112 | Gear Housing |
| 843 | 1617000531 | Protection Sleeve Black |
| 846 | 1612026097 | Clamp Handle Black |
| 850/14 | 1619P02029 | Housing |
| 850/16 | 1619P02031 | Sealing Block |
| 850/24 | 1619P04479 | Filter |
| 851 | 1619P06107 | Dust Cap |
| 851/3 | 1619P02020 | Sealing cap |
| 852 | 1619P06052 | Guide Bar |
| 853 | 1619P06106 | Cross-Connector |
| 854 | 1619P06105 | Dust container |
| 855 | 1619P06103 | Connection Part |
| 856 | 1619P06051 | Button |
| 864 | 1610202026 | Plain bearing |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 9 | 1619P02564 | Manufacturer's nameplate |
| 9 | 1619P10412 | Manufacturer's nameplate |
| 94 | 1610205010 | Felt Seal |
| 96 | 1612026035 | Switch Button Red |
| 97 | 1903201118 | Needle Roller |
| 98 | 1610210046 | O-Ring 10,5X2,7 MM |
| 99 | 1614611006 | Compression Spring |
