Makita 1125
Makita 1125: exploded parts diagram, 1 sheet, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 1125: 69 positions on 1 sheet

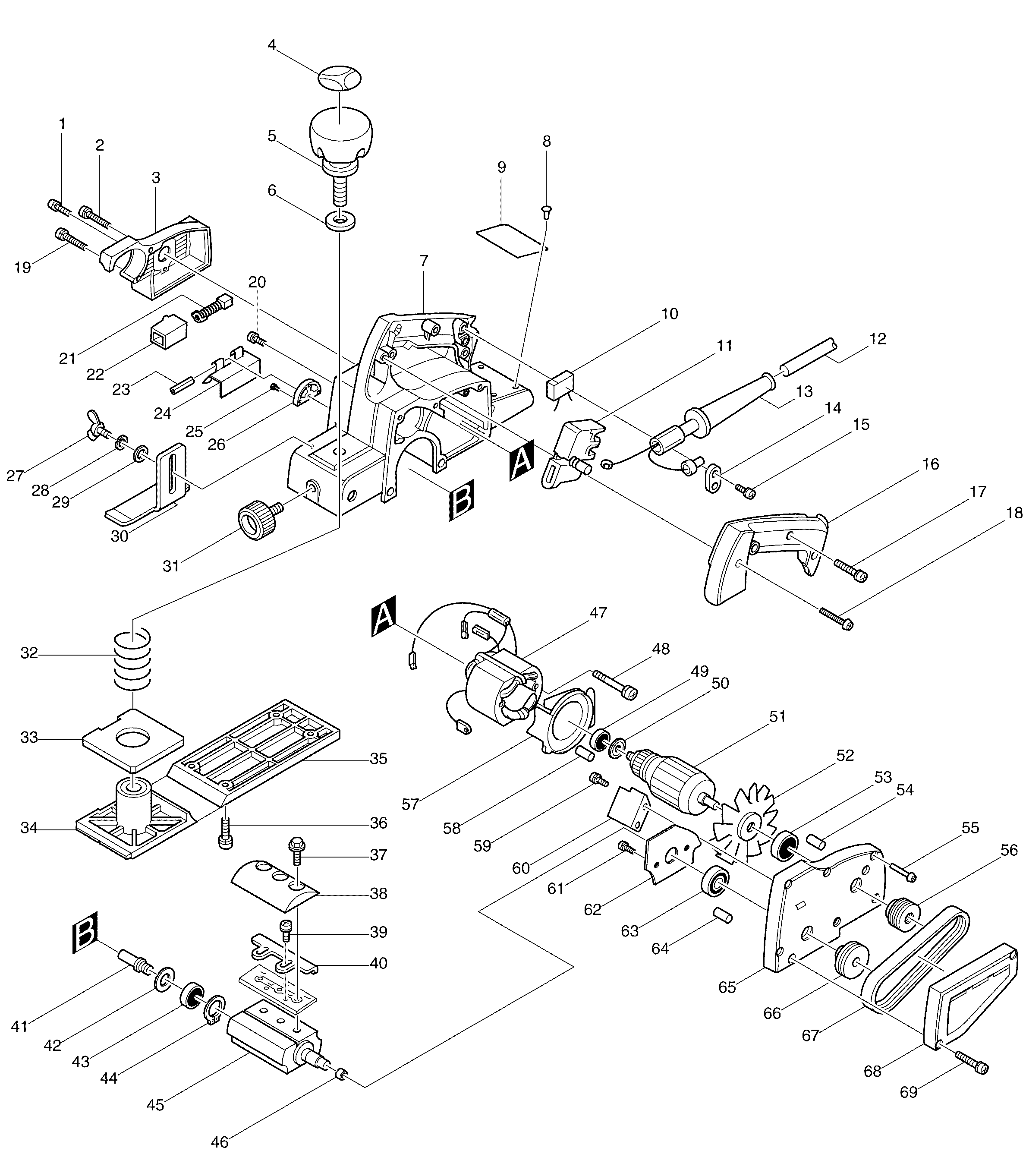

Sheet 1: Makita 1125 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 2 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 3 | 411185-1 | Makita 411185-1 MOTOR REAR COVER |
| 4 | 812004-8 | Makita 812004-8 SCALE LABEL |
| 5 | 271226-3 | Makita 271226-3 Knob 50 for 1911B 1125 |
| 6 | 941251-5 | Makita 941251-5 FLAT WASHER 10 |
| 7 | 156312-0 | Makita 156312-0 MAIN FRAME |
| 8 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 9 | 811797-4 | Makita 811797-4 NAME PLATE 1125 |
| 10 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 11 | 651236-0 | OTHR Makita 651236-0 SWITCH C2M-M1T |
| 12 | 665516-8 | Makita 665516-8 POWER SUPPLY CORD 1.00-2- |
| 13 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 14 | 687002-9 | Makita 687002-9 STRAIN RELIEF |
| 15 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 16 | 411319-6 | Makita 411319-6 HANDLE COVER |
| 17 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 18 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 19 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 20 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 21 | 181410-1 | Makita 181410-1 Carbon Brushes CB-106 1125 1911B 3620 8406 HP2010N RP0900 |
| 22 | 643601-7 | Makita 643601-7 BRUSH HOLDER 6-10 |
| 23 | 951131-7 | Makita 951131-7 SPRING PIN 4-40 |
| 24 | 342391-6 | Makita 342391-6 DRUM COVER |
| 25 | 911116-5 | Makita 911116-5 PAN HEAD SCREW M4*12, 9035 |
| 26 | 312644-7 | Makita 312644-7 DRUM HOUSING |
| 27 | 924206-5 | Makita 924206-5 WING M5X10, 4100NH |
| 28 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 29 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 30 | 342390-8 | Makita 342390-8 DEPTH GUIDE |
| 31 | 251804-5 | Makita 251804-5 SCREW M6X13 |
| 32 | 231004-3 | Makita 231004-3 COMPRESSION SPRING 18, 1900B |
| 33 | 421107-3 | Makita 421107-3 RUBBER PACKING |
| 34 | 312653-6 | Makita 312653-6 FRONT BASE |
| 35 | 312642-1 | Makita 312642-1 BASE |
| 36 | 911226-8 | Makita 911226-8 PAN HEAD SCREW M5X18 |
| 37 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 38 | 343457-5 | Makita 343457-5 DRUM PLATE (2PCS/SET) |
| 39 | 251246-3 | Makita 251246-3 + PAN HEAD SCREW M4X5 |
| 40 | 342430-2 | |
| 41 | 323487-2 | Makita 323487-2 DRUM REAR SHAFT |
| 42 | 253171-4 | Makita 253171-4 FLAT WASHER 10, HR2810 |
| 43 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 44 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 45 | 161036-5 | |
| 46 | 257013-4 | Makita 257013-4 RING 12 |
| 47 | 522245-5 | Makita 522245-5 FIELD ASS Y 220V |
| 48 | 911280-2 | Makita 911280-2 PAN HEAD SCREW M5X55 |
| 49 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 50 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 51 | 512315-8 | |
| 52 | 241044-3 | Makita 241044-3 FAN 68 |
| 53 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 54 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 55 | 911151-3 | |
| 56 | 222050-7 | Makita 222050-7 V-PULLEY 4-24L |
| 57 | 411208-5 | Makita 411208-5 BAFFLE PLATE |
| 58 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 59 | 911101-8 | Makita 911101-8 PAN HEAD SCREW M4X6 |
| 60 | 342389-3 | Makita 342389-3 BAFFLE PLATE |
| 61 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 62 | 341265-8 | Makita 341265-8 CHIP DEFLECTOR |
| 63 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 64 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 65 | 152192-2 | |
| 66 | 222051-5 | Makita 222051-5 V-PULLEY 4-44 |
| 67 | 225069-5 | Makita 225069-5 Drive Belt fit 1125 1911B Planer |
| 68 | 411186-9 | Makita 411186-9 BELT COVER |
| 69 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
