Bosch 11241 EVS

Bosch 11241 EVS rotary hammer: exploded parts diagram, 2 sheets, 105 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11241 EVS: 105 positions on 2 sheets

Bosch 11241 EVS parts list (2 sheets)

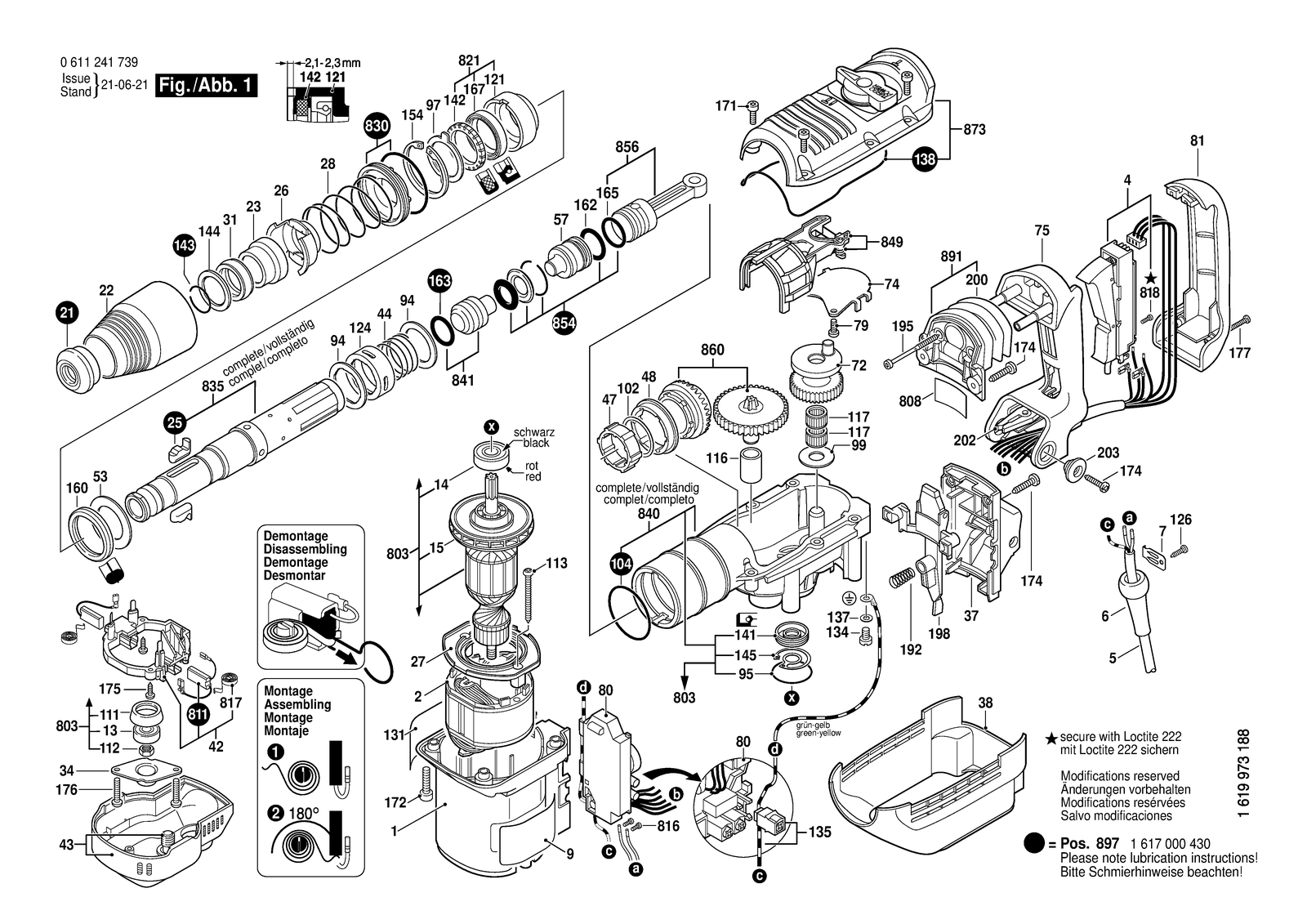

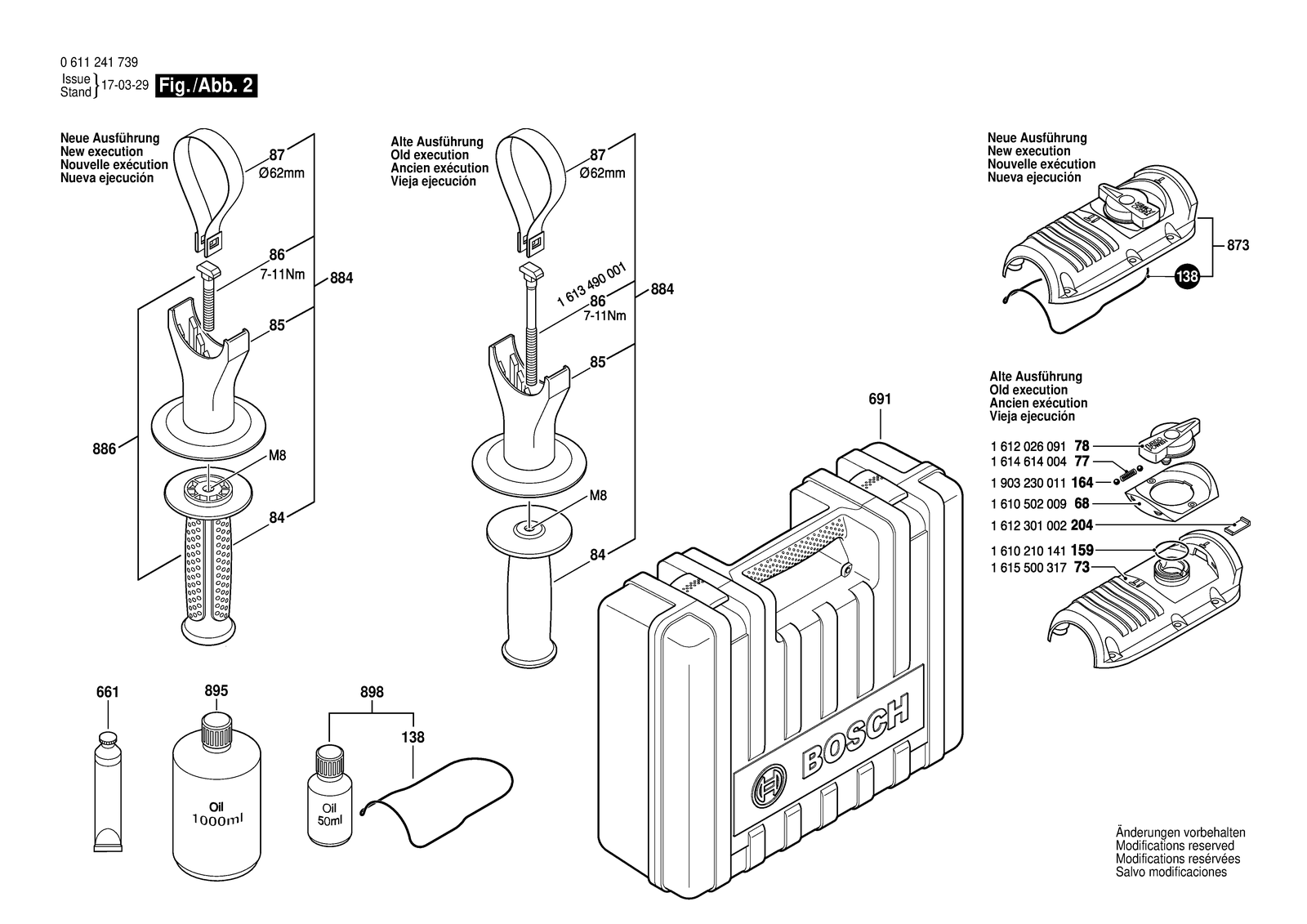

Bosch 11241 EVS parts diagram, sheet 1Bosch 11241 EVS parts diagram, sheet 2
No.Part numberPart name
11615102155Motor Housing Blue
1021610102057Shim 0,3 MM
1021610102058Shim 0,2 MM
1041610210160O-Ring 52,0X2,0 MM
1111610290064Bushing
1121613300008Hex Nut DIN 936-M8X1-8
1131613435009Tapping Screw ST-4,8X57,5-TORX,T20
1161610311017Inner Ring
1171610913029Needle-Roller Assembly
1211610328019Bushing
1241619P10303Collar Sleeve
1262910211019Tapping Screw DIN 7971-ST3,9X16-F
131610900026Groove ball bearing 8X24X8
1311611110C71Manufacturer's nameplate
1342910110116Pan head screw DIN 85 AM 4X6-MS
1351614431031Connecting Cable
1372916069088Spring Washer
1381611015053Sealing Frame
141610905041Groove ball bearing 12X32X10
1411610290066Rotary shaft lip seal
1421610290069Rotary shaft lip seal
1431614601021Retaining ring DIN 7993-28X2
1441610251006Supporting Disc
1451610119012Spring retaining ring
151616610090Fan
1542916660023Spring retaining ring DIN 472 52X2MM
1601610210161Damping Ring
1621610210163O-Ring 22,0X3,5 MM
1631610290065Seal Ring
1651610210079O-Ring 22,0X4,0 MM
1671610283033Rotary shaft lip seal
1711613435016Torx Oval-Head Screw Silver M5X20-TORX,T25
1721613435013Torx Oval-Head Screw Silver M6X30-TORX,T30
1741613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1752912401018Tapping Screw DIN7981-ST3,9X13-C-Z
1761613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1771603435051Tapping Screw Silver ST3,9X32
1921614611019Compression Spring
1951613435020Torx Oval-Head Screw
1981618900001Control Lever
21614220133Field 100-115V
2001610284000Bellows
2021611010006Switch Hook
2031610322009Support Disc Silver
211610508038Protective Cap
221610591027Protection Sleeve
231610520001Stop Sleeve
251612300036Stopping Device
261610290076Indexing Disk
271610591028Air-Deflector Ring
281614621000Compression Spring
311610290049Damping Ring
341610516013Flange
371615500315Bearing Pedestal
381615190101Covering hood
41617200101Switch
421614336046Brush Holder
431615500410Fan Cover Black
441614617003Compression Spring
471610300064Gear Sleeve
481616334012Clutch Sleeve
51614461035Power supply cord Usa/cdn 3,1M 3 X 2,08MM SJ0W
531610290068Support Disc
571618710074Striker
61600703035Grommet Ø8,7-Ø9,6X66 MM
6611615430010Grease Tube 30 Ml
6911615438461Carrying Case
71601302019Fastening Clamp
721600A014S8Eccentric Cog Wheel
741611921001Guide Plate
751615132087Handle Blue
791613435015Torx Oval-Head Screw Silver M5X12-TORX,T25
801617233033Speed governor 100-120V
8031614011107Armature 110-120V
808160111A3H5Nameplate
811615132088Handle Cover Black
8111617014144Carbon-Brush Set
8161609271281Socket head cap screw
8171614652004Spiral Spring
8182910011082Socket head cap screw DIN 84-AM3,5X6-5.8
8211617000842Bushing
8301617000478Supporting Disc
8351617000433Hammer Pipe
84160202507HAuxiliary Handle
8401617000847Impact Mechanism Housing
8411617000460Striker Pin
8491617000839Control Fork
851618040074Support clamp
8541617000461Stop Disc
8561617000843Hammer Piston
861613490002T-Head Bolt M8X40 MM
8601607000F00Spur Wheel Clutch
871611316019Clamping Band Ø62 MM
8731617000861Housing Cover
8841612025055Auxiliary Handle Black Ø62 MM
8861617000459Auxiliary Handle Black M8
8911617000853Spring Pack
8951615430019Oil Reservoir 1000 Ml
8971617000430Wear and Tear Part Set
8981615437511Oil Reservoir 50 Ml
91611110C58Manufacturer's nameplate
941610102056Friction Washer
951610210173O-Ring 32,0X1,5 MM
971610031005Locking washer
991610102059Support Disc
