Bosch 11240

Bosch 11240 rotary hammer: exploded parts diagram, 2 sheets, 92 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11240: 92 positions on 2 sheets

Bosch 11240 parts list (2 sheets)

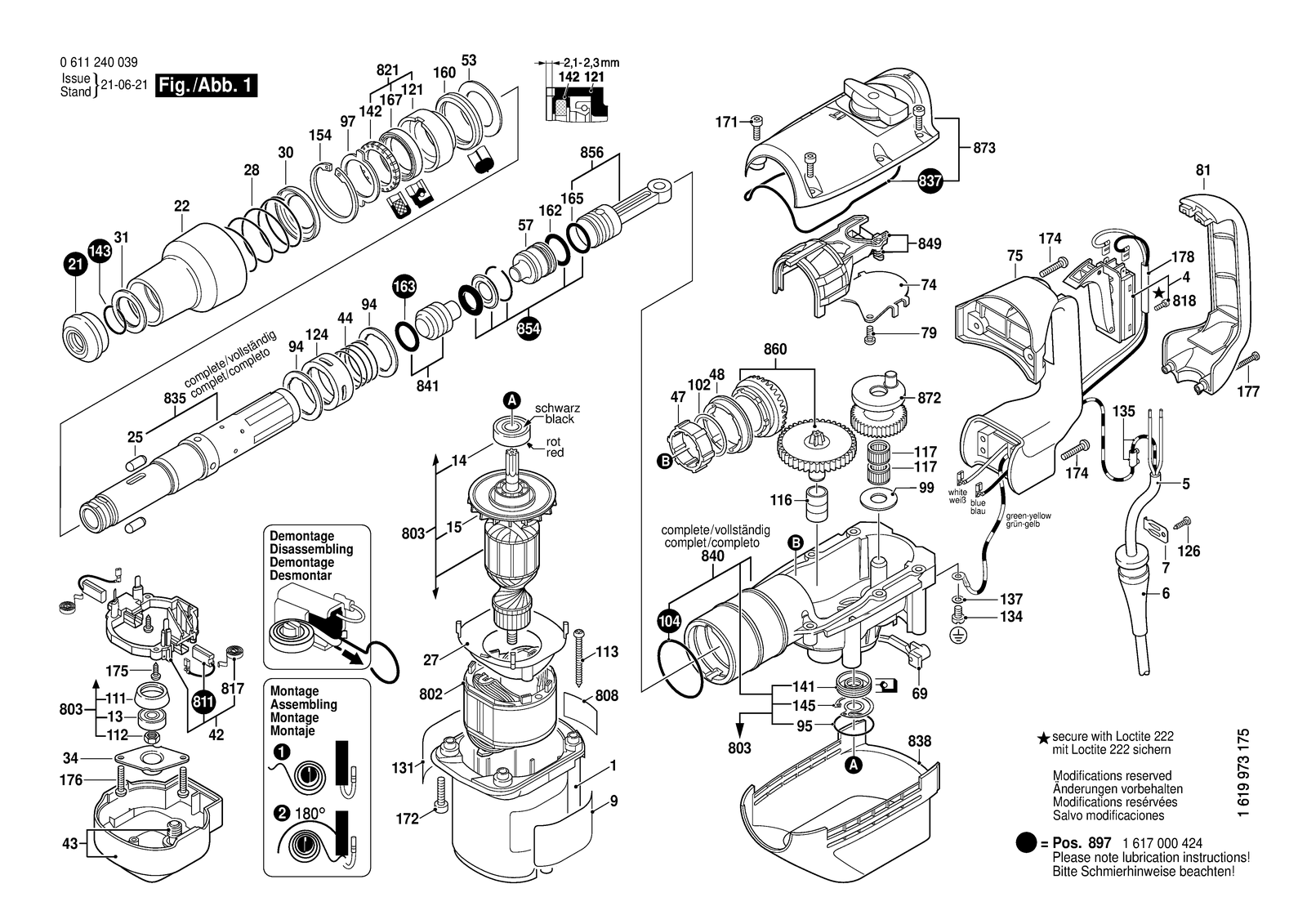

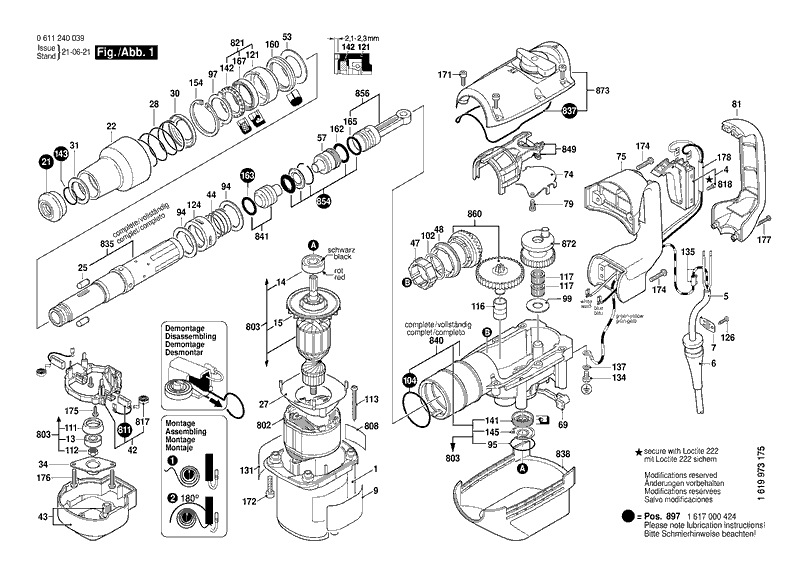

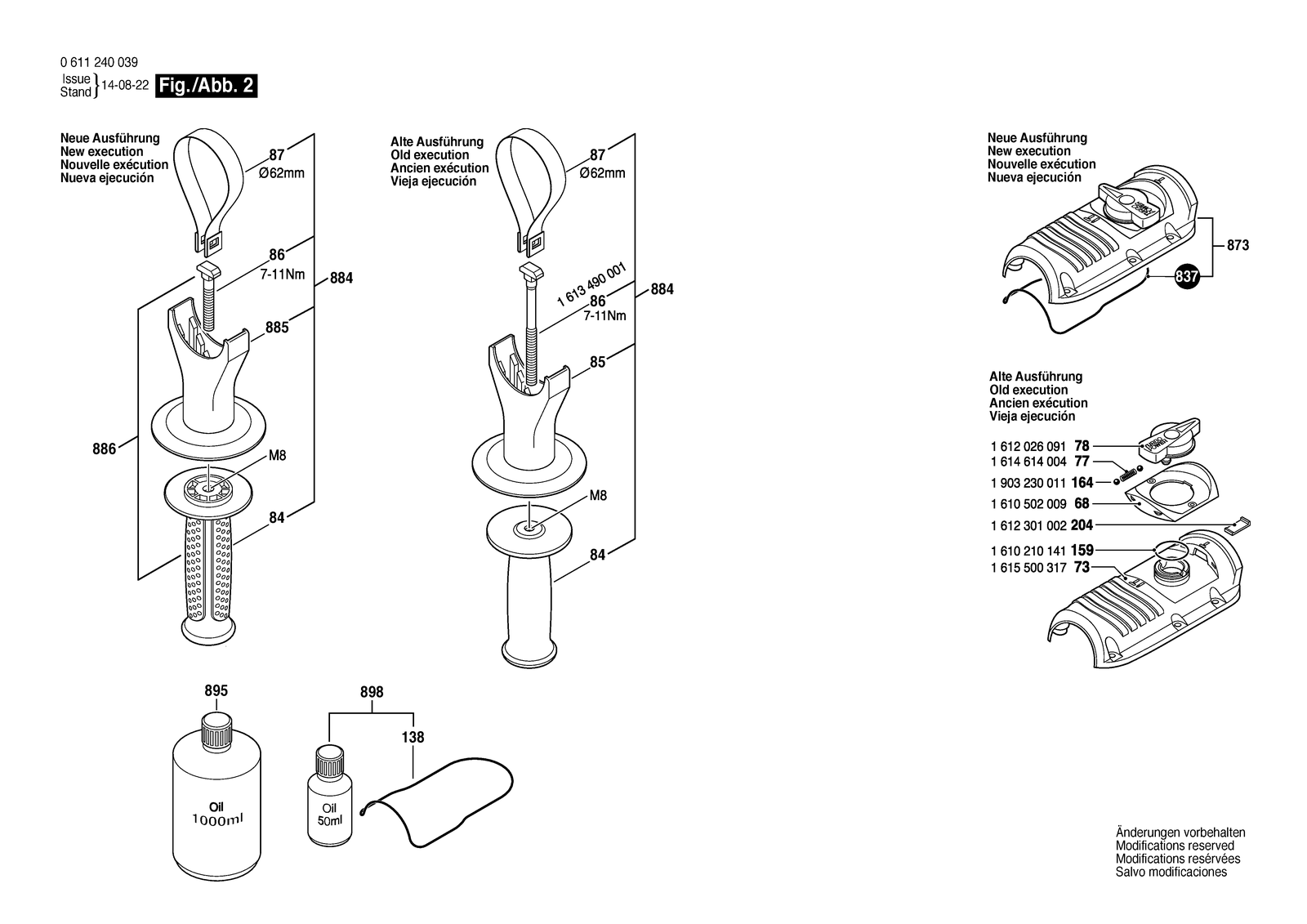

Bosch 11240 parts diagram, sheet 1Bosch 11240 parts diagram, sheet 2
No.Part numberPart name
11619P10299Motor Housing
1021610102057Shim 0,3 MM
1021610102058Shim 0,2 MM
1041610210160O-Ring 52,0X2,0 MM
1111610290064Bushing
1121613300008Hex Nut DIN 936-M8X1-8
1131613435009Tapping Screw ST-4,8X57,5-TORX,T20
1161610311017Inner Ring
1171610913029Needle-Roller Assembly
1211610328019Bushing
1241619P10303Collar Sleeve
1262603490022Screw 4X16
131610900026Groove ball bearing 8X24X8
1311611110C55Warning Plate
1342910110116Pan head screw DIN 85 AM 4X6-MS
1351614414016Earth Conductor
1371610151007Spring Lock Washer
141610905041Groove ball bearing 12X32X10
1411610290066Rotary shaft lip seal
1421610290069Rotary shaft lip seal
1431614601021Retaining ring DIN 7993-28X2
1451610119012Spring retaining ring
151616610085Fan
1542916660023Spring retaining ring DIN 472 52X2MM
1601610210161Damping Ring
1621610210163O-Ring 22,0X3,5 MM
1631610290065Seal Ring
1651610210079O-Ring 22,0X4,0 MM
1671610283033Rotary shaft lip seal
1711613435016Torx Oval-Head Screw Silver M5X20-TORX,T25
1721613435013Torx Oval-Head Screw Silver M6X30-TORX,T30
1741613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1752912401018Tapping Screw DIN7981-ST3,9X13-C-Z
1761613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1771603435051Tapping Screw Silver ST3,9X32
1781604412069Connecting Cable
211610508038Protective Cap
221610591025Protection Sleeve
251612300034Stopping Device
271600591032Air-Deflector Ring
281614621000Compression Spring
301610505002Supporting Disc
311610251006Supporting Disc
341610516013Flange
41617200109Switch
421614336041Brush Holder
431615500303Fan Cover
441614617003Compression Spring
471610300064Gear Sleeve
481616334012Clutch Sleeve
51614461034Power supply cord Usa/cdn 3,1M 3 X 1,31MM SJ0W
531610290068Support Disc
571618710074Striker
61610703053Grommet Ø9,7-Ø12X89 MM
691610099004Retaining Bracket
71601302019Fastening Clamp
741611921001Guide Plate
751619P10300Handle
791613435015Torx Oval-Head Screw Silver M5X12-TORX,T25
8021614220150Field 110-120V
8031614011090Armature 110-120V
808160111A3H5Nameplate
811615132079Handle Cover
8111617014138Carbon-Brush Set
8171614652004Spiral Spring
8182910011088Socket head cap screw DIN 84-AM3,5X12-5.8
8211617000842Bushing
8351617000841Hammer Pipe
8371611015053Sealing Frame
8381615190098Covering hood Blue
84160202507HAuxiliary Handle
8401617000847Impact Mechanism Housing
8411617000460Striker Pin
8491617000839Control Fork
8541617000461Stop Disc
8561617000843Hammer Piston
861613490002T-Head Bolt M8X40 MM
8601607000F00Spur Wheel Clutch
871611316019Clamping Band Ø62 MM
8721600A014S8Eccentric Cog Wheel
8731617000860Housing Cover
8841612025055Auxiliary Handle Black Ø62 MM
8851618040074Support clamp
8861617000459Auxiliary Handle Black M8
8951615430019Oil Reservoir 1000 Ml
8971617000A16Wear and Tear Part Set
8981615437511Oil Reservoir 50 Ml
91611110C57Manufacturer's nameplate
941610102056Friction Washer
951610210173O-Ring 32,0X1,5 MM
971610031005Locking washer
991610102059Support Disc
