Bosch 1124

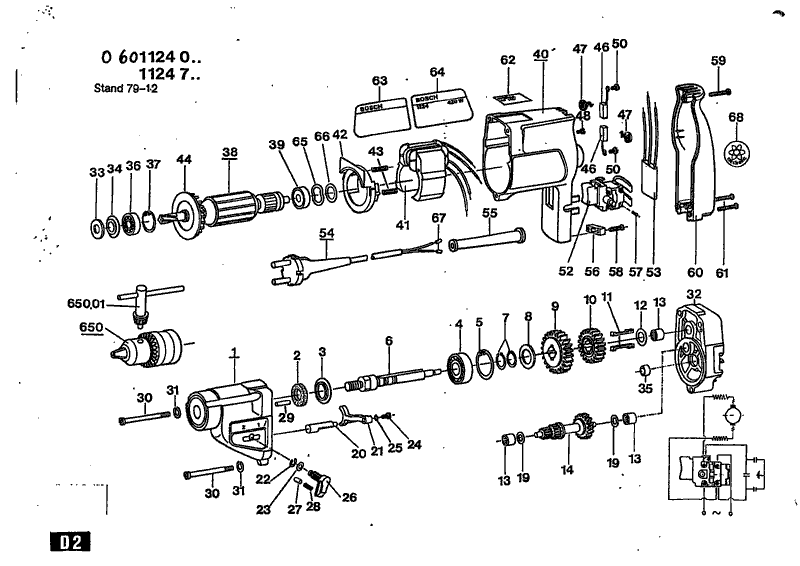

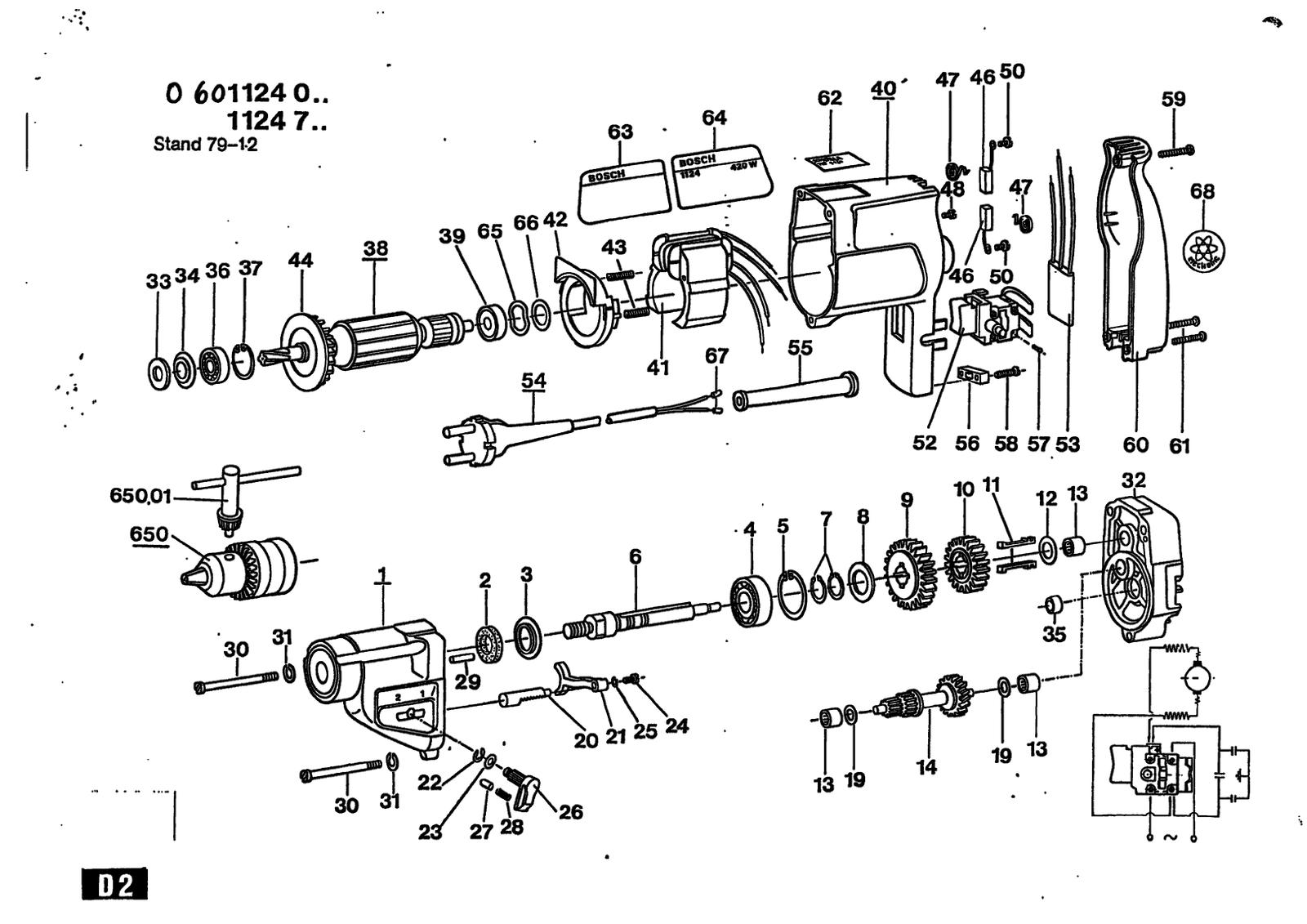

Bosch 1124 drill: exploded parts diagram, 1 sheet, 162 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1124: 162 positions on 1 sheet
Bosch 1124 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605806960 | Gear Housing |
| 1 | 2605806960 | Gear Housing |
| 10 | 2606316100 | Cylindrical Gear Z=32 |
| 10 | 2606316100 | Cylindrical Gear Z=32 |
| 11 | 2602300001 | Flat Key |
| 11 | 2602300001 | Flat Key |
| 12 | 2600101001 | Shim |
| 12 | 2600101001 | Shim |
| 13 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 13 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 14 | 2606308910 | Toothed Shaft Z= 14/20/41 |
| 14 | 2606308910 | Toothed Shaft Z= 14/20/41 |
| 19 | 2600100607 | Shim 0,3 MM |
| 19 | 2600100607 | Shim 0,3 MM |
| 2 | 2600108075 | Felt Washer |
| 2 | 2600108075 | Felt Washer |
| 20 | 2603070010 | Toothed rack |
| 20 | 2603070010 | Toothed rack |
| 21 | 2602033001 | Fork Lever |
| 21 | 2602033001 | Fork Lever |
| 22 | 2916080007 | Locking washer DIN 6799-4-FST |
| 22 | 2916080007 | Locking washer DIN 6799-4-FST |
| 23 | 2600100618 | Shim washer |
| 23 | 2600100618 | Shim washer |
| 24 | 2910011048 | Socket head cap screw DIN 84-AM3X6-5.8 |
| 24 | 2910011048 | Socket head cap screw DIN 84-AM3X6-5.8 |
| 25 | 2916690001 | Spring Lock Washer A3-FST |
| 25 | 2916690001 | Spring Lock Washer A3-FST |
| 26 | 2602026023 | Rotary Knob |
| 26 | 2602026023 | Rotary Knob |
| 27 | 2600590006 | Ratchet Cap |
| 27 | 2600590006 | Ratchet Cap |
| 28 | 2600590006 | Ratchet Cap |
| 28 | 2600590006 | Ratchet Cap |
| 29 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 29 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 3 | 2600500007 | Cupped Washer |
| 3 | 2600500007 | Cupped Washer |
| 30 | 2600409013 | Centering Sleeve |
| 30 | 2914501027 | Screw and washer assembly DIN 84-BM 4X35-Z4-8.8 |
| 30 | 2600409013 | Centering Sleeve |
| 30 | 2914501027 | Screw and washer assembly DIN 84-BM 4X35-Z4-8.8 |
| 31 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 31 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 32 | 2605700927 | Intermediate Flange |
| 32 | 2605700927 | Intermediate Flange |
| 33 | 2600108000 | Felt Washer |
| 33 | 2600108000 | Felt Washer |
| 34 | 2600500030 | Cupped Washer |
| 34 | 2600500030 | Cupped Washer |
| 35 | 2600300049 | Seal Bushing |
| 35 | 2600300049 | Seal Bushing |
| 36 | 1900905029 | Ball Bearing 8X22X7 |
| 36 | 1900905029 | Ball Bearing 8X22X7 |
| 37 | 2600119000 | Spring retaining ring |
| 37 | 2600119000 | Spring retaining ring |
| 38 | 2604010535 | Armature With Fan 100V |
| 38 | 2604010536 | Armature With Fan 110-115V |
| 38 | 2604010537 | Armature 220V |
| 38 | 2604010538 | Armature With Fan 240V |
| 38 | 2604010535 | Armature With Fan 100V |
| 38 | 2604010536 | Armature With Fan 110-115V |
| 38 | 2604010537 | Armature 220V |
| 38 | 2604010538 | Armature With Fan 240V |
| 39 | 1900905018 | Ball Bearing 7X22X7 |
| 39 | 1900905018 | Ball Bearing 7X22X7 |
| 4 | 3600905038 | Groove ball bearing |
| 4 | 1900900289 | Groove ball bearing 12X28X8 |
| 40 | 2605104960 | Motor Housing Blue |
| 40 | 2605104960 | Motor Housing Blue |
| 41 | 2604222294 | Pole Shoe 100V |
| 41 | 2604222295 | Field 110-115V |
| 41 | 2604222296 | Field 220V |
| 41 | 2604222297 | Field 240V |
| 41 | 2604222298 | Field 220V |
| 41 | 2604222294 | Pole Shoe 100V |
| 41 | 2604222295 | Field 110-115V |
| 41 | 2604222297 | Field 240V |
| 41 | 2604222298 | Field 220V |
| 42 | 2601328041 | Cover Disc |
| 42 | 2601328041 | Cover Disc |
| 43 | 2604611026 | Compression Spring |
| 43 | 2604611026 | Compression Spring |
| 44 | 2606610021 | Fan |
| 44 | 2606610021 | Fan |
| 46 | 2604320902 | Carbon-Brush Set |
| 46 | 2604320902 | Carbon-Brush Set |
| 47 | 2604652002 | Spiral Spring |
| 47 | 2604652002 | Spiral Spring |
| 48 | 2603435016 | Tapping Screw 2,2X6,5 |
| 48 | 2603435016 | Tapping Screw 2,2X6,5 |
| 5 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 5 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 50 | 2914501011 | Screw and washer assembly DIN7985-M3X6-Z1-4.8 |
| 50 | 2914501011 | Screw and washer assembly DIN7985-M3X6-Z1-4.8 |
| 52 | 2607200043 | On-Off Switch |
| 52 | 2607200065 | On-Off Switch |
| 52 | 2607200066 | On-Off Switch |
| 53 | 2607329102 | Suppression Filter |
| 53 | 2607329051 | Suppression Filter |
| 54 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 54 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 54 | 2604460056 | Power supply cord |
| 54 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 54 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 54 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 54 | 3604460141 | Power supply cord |
| 54 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 54 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 54 | 2604460056 | Power supply cord |
| 54 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 54 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 54 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 54 | 3604460141 | Power supply cord |
| 55 | 2600707059 | Grommet Ø6,9 MM |
| 55 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 55 | 2600707061 | Grommet Ø8,8 MM |
| 55 | 2600707059 | Grommet Ø6,9 MM |
| 55 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 55 | 2600707061 | Grommet Ø8,8 MM |
| 56 | 2601035001 | Cable Clip |
| 56 | 2601035001 | Cable Clip |
| 57 | 2603410023 | Socket head cap screw M3X10 MM |
| 57 | 2603410023 | Socket head cap screw M3X10 MM |
| 58 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 58 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 59 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 59 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 6 | 2606135006 | Drilling Spindle |
| 6 | 2606135006 | Drilling Spindle |
| 60 | 2605132017 | Housing Cover Blue |
| 60 | 2605132017 | Housing Cover Blue |
| 61 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 61 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 62 | 160111A3H3 | Nameplate |
| 62 | 160111A3H3 | Nameplate |
| 63 | 2601110099 | Sticker |
| 63 | 2601110099 | Sticker |
| 64 | 2601110168 | Sticker |
| 64 | 2601110169 | Sticker |
| 65 | 2600150004 | Shim |
| 65 | 2600150004 | Shim |
| 650 | 1607000F3W | Key Chuck |
| 650 | 1607000F3W | Key Chuck |
| 650/01 | 2607950007 | Chuck Wrench SG2 |
| 650/01 | 2607950007 | Chuck Wrench SG2 |
| 66 | 2600101020 | Shim 0,5 MM |
| 66 | 2600101022 | Shim 0,2 MM |
| 66 | 2600101023 | Shim 0,3 MM |
| 66 | 2600101020 | Shim 0,5 MM |
| 66 | 2600101022 | Shim 0,2 MM |
| 66 | 2600101023 | Shim 0,3 MM |
| 67 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 67 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 68 | 2601110230 | Sticker Yellow |
| 68 | 2601110041 | Reference Plate Yellow |
| 7 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 7 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 8 | 2600101601 | Shim |
| 8 | 2600101601 | Shim |
| 9 | 2606316101 | Cylindrical Gear Z=38 |
| 9 | 2606316101 | Cylindrical Gear Z=38 |
