Bosch 11236 VS

Bosch 11236 VS rotary hammer: exploded parts diagram, 2 sheets, 110 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11236 VS: 110 positions on 2 sheets

Bosch 11236 VS parts list (2 sheets)

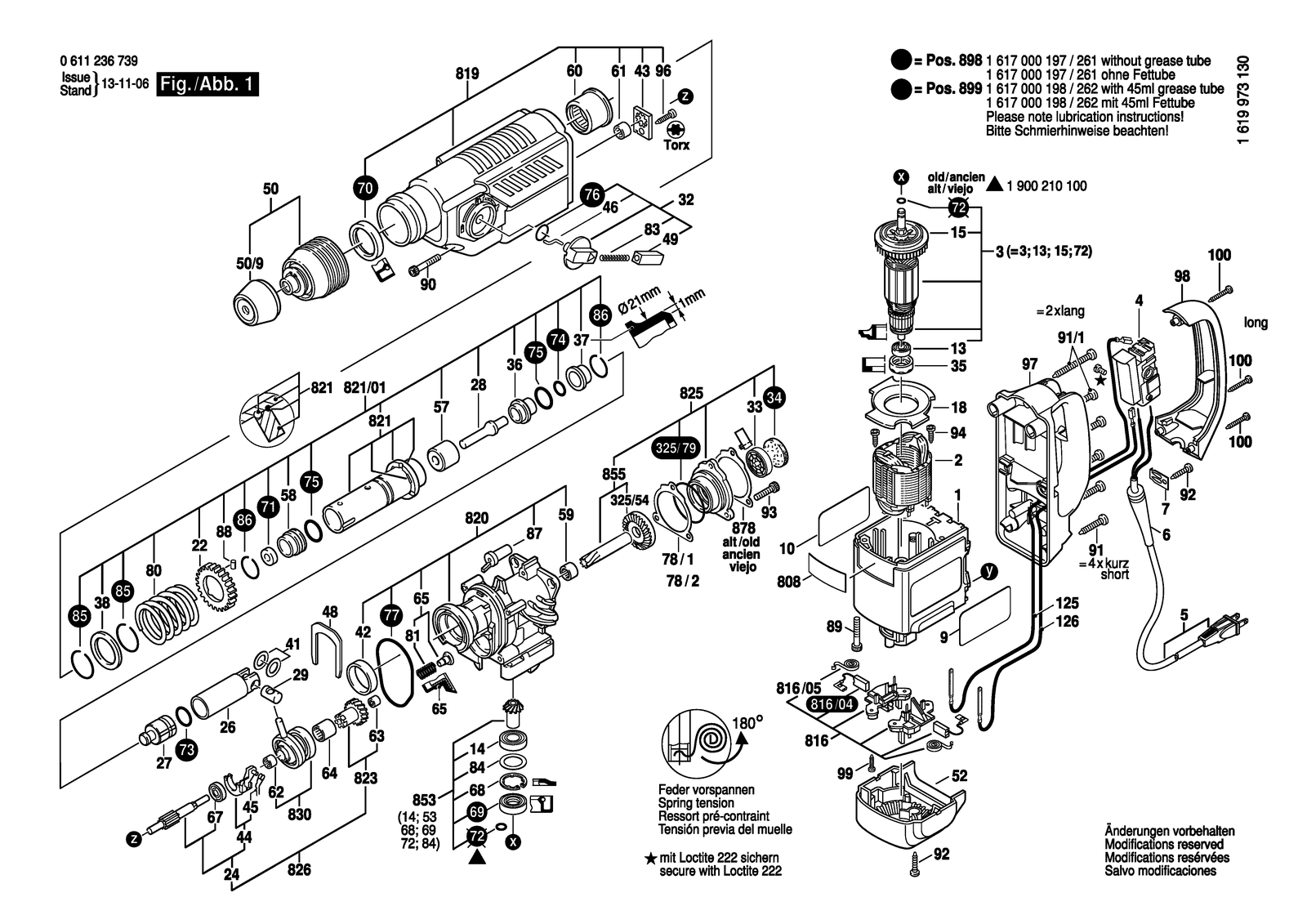

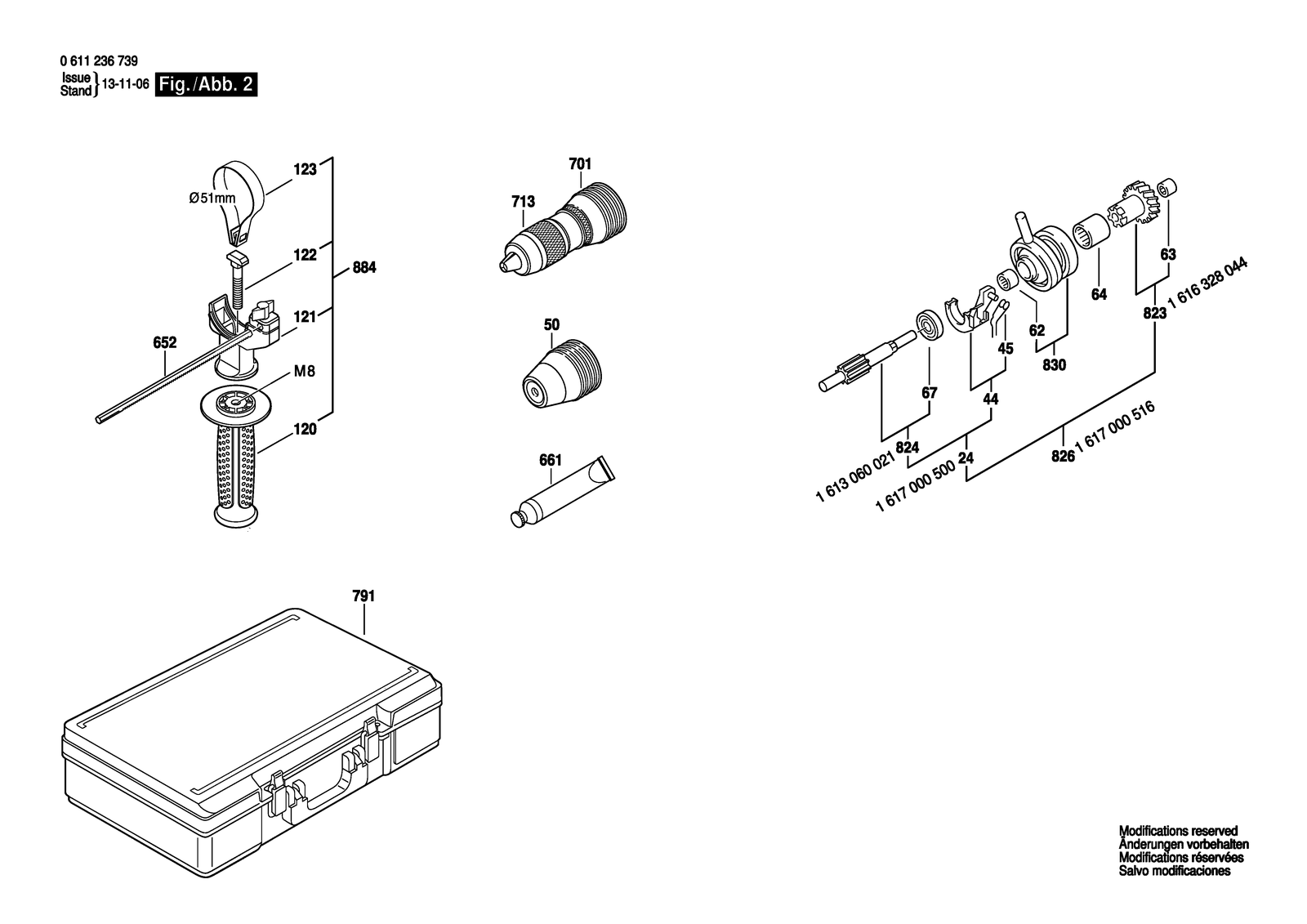

Bosch 11236 VS parts diagram, sheet 1Bosch 11236 VS parts diagram, sheet 2
No.Part numberPart name
11615108059Motor Housing Blue
102610994196Warning Plate
1002914211311Oval-Head Screw 40 X 35MM
120160202507HAuxiliary Handle
1211618040054Support clamp Ø51X110 MM
1221613490002T-Head Bolt M8X40 MM
1231611316009Clamping Band Ø51 MM
1251614448035Connecting Cable White L=330 MM
1261614448036Connecting Cable Blue L=215 MM
131610905025Groove ball bearing 7X19X6
141900900289Groove ball bearing 12X28X8
151606610132Fan
181610591011Air-Deflector Ring
21614220120Field 110-120V
221616317602Cylindrical Gear Z=50
241617000500Toothed Shaft Z=3/9
261618700063Hammer Piston
271618710060Striker
281613124043Striker Pin
291613105012Piston Pin
31614010211Armature With Fan 110-120V
321612026037Clamp Handle Black
325/541616333029Crown Gear Z=32
325/792600210003O-Ring 40,0X1,5 MM
331610190016Perforated disk
341610005000Felt Disc
351610206021Rubber Ring
361610390016Guide Bushing
371610390032Damping Bushing Ø21 MM
381610102026Supporting Disc
42607200578Switch
411610101011Shim washer Thick 1,2 MM
421610202015Plain bearing
431611098005Tab Washer
441615820092Switching Element
451614651014Switch Spring
461614690002Driver Pin
481611016003Holding Plate
491612026035Switch Button Red
51614460064Power supply cord Usa/cdn 4,15M 2 X 2,08MM SJ 14/2
501618598175Quick-Change Collet Chuck Sds-Plus L=70 MM
50/91610508026Protective Cap L=21,5 Mm, Sds-Plus
521615500298Cover Blue
571610390025Stop Bushing
581610390026Guide Ring
591610910080Needle bearing
62600703019Grommet Ø8,7-Ø9,6X76 MM
601610910073Needle-Roller Bearing
611610910098Needle bearing
621610200020Plain bearing
631610910064Needle bearing
641610913010Needle-Roller Assembly
651610591016Plain bearing
6521613001008Depth-Gauge SW 6X330 MM
6611615430010Grease Tube 30 Ml
671610905016Groove ball bearing
681610119009Retaining ring
691610283041Rotary shaft lip seal
71601302018Fastening Clamp
701610283023Rotary shaft lip seal
7012607000186Adapter
711610290029Scraper
7132607001316Keyless Chuck Ø1-Ø13 Mm, 1/2"
7132608572066Keyless Chuck Ø1-Ø13 Mm, 1/2"
731610210121O-Ring Green 17,0X3,0 MM
741610210104O-Ring 11,0X3,5 MM
751610210159O-Ring 18,0X3,5 MM
761610210046O-Ring 10,5X2,7 MM
771610210106O-Ring 60,0X3,0 MM
78/11610134005Shim Thick 0,1 MM
78/21610134006Shim Thick 0,2 MM
7912605438389Carrying Case
801614634006Compression Spring
808160111A3H3Nameplate
811614611009Compression Spring
8161617000359Brush Holder
816/041617014128Carbon-Brush Set
816/051614652002Spiral Spring
8191617000345Impact Mechanism Housing Blue
8201617000315Gear Housing
8211617000978Ratchet Sleeve
821/011617000979Ratchet Sleeve
8231616328044Gear Sleeve Z=25
8251615805064Bearing Flange
8261617000516Toothed Shaft Z=3/9
831614611006Compression Spring
8301615819022Drive bearing
841610101627Supporting Disc Thick 1,2 MM
851614601011Retaining ring
8531617000196Pinion Z=15
8551617000982Jack Shaft Z=9
861614601024Retaining ring
871610390027Screw Bushing
8781610134008Plain Washer Thick 0,5 MM
881613200007Roller
8841612025038Auxiliary Handle
892910141168Hex Socket Head Cap Screw DIN 912-M 5X35-8.8
8981617000261Wear and Tear Part Set
8991617000262Wear and Tear Part Set
92610994195Manufacturer's nameplate
902910141168Hex Socket Head Cap Screw DIN 912-M 5X35-8.8
912910211036Tapping Screw DIN 7971-ST4,8X25-F
91/12910211038Tapping Screw DIN 7971-ST4,8X38-F
922912401019Tapping Screw DIN7981-ST3,9X16-C-Z
932910141162Hex Socket Head Cap Screw DIN 912-M5X20-8.8
942603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
962912401018Tapping Screw DIN7981-ST3,9X13-C-Z
971615133031Handle Cover Black
981615133030Cover Black
992910211005Tapping Screw DIN 7971-ST2,9X9,5-F
