Bosch 11221 DVS

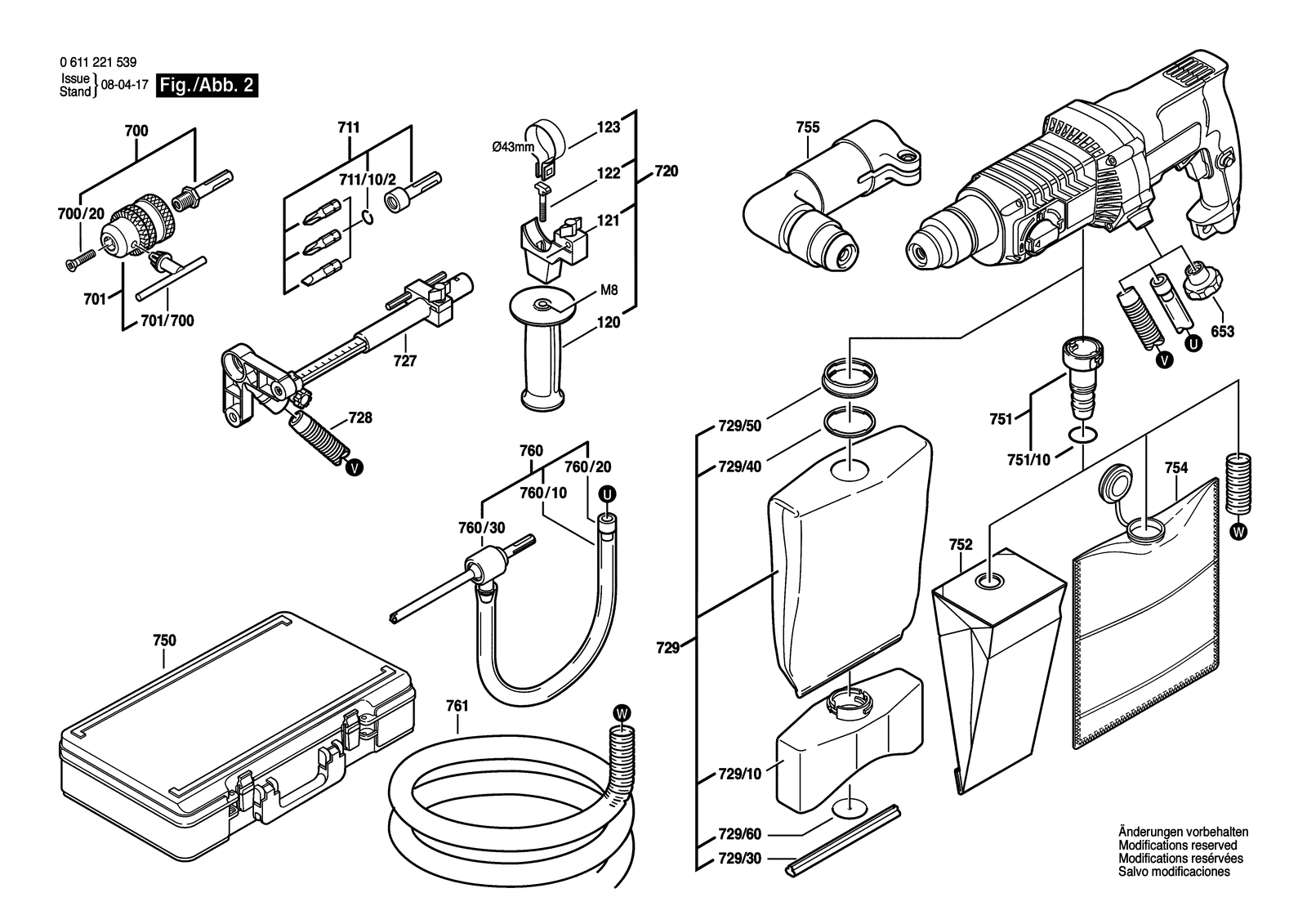

Bosch 11221 DVS rotary hammer: exploded parts diagram, 2 sheets, 114 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11221 DVS: 114 positions on 2 sheets
Bosch 11221 DVS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2610908994 | Warning Plate |
| 101 | 1614448017 | Connecting Cable White L=55 MM |
| 102 | 2604448005 | Cable White L=130 MM |
| 107 | 1615190042 | Blower Casing |
| 108 | 1615190044 | Fan Housing |
| 113 | 1611038017 | Profile Plate |
| 118 | 2916130027 | Sealing disk 609 Av Nilos-Ring |
| 119 | 1610210045 | O-Ring 23,0X3,0 MM |
| 120 | 1612025019 | Auxiliary Handle M8 |
| 121 | 1618040048 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 125 | 2910001168 | Socket head cap screw DIN 84-AM5X35-4.8 |
| 126 | 1613435005 | Rec ct-sunk tapping screw |
| 13 | 1610905032 | Groove ball bearing 7X19X6 |
| 130 | 1611110640 | Sticker Black |
| 131 | 1611015039 | Sealing Frame |
| 16 | 1614336025 | Brush Holder |
| 2 | 2604220439 | Field 110-115V |
| 22 | 1616317602 | Cylindrical Gear Z=50 |
| 24 | 1617000518 | Toothed Shaft Z=3/9 |
| 26 | 1618700062 | Hammer Piston |
| 27 | 1618710057 | Striker |
| 28 | 1613124040 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 35 | 1610206021 | Rubber Ring |
| 37 | 1610390017 | Damping Bushing |
| 38 | 1610102026 | Supporting Disc |
| 4 | 1617200052 | Switch |
| 41 | 1610101011 | Shim washer Thick 1,2 MM |
| 42 | 1610202015 | Plain bearing |
| 43 | 1611098005 | Tab Washer |
| 44 | 1615820092 | Switching Element |
| 45 | 1614651014 | Switch Spring |
| 46 | 1614690002 | Driver Pin |
| 48 | 1611016003 | Holding Plate |
| 49 | 1612026035 | Switch Button Red |
| 5 | 3604460045 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1610910073 | Needle-Roller Bearing |
| 61 | 1610910098 | Needle bearing |
| 62 | 1610910074 | Needle bearing |
| 63 | 1610910064 | Needle bearing |
| 64 | 1610913010 | Needle-Roller Assembly |
| 65 | 1610591016 | Plain bearing |
| 653 | 1610591008 | Plug |
| 67 | 1610905016 | Groove ball bearing |
| 7 | 2601035001 | Cable Clip |
| 70 | 1610283019 | Shaft Seal |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700/20 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 701 | 1608571088 | Chuck |
| 701/700 | 2607950007 | Chuck Wrench SG2 |
| 71 | 1610290029 | Scraper |
| 711 | 1617000133 | Parts Set |
| 711/10/2 | 2604601004 | Retaining ring |
| 72 | 1610210068 | O-Ring 24,0X2,5 MM |
| 720 | 2602025070 | Auxiliary Handle Ø43 MM |
| 727 | 1607000263 | Suction Device |
| 728 | 1610712042 | Corrugated Hose Ø 16,5X550 MM |
| 729 | 2605411044 | Dust Bag |
| 729/10 | 1615190046 | Supporting Frame |
| 729/30 | 1612386001 | Support clamp |
| 729/40 | 1619200408 | Sliding Disc |
| 729/50 | 1619200409 | Union Nut |
| 729/60 | 1610121001 | Sealing disk |
| 73 | 1610210187 | O-Ring |
| 74 | 1610210104 | O-Ring 11,0X3,5 MM |
| 75 | 1610210105 | O-Ring 18,0X3,5 MM |
| 750 | 2605438126 | Carrying Case |
| 751 | 2607000178 | Hose fitting |
| 751/10 | 1610210045 | O-Ring 23,0X3,0 MM |
| 752 | 1615411003 | Paper Bag 10 Piece |
| 754 | 2605411043 | Dust Bag |
| 755 | 1618580000 | Angle Drill Head Sds-Plus |
| 76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 760 | 2607000176 | Flexible Connection |
| 760/10 | 2600712004 | PVC Hose |
| 760/20 | 2605702024 | Hose fitting |
| 760/30 | 2605702025 | Flushing Jet |
| 761 | 1610793002 | Air Hose Black Ø19 Mm, L=5M, 3/4" |
| 77 | 1610210106 | O-Ring 60,0X3,0 MM |
| 80 | 1614634005 | Compression Spring |
| 801 | 1617000477 | Motor Housing |
| 803 | 1614010200 | Armature With Fan 110-115V |
| 808 | 160111A3H5 | Nameplate |
| 81 | 1614611009 | Compression Spring |
| 811 | 1617014134 | Carbon-Brush Set |
| 814 | 1610905048 | Groove ball bearing 9X24X7 |
| 819 | 1615806093 | Gear Housing Black |
| 820 | 1617000981 | Intermediate Flange |
| 821 | 1616490061 | Ratchet Sleeve Sds-Plus |
| 821/01 | 1616490060 | Ratchet Sleeve Sds-Plus |
| 823 | 1616328042 | Gear Sleeve Z=26/6 |
| 826 | 1617000517 | Toothed Shaft Z=3/9 |
| 83 | 1614611006 | Compression Spring |
| 830 | 1615819018 | Drive bearing |
| 832 | 1612026037 | Clamp Handle Black |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 847 | 1617000348 | Guide Ring |
| 85 | 1614601011 | Retaining ring |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 88 | 1613200007 | Roller |
| 886 | 1614601024 | Retaining ring |
| 89 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 9 | 2610906839 | Manufacturer's nameplate |
| 90 | 1613410004 | Socket head cap screw DIN 84-M5X65-4.8 |
| 91 | 2603490026 | Lens Head Screw 4X32 |
| 92 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 93 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 94 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 95 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 96 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
