Bosch 1122.9

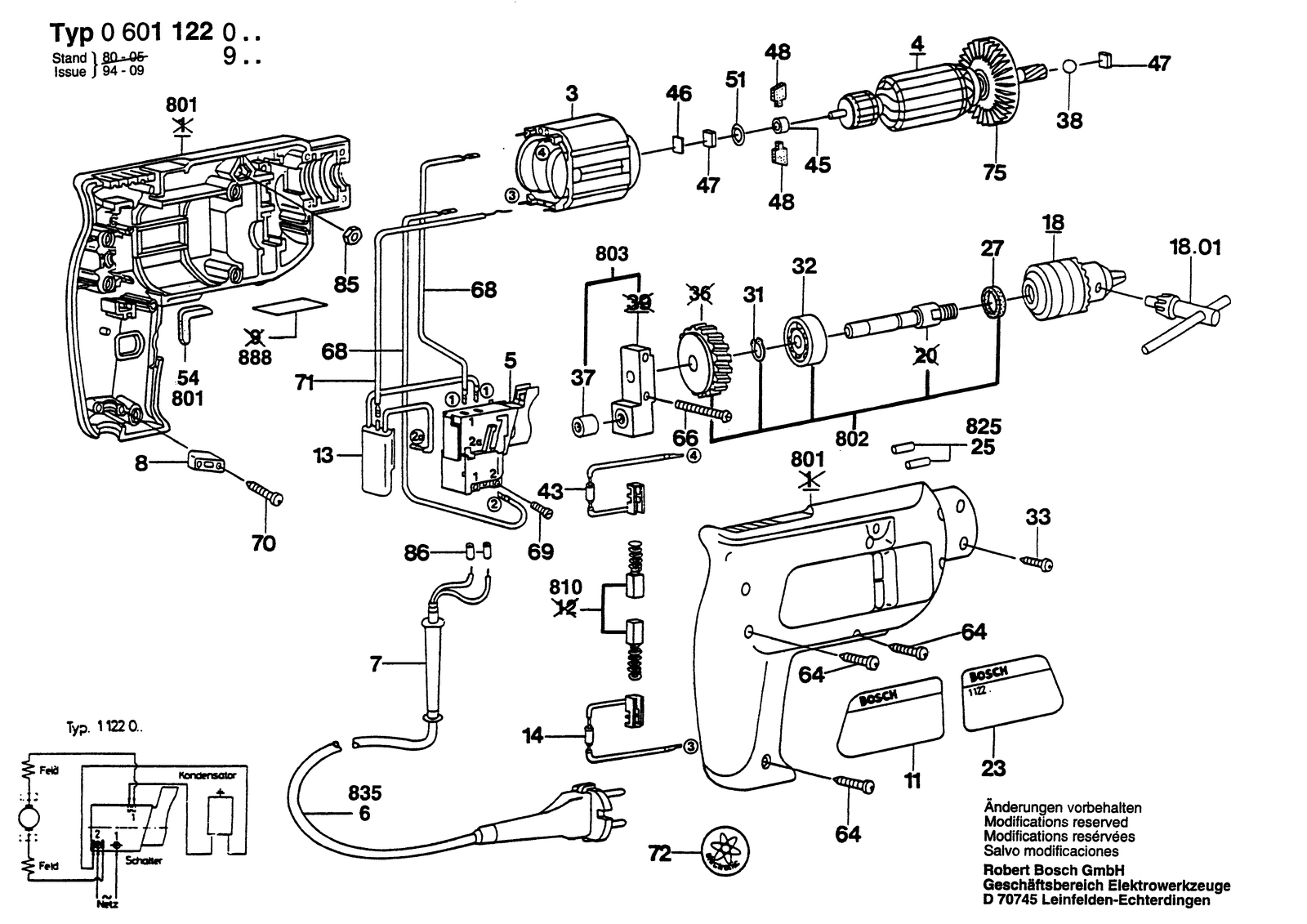

Bosch 1122.9 drill: exploded parts diagram, 1 sheet, 109 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1122.9: 109 positions on 1 sheet
Bosch 1122.9 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 2601110079 | Sticker |
| 11 | 2601110079 | Sticker |
| 13 | 2607329095 | Suppression Capacitor |
| 13 | 2607329095 | Suppression Capacitor |
| 14 | 1604449002 | Brush Holder |
| 14 | 2604465099 | Suppressor Box |
| 14 | 1604449002 | Brush Holder |
| 14 | 2604465099 | Suppressor Box |
| 18 | 1608571033 | Chuck Ø 1-10 Mm, 3/8" |
| 18 | 1608572018 | Keyless Chuck Ø 1-10 Mm, 3/8" |
| 18 | 2607950007 | Chuck Wrench SG2 |
| 18 | 1608571033 | Chuck Ø 1-10 Mm, 3/8" |
| 18 | 1608572018 | Keyless Chuck Ø 1-10 Mm, 3/8" |
| 18 | 2607950007 | Chuck Wrench SG2 |
| 23 | 2601110080 | Sticker |
| 23 | 2601110041 | Reference Plate Yellow |
| 25 | 1600210004 | O-Ring 54,0X3,0 MM |
| 25 | 1600210004 | O-Ring 54,0X3,0 MM |
| 27 | 2600205002 | Felt Washer |
| 27 | 2600205002 | Felt Washer |
| 3 | 2604220390 | Field 110-115V |
| 3 | 2604220396 | Field 100V |
| 3 | 2604220398 | Field 240V |
| 3 | 2604220399 | Field 240V |
| 3 | 2604220390 | Field 110-115V |
| 3 | 2604220396 | Field 100V |
| 3 | 2604220398 | Field 240V |
| 3 | 2604220399 | Field 240V |
| 31 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 31 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 32 | 1900905232 | Groove ball bearing 6200-2Z DIN 625 |
| 32 | 1900900301 | Manufacturer's nameplate 6200 DIN 625 |
| 33 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 33 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 37 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 37 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 38 | 1903230009 | Ball DIN 5401-5 G28 |
| 38 | 1903230009 | Ball DIN 5401-5 G28 |
| 4 | 2604010527 | Armature With Fan 100V |
| 4 | 2604010528 | Armature 110-115V |
| 4 | 2604010529 | Armature 220V |
| 4 | 2604010527 | Armature With Fan 100V |
| 4 | 2604010528 | Armature 110-115V |
| 4 | 2604010529 | Armature 220V |
| 43 | 2604465081 | Suppressor Box |
| 43 | 2604465081 | Suppressor Box |
| 45 | 1900301004 | Sintered-Metal Bushing |
| 45 | 1900301004 | Sintered-Metal Bushing |
| 46 | 2601000018 | Intermediate Plate 0,3 MM |
| 46 | 2601000018 | Intermediate Plate 0,3 MM |
| 47 | 1601000013 | Pressure Plate 1,5 MM |
| 47 | 1601000013 | Pressure Plate 1,5 MM |
| 48 | 2601020005 | Lubricating Felt |
| 48 | 2601020005 | Lubricating Felt |
| 5 | 2607200084 | Switch |
| 5 | 2607200260 | Switch |
| 5 | 2607200084 | Switch |
| 51 | 1610210014 | O-Ring 8,0X2,5 MM |
| 51 | 1610210014 | O-Ring 8,0X2,5 MM |
| 54 | 2601022000 | Damping Plate |
| 54 | 2601022000 | Damping Plate |
| 6 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 6 | 2604460056 | Power supply cord |
| 6 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 6 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 6 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 6 | 2604460056 | Power supply cord |
| 6 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 6 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 64 | 2603490022 | Screw 4X16 |
| 64 | 2603490022 | Screw 4X16 |
| 66 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 66 | 2603490026 | Lens Head Screw 4X32 |
| 68 | 2604448000 | Connecting Cable White L=154 MM |
| 68 | 2604448000 | Connecting Cable White L=154 MM |
| 69 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 69 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 7 | 2600707059 | Grommet Ø6,9 MM |
| 7 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 7 | 2600707061 | Grommet Ø8,8 MM |
| 7 | 2600707059 | Grommet Ø6,9 MM |
| 7 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 7 | 2600707061 | Grommet Ø8,8 MM |
| 70 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 70 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 71 | 2604448003 | Cable |
| 71 | 2604448003 | Cable |
| 75 | 2606610047 | Component |
| 75 | 2606610047 | Component |
| 8 | 2601035001 | Cable Clip |
| 8 | 2601035001 | Cable Clip |
| 801 | 2605104949 | Housing Section Blue |
| 801 | 2605104949 | Housing Section Blue |
| 802 | 2606135901 | Drilling Spindle Z=46 |
| 802 | 2606135901 | Drilling Spindle Z=46 |
| 803 | 2605807904 | Bearing Bracket |
| 803 | 2605807904 | Bearing Bracket |
| 810 | 2604321904 | Carbon-Brush Set |
| 810 | 2604321904 | Carbon-Brush Set |
| 825 | 2603239010 | Rubber Plug |
| 825 | 2603239010 | Rubber Plug |
| 835 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 835 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 85 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 85 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 86 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 86 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 888 | 160111A3H3 | Nameplate |
| 888 | 160111A3H3 | Nameplate |
