Bosch 11214 VS

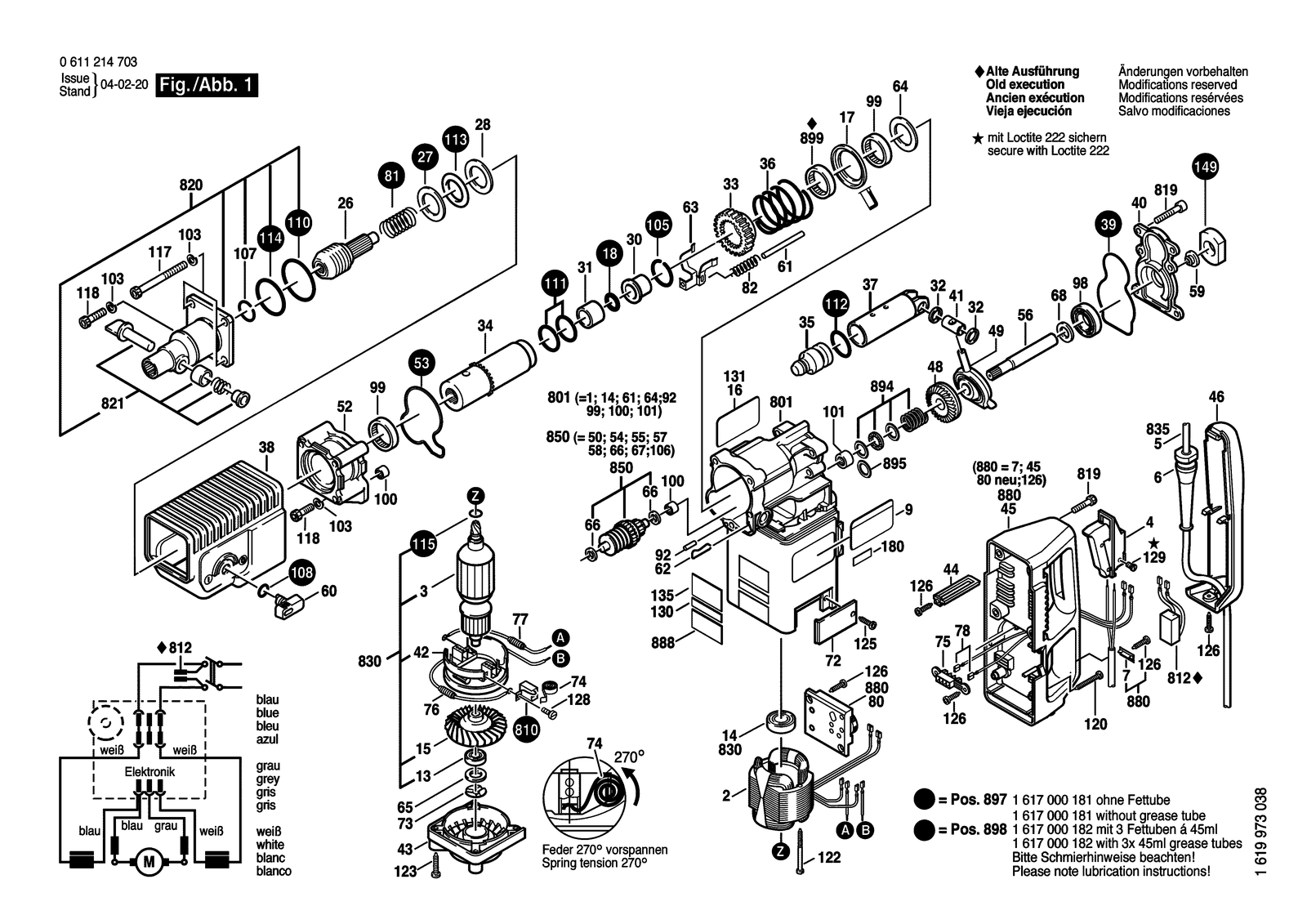

Bosch 11214 VS rotary hammer: exploded parts diagram, 2 sheets, 146 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 11214 VS: 146 positions on 2 sheets
Bosch 11214 VS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 101 | 2600910000 | Needle bearing |
| 103 | 2916690007 | Spring Lock Washer DIN 128-A8-FST |
| 105 | 1614601004 | Retaining ring |
| 107 | 2916601012 | Retaining ring DIN 9045-24 |
| 108 | 1900210104 | O-Ring 8X2 MM |
| 110 | 1600210004 | O-Ring 54,0X3,0 MM |
| 111 | 1610210078 | O-Ring 26,0X3,0 MM |
| 112 | 1610210079 | O-Ring 22,0X4,0 MM |
| 113 | 1610210080 | O-Ring 27,5X10,5 MM |
| 114 | 1610210077 | O-Ring 41,0X3,0 MM |
| 115 | 1610210081 | O-Ring 10,0X1,0 MM |
| 117 | 2910141262 | Hex Socket Head Cap Screw DIN 912-M8X80-8.8 |
| 118 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 120 | 2910211038 | Tapping Screw DIN 7971-ST4,8X38-F |
| 122 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 123 | 2910211236 | Tapping Screw DIN 7971-ST4,8X25-C |
| 125 | 2910601118 | Tapping Screw DIN 7972-B3,9X13 |
| 126 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 128 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 129 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 13 | 1610905009 | Groove ball bearing 9X26X8 |
| 130 | 1601110265 | Reference Plate |
| 130 | 1601110449 | Nameplate Caution |
| 131 | 1611110481 | Manufacturer's nameplate |
| 135 | 1611110387 | Reference Plate |
| 14 | 1610905008 | Groove ball bearing 12X32X10 |
| 149 | 1610108014 | Felt Disc |
| 15 | 1616610067 | Fan |
| 16 | 1611110485 | Manufacturer's nameplate |
| 17 | 1610500013 | Friction Washer |
| 18 | 1610210040 | O-Ring 16,0X5,0 MM |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 1614220090 | Field 220-240V |
| 2 | 1614220091 | Field 110-115V |
| 2 | 1614220092 | Field 115-120V |
| 20 | 1618597054 | Toolholder |
| 21 | 1613124014 | Locking Bolt |
| 22 | 1610506006 | Guide Bushing |
| 23 | 1614616002 | Compression Spring |
| 24 | 1610320002 | Guide Bushing |
| 26 | 1618598150 | Bit holder Ø 19 MM |
| 27 | 1610103018 | Stop Disc Ø 26 MM |
| 28 | 1610113011 | Supporting Disc |
| 30 | 1610523001 | Damping Bushing |
| 31 | 1610309002 | Damping Bushing |
| 32 | 1610101616 | Supporting Disc Thick 1,5 MM |
| 33 | 1616317031 | Cylindrical Gear Z=57/8 |
| 34 | 1615806073 | Hammer Pipe |
| 35 | 1618710048 | Striker |
| 36 | 1614616005 | Compression Spring |
| 37 | 1618700053 | Hammer Piston |
| 38 | 1615190010 | Covering hood |
| 39 | 1611015030 | Sealing Frame |
| 4 | 1617200040 | On-Off Switch |
| 40 | 1615808059 | Bearing cover |
| 41 | 1613219001 | Piston Pin |
| 42 | 1614336005 | Brush Holder |
| 43 | 1615808068 | Bearing cover Blue |
| 44 | 1611015032 | Frame |
| 45 | 1615133027 | Handle Black |
| 46 | 1615500269 | Handle Cover Black |
| 48 | 1616333018 | Bevel Gear Z=35 |
| 49 | 1615819011 | Drive bearing |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460022 | Power supply cord J 5M 2 X 1,25MM Pvc |
| 5 | 1614460041 | Power supply cord |
| 52 | 1615820086 | Bearing Flange |
| 53 | 1611015031 | Sealing Frame |
| 56 | 1613060012 | Toothed Shaft Z=10 |
| 59 | 1610591010 | Plug |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 1612026022 | Clamp Handle |
| 61 | 2917550138 | Straight Pin 5M6X70 Riko DIN 6325 |
| 62 | 1614680003 | Holding Spring |
| 63 | 1611329008 | Control Fork |
| 64 | 1610102620 | Supporting Disc Thick 1,0 MM |
| 65 | 1610101617 | Supporting Disc Thick 2,5 MM |
| 650 | 1615438132 | Carrying Case |
| 650 | 1615438148 | Carrying Case |
| 655/10 | 1610508001 | Sealing cap Ø15XØ27,5X36 MM |
| 655/10 | 1610508014 | Protective Cap |
| 655/20 | 1610508009 | Protective Cap |
| 655/20 | 1610508013 | Protective Cap |
| 66 | 1610101615 | Supporting Disc Thick 0,5 MM |
| 68 | 1610101618 | Shim Thick 0,3 MM |
| 68 | 1610101621 | Shim Thick 0,1 MM |
| 7 | 1611034019 | Fastening Clamp |
| 7 | 1611034020 | Fastening Clamp |
| 72 | 1615500284 | Sealing cap Blue |
| 73 | 1610210082 | Clamping Ring |
| 74 | 1614652000 | Spiral Spring |
| 75 | 1615190011 | Socket Housing |
| 76 | 1614443005 | Connecting Cable Blue L=150 MM |
| 76 | 1617328016 | Suppression Filter Blue |
| 77 | 1614443004 | Connecting Cable Gray L=125 MM |
| 77 | 1617328017 | Suppression Filter Gray |
| 78 | 1614431022 | Connecting Cable White L=35 MM |
| 80 | 1617233006 | Control device 220-240V |
| 80 | 1617233007 | Control device 100-115V |
| 80 | 1617233008 | Control device 120V |
| 801 | 1617000938 | Assembly Of Service Parts |
| 81 | 1614616007 | Compression Spring |
| 810 | 1617014110 | Carbon-Brush Set |
| 810 | 1617014120 | Carbon-Brush Set |
| 812 | 1617328015 | Suppression Filter |
| 819 | 1617000123 | Hex Socket Head Cap Screw DIN 912-M6X25-10.9 |
| 82 | 1614616006 | Compression Spring |
| 820 | 1617000912 | Tool Holder Set |
| 820 | 1617000913 | Tool Holder Set |
| 821 | 1617000014 | Locking Bolt Set |
| 830 | 1614011038 | Armature 220-240V |
| 830 | 1614011039 | Armature 100-115V |
| 830 | 1614011041 | Armature 120V |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 1612025019 | Auxiliary Handle M8 |
| 85 | 1618040076 | Support clamp |
| 850 | 1617000927 | Parts Set |
| 86 | 1613521003 | Stud bolt M8 |
| 87 | 1611316003 | Clamping Band Ø43 MM |
| 879 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 88 | 1613100012 | Straight Pin |
| 880 | 1617000159 | Modification Set 220-240V |
| 880 | 1617000160 | Modification Set 100-115V |
| 880 | 1617000161 | Modification Set 120V |
| 884 | 1612025039 | Auxiliary Handle |
| 888 | 160111A3H3 | Nameplate |
| 89 | 1613480009 | Wing Screw M6X25 MM |
| 894 | 1617000169 | Needle-Roller Assembly |
| 895 | 1610101008 | Thrust Bearing Disc Thick 1,0 MM |
| 897 | 1617000181 | Wear and Tear Part Set |
| 898 | 1617000182 | Wear and Tear Part Set |
| 899 | 1610910068 | Needle bearing |
| 9 | 1611110480 | Manufacturer's nameplate |
| 9 | 1611110484 | Manufacturer's nameplate |
| 90 | 1613300006 | Hex Nut M6 |
| 91 | 1611030009 | Clamping Plate |
| 92 | 2917550118 | Straight Pin 5M6X12 Riko DIN 6325 |
| 98 | 1610900023 | Groove ball bearing |
| 99 | 1610910068 | Needle bearing |
