Bosch 1121

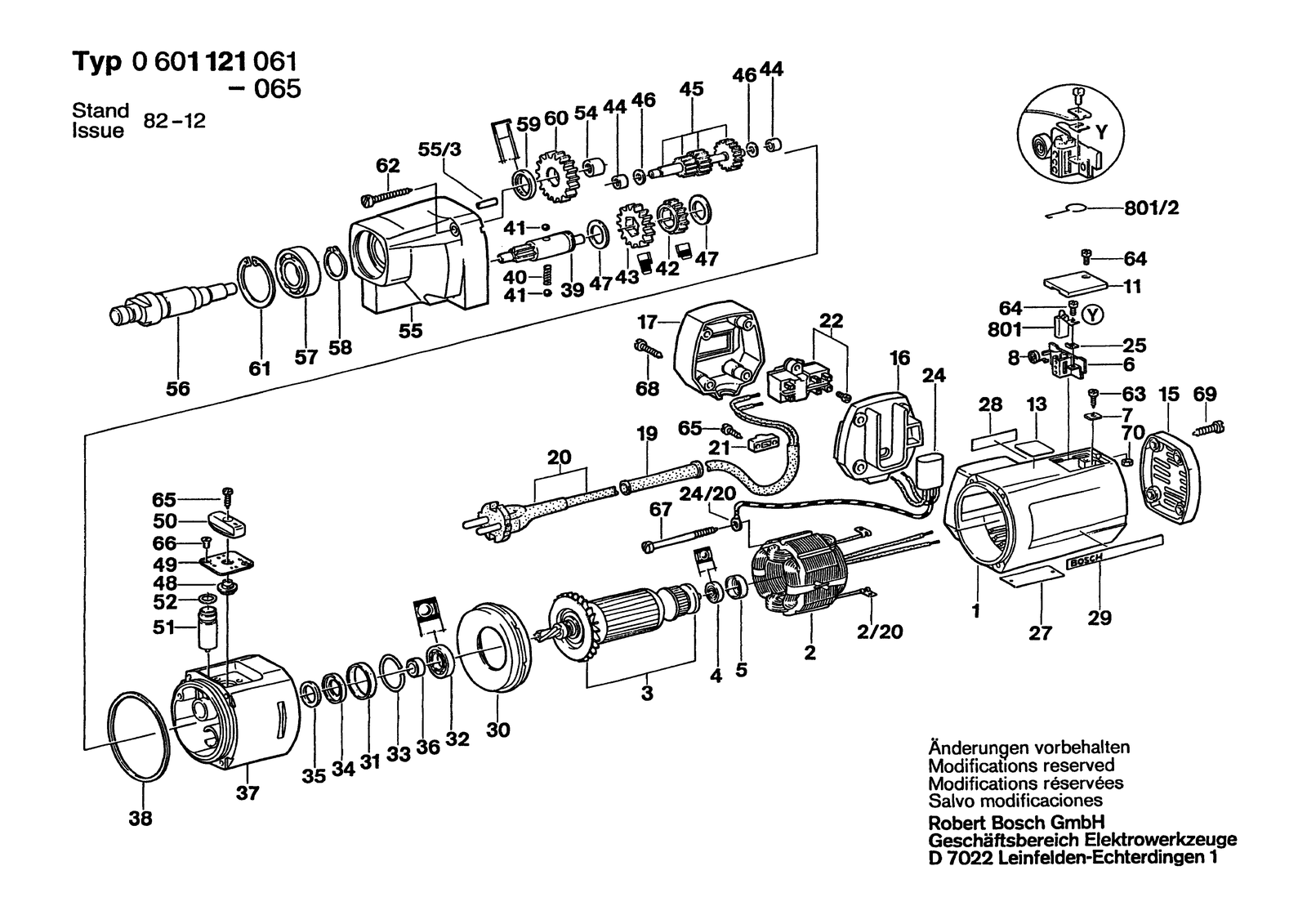

Bosch 1121 drill: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1121: 71 positions on 1 sheet
Bosch 1121 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108113 | Motor Housing |
| 11 | 1605500089 | Sealing cap Blue |
| 15 | 3605500062 | Sealing cap Black |
| 16 | 3605190092 | Switch Housing |
| 17 | 3605500016 | Switch Cover |
| 19 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 2 | 1604220175 | Field 220V |
| 2 | 1604220176 | Field 100-110V |
| 2 | 1604220177 | Field 110-115V |
| 2 | 1604220178 | Field 240V |
| 2/20 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 3604460002 | Elec. Cable W/Connection |
| 20 | 3604460013 | Elec. Cable W/Connection |
| 21 | 2601035001 | Cable Clip |
| 22 | 1607200058 | Reversing Switch |
| 24 | 1607328024 | Suppression Filter |
| 24/20 | 1601353003 | Terminal lug |
| 28 | 1601110128 | Sticker Double Insulation |
| 28 | 1601110130 | Manufacturer's nameplate |
| 29 | 1601110005 | Manufacturer's nameplate |
| 3 | 1604010187 | Armature 220V |
| 3 | 1604010188 | Armature 100V |
| 3 | 1604010189 | Armature With Fan 110-115V |
| 3 | 1604010190 | Armature With Fan 240V |
| 30 | 1600502016 | Change-Over Switch |
| 31 | 1600206018 | Intermediate Ring |
| 32 | 1600905004 | Groove ball bearing 15X32X9 |
| 33 | 2916600018 | Retaining ring 35 DIN 9045 |
| 34 | 1600500023 | Cover Disc |
| 35 | 1600108003 | Felt Disc |
| 36 | 1600202034 | Intermediate Ring |
| 37 | 1605820214 | Intermediate Bearing |
| 38 | 1601015013 | Sealing Plate |
| 39 | 1606309066 | Toothed Shaft Z=9 |
| 4 | 2600905032 | Ball Bearing 7X19X6 |
| 40 | 1604611022 | Compression Spring |
| 41 | 1903230009 | Ball DIN 5401-5 G28 |
| 42 | 1606317074 | Cylindrical Gear Z=32 |
| 43 | 1606317082 | Cylindrical Gear Z=43 |
| 44 | 1600910013 | Needle bearing |
| 45 | 1606309065 | Pinion Shaft Z=14/24/33 |
| 46 | 1600100631 | Shim Thick 0,5 MM |
| 47 | 1600101647 | Shim Thick 0,6 MM |
| 48 | 1606325025 | Control Shaft Z=20 |
| 49 | 1601038025 | Notched Plate |
| 5 | 1600502011 | Intermediate Ring |
| 50 | 1602026044 | Control Lever |
| 51 | 1606325027 | Control Shaft Z=10 |
| 52 | 1900210105 | O-Ring 8X2,5 MM |
| 54 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 55 | 3605806036 | Spindle Bearing |
| 55/3 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 56 | 3606135001 | Drilling Spindle |
| 57 | 1900905126 | Groove ball bearing 25X47X12 |
| 58 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 59 | 1600290008 | Rotary shaft lip seal White |
| 6 | 1604336017 | Brush Holder |
| 60 | 3606316108 | Cylindrical Gear |
| 61 | 2916660021 | Spring retaining ring 47X1,75MM, DIN 472 |
| 62 | 3603435027 | Tapping Screw 5X30 |
| 63 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 64 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 65 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910501120 | Countersunk-Head Screw DIN 63-AM4X10-5.8 |
| 67 | 3603435508 | Tapping Screw 4,80X75 MM |
| 68 | 2910211037 | Tapping Screw DIN 7971-BZ4,8X32 |
| 69 | 2910211234 | Tapping Screw DIN 7971-B4,8X19 |
| 7 | 1601030022 | Tab Washer |
| 70 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 8 | 1604652006 | Spiral Spring |
| 801 | 1607014124 | Carbon-Brush Set |
