Bosch 1121

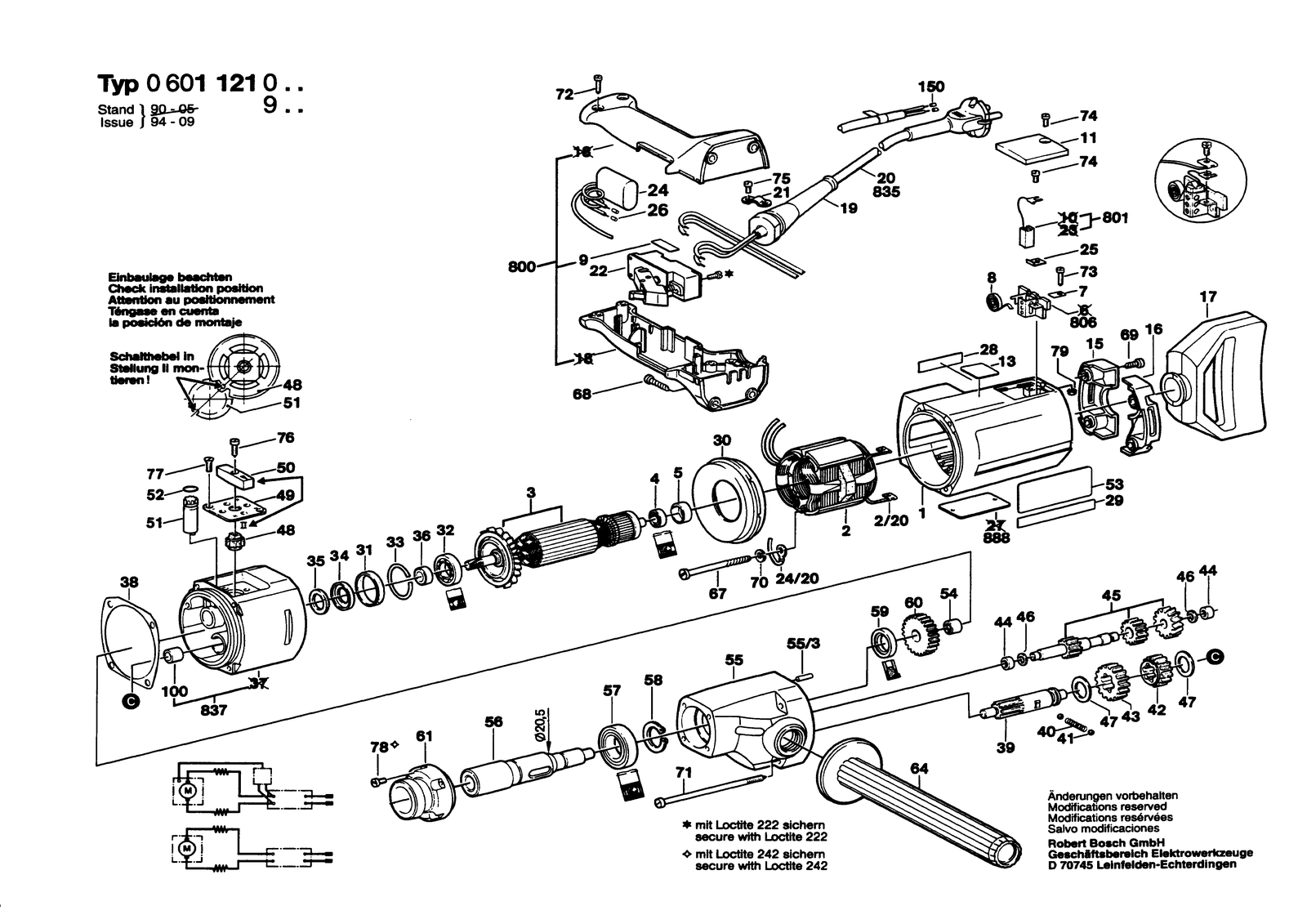

Bosch 1121 drill: exploded parts diagram, 1 sheet, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1121: 88 positions on 1 sheet
Bosch 1121 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108113 | Motor Housing |
| 100 | 3600328033 | Bushing |
| 11 | 3605500063 | Sealing cap Blue |
| 13 | 1601110058 | Reference Plate Double Insulation |
| 15 | 3605500058 | Sealing cap Blue |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 16 | 3605500059 | Sealing cap Blue |
| 17 | 3605133010 | Handle Dark Blue |
| 19 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 19 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 2 | 1604220175 | Field 220V |
| 2 | 1604220176 | Field 100-110V |
| 2 | 1604220177 | Field 110-115V |
| 2 | 1604220178 | Field 240V |
| 2/20 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1604460024 | Power supply cord |
| 20 | 1604460107 | Elec. Cable W/Connection |
| 20 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 20 | 3607030489 | Power supply cord |
| 21 | 1601302014 | Fastening Clamp |
| 22 | 1607200078 | Switch |
| 24 | 1607328024 | Suppression Filter |
| 25 | 1611331007 | Tab Washer |
| 26 | 1900452004 | End Splice A 4-9 DIN 46 228 |
| 28 | 1601110128 | Sticker Double Insulation |
| 28 | 1601110130 | Manufacturer's nameplate |
| 29 | 1601110005 | Manufacturer's nameplate |
| 3 | 1604010187 | Armature 220V |
| 3 | 1604010188 | Armature 100V |
| 3 | 1604010189 | Armature With Fan 110-115V |
| 3 | 1604010190 | Armature With Fan 240V |
| 30 | 1600502019 | Air-Deflector Ring |
| 31 | 1600206018 | Intermediate Ring |
| 32 | 1600905004 | Groove ball bearing 15X32X9 |
| 33 | 2916600018 | Retaining ring 35 DIN 9045 |
| 34 | 1600500023 | Cover Disc |
| 35 | 1600108003 | Felt Disc |
| 36 | 1600202034 | Intermediate Ring |
| 38 | 1601015013 | Sealing Plate |
| 39 | 1606309066 | Toothed Shaft Z=9 |
| 4 | 2600905032 | Ball Bearing 7X19X6 |
| 40 | 1604611022 | Compression Spring |
| 41 | 1903230009 | Ball DIN 5401-5 G28 |
| 42 | 1606317074 | Cylindrical Gear Z=32 |
| 43 | 1606317082 | Cylindrical Gear Z=43 |
| 44 | 1600910013 | Needle bearing |
| 45 | 1606309065 | Pinion Shaft Z=14/24/33 |
| 46 | 1600100631 | Shim Thick 0,5 MM |
| 47 | 1600101647 | Shim Thick 0,6 MM |
| 48 | 1606325025 | Control Shaft Z=20 |
| 49 | 1601038025 | Notched Plate |
| 5 | 1600502011 | Intermediate Ring |
| 50 | 1602026044 | Control Lever |
| 51 | 1606325027 | Control Shaft Z=10 |
| 52 | 1900210105 | O-Ring 8X2,5 MM |
| 53 | 1601110126 | Sticker |
| 54 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 55 | 1605806382 | Spindle Bearing |
| 55/3 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 56 | 1606135017 | Drilling Spindle |
| 57 | 1900905126 | Groove ball bearing 25X47X12 |
| 58 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 59 | 3600290035 | Seal Ring 20X31X7 MM |
| 60 | 3606316108 | Cylindrical Gear |
| 61 | 1605703075 | Fastening Flange |
| 64 | 1600763010 | Handle Black 400 MM |
| 67 | 3603435508 | Tapping Screw 4,80X75 MM |
| 68 | 3603435027 | Tapping Screw 5X30 |
| 69 | 2914201529 | Torx Oval-Head Screw |
| 7 | 1601030022 | Tab Washer |
| 70 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 71 | 1603435015 | Tapping Screw B4,8X115 MM |
| 72 | 2914201508 | Torx Oval-Head Screw |
| 73 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 74 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 75 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 76 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 77 | 2910501120 | Countersunk-Head Screw DIN 63-AM4X10-5.8 |
| 78 | 2910021154 | Socket head cap screw DIN 84-AM5X12-8.8 |
| 79 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 8 | 1604652006 | Spiral Spring |
| 800 | 3605132031 | Handle |
| 801 | 1607014126 | Carbon-Brush Set |
| 806 | 1604336017 | Brush Holder |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 837 | 3605820035 | Intermediate Bearing |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1602381001 | Insulating Strip 33X10X6 MM |
