Bosch 1119.1

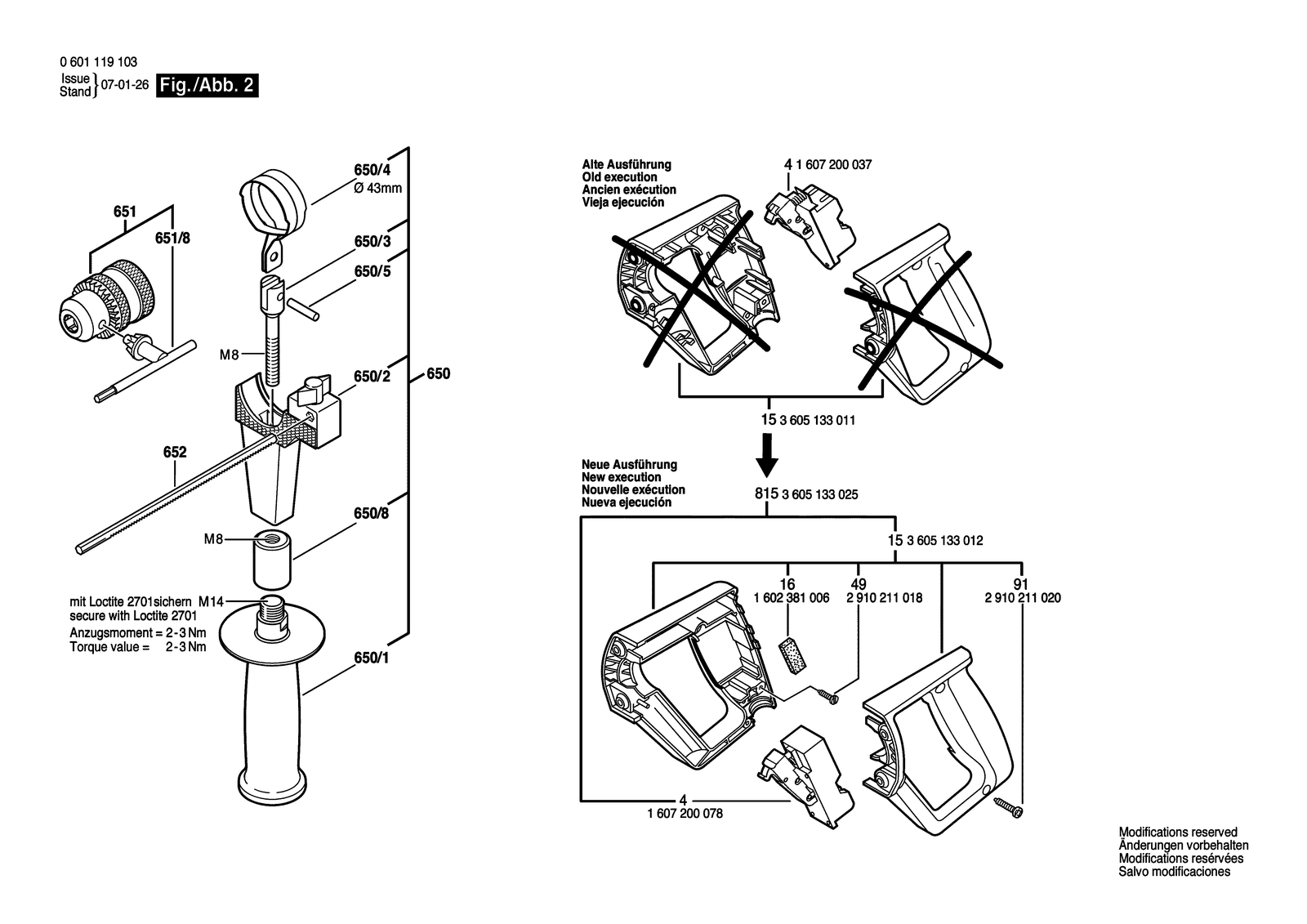

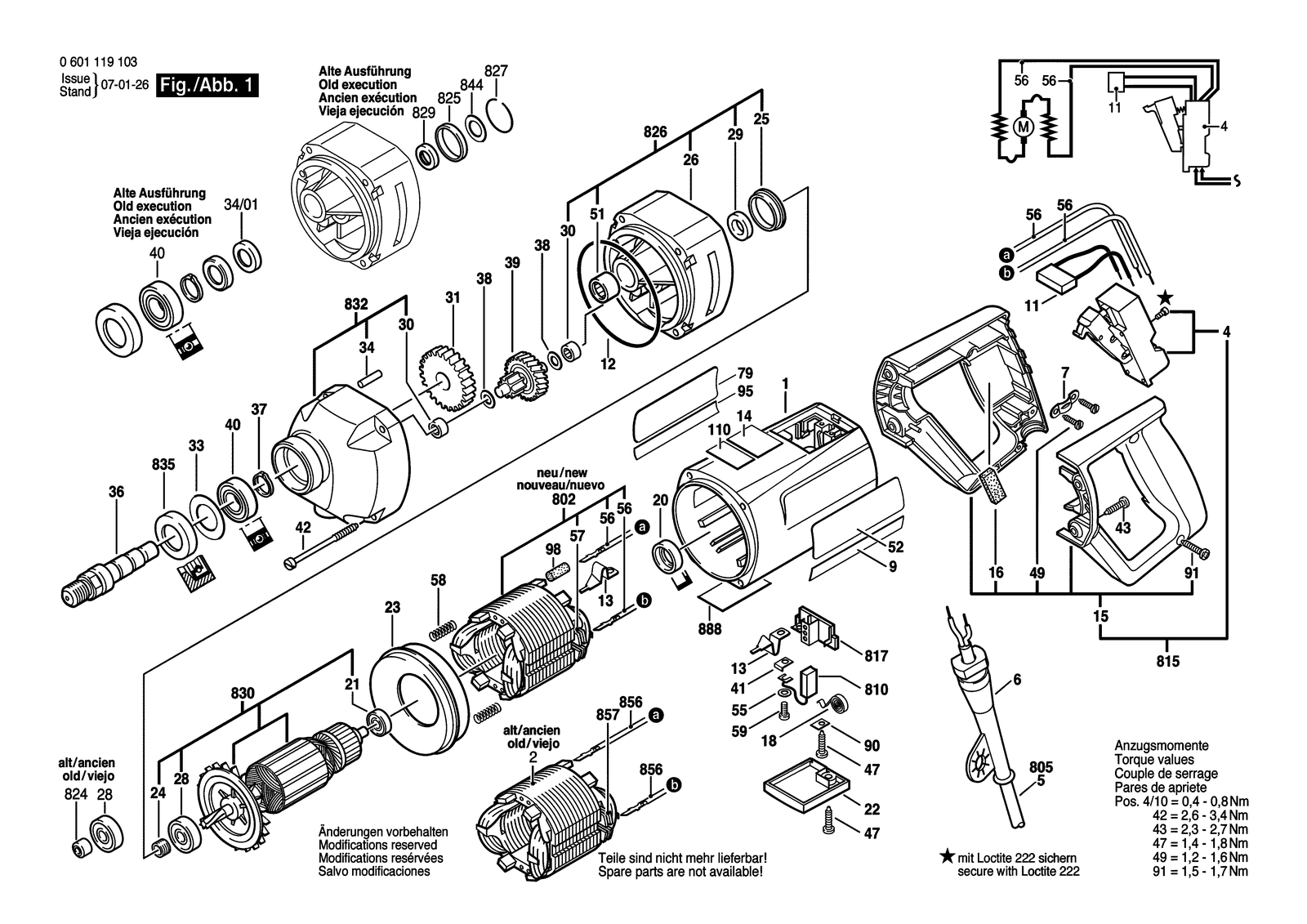

Bosch 1119.1 drill: exploded parts diagram, 2 sheets, 91 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1119.1: 91 positions on 2 sheets
Bosch 1119.1 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 11 | 1607328028 | Suppression Filter |
| 110 | 1601110449 | Nameplate Caution |
| 12 | 1600210005 | O-Ring 66,0X3,0 MM |
| 13 | 1604477001 | Blade terminal |
| 14 | 1601110058 | Reference Plate Double Insulation |
| 15 | 3605133006 | Handle Black |
| 15 | 3605133019 | Handle Black |
| 16 | 1602381006 | Insulating Plate 20X20X50 MM |
| 18 | 1604652006 | Spiral Spring |
| 20 | 1600502011 | Intermediate Ring |
| 21 | 2600905032 | Ball Bearing 7X19X6 |
| 22 | 3605500063 | Sealing cap Blue |
| 23 | 1600502019 | Air-Deflector Ring |
| 24 | 1600300090 | Intermediate Ring |
| 25 | 1600221003 | Intermediate Ring |
| 26 | 3607031162 | Intermediate housing |
| 28 | 3600905131 | Groove ball bearing 9X26X8 |
| 29 | 1600290016 | Rotary shaft lip seal |
| 30 | 1600910013 | Needle bearing |
| 31 | 1606317078 | Cylindrical Gear Z=50 |
| 33 | 1600102003 | Shim Thick 0,5 MM |
| 34 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 36 | 3603523053 | Drilling Spindle |
| 37 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 38 | 1600100631 | Shim Thick 0,5 MM |
| 39 | 1606328103 | Spindle With Gear Z=9/33 |
| 4 | 1607200037 | Switch |
| 4 | 1607200078 | Switch |
| 40 | 1900905162 | Groove ball bearing 15X32X9 |
| 41 | 1611331007 | Tab Washer |
| 42 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 43 | 2914201527 | Torx Oval-Head Screw |
| 47 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 49 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 5 | 1604460015 | Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1614460016 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 1614460091 | Power supply cord BR 220V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460070 | Power supply cord GB 110V 2,65M H07RN-F2X1,5 |
| 5 | 3604460071 | Power supply cord GB 2,65M 2 X 1,0MM H07 Rn-F |
| 51 | 1600910013 | Needle bearing |
| 52 | 3601110359 | Sticker |
| 55 | 2916060005 | Spring Washer DIN 137-A 4-ST |
| 56 | 3604460027 | Connecting Cable White L=360 MM |
| 57 | 3601025003 | Wire Guide |
| 58 | 1604613006 | Compression Spring |
| 59 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 6 | 1600703022 | Grommet Ø7,9-Ø12,0X120 MM |
| 650 | 3602025021 | Auxiliary Handle Ø43 MM |
| 650/1 | 160202509Z | Auxiliary Handle |
| 650/1 | 16020250A1 | Auxiliary Handle |
| 650/2 | 1618040077 | Support clamp |
| 650/3 | 1613521001 | Stud bolt M8 |
| 650/4 | 3601038048 | Clamping Band Ø43 MM |
| 650/5 | 1613100012 | Straight Pin |
| 650/8 | 3602025022 | Handle Bar |
| 651 | 1608571022 | Key Chuck Ø1,5-13 Mm, 1/2" |
| 651 | 1608572017 | Keyless Chuck Ø1,5-13 Mm, 1/2" |
| 651/8 | 2607950007 | Chuck Wrench SG2 |
| 652 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 7 | 1601302013 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 79 | 3601110359 | Sticker |
| 802 | 3604220109 | Field 230-240V |
| 802 | 3604220114 | Field 110-115V |
| 802 | 3604220115 | Field 240V |
| 805 | 3607030489 | Power supply cord |
| 810 | 1607014126 | Carbon-Brush Set |
| 815 | 3605133025 | Handle Blue |
| 817 | 1604336017 | Brush Holder |
| 824 | 1600300089 | Intermediate Ring |
| 825 | 1600206026 | Intermediate Ring |
| 826 | 3607031162 | Intermediate housing |
| 827 | 2916600016 | Retaining ring DIN 9045 - Ø 30MM |
| 829 | 1600290012 | Rotary shaft lip seal |
| 830 | 1604010272 | Armature 230V |
| 830 | 1604010273 | Armature 110-115V |
| 830 | 1604010274 | Armature 240V |
| 832 | 3605806146 | Spindle Housing |
| 835 | 3607030355 | Retaining snap ring |
| 844 | 1600102680 | Supporting Disc |
| 856 | 1604438012 | Connecting Cable White L=330 MM |
| 857 | 3601025003 | Wire Guide |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110046 | Sticker |
| 90 | 1601030022 | Tab Washer |
| 91 | 2914201507 | Torx Oval-Head Screw |
| 95 | 1601110265 | Reference Plate |
| 95 | 3601110072 | Sticker |
| 98 | 3600707005 | Shrinkable Tube |
