Bosch 1119

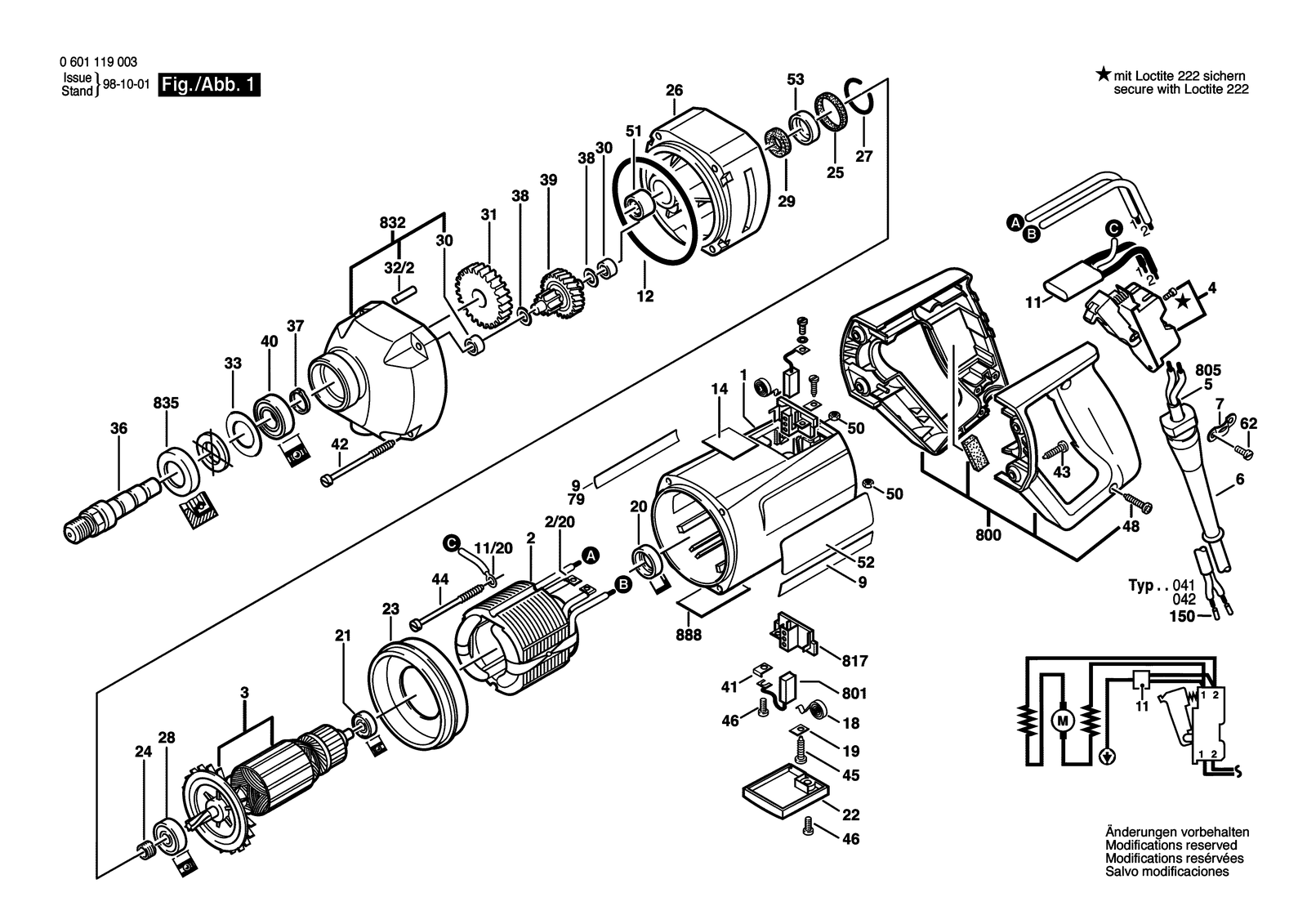

Bosch 1119 drill: exploded parts diagram, 2 sheets, 83 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1119: 83 positions on 2 sheets
Bosch 1119 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 11 | 1607328012 | Suppression Filter |
| 11 | 1607328022 | Suppression Capacitor |
| 11/20 | 1601353003 | Terminal lug |
| 12 | 1600210005 | O-Ring 66,0X3,0 MM |
| 14 | 1601110058 | Reference Plate Double Insulation |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 18 | 1604652006 | Spiral Spring |
| 19 | 1601030022 | Tab Washer |
| 2 | 1604220128 | Field 220V |
| 2 | 1604220130 | Field 100-110V |
| 2 | 1604220131 | Field 110-115V |
| 2 | 1604220132 | Field 240V |
| 2 | 1604220145 | Field 220V |
| 2/20 | 1901350003 | Terminal lug 1,5-4X4 |
| 20 | 1600502011 | Intermediate Ring |
| 21 | 2600905032 | Ball Bearing 7X19X6 |
| 22 | 3605500063 | Sealing cap Blue |
| 23 | 1600502015 | Air-Deflector Ring |
| 24 | 1600202034 | Intermediate Ring |
| 25 | 1600206018 | Intermediate Ring |
| 26 | 1605820198 | Intermediate housing |
| 27 | 2916600018 | Retaining ring 35 DIN 9045 |
| 28 | 1600905003 | Groove ball bearing |
| 29 | 1600108003 | Felt Disc |
| 3 | 1604010142 | Armature 220V |
| 3 | 1604010144 | Armature 100-110V |
| 3 | 1604010145 | Armature 110-115V |
| 3 | 1604010146 | Armature 240V |
| 30 | 1600910013 | Needle bearing |
| 31 | 1606317078 | Cylindrical Gear Z=50 |
| 32/2 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 33 | 1600102003 | Shim Thick 0,5 MM |
| 36 | 3603523053 | Drilling Spindle |
| 37 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 38 | 1600100631 | Shim Thick 0,5 MM |
| 39 | 1606328103 | Spindle With Gear Z=9/33 |
| 4 | 1607200037 | Switch |
| 4 | 1607200078 | Switch |
| 40 | 1900905162 | Groove ball bearing 15X32X9 |
| 41 | 1611331007 | Tab Washer |
| 42 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 43 | 2910211233 | Dummy DIN 7971-B4,8X16-A2 |
| 43 | 2914201527 | Torx Oval-Head Screw |
| 44 | 1603435012 | Tapping Screw B4,8X50 MM |
| 44 | 3603415560 | Screw B 4,8X45 MM |
| 45 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 46 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 48 | 2910021128 | Socket head cap screw DIN 84-AM4X18-8.8 |
| 48 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 5 | 1604460015 | Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460023 | Power supply cord |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1614460091 | Power supply cord BR 220V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 3607030489 | Power supply cord |
| 50 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 51 | 1600910013 | Needle bearing |
| 52 | 1601110068 | Sticker |
| 53 | 1610500004 | Retaining snap ring |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 62 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 650 | 3602025021 | Auxiliary Handle Ø43 MM |
| 650/1 | 160202509Z | Auxiliary Handle |
| 650/1 | 16020250A1 | Auxiliary Handle |
| 650/2 | 1618040077 | Support clamp |
| 650/3 | 1613521001 | Stud bolt M8 |
| 650/4 | 3601038048 | Clamping Band Ø43 MM |
| 650/5 | 1613100012 | Straight Pin |
| 650/8 | 3602025022 | Handle Bar |
| 651 | 1608571048 | Key Chuck Ø 1,5-13 MM,1/2" |
| 651/8 | 2607950007 | Chuck Wrench SG2 |
| 652 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 7 | 1601302014 | Fastening Clamp |
| 79 | 1601110074 | Sticker Double Insulation |
| 800 | 3605133019 | Handle Black |
| 801 | 1607014126 | Carbon-Brush Set |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 817 | 1604336017 | Brush Holder |
| 832 | 3605806146 | Spindle Housing |
| 835 | 3607030355 | Retaining snap ring |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110046 | Sticker |
