Bosch 1116

Bosch 1116 angle drill: exploded parts diagram, 1 sheet, 95 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1116: 95 positions on 1 sheet

Bosch 1116 parts list (1 sheet)

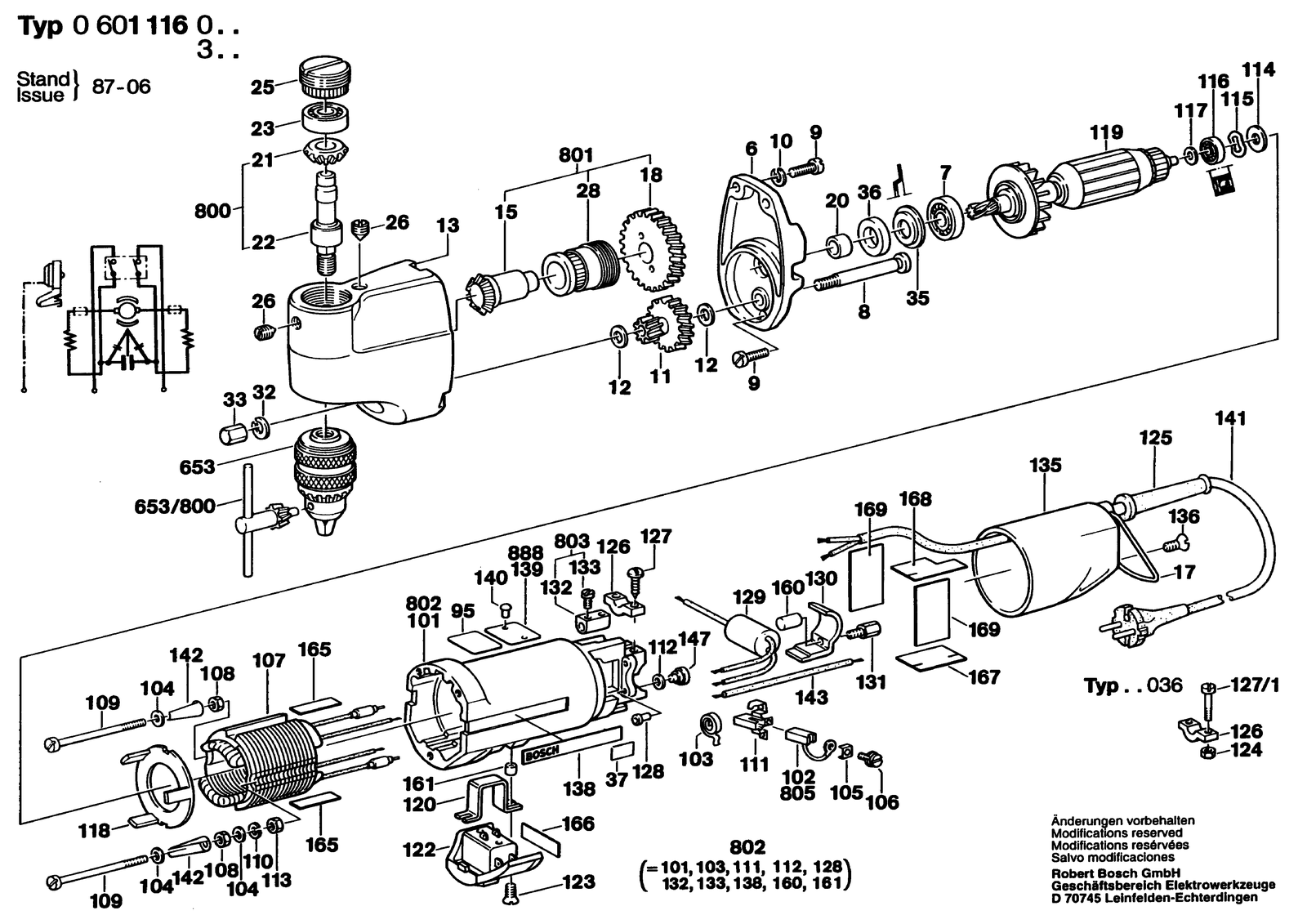

Bosch 1116 parts diagram, sheet 1
No.Part numberPart name
102916690003Spring Lock Washer DIN 128-A4-FST
1032604652000Spiral Spring
1042916011005Plain Washer DIN 433-3,2-ST 50
1052601321005Clamping Saddle
1062914501011Screw and washer assembly DIN7985-M3X6-Z1-4.8
1072604220241Field 220V
1072604220268Field 110V
1072604220269Field 220-230V
1072604220270Field 240V
1072604220306Pole Shoe 115V
1072604220322Field 100V
1082915011003Hex Nut DIN 934-M 3-M-8
1092910011074Socket head cap screw DIN 84-BM3X50-5.8
112606328033Cylindrical Gear Z=13/43
1102916690001Spring Lock Washer A3-FST
1112601323016Brush Holder
1122916021007Plain Washer Ø 2,6 Mm-St
1132915051103Hex Nut DIN 439-BM 3
1142600100699Shim
1152600150002Shim
1161900905015Groove ball bearing 625-2Z DIN 625
1172600100612Shim 0,3 MM
1182600113019Seal Ring
1192604010332Armature 100-115V
1192604010333Armature With Fan 220V
1192604010334Armature 240V
122600100590Shim 0,2 MM
122600100592Shim 0,5 MM
1202601322002Insulating Part
1222607200045Switch
1232910771048Countersunk-Head Screw M 3X6 DIN 963-5.8
1242915011002Hex Nut M 2,6 DIN 934-M-6
1252600703011Grommet Ø8,3-Ø9,4X95 MM
1252600703012Grommet Ø6,5-Ø6,9X95 MM
1252600703013Grommet Ø7,6-Ø8,2X95 MM
1262601035005Cable Clip
1272910211011Tapping Screw DIN 7971-BZ3,5X13
127/12910011033Socket head cap screw DIN 84-AM2,6X15-5.8
1282917170554Tubular rivet A2,5X0,3X4DIN7340-MS
1292607329048Suppression Filter
132605806256Gear Housing
1302601301002Fastening Clamp
1312603527004Hex Screw
1353600508004Housing Cover Black
1353600508023Housing Cover Blue
1362910501084Countersunk-Head Screw DIN 63-AM3,5X8-5.8
1382601007003Sticker
1382601110089Sticker
1403603133000Grooved Nail
1411604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1411607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
1412604460032Elec. Cable W/Connection
1412604460035Elec. Cable W/Connection
1412604460036Elec. Cable W/Connection
1412604460097Elec. Cable W/Connection
1413604460138Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F
1413604460141Power supply cord
1422601099015Cable Clip
1432604411061Cable
1433604411003Cable
1472603123013Retaining Pin
152606333009Bevel Gear Z=19
1602603349039Press-In Nut
1612603349038Press-In Nut
1653601010015Insulating Strip
1663601010014Insulating Strip
1673601010011Insulating Strip
1683601010012Insulating Strip
1693601010013Insulating Strip
171604682003Suspension Loop
182605319041Cylindrical Gear Z=57
202600300047Seal Bushing
231900905127Groove ball bearing 10X26X8
252603344010Threaded Bushing
262912001147Set screw M 5X5 DIN 553-5.8
282600364000Threaded Bushing
322916690004Spring Lock Washer DIN 128-A5-FST
332603312002Cap Nut
352600500017Cupped Washer
362600108026Felt Washer
371601110058Reference Plate Double Insulation
62605700077Bearing Flange
6531608571047Key Chuck Ø 1-10 Mm, 3/8"
6531608572012Chuck Ø 0-8 MM,3/8",
653/8002607950007Chuck Wrench SG2
71900905007Groove ball bearing 609-ZY DIN 625
82603520001Bearing bolt
8002603524900Drilling Spindle Z=19
8012606333010Bevel Gear Z=19/57
8022605108032Motor Housing Blue
8032604490003Connecting terminal
8052604320905Carbon-Brush Set
888160111A3H3Nameplate
92910021122Socket head cap screw DIN 84-AM4X12-8.8
951601110265Reference Plate
