Makita 1050D
Makita 1050D: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 1050D: 48 positions on 1 sheet

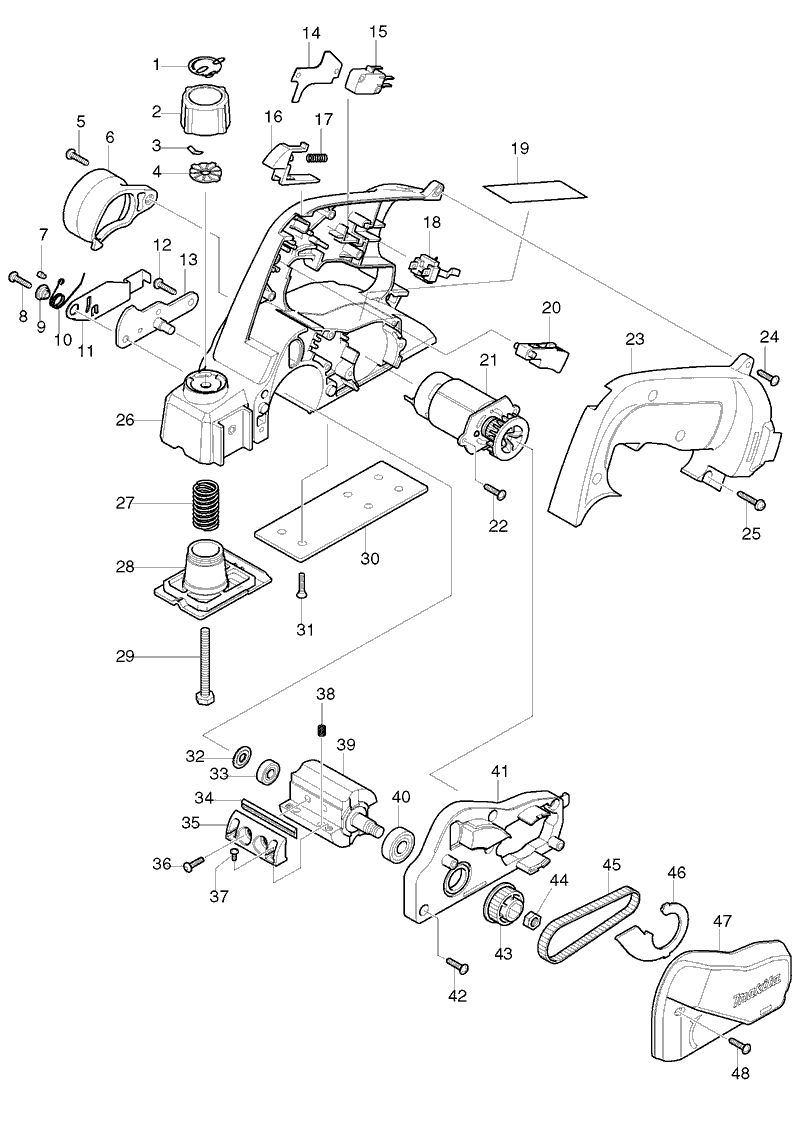

Sheet 1: Makita 1050D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 816346-2 | Makita 816346-2 SCALE LABEL |
| 2 | 271312-0 | Makita 271312-0 KNOB 35 |
| 3 | 232185-6 | Makita 232185-6 LEAF SPRING, KP0800 |
| 4 | 344710-2 | Makita 344710-2 CAM PLATE |
| 5 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 6 | 416787-8 | Makita 416787-8 NOZZLE |
| 7 | 951051-5 | Makita 951051-5 SPRING PIN 3-8 |
| 8 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 9 | 257215-2 | Makita 257215-2 SHOULDER RING 4 |
| 10 | 231504-3 | Makita 231504-3 TORSION SPRING 10 |
| 11 | 344708-9 | Makita 344708-9 DRUM COVER |
| 12 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 13 | 165242-4 | Makita 165242-4 DRUM HOLDER |
| 14 | 413074-6 | Makita 413074-6 LEAD GUIDE |
| 15 | 651942-7 | Makita 651942-7 SWITCH V15-1A6-IN |
| 16 | 416789-4 | Makita 416789-4 LOCK OFF BUTTON |
| 17 | 233194-8 | Makita 233194-8 COMPRESSION SPRING 4 |
| 18 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 19 | 851453-4 | Makita 851453-4 NAME PLATE 1050D |
| 20 | 416788-6 | Makita 416788-6 SWITCH LEVER |
| 21 | 629732-6 | Makita 629732-6 DC MOTOR |
| 22 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 23 | 416784-4 | Makita 416784-4 HANDLE COVER |
| 24 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 25 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 26 | 416783-6 | Makita 416783-6 MAIN FRAME |
| 27 | 231356-2 | Makita 231356-2 COMPRESSION SPRING 15 |
| 28 | 317119-1 | Makita 317119-1 FRONT BASE |
| 29 | 921382-6 | Makita 921382-6 HEX. BOLT M6X60 |
| 30 | 344707-1 | Makita 344707-1 BASE |
| 31 | 912127-3 | Makita 912127-3 COUNTERSUNK HEAD SCREW M4 X16 |
| 32 | 285691-0 | Makita 285691-0 BEARING RETAINER 6-18 |
| 33 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 34 | A-85400 | Makita A-85400 Planer Blade 50MM for 1051DW 1050DW |
| 35 | 310073-8 | Makita 310073-8 DRUM PLATE |
| 36 | 265322-7 | Makita 265322-7 HEX. SOCKET HEAD BOLT M6X |
| 37 | 265069-3 | Makita 265069-3 PAN HEAD SCREW M4X10 |
| 38 | 231317-2 | |
| 39 | 161134-5 | Makita 161134-5 DRUM |
| 40 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 41 | 416785-2 | Makita 416785-2 BRACKET |
| 42 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 43 | 222152-9 | Makita 222152-9 PULLEY 8-30 |
| 44 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 45 | 225082-3 | Makita 225082-3 Synchro Drive Belt 6-210 for 1050D 1051D |
| 46 | 344711-0 | Makita 344711-0 BAFFLE PLATE |
| 47 | 416786-0 | Makita 416786-0 BELT COVER |
| 48 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
