Bosch 1024 VSR

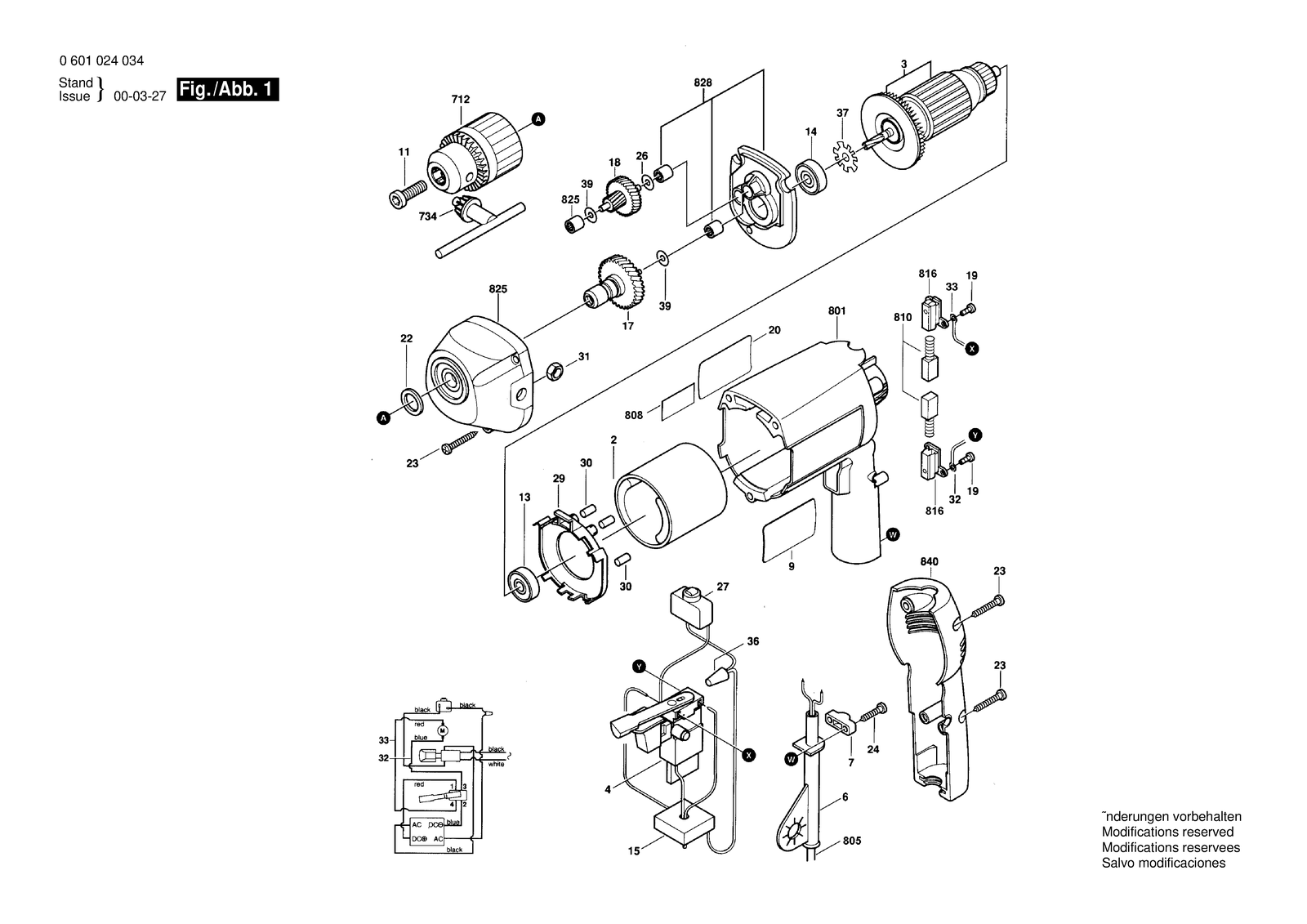

Bosch 1024 VSR drill: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1024 VSR: 43 positions on 1 sheet
Bosch 1024 VSR parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 3603421520 | Pan head screw |
| 11 | 3603430506 | Pan head screw |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 1619P01511 | Ball Bearing |
| 15 | 3607320500 | Electronic Module |
| 17 | 3606120555 | Nameplate |
| 17 | 3606120556 | Spindle |
| 18 | 3606100520 | Gear Shaft |
| 18 | 3606100521 | Gear Shaft |
| 19 | 2610914920 | Tapping Screw |
| 2 | 3604220557 | Stator 115V |
| 20 | 3601119740 | Nameplate |
| 22 | 3600101507 | Washer |
| 22 | 3600102505 | Shim washer |
| 23 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 24 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 26 | 3600100505 | Washer |
| 27 | 3607200530 | Electronic Module |
| 29 | 3600590506 | Baffle |
| 3 | 3604011610 | Dummy 115V |
| 30 | 3602391503 | Rubber Buffer |
| 31 | 2915011065 | Hex Nut DIN 934-M8-M-8 |
| 32 | 3604440533 | Lead Wire 51 MM |
| 33 | 3604440534 | Lead Wire 81 MM |
| 36 | 3608098500 | Connecting Nut |
| 37 | 3600119510 | Spring retaining ring |
| 39 | 2600100607 | Shim 0,3 MM |
| 4 | 3607200524 | Toggle Switch |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 7 | 2601035001 | Cable Clip |
| 712 | 2610906123 | Key Chuck 1/2" |
| 712 | 3608571538 | Chuck 3/8" |
| 734 | 2610348635 | Chuck Wrench 1/2" |
| 734 | 3608571539 | Chuck Wrench |
| 801 | 3605108579 | Housing |
| 805 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 808 | 3601119718 | Nameplate |
| 810 | 2604321914 | Carbon-Brush Set |
| 816 | 3604336512 | Brush Holder |
| 825 | 3605190530 | Gear Housing |
| 828 | 3605806546 | Bearing Housing |
| 840 | 3605133525 | Cover |
| 9 | 3601119742 | Nameplate |
