All parts on this sheet0

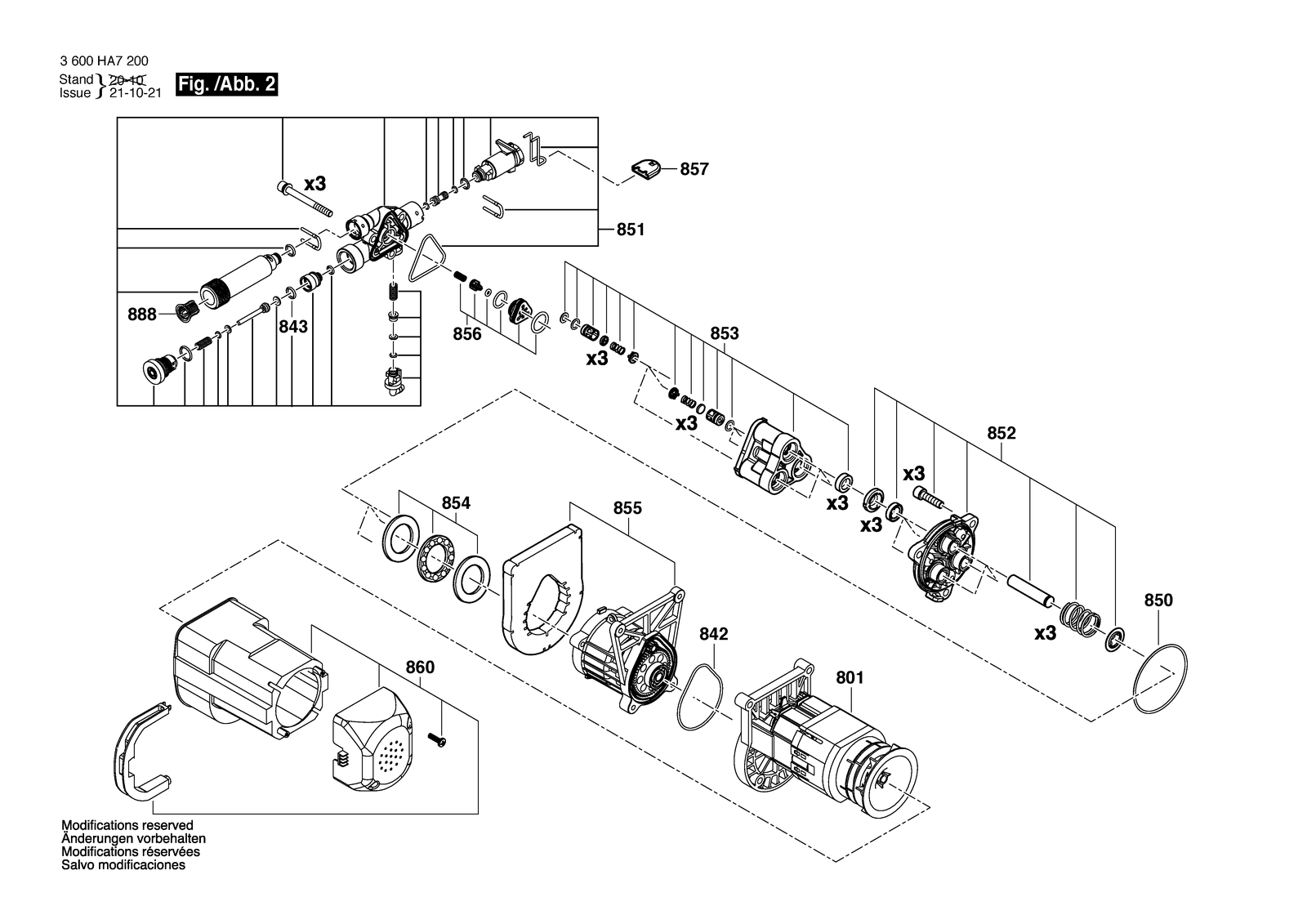

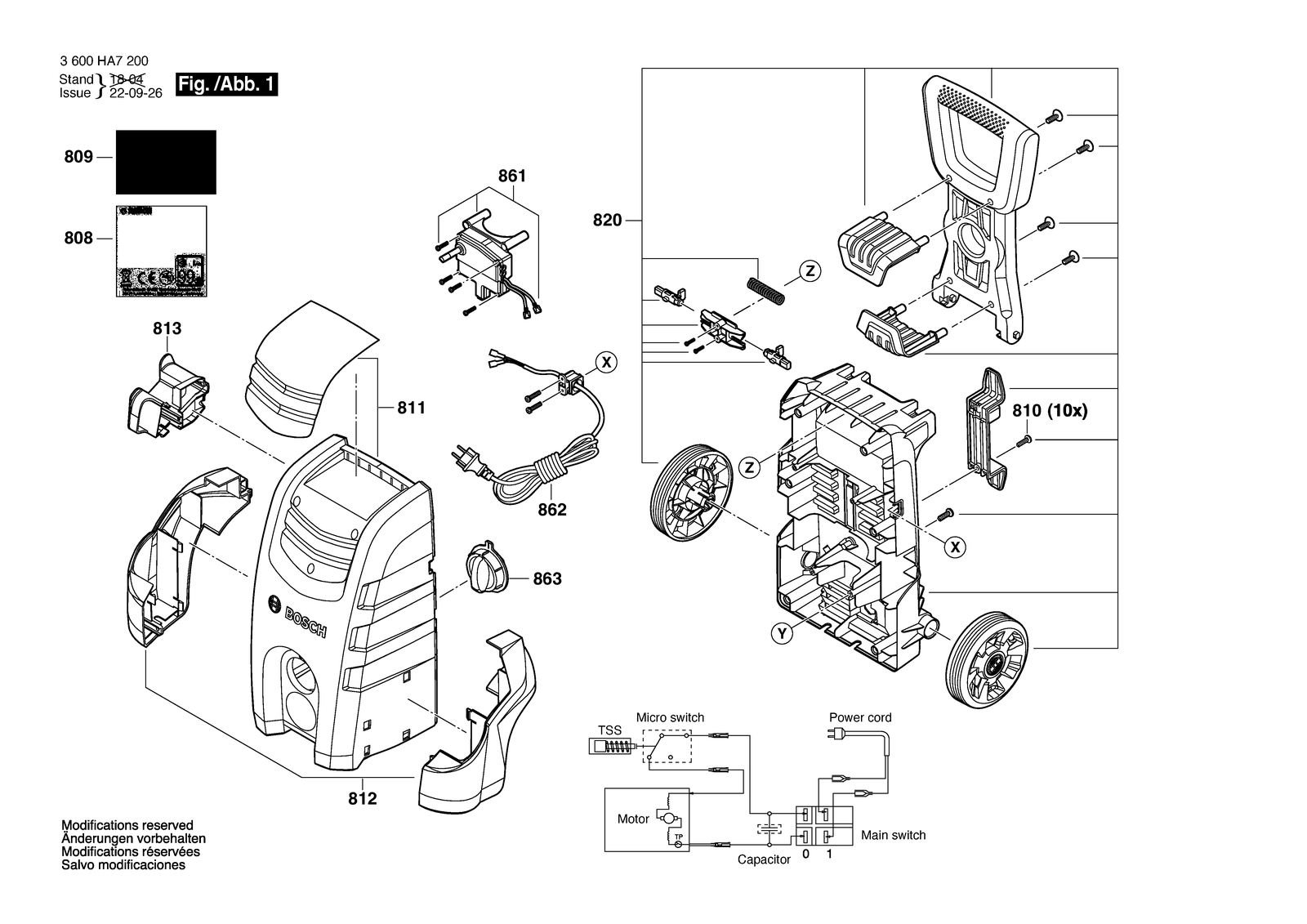

All parts of Bosch 100221-DIY HPW ARCE: 34 positions on 3 sheets
Bosch 100221-DIY HPW ARCE parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 801 | F016F04457 | Motor |
| 808 | F016F05088 | Nameplate |
| 808 | F016F05877 | Nameplate |
| 809 | F016F05583 | Warning Label |
| 810 | F016F04810 | Torx SH cap screw |
| 811 | F016F04450 | Front cover |
| 812 | F016F04451 | Front cover |
| 813 | F016F04452 | Front cover |
| 820 | F016F04454 | Cover |
| 842 | F016F05637 | O-Ring Ø 63 X 2,65 MM |
| 843 | F016F05402 | O-Ring |
| 845 | F016F04438 | Hose |
| 850 | F016F04459 | O-Ring |
| 851 | F016F04444 | Pump head |
| 852 | F016F04441 | Piston Guide |
| 853 | F016F04440 | Pump unit |
| 854 | F016F05023 | Thrust Bearing |
| 855 | F016F04447 | Gear Box |
| 856 | F016F04460 | Non-Return Valve |
| 857 | F016F04681 | Clip |
| 860 | F016F04614 | Motor cover |
| 861 | F016F04439 | Switch Box |
| 862 | F016F04483 | Power supply cord UK |
| 862 | F016F04484 | Power supply cord EU |
| 862 | F016F04490 | Power supply cord Ch |
| 863 | F016F04613 | Switch Actuator |
| 870 | F016F04458 | Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6) |
| 871 | F016F05280 | Trigger |
| 872 | F016F05135 | Lance |
| 876 | F016F06188 | 3-in-1-nozzle |
| 882 | F016F05052 | Water filter |
| 883 | F016F05025 | High-Pressure Hose 6M 150 Bar |
| 888 | F016F05661 | Water filter |
| 889 | F016F06182 | Water filter |
