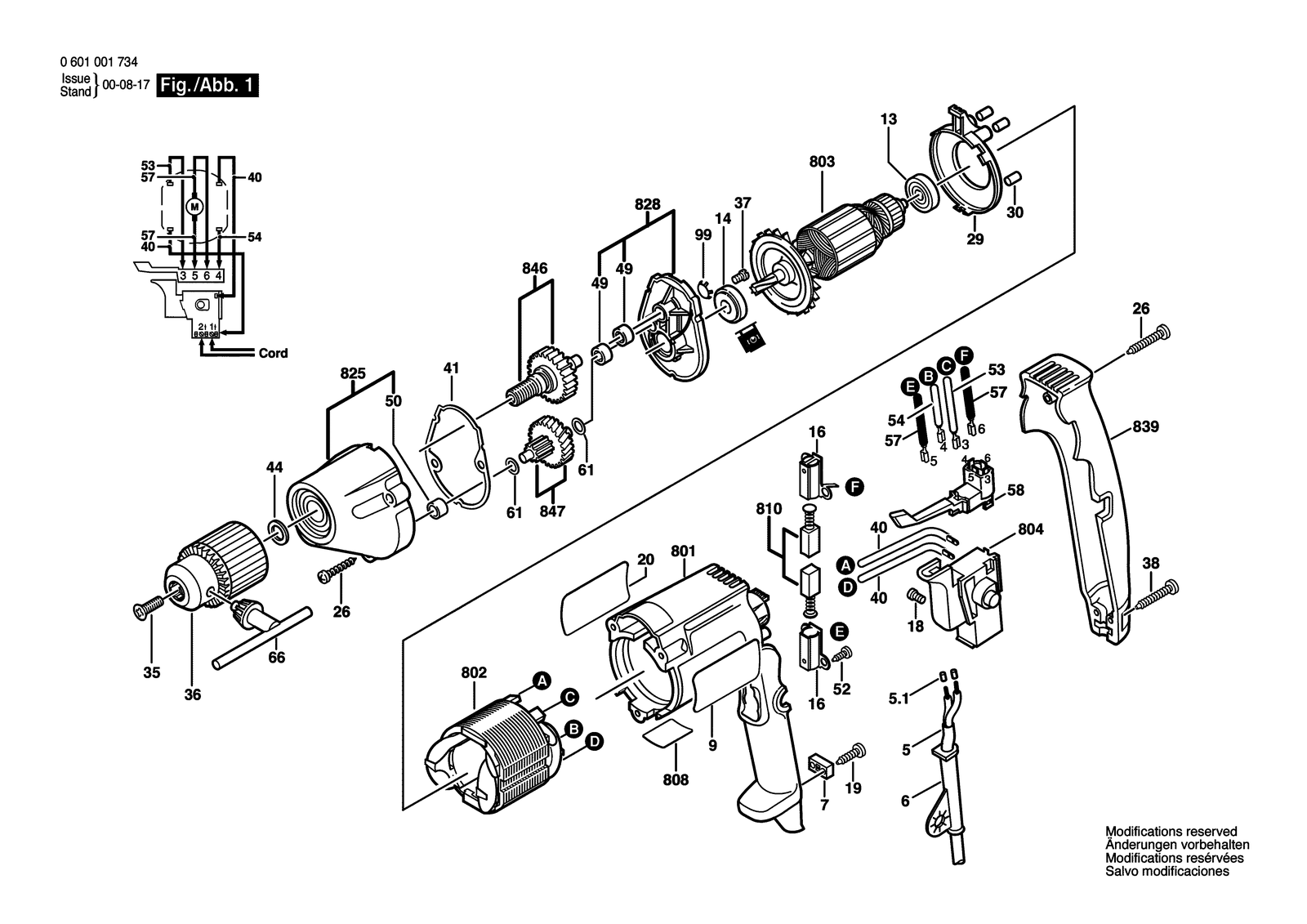

Bosch 1001 VSR drill: exploded parts diagram, 1 sheet, 212 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1001 VSR: 212 positions on 1 sheet
Bosch 1001 VSR parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905018 | Groove ball bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 20 | 2610906850 | Reference Plate |
| 20 | 3601119676 | Reference Plate |
| 20 | 2610906850 | Reference Plate |
| 20 | 3601119676 | Reference Plate |
| 20 | 3601119825 | Reference Plate |
| 20 | 2610906850 | Reference Plate |
| 20 | 3601119676 | Reference Plate |
| 20 | 2610906850 | Reference Plate |
| 20 | 3601119676 | Reference Plate |
| 20 | 2610906850 | Reference Plate |
| 20 | 3601119676 | Reference Plate |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 29 | 3600590505 | Cover Disc |
| 29 | 3600590505 | Cover Disc |
| 29 | 3600590505 | Cover Disc |
| 29 | 3600590505 | Cover Disc |
| 29 | 3600590505 | Cover Disc |
| 30 | 3602391503 | Rubber Buffer |
| 30 | 3602391503 | Rubber Buffer |
| 30 | 3602391503 | Rubber Buffer |
| 30 | 3602391503 | Rubber Buffer |
| 30 | 3602391503 | Rubber Buffer |
| 35 | 2609110721 | Countersunk-Head Screw M5X20 |
| 35 | 3603430506 | Pan head screw |
| 35 | 3603430507 | Retaining Screw |
| 35 | 3603430507 | Retaining Screw |
| 35 | 3603430507 | Retaining Screw |
| 36 | 2610358035 | Chuck 3/8" |
| 36 | 2610358035 | Chuck 3/8" |
| 36 | 3608571538 | Chuck 3/8" |
| 36 | 3608571538 | Chuck 3/8" |
| 36 | 3608571505 | Chuck 3/8" |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 38 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 38 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 38 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 38 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 38 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 40 | 2604448146 | Connecting Cable White L=110 MM |
| 40 | 2604448146 | Connecting Cable White L=110 MM |
| 40 | 2604448146 | Connecting Cable White L=110 MM |
| 40 | 2604448146 | Connecting Cable White L=110 MM |
| 40 | 2604448146 | Connecting Cable White L=110 MM |
| 41 | 3601016502 | Flat Seal Ring |
| 41 | 3601016502 | Flat Seal Ring |
| 41 | 3601016502 | Flat Seal Ring |
| 41 | 3601016502 | Flat Seal Ring |
| 41 | 3601016502 | Flat Seal Ring |
| 44 | 3600102505 | Shim washer |
| 44 | 3600102505 | Shim washer |
| 44 | 3600102505 | Shim washer |
| 44 | 3600102505 | Shim washer |
| 44 | 3600102505 | Shim washer |
| 49 | 3600910505 | Nozzle Socket |
| 49 | 3600910505 | Nozzle Socket |
| 49 | 3600910505 | Nozzle Socket |
| 49 | 3600910505 | Nozzle Socket |
| 49 | 3600910505 | Nozzle Socket |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 50 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 50 | 2600914017 | Needle bearing Ø6/12 MM |
| 50 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 50 | 2600914017 | Needle bearing Ø6/12 MM |
| 50 | 2600914017 | Needle bearing Ø6/12 MM |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 53 | 2604448137 | Connecting Cable White L=78 MM |
| 53 | 2604448137 | Connecting Cable White L=78 MM |
| 53 | 2604448137 | Connecting Cable White L=78 MM |
| 53 | 2604448137 | Connecting Cable White L=78 MM |
| 53 | 2604448137 | Connecting Cable White L=78 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 57 | 2604448104 | Connecting Cable White L=63 MM |
| 57 | 2604448104 | Connecting Cable White L=63 MM |
| 57 | 2604448104 | Connecting Cable White L=63 MM |
| 57 | 2604448104 | Connecting Cable White L=63 MM |
| 57 | 2604448104 | Connecting Cable White L=63 MM |
| 58 | 2607200231 | Change-Over Switch |
| 58 | 2607200231 | Change-Over Switch |
| 58 | 2607200231 | Change-Over Switch |
| 58 | 2607200231 | Change-Over Switch |
| 58 | 2607200231 | Change-Over Switch |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 66 | 2610308333 | Key |
| 66 | 2610308333 | Key |
| 66 | 3608571539 | Chuck Wrench |
| 66 | 3608571539 | Chuck Wrench |
| 66 | 3608571506 | Chuck Wrench |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 801 | 3605108557 | Motor Housing Dark Blue |
| 801 | 3605108557 | Motor Housing Dark Blue |
| 801 | 3605108557 | Motor Housing Dark Blue |
| 801 | 3605108557 | Motor Housing Dark Blue |
| 801 | 3605108557 | Motor Housing Dark Blue |
| 802 | 2610910309 | Field 115V |
| 802 | 2610910309 | Field 115V |
| 802 | 2610910309 | Field 115V |
| 802 | 2610910309 | Field 115V |
| 802 | 2610910309 | Field 115V |
| 803 | 2610910307 | Armature With Fan 115V |
| 803 | 2610910307 | Armature With Fan 115V |
| 803 | 2604010801 | Armature 115V |
| 803 | 2610910307 | Armature With Fan 115V |
| 803 | 2610910307 | Armature With Fan 115V |
| 804 | 2610994891 | On-Off Switch |
| 804 | 2610994891 | On-Off Switch |
| 804 | 2610994891 | On-Off Switch |
| 804 | 2610994891 | On-Off Switch |
| 804 | 2610994891 | On-Off Switch |
| 808 | 3601119718 | Nameplate |
| 808 | 3601119718 | Nameplate |
| 808 | 3601119718 | Nameplate |
| 808 | 3601119718 | Nameplate |
| 808 | 3601119718 | Nameplate |
| 810 | 2604321914 | Carbon-Brush Set |
| 810 | 2604321914 | Carbon-Brush Set |
| 810 | 2604321914 | Carbon-Brush Set |
| 810 | 2604321914 | Carbon-Brush Set |
| 810 | 2604321914 | Carbon-Brush Set |
| 825 | 3605190513 | Gear Housing |
| 825 | 3605190514 | Gear Housing Black |
| 825 | 3605190513 | Gear Housing |
| 825 | 3605190514 | Gear Housing Black |
| 825 | 3605190514 | Gear Housing Black |
| 828 | 3605806537 | Bearing Bracket |
| 828 | 3605806537 | Bearing Bracket |
| 828 | 3605806537 | Bearing Bracket |
| 828 | 3605806537 | Bearing Bracket |
| 828 | 3605806537 | Bearing Bracket |
| 839 | 3605133521 | Housing Cover Dark Blue |
| 839 | 3605133521 | Housing Cover Dark Blue |
| 839 | 3605133521 | Housing Cover Dark Blue |
| 839 | 3605133521 | Housing Cover Dark Blue |
| 839 | 3605133521 | Housing Cover Dark Blue |
| 846 | 3606120553 | Nameplate |
| 846 | 3606120552 | Spur Gear Drive |
| 846 | 3606120553 | Nameplate |
| 846 | 3606120552 | Spur Gear Drive |
| 846 | 3606120552 | Spur Gear Drive |
| 847 | 3606319520 | Conversion Gear |
| 847 | 3606319519 | Gear Shaft |
| 847 | 3606319520 | Conversion Gear |
| 847 | 3606319519 | Gear Shaft |
| 847 | 3606319519 | Gear Shaft |
| 9 | 2610906800 | Manufacturer's nameplate |
| 9 | 2610906801 | Manufacturer's nameplate |
| 9 | 3601119824 | Sticker |
| 9 | 2610906804 | Manufacturer's nameplate |
| 9 | 2610906805 | Manufacturer's nameplate |
| 9 | 2610906806 | Manufacturer's nameplate |
| 99 | 3600171504 | Spring retaining ring |
| 99 | 3600171504 | Spring retaining ring |
| 99 | 3600171504 | Spring retaining ring |
| 99 | 3600171504 | Spring retaining ring |
| 99 | 3600171504 | Spring retaining ring |
