Bosch 1000 VSR

Bosch 1000 VSR drill: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1000 VSR: 45 positions on 1 sheet

Bosch 1000 VSR parts list (1 sheet)

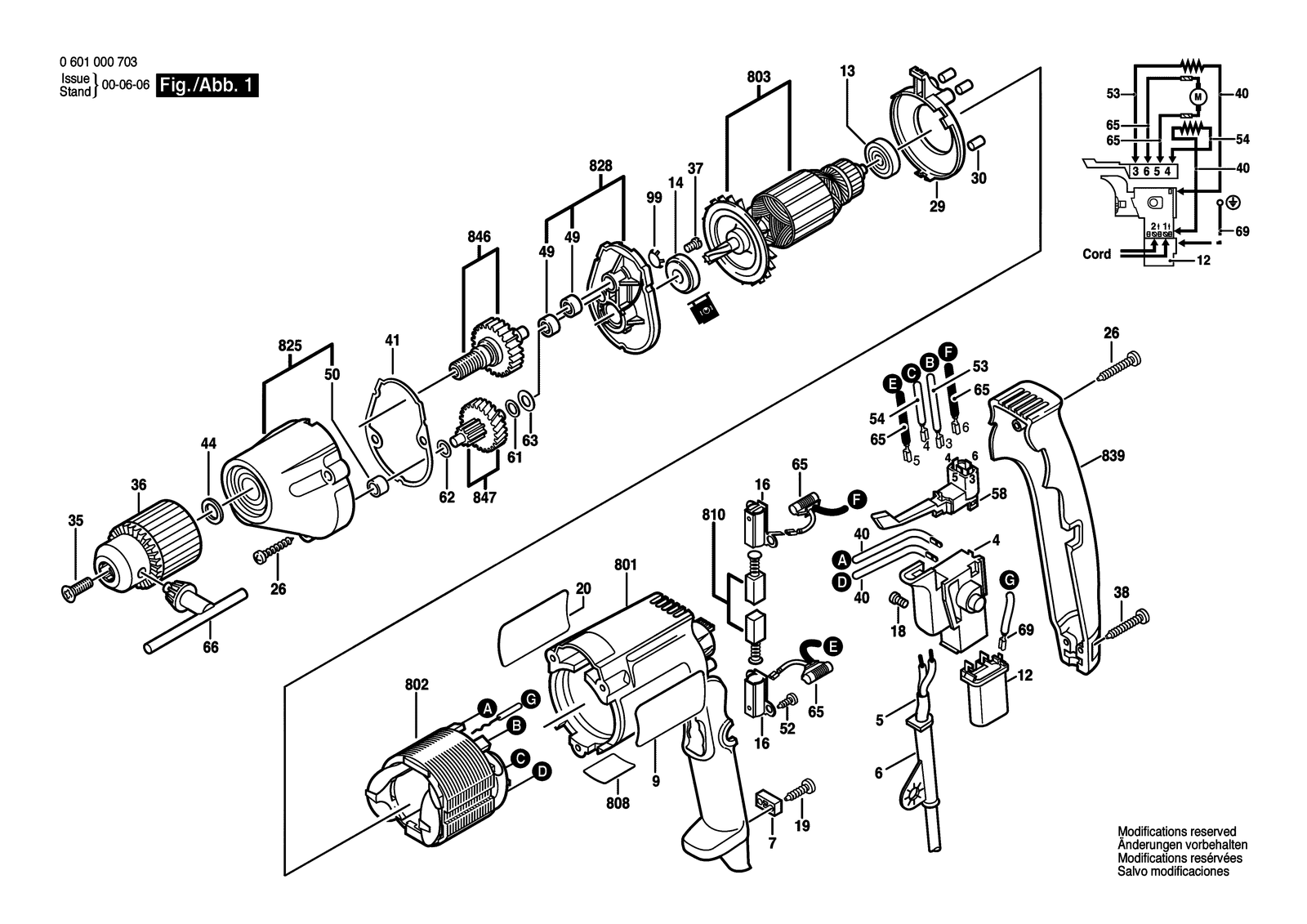

Bosch 1000 VSR parts diagram, sheet 1
No.Part numberPart name
121617328025Suppression Filter
131900905018Ball Bearing 7X22X7
142600905021Groove ball bearing 9X24X7
162604337003Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
202610906850Reference Plate
262912405082Tapping Screw DIN 7981-ST3,9X32C-H
293600590505Cover Disc
303602391503Rubber Buffer
352609110721Countersunk-Head Screw M5X20
362610358035Chuck 3/8"
372603410048Thread-forming tap. Screw M4X8
382910615022Tapping Screw DIN 7981-ST3,9X25C-H
42607200357Switch
402604448005Cable White L=130 MM
413601016502Flat Seal Ring
443600102505Shim washer
493600910505Nozzle Socket
51607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
501610910057Needle bearing Ø8XØ12X10 MM
522610914920Tapping Screw
532604448074Connecting Cable Black L=98 MM
542604448100Connecting Cable White L=68 MM
582607200231Change-Over Switch
62600707060Grommet Ø11,6-Ø12,5X84 MM
612600100607Shim 0,3 MM
622600101654Shim 0,3 MM
632600100628Shim 0,5 MM
652604465086Suppression Filter Black L=148 MM
662610308333Key
692604448170Earth Conductor
72601035001Cable Clip
8013605108557Motor Housing Dark Blue
8022604220392Field 230V
8032604010803Armature 230V
8083601119718Nameplate
8102604321914Carbon-Brush Set
8253605190513Gear Housing
8283605806537Bearing Bracket
8393605133521Housing Cover Dark Blue
8463606120553Nameplate
8473606319520Conversion Gear
92610906800Manufacturer's nameplate
993600171504Spring retaining ring
