Bosch 1-8/11Nm
Bosch 1-8/11Nm cordless screw driver: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

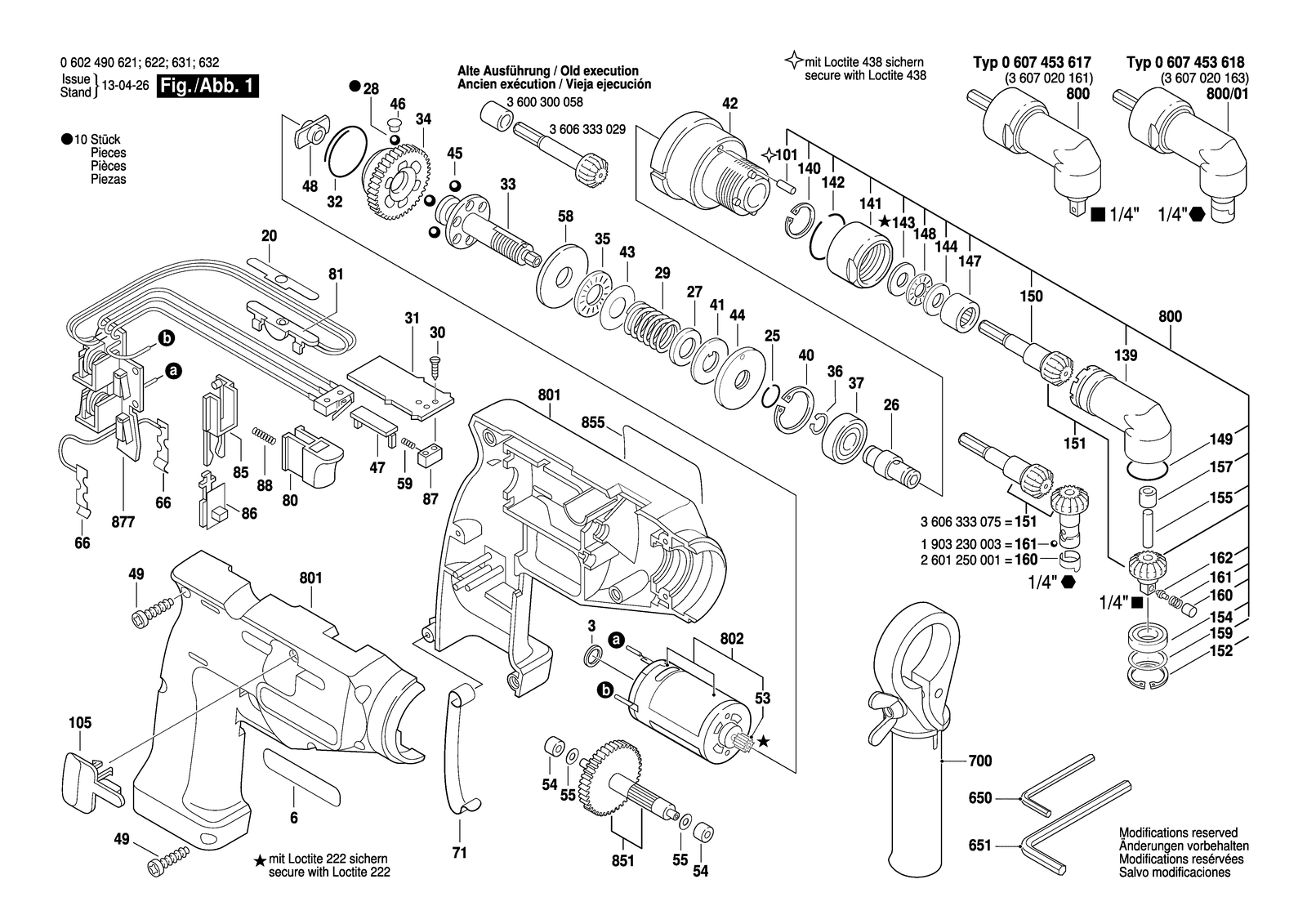

All parts of Bosch 1-8/11Nm: 84 positions on 1 sheet
Bosch 1-8/11Nm parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2917530057 | Straight Pin DIN 6325-5M2,5X12 |
| 105 | 2605510027 | Filler Piece Blue |
| 139 | 3605106071 | Spindle Housing |
| 140 | 2916660004 | Spring retaining ring 18X1MM, DIN 472 |
| 141 | 3603342002 | Union Nut |
| 142 | 2916600013 | Retaining ring DIN 9045-24 |
| 143 | 3600100094 | Support Disc |
| 144 | 3600100095 | Support Disc |
| 147 | 3600917019 | Needle bearing |
| 148 | 3600929003 | Roller Thrust Bearing |
| 149 | 3600210127 | O-Ring 21,0X1,0 MM |
| 150 | 3606333077 | Bevel Gear |
| 151 | 3606334070 | Crown Gear Z=14 |
| 151 | 3606334071 | Crown Gear Z=14 |
| 152 | 2916660045 | Spring retaining ring DIN 472-21X1MM |
| 154 | 3600900018 | Groove ball bearing |
| 155 | 3603201031 | Needle Roller |
| 157 | 9001140359 | Needle bearing |
| 159 | 1600101648 | Shim Thick 0,1 MM |
| 159 | 1600101650 | Shim Thick 0,05 MM |
| 160 | 2601250001 | Leaf Spring |
| 160 | 3600400014 | Guide Sleeve |
| 161 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 161 | 2604613003 | Compression Spring |
| 162 | 3603124015 | Detent Pin |
| 20 | 3601110256 | Sticker |
| 25 | 2916600006 | Retaining ring 10 DIN 9045 |
| 26 | 3607218009 | Tool Holding Fixture |
| 27 | 2916011019 | Plain Washer DIN 433-A13-ST 50 |
| 28 | 1903230009 | Ball DIN 5401-5 G28 |
| 29 | 3604611020 | Compression Spring |
| 29 | 3604611023 | Compression Spring |
| 3 | 3600200043 | Locating Ring |
| 30 | 2910601101 | Tapping Screw DIN 7972-ST 2,2X6,5-C |
| 31 | 3601023007 | Bearing Plate |
| 32 | 3604601001 | Retaining ring |
| 33 | 3606455036 | Coupling Half |
| 34 | 3606455037 | Coupling Wheel |
| 34 | 3606455039 | Coupling Wheel |
| 35 | 3600929008 | Roller Thrust Bearing |
| 36 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 37 | 1600900042 | Groove ball bearing |
| 40 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 41 | 3600106002 | Catch Disk |
| 42 | 3605700119 | Angle Flange |
| 43 | 3600106003 | Support Disc |
| 44 | 3603400003 | Round Nut |
| 45 | 1903230011 | Ball DIN 5401-6 G28 |
| 46 | 3601023008 | Sealing plate |
| 47 | 3601923007 | Actuating Element |
| 48 | 3600917038 | Plain bearing |
| 49 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 53 | 2606316112 | Pinion Z=11 |
| 53 | 2606316120 | Pinion Z=14 |
| 54 | 3600917037 | Plain bearing |
| 55 | 2600100636 | Shim Thick 0,3 MM |
| 58 | 3606455038 | Coupling Plate |
| 59 | 3604611021 | Compression Spring |
| 6 | 2601110606 | Sticker Shadow Side |
| 650 | 3607950014 | Screwdriver |
| 651 | 3607950001 | Hexagon-Socket Key |
| 66 | 2601324012 | Contact Spring |
| 700 | 2602025032 | Auxiliary Handle Black Ø43 MM |
| 71 | 2601251003 | Holding Spring Ø8,7 MM |
| 80 | 3608750036 | Switch Slide |
| 800 | 3607020161 | Angle Screwdriver Head 1/4" |
| 800/01 | 3607020163 | Angle Screwdriver Head 1/4" |
| 801 | 3605105014 | Housing Section Blue |
| 802 | 3607030294 | DC motor 9,6-12V |
| 802 | 3607030295 | DC motor 9,6-12V |
| 81 | 3608750037 | Led-Holder |
| 85 | 3602329026 | Guide Piece |
| 851 | 3607031548 | Spindle With Gear |
| 851 | 3607031549 | Spindle With Gear |
| 855 | 3601110474 | Manufacturer's nameplate |
| 855 | 3601110475 | Manufacturer's nameplate |
| 855 | 3601110476 | Manufacturer's nameplate |
| 855 | 3601110477 | Manufacturer's nameplate |
| 855 | 3601119235 | Nameplate |
| 86 | 3607200063 | Switch |
| 87 | 3602329027 | Spring Holder |
| 877 | 3608300177 | Printed-Board Assembly 9,6-12V |
| 877 | 3608300178 | Printed-Board Assembly |
| 88 | 3604611031 | Compression Spring |
