Bosch 1/4" QC

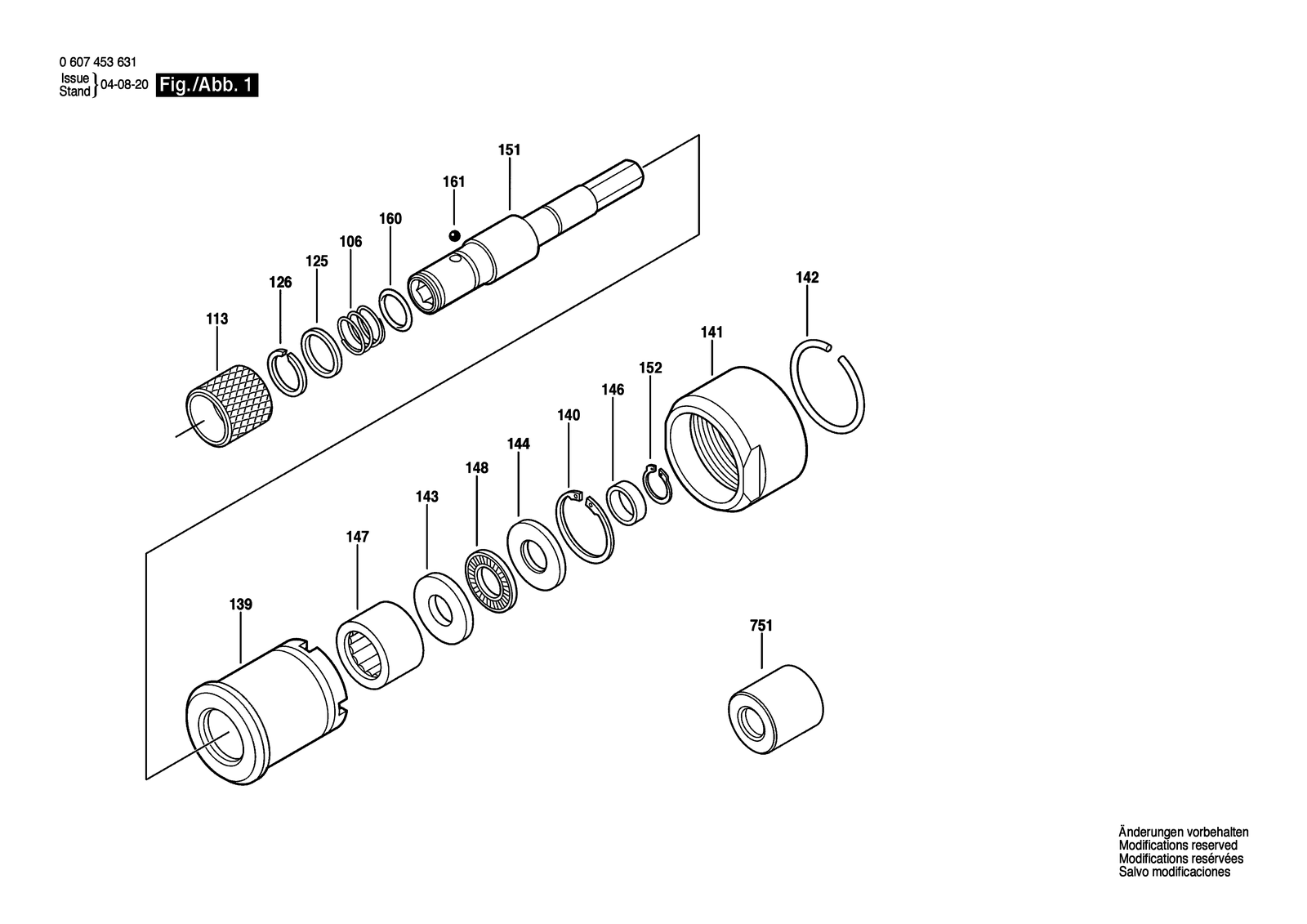

Bosch 1/4" QC screw head: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1/4" QC: 18 positions on 1 sheet
Bosch 1/4" QC parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 106 | 3604610011 | Compression Spring |
| 113 | 3600499025 | Clamp Bushing |
| 125 | 3600202022 | Thrust Ring |
| 126 | 3600224006 | Retaining ring |
| 139 | 3605106091 | Spindle Housing |
| 140 | 2916660004 | Spring retaining ring 18X1MM, DIN 472 |
| 141 | 3603342006 | Union Nut |
| 142 | 2916600013 | Retaining ring DIN 9045-24 |
| 143 | 3600100094 | Support Disc |
| 144 | 3600100095 | Support Disc |
| 146 | 3600300065 | Inner Ring |
| 147 | 3600917019 | Needle bearing |
| 148 | 3600929003 | Roller Thrust Bearing |
| 151 | 3603124026 | Output Shaft |
| 152 | 2916640005 | Spring retaining ring DIN 471-8X0,8 Fst |
| 160 | 3600210038 | O-Ring 9,0X1,2 MM |
| 161 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 751 | 3605500210 | Protective Cap 5 Piece |
