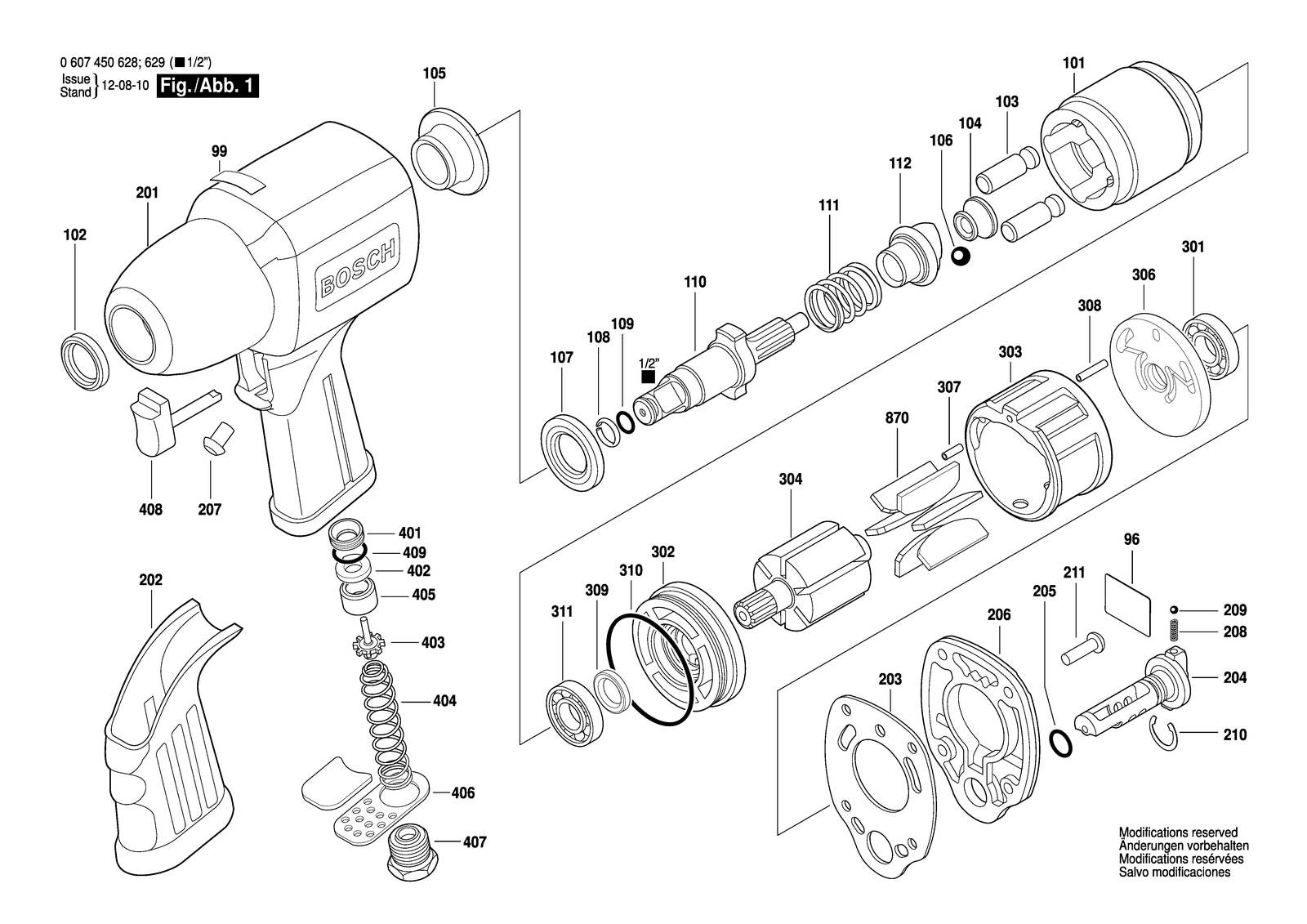

Bosch 1/2" S impact wrench: exploded parts diagram, 1 sheet, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1/2" S: 79 positions on 1 sheet
Bosch 1/2" S parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 3609202B96 | Striker Spindle |
| 102 | 3609202952 | Shaft Seal |
| 102 | 3609202952 | Shaft Seal |
| 103 | 3609202A57 | Guide Pin |
| 103 | 3609202A57 | Guide Pin |
| 104 | 3609202A60 | Sleeve |
| 104 | 3609202A60 | Sleeve |
| 105 | 3609202A62 | Bushing |
| 105 | 3609202A62 | Bushing |
| 106 | 3609202B08 | Ball |
| 106 | 3609202B08 | Ball |
| 107 | 3609202B97 | Washer |
| 108 | 3609202921 | Retaining ring |
| 108 | 3609202921 | Retaining ring |
| 109 | 3609202930 | O-Ring |
| 109 | 3609202930 | O-Ring |
| 110 | 3609202A58 | Striker Spindle |
| 110 | 3609202A58 | Striker Spindle |
| 111 | 3609202B09 | Compression Spring |
| 111 | 3609202B09 | Compression Spring |
| 112 | 3609202A61 | Curve Segment |
| 112 | 3609202A61 | Curve Segment |
| 201 | 3609202A52 | Housing |
| 201 | 3609202A52 | Housing |
| 202 | 3609202B94 | Handle |
| 203 | 3609202A64 | Seal |
| 203 | 3609202A64 | Seal |
| 204 | 3609202A63 | Change-Over Switch |
| 204 | 3609202A63 | Change-Over Switch |
| 205 | 3609202A90 | O-Ring |
| 205 | 3609202A90 | O-Ring |
| 206 | 3609202B11 | Cover |
| 206 | 3609202B11 | Cover |
| 207 | 3609202B98 | Screw |
| 208 | 3609202867 | Spring |
| 208 | 3609202867 | Spring |
| 209 | 3609202928 | Ball |
| 209 | 3609202928 | Ball |
| 210 | 3609202A84 | Spring retaining ring |
| 210 | 3609202A84 | Spring retaining ring |
| 211 | 3609202B10 | Screw |
| 211 | 3609202B10 | Screw |
| 301 | 3609202A91 | Ball Bearing |
| 301 | 3609202A91 | Ball Bearing |
| 302 | 3609202A66 | Hopper |
| 302 | 3609202A66 | Hopper |
| 303 | 3609202A71 | Stator |
| 303 | 3609202A71 | Stator |
| 304 | 3609202A68 | Rotor |
| 304 | 3609202A68 | Rotor |
| 306 | 3609202A73 | Connection plate |
| 306 | 3609202A73 | Connection plate |
| 307 | 3609202926 | Dowel pin |
| 307 | 3609202926 | Dowel pin |
| 308 | 3609202A87 | Dowel pin |
| 308 | 3609202A87 | Dowel pin |
| 309 | 3609202955 | Seal Ring |
| 309 | 3609202955 | Seal Ring |
| 310 | 3609202A89 | O-Ring |
| 310 | 3609202A89 | O-Ring |
| 311 | 3609202A92 | Ball Bearing |
| 311 | 3609202A92 | Ball Bearing |
| 401 | 3609202869 | Bushing |
| 402 | 3609202904 | Seal |
| 403 | 3609202840 | Tappet |
| 403 | 3609202840 | Tappet |
| 404 | 3609202844 | Valve Spring |
| 405 | 3609202871 | Bushing |
| 406 | 3609202908 | Deflector |
| 407 | 3609202B95 | Fitting |
| 408 | 3609202838 | Tappet |
| 408 | 3609202838 | Tappet |
| 409 | 3609202932 | O-Ring |
| 870 | 3609202A41 | Set Of Clutch Plates |
| 870 | 3609202A41 | Set Of Clutch Plates |
| 96 | 1619PB0268 | Nameplate |
| 96 | 1619PB0268 | Nameplate |
| 99 | 3601110562 | Sticker |
| 99 | 3601110562 | Sticker |
