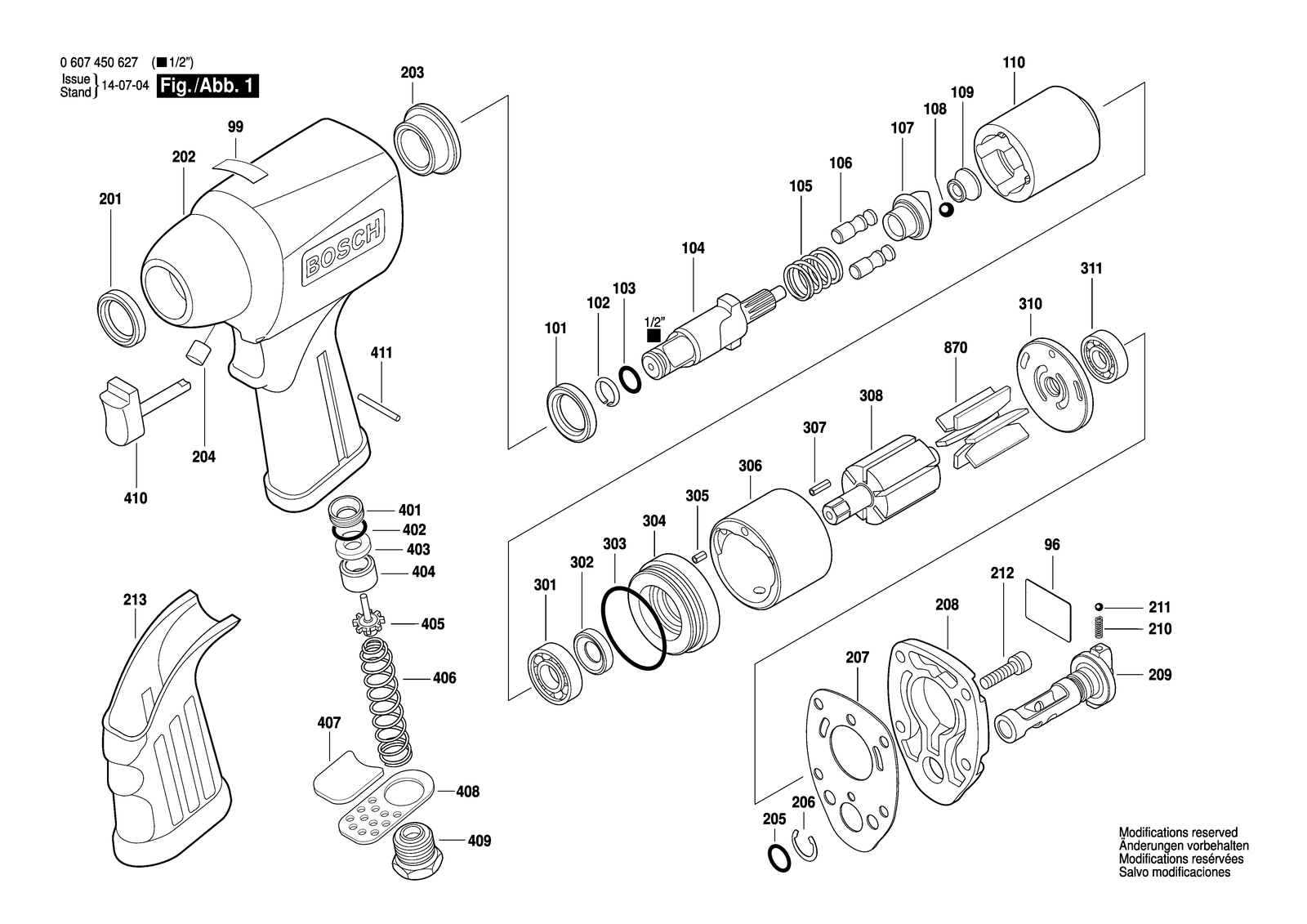

Bosch 1/2" S impact wrench: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1/2" S: 47 positions on 1 sheet
Bosch 1/2" S parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 3609202906 | Plain Washer |
| 102 | 3609202921 | Retaining ring |
| 103 | 3609202A96 | O-Ring |
| 104 | 3609202A97 | Striker Spindle |
| 105 | 3609202B13 | Spring |
| 106 | 3609202849 | Guide Pin |
| 107 | 3609202864 | Curve Segment |
| 108 | 3609202B12 | Ball |
| 109 | 3609202863 | Ball Socket |
| 110 | 3609202859 | Cage |
| 201 | 3609202952 | Shaft Seal |
| 202 | 3609202A53 | Housing |
| 203 | 3609202868 | Bushing |
| 204 | 3609202B93 | Screw |
| 205 | 3609202940 | O-Ring |
| 206 | 3609202924 | Retaining ring |
| 207 | 3609202882 | Seal |
| 208 | 3609202B15 | Cover |
| 209 | 3609202875 | Change-Over Switch |
| 210 | 3609202867 | Spring |
| 211 | 3609202928 | Ball |
| 212 | 3609202915 | Socket head cap screw |
| 213 | 3609202B94 | Handle |
| 301 | 3609202947 | Ball Bearing |
| 302 | 3609202954 | Seal Ring |
| 303 | 3609202942 | O-Ring |
| 304 | 3609202886 | Bearing cover |
| 305 | 3609202925 | Dowel pin |
| 306 | 3609202895 | Stator |
| 307 | 3609202926 | Dowel pin |
| 308 | 3609202A69 | Rotor |
| 310 | 3609202898 | Bearing cover |
| 311 | 3609202946 | Ball Bearing |
| 401 | 3609202869 | Bushing |
| 402 | 3609202932 | O-Ring |
| 403 | 3609202904 | Seal |
| 404 | 3609202871 | Bushing |
| 405 | 3609202840 | Tappet |
| 406 | 3609202844 | Valve Spring |
| 407 | 3609202978 | Silencer |
| 408 | 3609202908 | Deflector |
| 409 | 3609202B95 | Fitting |
| 410 | 3609202838 | Tappet |
| 411 | 3609202B99 | Pin |
| 870 | 3609202A40 | Set Of Clutch Plates |
| 96 | 3609202A13 | Nameplate |
| 99 | 3601110562 | Sticker |
