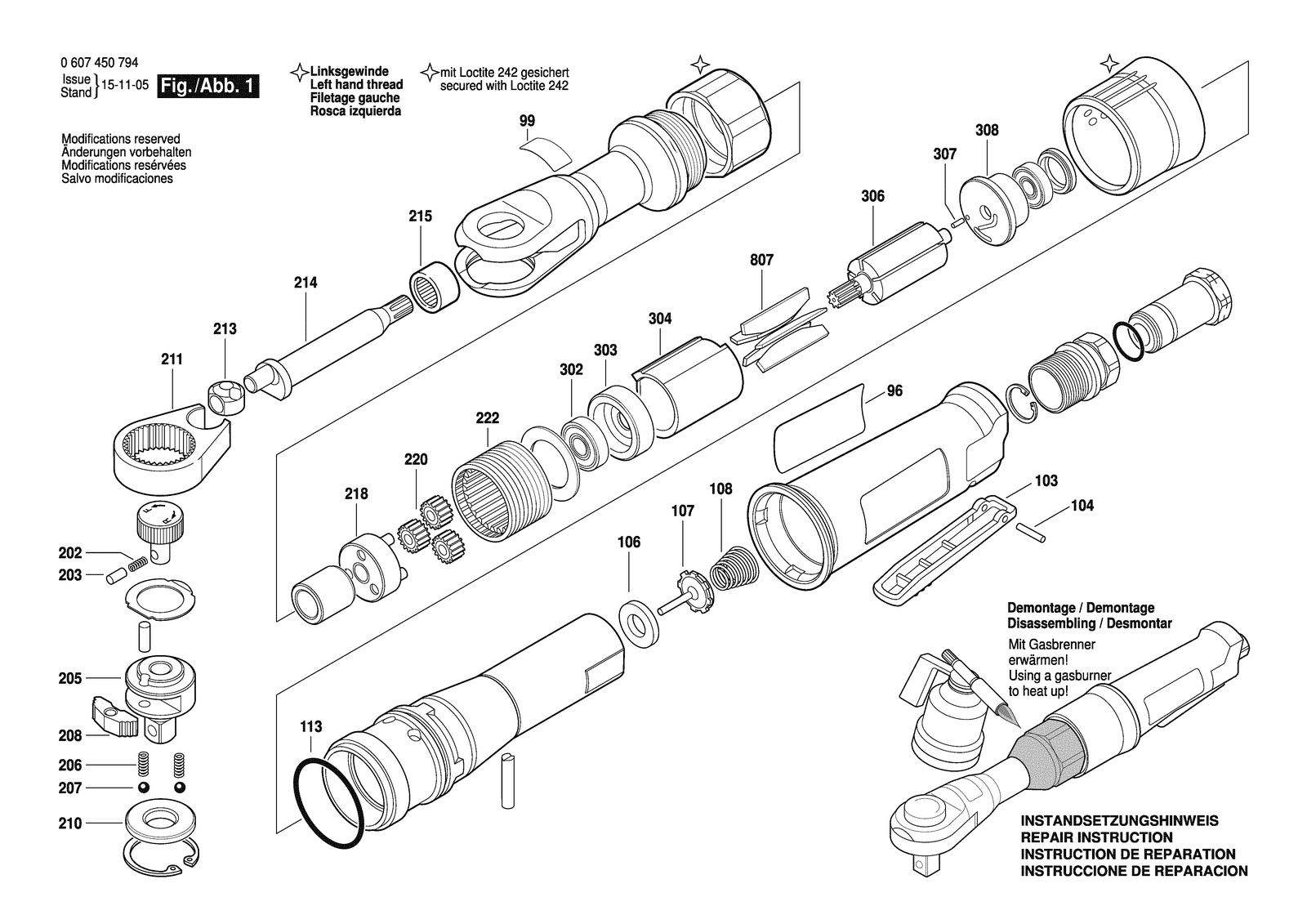

Bosch 1/2" RATSCHE nutrunner: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1/2" RATSCHE: 31 positions on 1 sheet
Bosch 1/2" RATSCHE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 103 | 3609202A65 | Lever |
| 104 | 3609202A86 | Dowel pin |
| 106 | 3609202A75 | Seal |
| 107 | 3609202A54 | Tappet |
| 108 | 3609202A56 | Spring |
| 113 | 3609202A88 | O-Ring |
| 202 | 1619PA9726 | Spring |
| 203 | 1619PA9727 | Pin |
| 205 | 3609202A80 | Spindle |
| 205 | 3609202A94 | Spindle |
| 206 | 3609202B92 | Compression Spring |
| 207 | 3603230016 | Ball |
| 208 | 3609202A81 | Camshaft |
| 210 | 3609202A83 | Spring retaining ring |
| 210 | 3609202A95 | Spring retaining ring |
| 211 | 3609202A79 | Swivelling Lever |
| 213 | 3609202A78 | Drive Element |
| 214 | 3609202A82 | Switch-Pawl |
| 215 | 3609202A93 | Needle-Roller Bearing |
| 218 | 3609202A55 | Housing |
| 220 | 3609202A77 | Toothed Gear |
| 222 | 3609202A76 | Ring Gear |
| 302 | 3609202946 | Ball Bearing |
| 303 | 3609202A67 | Housing Cover |
| 304 | 3609202A72 | Stator |
| 306 | 3609202A70 | Rotor |
| 307 | 3609202A85 | Dowel pin |
| 308 | 3609202A74 | Connection plate |
| 807 | 3609202A11 | Set Of Clutch Plates |
| 96 | 3609202A09 | Nameplate |
| 99 | 3601110562 | Sticker |
