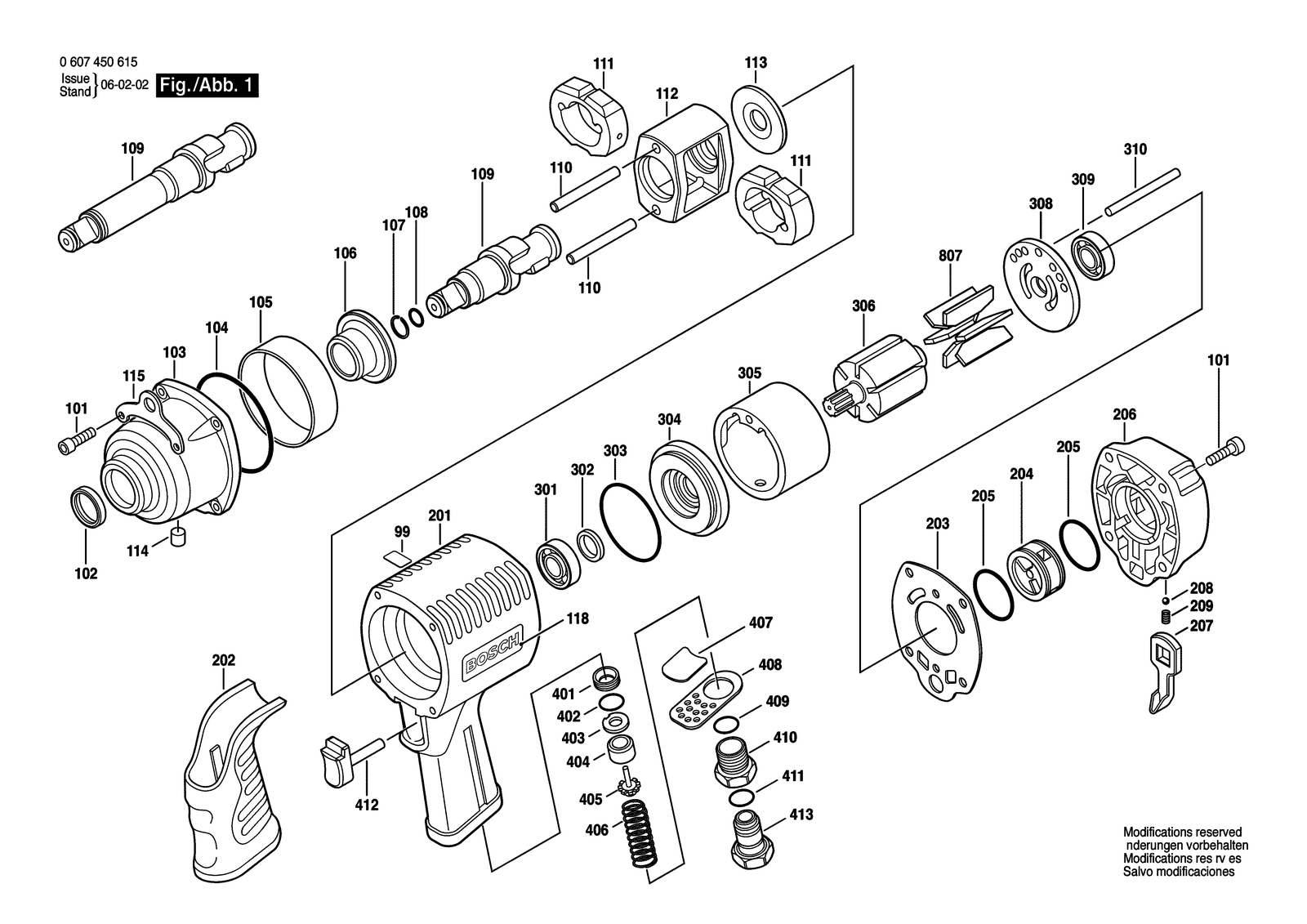

Bosch 1/2" P impact wrench: exploded parts diagram, 1 sheet, 100 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1/2" P: 100 positions on 1 sheet
Bosch 1/2" P parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 3609202916 | Socket head cap screw |
| 101 | 3609202916 | Socket head cap screw |
| 102 | 3609202952 | Shaft Seal |
| 102 | 3609202952 | Shaft Seal |
| 103 | 3609202902 | Grinding Glass |
| 103 | 3609202994 | Grinding Glass |
| 104 | 3609202935 | O-Ring |
| 104 | 3609202935 | O-Ring |
| 105 | 3609202862 | Sleeve |
| 105 | 3609202862 | Sleeve |
| 106 | 3609202870 | Bushing |
| 106 | 3609202870 | Bushing |
| 107 | 3609202921 | Retaining ring |
| 107 | 3609202921 | Retaining ring |
| 108 | 3609202930 | O-Ring |
| 108 | 3609202930 | O-Ring |
| 109 | 3609202857 | Striker Spindle |
| 109 | 3609202957 | Striker Spindle |
| 109 | 3609202857 | Striker Spindle |
| 110 | 3609202850 | Guide Pin |
| 110 | 3609202850 | Guide Pin |
| 111 | 3609202854 | Hammer Piston |
| 111 | 3609202854 | Hammer Piston |
| 112 | 3609202860 | Cage |
| 112 | 3609202860 | Cage |
| 113 | 3609202907 | Plain Washer |
| 113 | 3609202907 | Plain Washer |
| 114 | 3609202919 | Stud |
| 114 | 3609202919 | Stud |
| 115 | 3609202912 | Suspension Loop |
| 115 | 3609202912 | Suspension Loop |
| 118 | 3609202961 | Nameplate |
| 118 | 3609202963 | Nameplate |
| 118 | 3609202997 | Nameplate |
| 201 | 3609202842 | Housing |
| 201 | 3609202995 | Housing |
| 202 | 3609202880 | Handle |
| 202 | 3609202880 | Handle |
| 203 | 3609202883 | Seal |
| 203 | 3609202883 | Seal |
| 204 | 3609202876 | Change-Over Switch |
| 204 | 3609202876 | Change-Over Switch |
| 205 | 3609202938 | O-Ring |
| 205 | 3609202938 | O-Ring |
| 206 | 3609202836 | Housing Cover |
| 206 | 3609202996 | Housing Cover |
| 207 | 3609202878 | Lever |
| 207 | 3609202878 | Lever |
| 208 | 3609202928 | Ball |
| 208 | 3609202928 | Ball |
| 209 | 3609202866 | Spring |
| 209 | 3609202866 | Spring |
| 301 | 3609202949 | Ball Bearing |
| 301 | 3609202949 | Ball Bearing |
| 302 | 3609202955 | Seal Ring |
| 302 | 3609202955 | Seal Ring |
| 303 | 3609202934 | O-Ring |
| 303 | 3609202934 | O-Ring |
| 304 | 3609202887 | Housing Cover |
| 304 | 3609202887 | Housing Cover |
| 305 | 3609202896 | Stator |
| 305 | 3609202896 | Stator |
| 306 | 3609202890 | Rotor |
| 306 | 3609202890 | Rotor |
| 308 | 3609202899 | Bearing cover |
| 308 | 3609202899 | Bearing cover |
| 309 | 3609202948 | Ball Bearing |
| 309 | 3609202948 | Ball Bearing |
| 310 | 3609202851 | Dowel pin |
| 310 | 3609202851 | Dowel pin |
| 401 | 3609202869 | Bushing |
| 401 | 3609202869 | Bushing |
| 402 | 3609202932 | O-Ring |
| 402 | 3609202932 | O-Ring |
| 403 | 3609202904 | Seal |
| 403 | 3609202904 | Seal |
| 404 | 3609202871 | Bushing |
| 404 | 3609202871 | Bushing |
| 405 | 3609202840 | Tappet |
| 405 | 3609202840 | Tappet |
| 406 | 3609202844 | Valve Spring |
| 406 | 3609202844 | Valve Spring |
| 407 | 3609202978 | Silencer |
| 407 | 3609202978 | Silencer |
| 408 | 3609202908 | Deflector |
| 408 | 3609202908 | Deflector |
| 409 | 3609202976 | Ring |
| 409 | 3609202976 | Ring |
| 410 | 3609202977 | Fitting |
| 410 | 3609202977 | Fitting |
| 411 | 3609202945 | O-Ring |
| 411 | 3609202945 | O-Ring |
| 412 | 3609202838 | Tappet |
| 412 | 3609202838 | Tappet |
| 413 | 3609202846 | Fitting |
| 413 | 3609202846 | Fitting |
| 807 | 3609202A02 | Set Of Clutch Plates |
| 807 | 3609202A02 | Set Of Clutch Plates |
| 99 | 3601110562 | Sticker |
| 99 | 3601119236 | Reference Plate |
