Bosch 1/2"

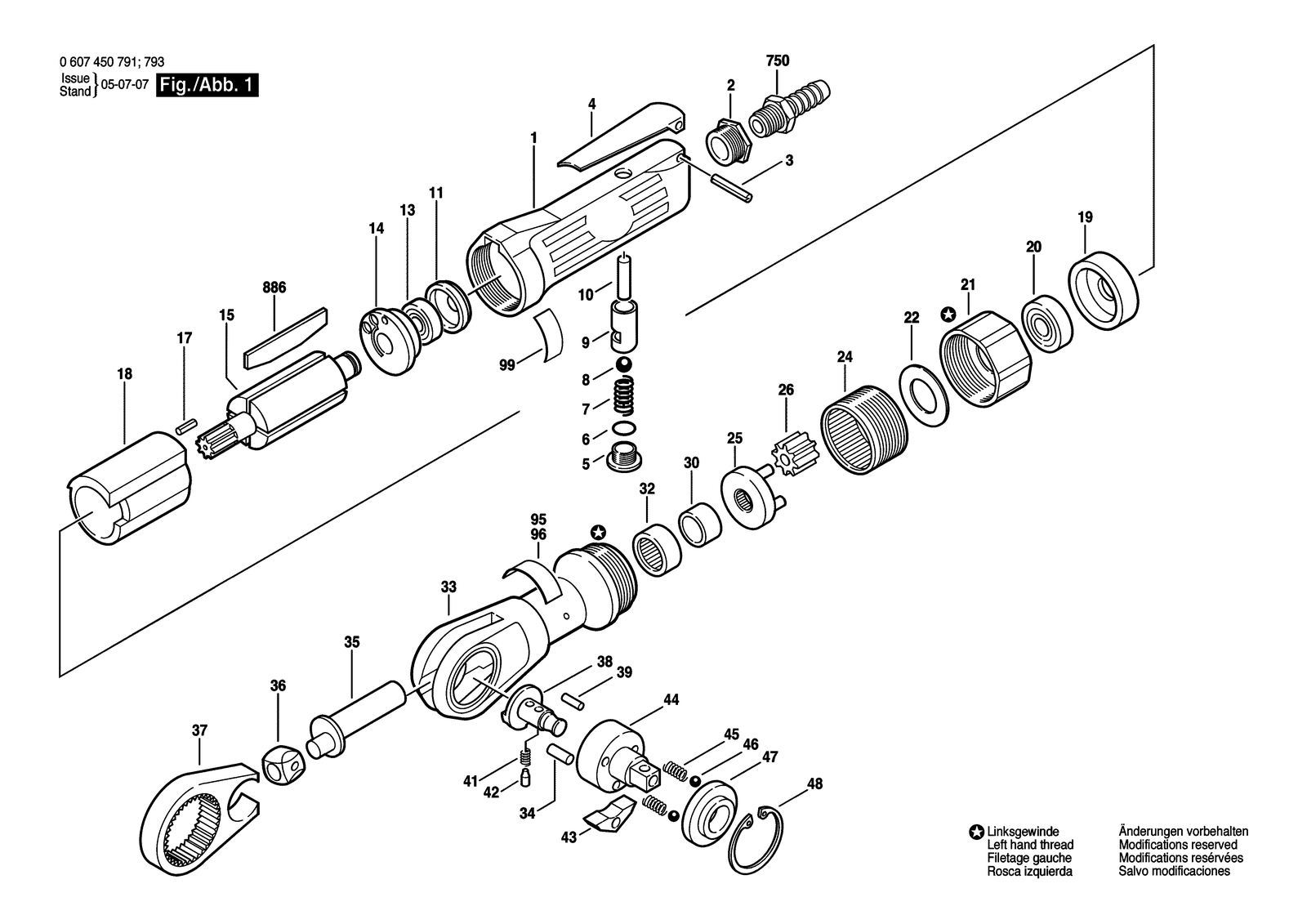

Bosch 1/2" nutrunner: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1/2": 45 positions on 1 sheet
Bosch 1/2" parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609302046 | Motor Housing |
| 10 | 1609302055 | Straight Pin |
| 11 | 1609302063 | Sealing cap |
| 13 | 1609302056 | Groove ball bearing |
| 14 | 3609202308 | Cover |
| 15 | 3609202309 | Rotor |
| 17 | 1609302060 | Slotted Spring Pin |
| 18 | 1609302061 | Stator |
| 19 | 3609202311 | Cover |
| 2 | 1609302047 | Fitting |
| 20 | 3609202312 | Ball Bearing |
| 21 | 1609302064 | Connecting Nut |
| 22 | 1609302065 | Shim washer |
| 24 | 1609302066 | Ring Gear |
| 25 | 3609202313 | Support |
| 26 | 3609202314 | Toothed Gear |
| 3 | 1609302048 | Slotted Spring Pin |
| 30 | 3609202315 | Guide Sleeve |
| 32 | 1609302072 | Needle-Roller Bearing |
| 33 | 3609202316 | Housing |
| 34 | 1609302074 | Straight Pin Ø 4X12,7 MM |
| 35 | 3609202317 | Camshaft |
| 36 | 1609302076 | Drive Element |
| 37 | 1609302077 | Swivelling Lever |
| 38 | 3609202318 | Changeover Lever |
| 39 | 3609202319 | Pin |
| 4 | 3609202306 | Control Lever |
| 41 | 1609302089 | Compression Spring |
| 42 | 1609302082 | Pressure Spindle |
| 43 | 1609302083 | Switch-Pawl |
| 44 | 3609202320 | Spindle |
| 45 | 1609302085 | Compression Spring |
| 46 | 1609302086 | Ball |
| 47 | 3609202321 | Sleeve |
| 48 | 1609302088 | Spring retaining ring |
| 5 | 1609302050 | Screw Plug |
| 6 | 1609302051 | O-Ring |
| 7 | 1609302052 | Compression Spring |
| 750 | 3609201095 | Hose fitting |
| 8 | 3609202307 | Ball |
| 886 | 3607030322 | Assembly Of Service Parts 4 Piece |
| 9 | 1609302054 | Valve Bushing |
| 95 | 1601106017 | Nameplate |
| 96 | 3609202748 | Nameplate |
| 99 | 3601119236 | Reference Plate |
